P/N: 7016-0065

2.4mm Male to SMPM Female R/A 12" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 14
Digi-Key Electronics 7
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Gender 2 Jack (Female)
RF Series 2 SMPM
Orientation 2 (Body) Right Angle
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Gender 2 Jack (Female)
RF Series 2 SMPM
Orientation 2 (Body) Right Angle
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7016-0066

2.4mm Male to SMPM Female R/A 6" Cable Assembly for .085 Cable

Available Inventory: 36
7016-0066
2.4mm Cable Assemblies 7016-0066
Datasheet
Part #   7016-0067

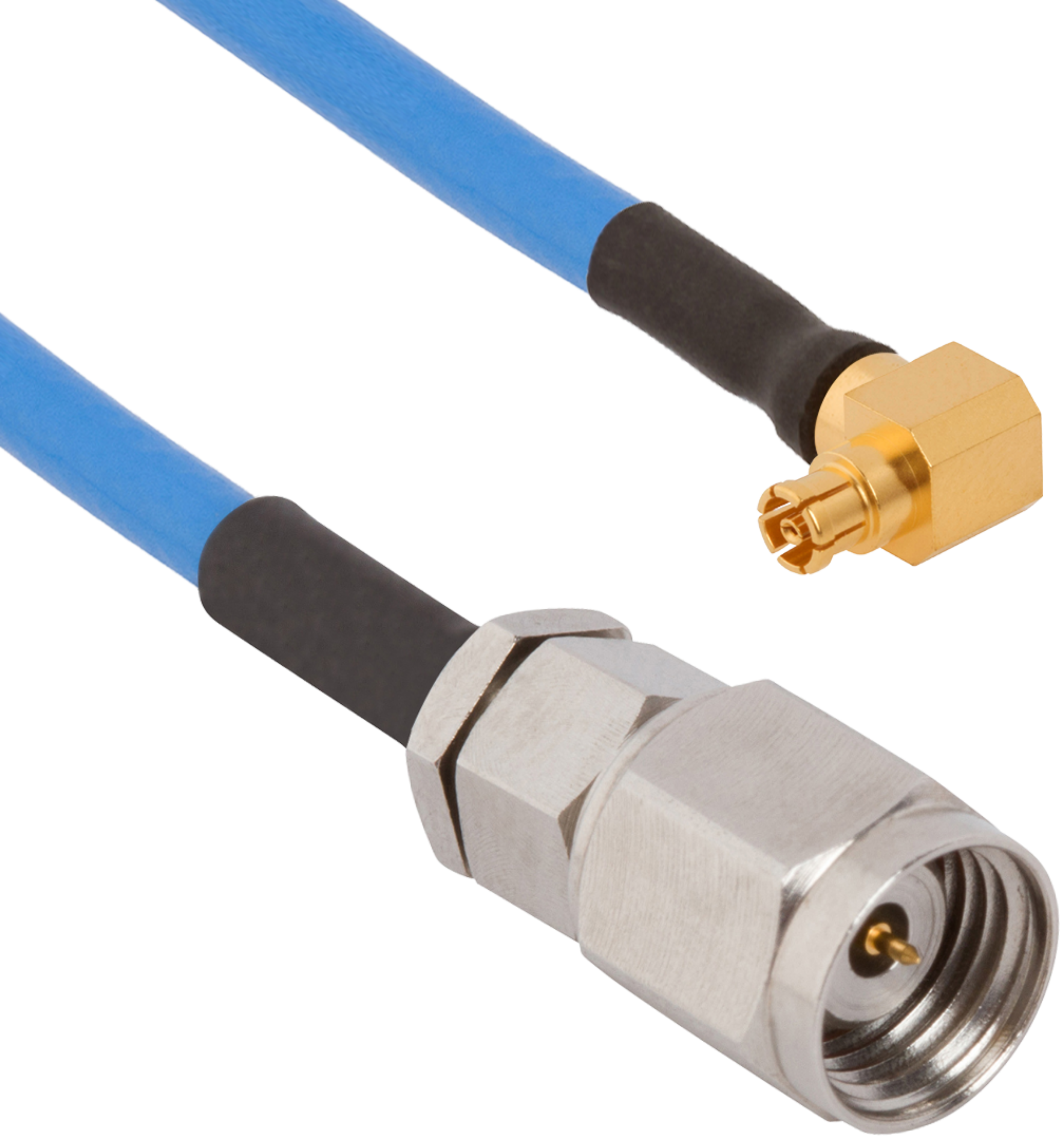

2.4mm Male to SMPM Female R/A 12" Cable Assembly for .085 Cable

Available Inventory: 40
7016-0067
2.4mm Cable Assemblies 7016-0067
Datasheet
Part #   7016-0064

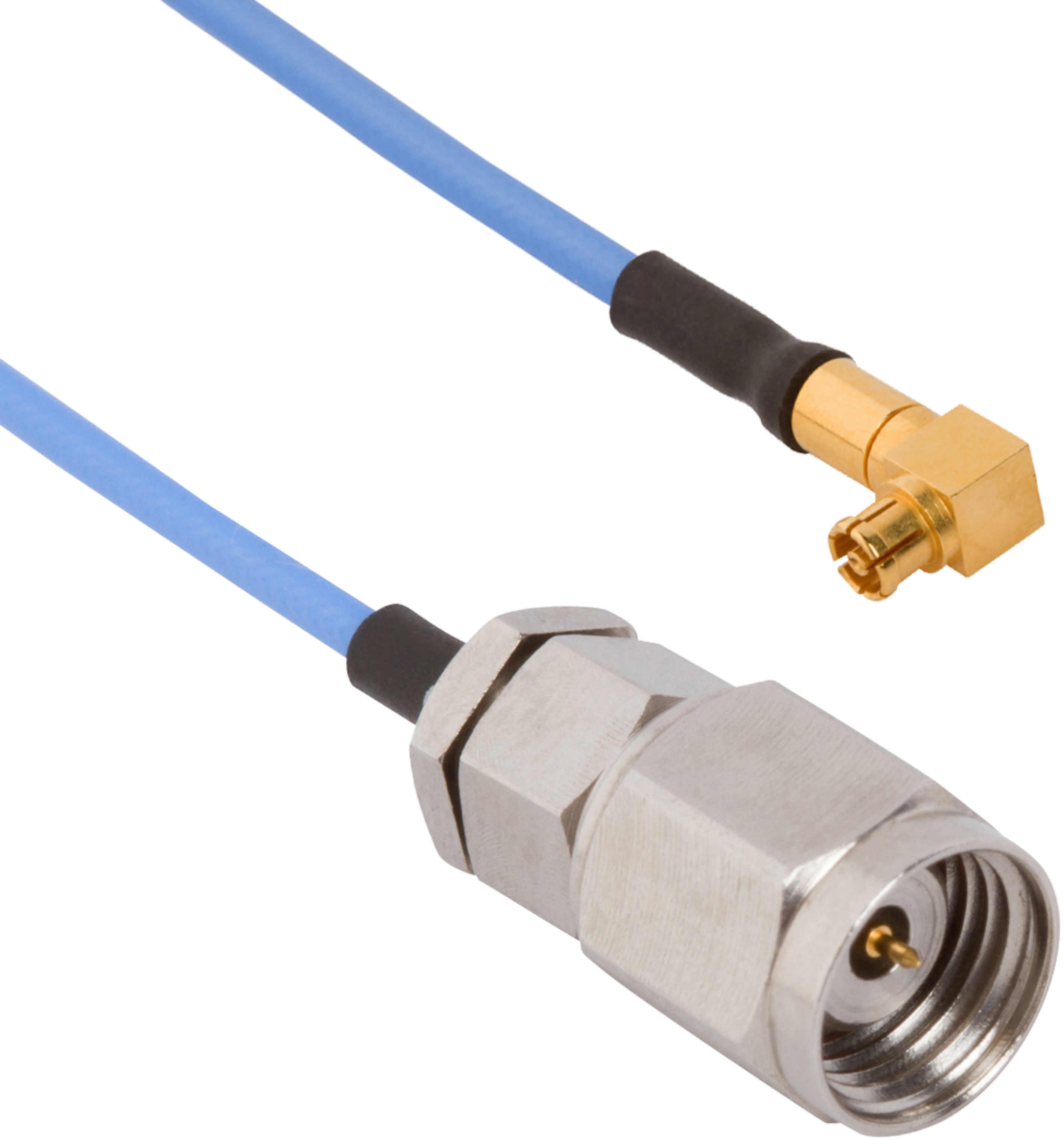

2.4mm Male to SMPM Female R/A 6" Cable Assembly for .047 Cable
