P/N: 7016-0064

2.4mm Male to SMPM Female R/A 6" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 25
Digi-Key Electronics 25
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Frequency 40 GHz
Impedance 50 ohms
Termination Style Solder
RF Series 2 SMPM
Orientation 2 (Body) Right Angle
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Temperature Rating -65°C to +165°C
Inter-mate ability 1.85mm
Mating Torque 5 - 7 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Frequency 40 GHz
Impedance 50 ohms
Termination Style Solder
RF Series 2 SMPM
Orientation 2 (Body) Right Angle
Gender 2 Jack (Female)
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Temperature Rating -65°C to +165°C
Inter-mate ability 1.85mm
Mating Torque 5 - 7 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

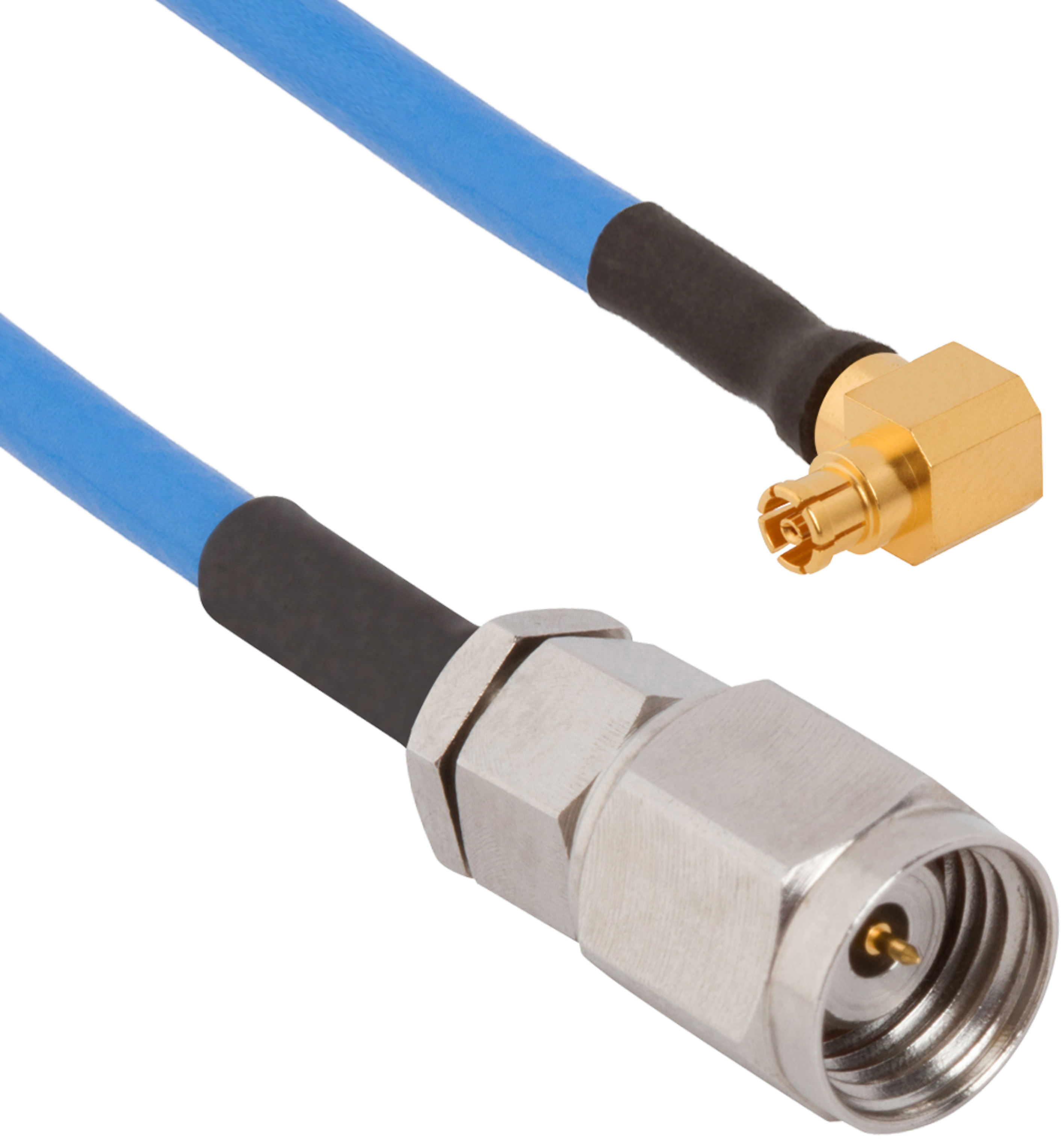

Part #   7016-0066

2.4mm Male to SMPM Female R/A 6" Cable Assembly for .085 Cable

Available Inventory: 36
7016-0066
2.4mm Cable Assemblies 7016-0066
Datasheet
Part #   7016-0067

2.4mm Male to SMPM Female R/A 12" Cable Assembly for .085 Cable

Available Inventory: 40
7016-0067
2.4mm Cable Assemblies 7016-0067
Datasheet

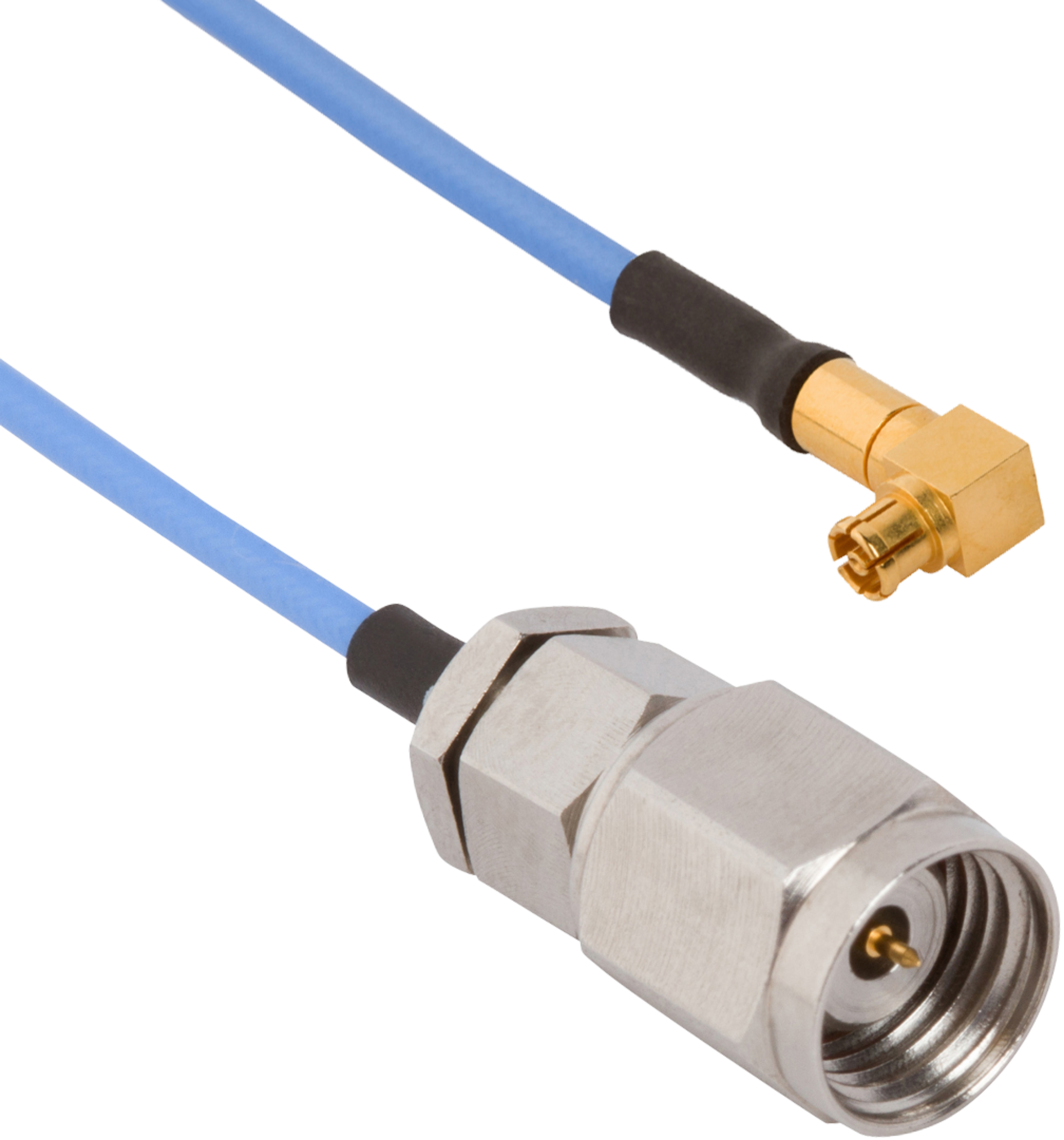

Part #   7016-0065
