P/N: 7016-0075

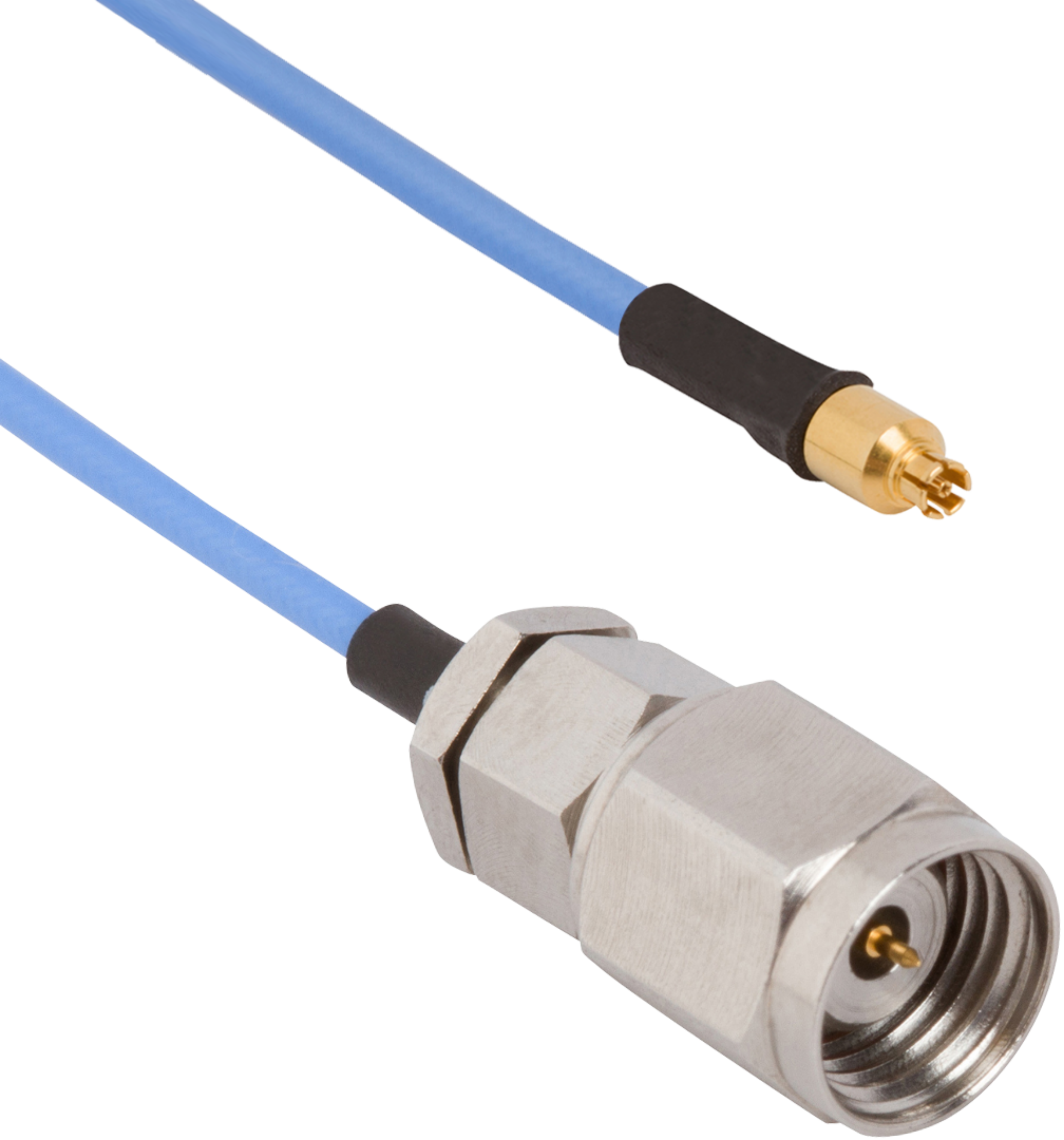

2.4mm Male to SMPS Female 12" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 24
Digi-Key Electronics 14
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Orientation (Body) Straight
Frequency 50 GHz
Impedance 50 ohms
RF Series 2 SMPS
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 1.85mm
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Orientation (Body) Straight
Frequency 50 GHz
Impedance 50 ohms
RF Series 2 SMPS
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 1.85mm
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   7016-0072

2.4mm Male to SMPS Female R/A 6" Cable Assembly for .047 Cable

Available Inventory: 25
7016-0072
2.4mm Cable Assemblies 7016-0072
Datasheet
Part #   7016-0073

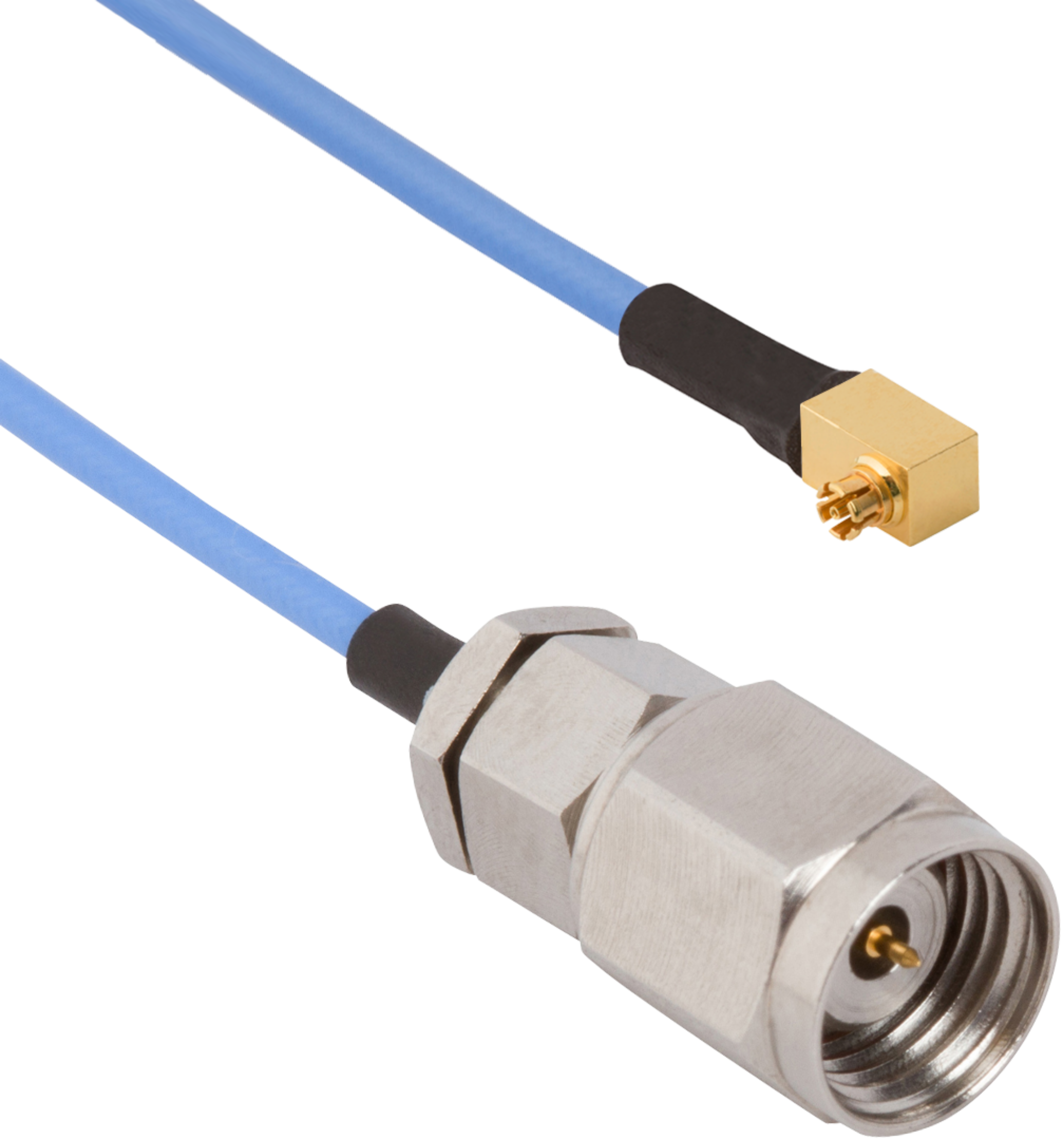

2.4mm Male to SMPS Female R/A 12" Cable Assembly for .047 Cable
