P/N: SF1521-60045

2.92mm Female Bulkhead Connector for .047 Cable

In stock at Qty Order
Mouser Electronics 59
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Number of Ports Single
Frequency 40 GHz
Termination Style Solder
Impedance 50 ohms
Cable Type 0.047 Flexible Coax
Finish Passivated
Cable Builder Attributes
Cable Builder Left Image 25873
Cable Builder Right Image 25874
Mating Connector SF1511-60069, SF1511-60071
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Number of Ports Single
Frequency 40 GHz
Termination Style Solder
Impedance 50 ohms
Cable Type 0.047 Flexible Coax
Finish Passivated
Cable Builder Attributes
Cable Builder Left Image 25873
Cable Builder Right Image 25874
Mating Connector SF1511-60069, SF1511-60071
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1521-60042

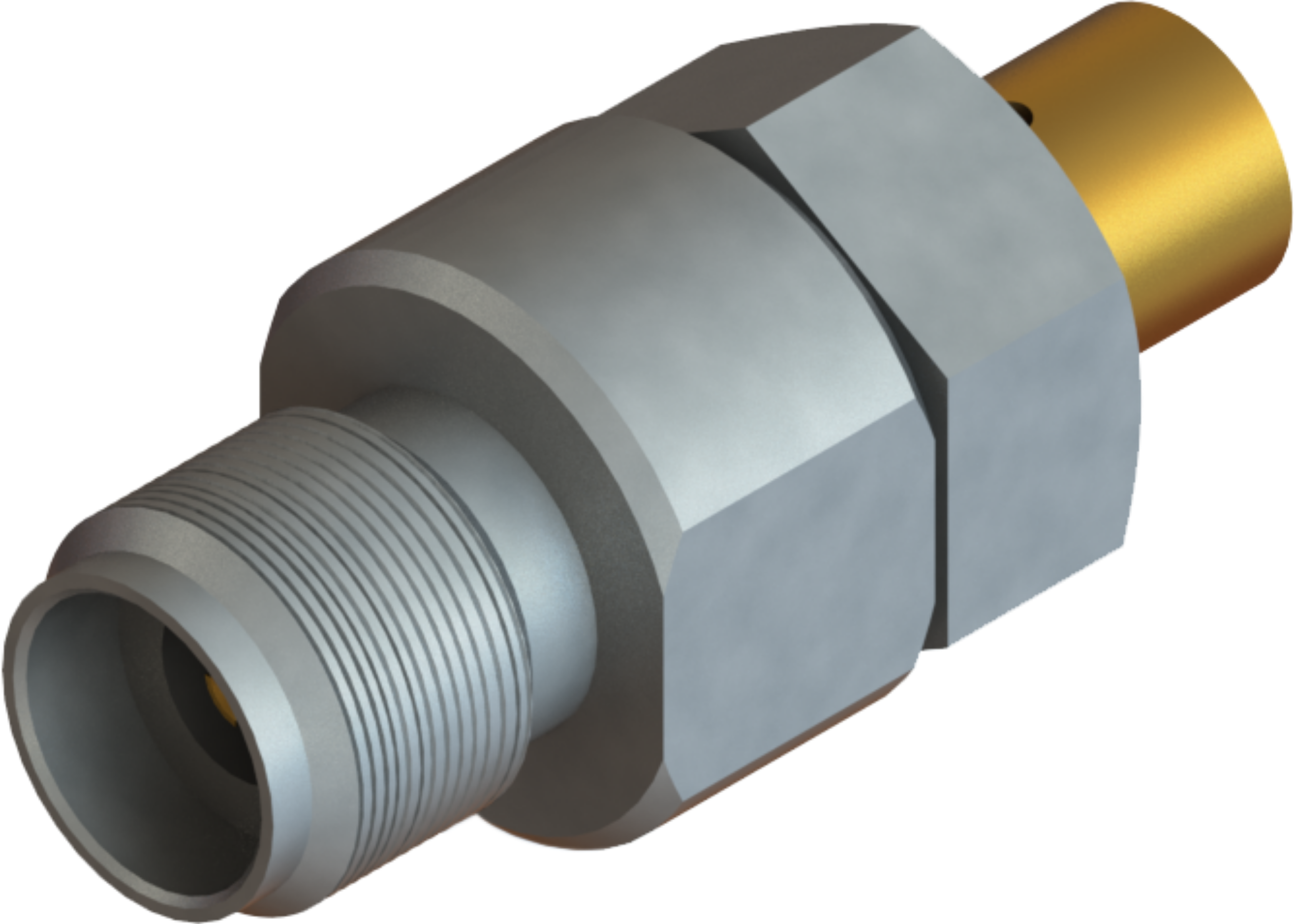

2.92mm Female Connector for .141 Cable

Available Inventory: 0
SF1521-60042
2.92mm Connectors SF1521-60042
Datasheet
Part #   SF1521-60044

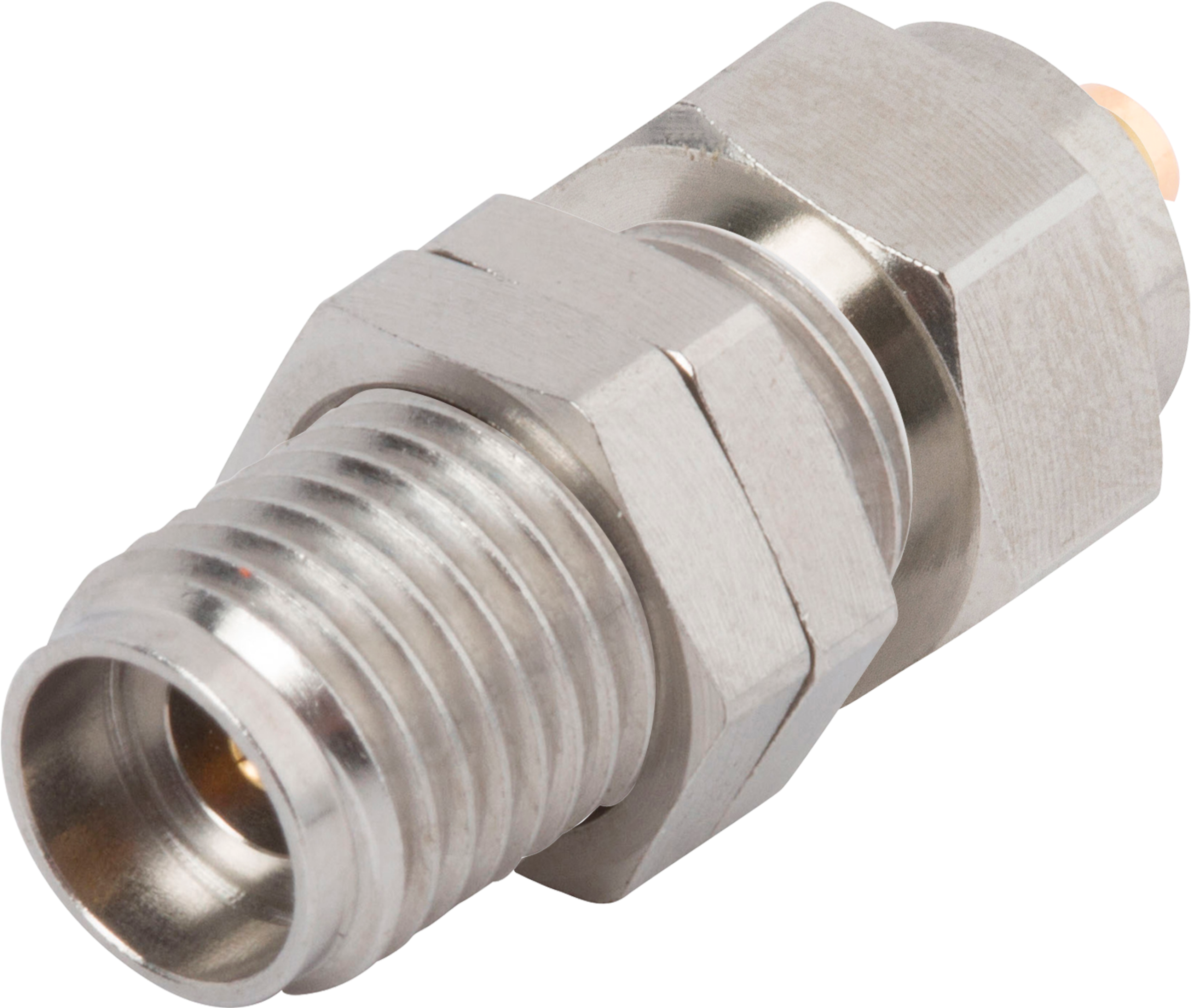

2.92mm Female Bulkhead Connector for .141 Cable

Available Inventory: 0
SF1521-60044
2.92mm Connectors SF1521-60044
Datasheet
Part #   SF1521-60077

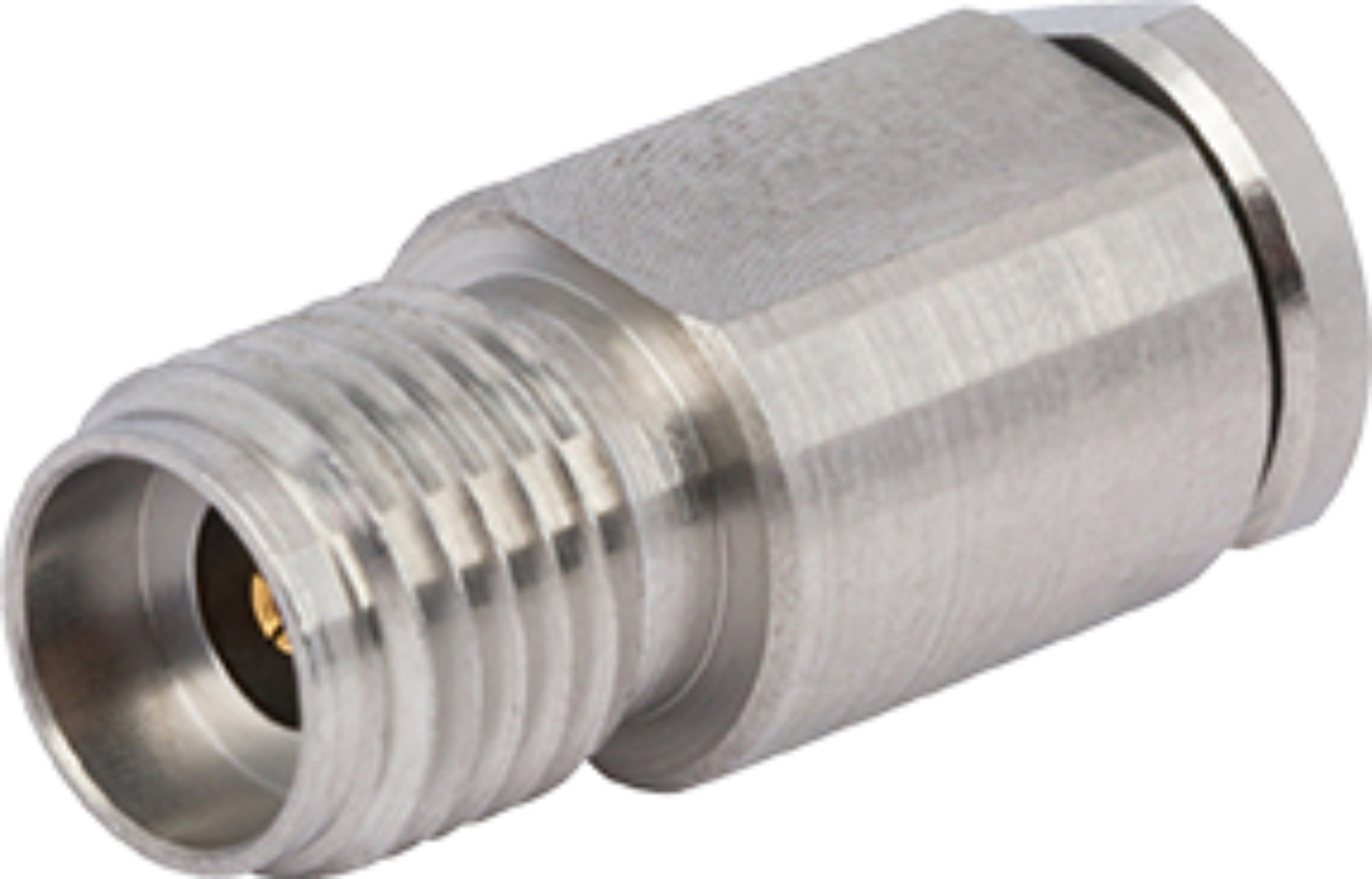

2.92mm Female Connector for .085 Cable
