2.92mm Female Connector for .141 Cable
P/N: SF1521-60042

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Gender Jack (Female)
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Gender Jack (Female)
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1521-60044

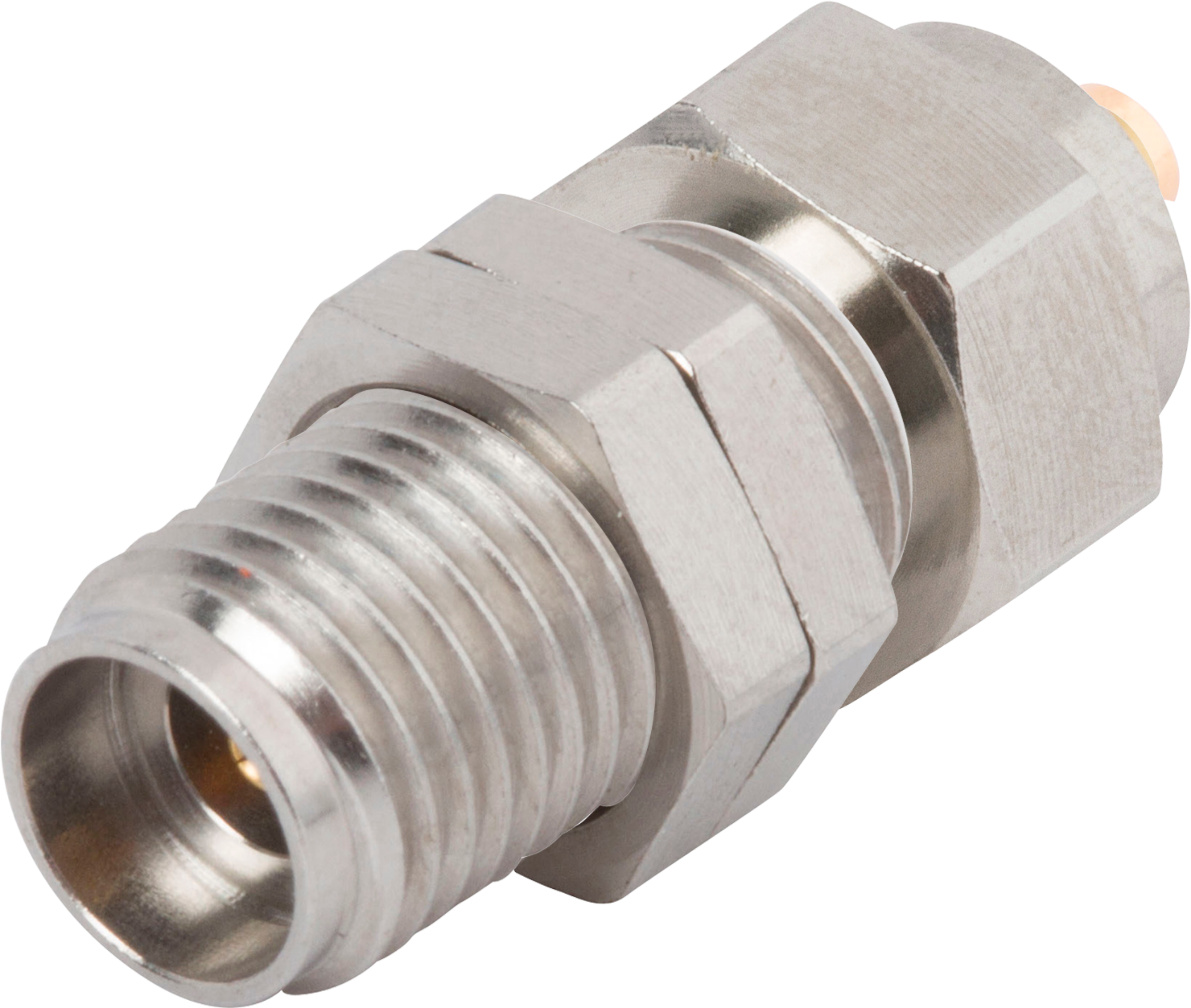

2.92mm Female Bulkhead Connector for .141 Cable

Available Inventory: 0
SF1521-60044
2.92mm Connectors SF1521-60044
Datasheet
Part #   SF1521-60045

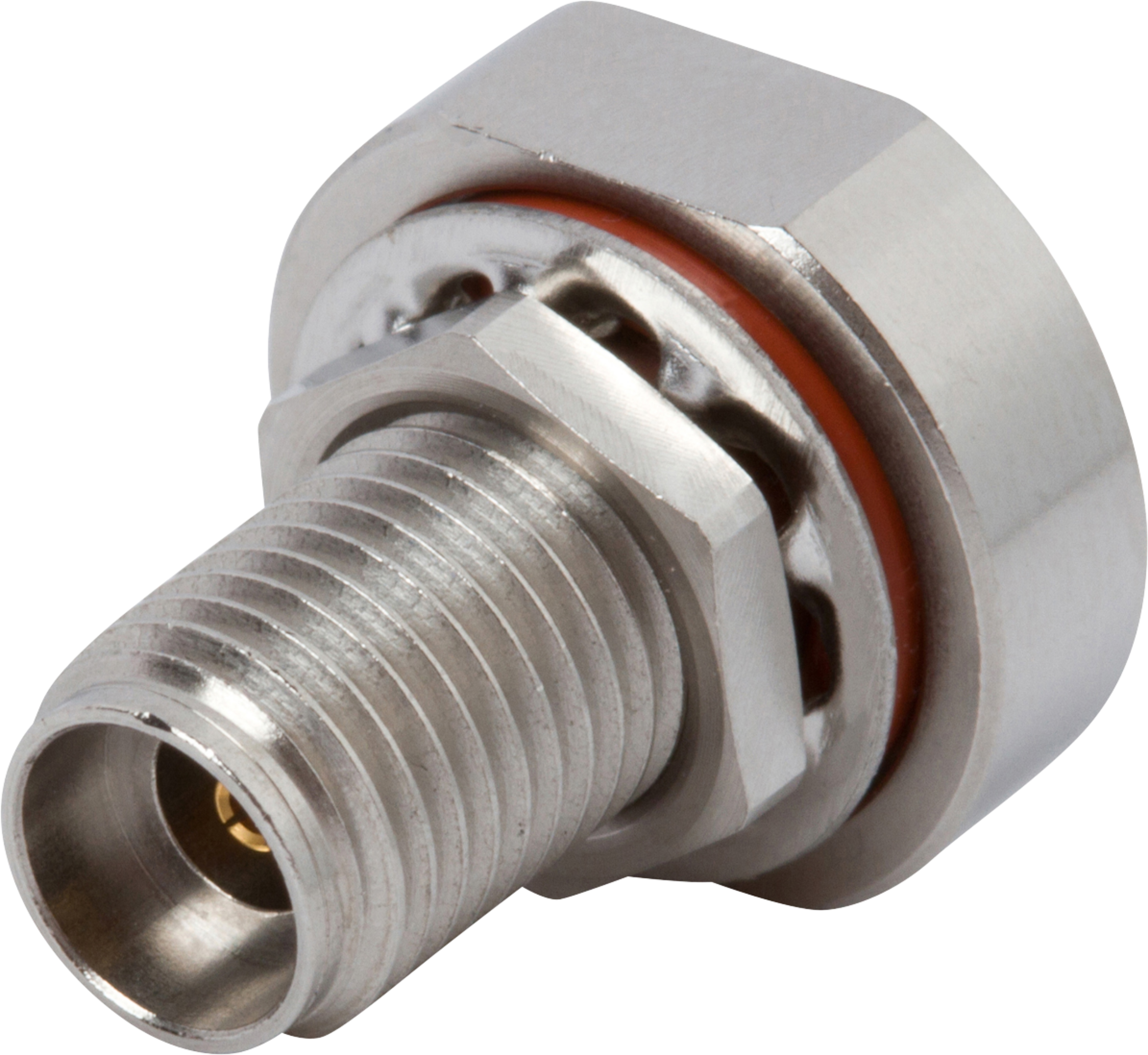

2.92mm Female Bulkhead Connector for .047 Cable

Available Inventory: 126
SF1521-60045
2.92mm Connectors SF1521-60045
Datasheet
Part #   SF1521-60077

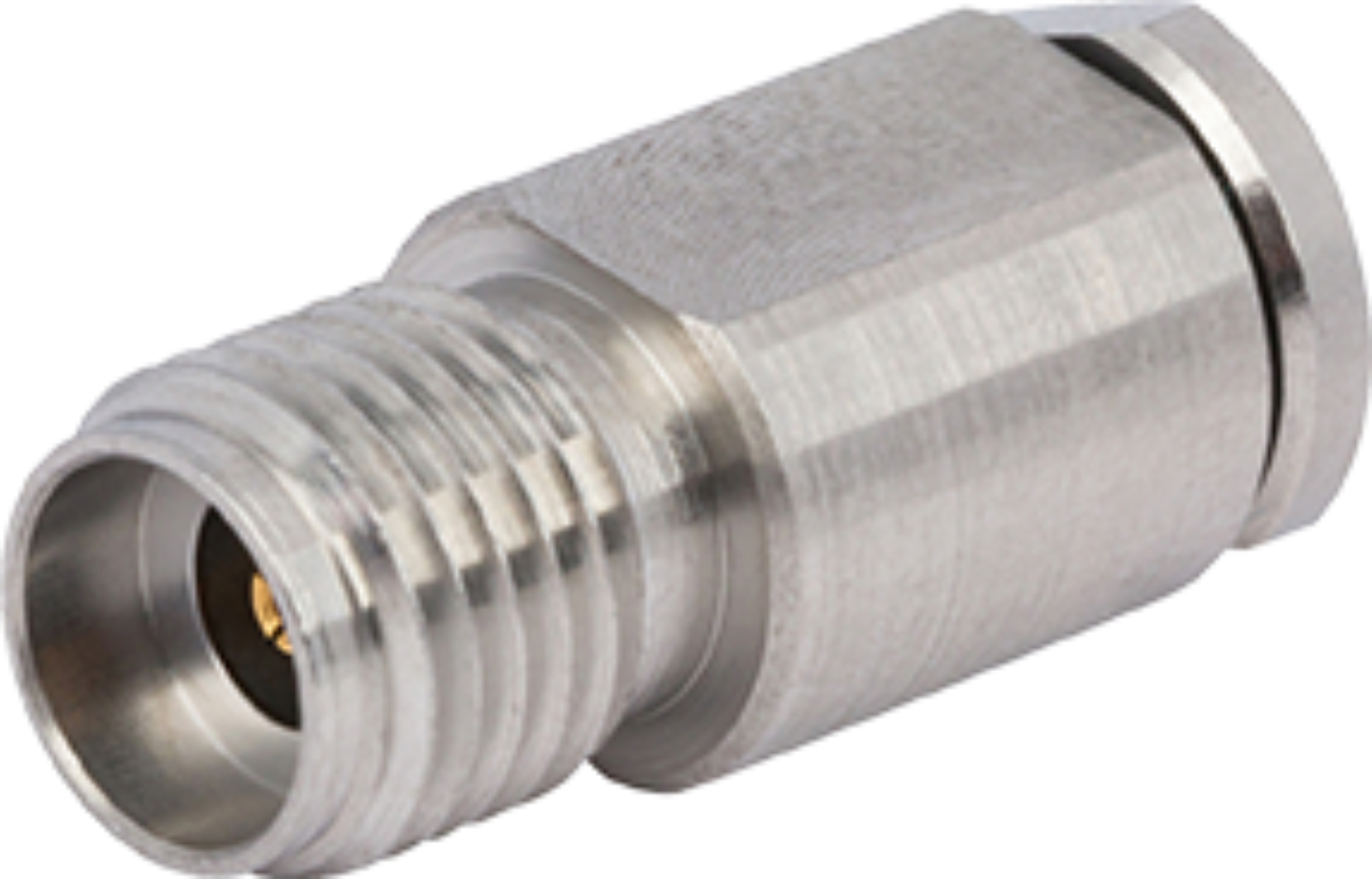

2.92mm Female Connector for .085 Cable
