P/N: 7015-1077

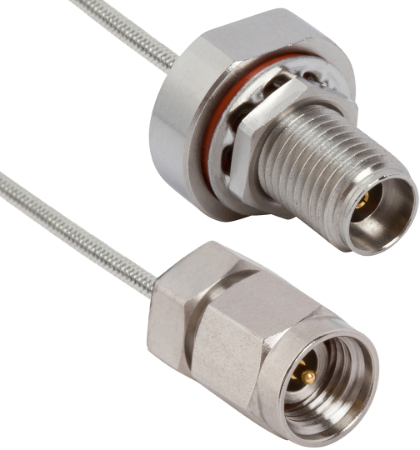

2.92mm Female Bulkhead to 2.92mm Male 6" Cable Assembly for .047 Conformable Cable

In stock at Qty Order
TTI Inc Global Headquarters 25
Mouser Electronics 25
Digi-Key Electronics 25
Farnell 25
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Frequency 40 GHz
Body Style Jamnut/Bulkhead
Mounting Type Panel
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Cable Type 0.047 Conformable Semi-Rigid
Cable Length 6"
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Frequency GHz 40 GHz
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Frequency 40 GHz
Body Style Jamnut/Bulkhead
Mounting Type Panel
Impedance 50 ohms
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Cable Type 0.047 Conformable Semi-Rigid
Cable Length 6"
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Frequency GHz 40 GHz
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
7029-3579

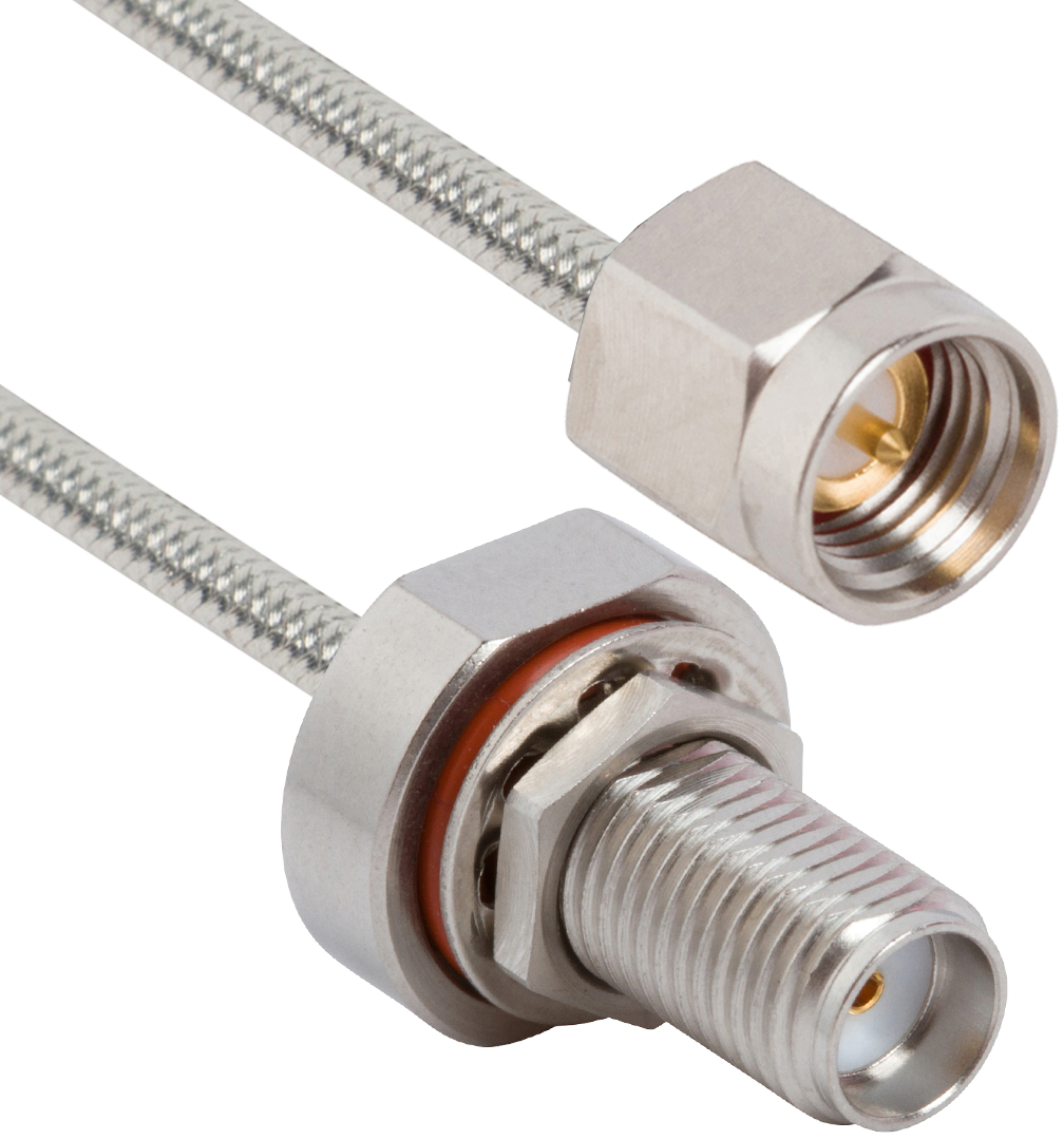

SMA Cable Assemblies 7029-3579
Datasheet
7029-3580

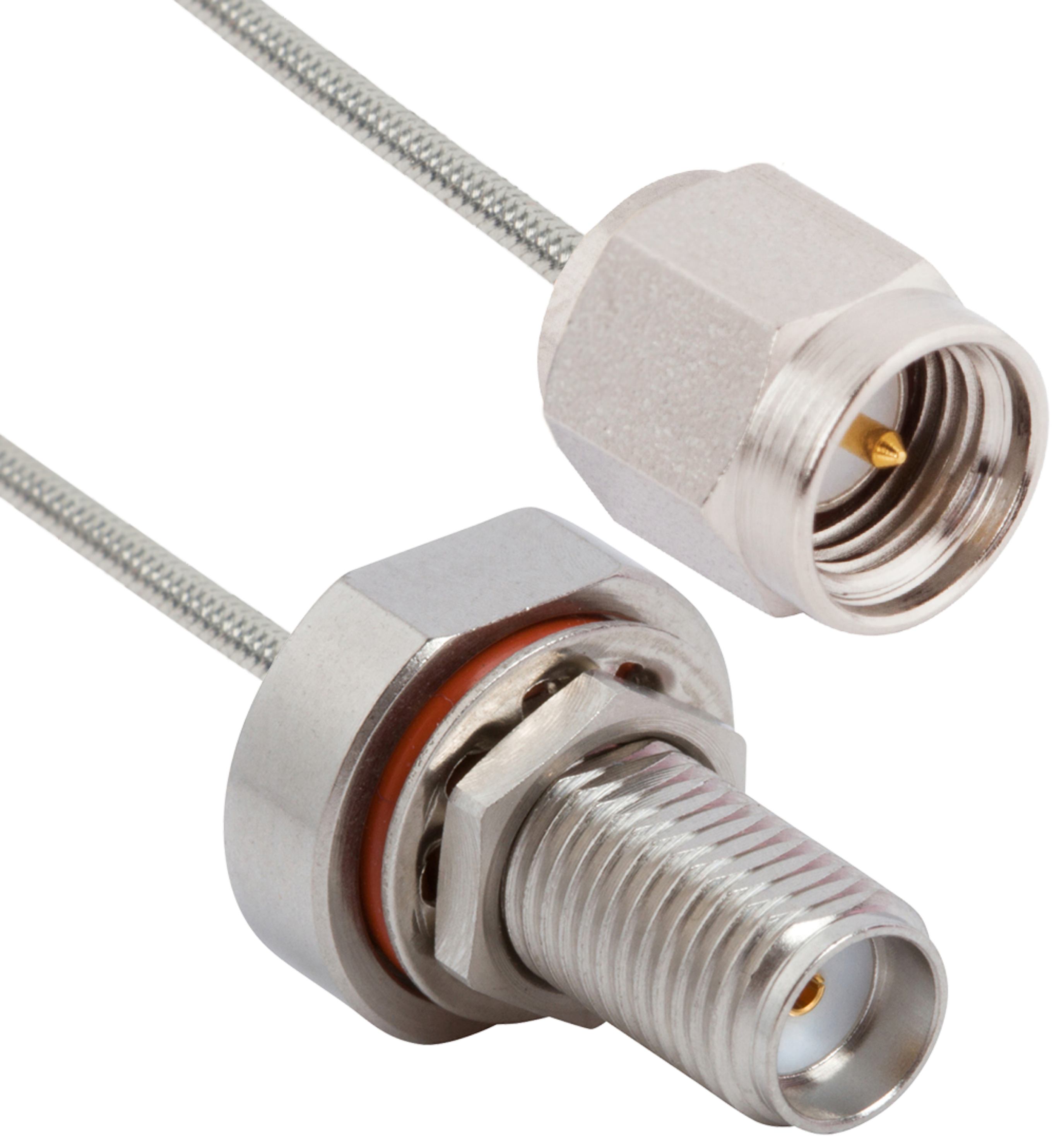

SMA Cable Assemblies 7029-3580
Datasheet
7015-1078

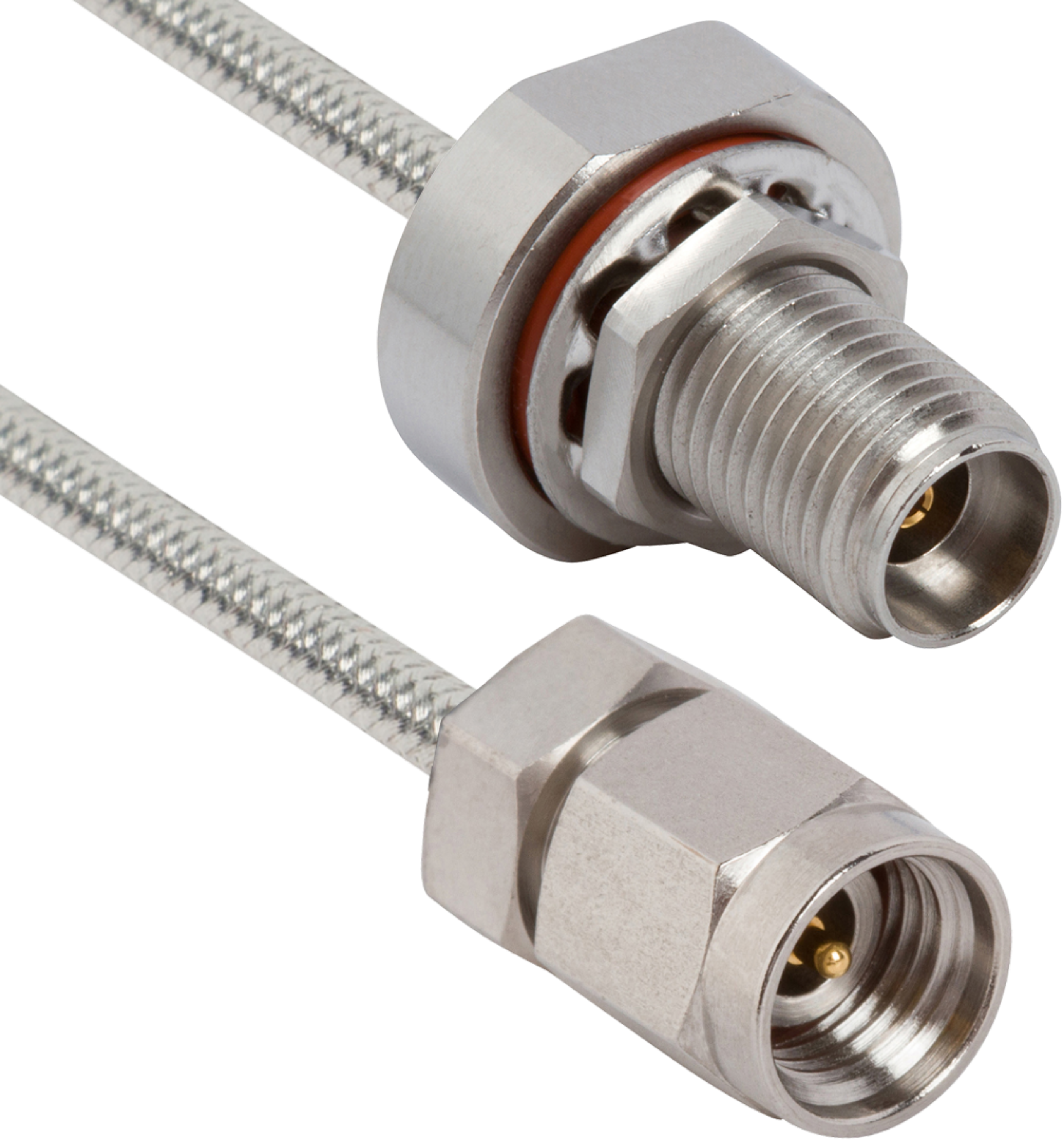

2.92mm Cable Assemblies 7015-1078
