P/N: 7029-3579

SMA Female Bulkhead to SMA Male 6" Cable Assembly for .047 Conformable Cable

In stock at Qty Order
TTI Inc Global Headquarters 25
Mouser Electronics 25
Farnell 25
Digi-Key Electronics 21
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Mounting Type Panel
Frequency 18 GHz
Impedance 50 ohms
Body Style Jamnut/Bulkhead
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.047 Conformable Semi-Rigid
Cable Length 6"
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Mounting Type Panel
Frequency 18 GHz
Impedance 50 ohms
Body Style Jamnut/Bulkhead
RF Series 2 SMA
Gender 2 Plug (Male)
Cable Type 0.047 Conformable Semi-Rigid
Cable Length 6"
Electrical
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

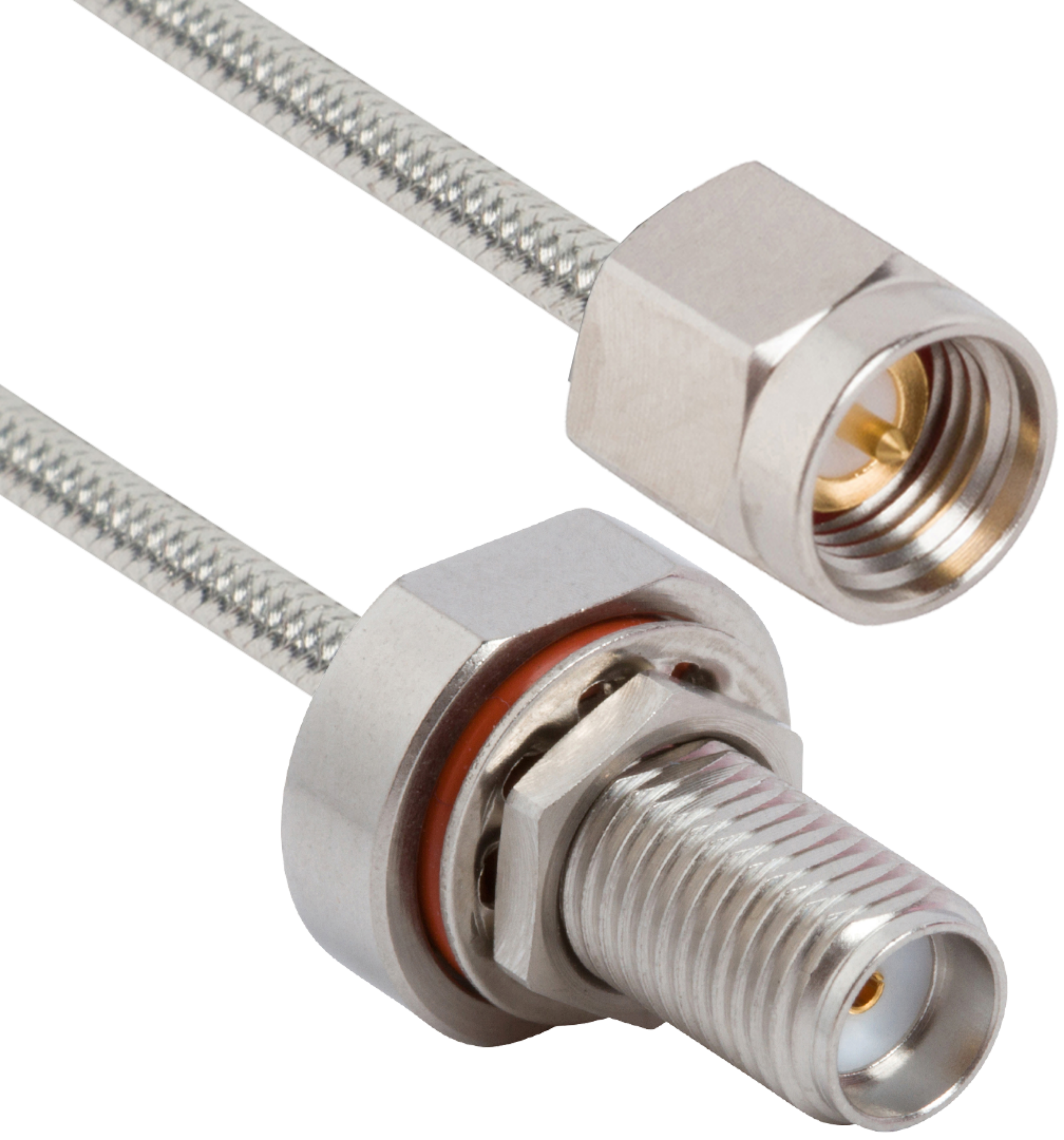

7029-3580
SMA Cable Assemblies 7029-3580
Datasheet

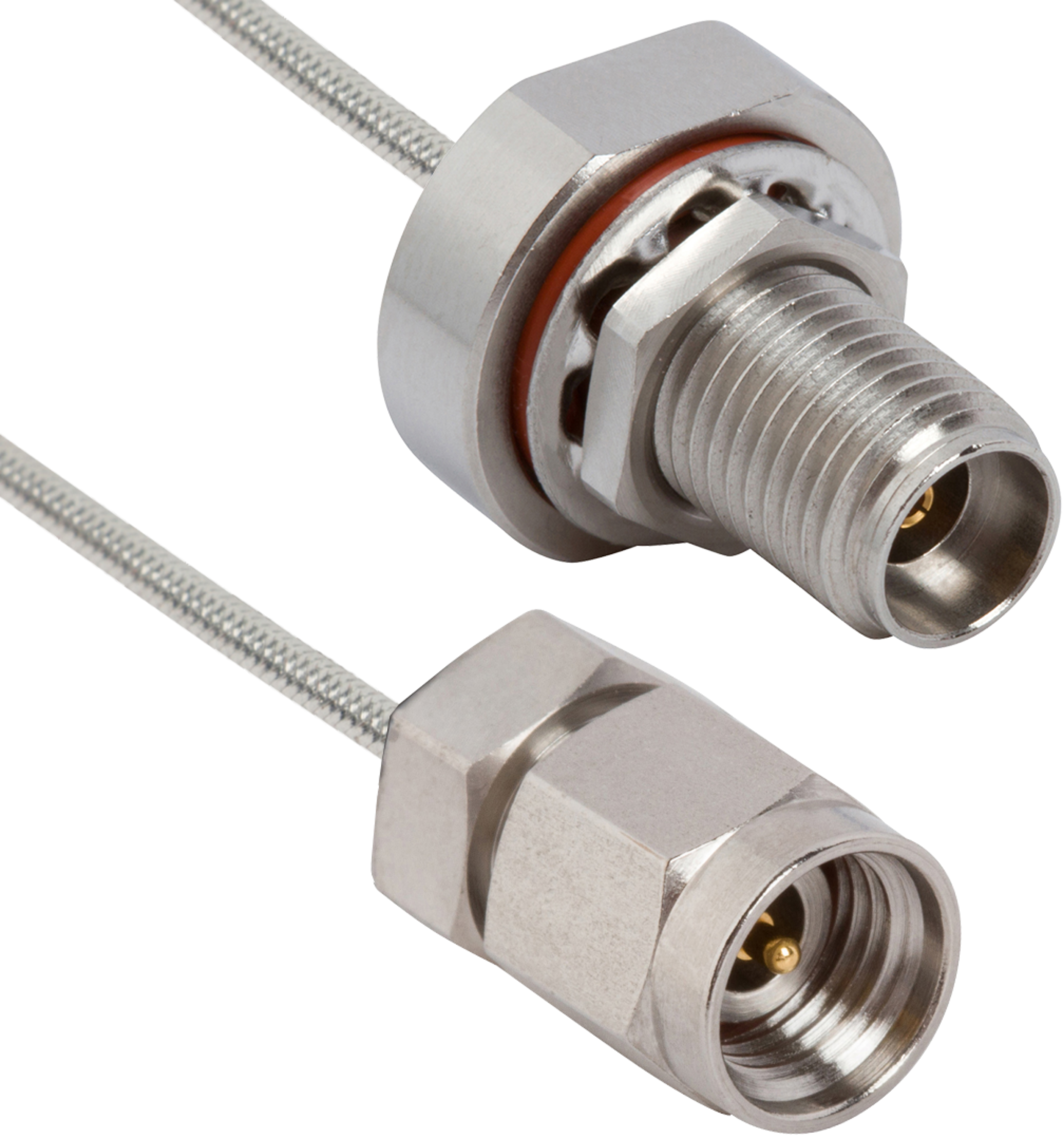

7015-1077
2.92mm Cable Assemblies 7015-1077
Datasheet

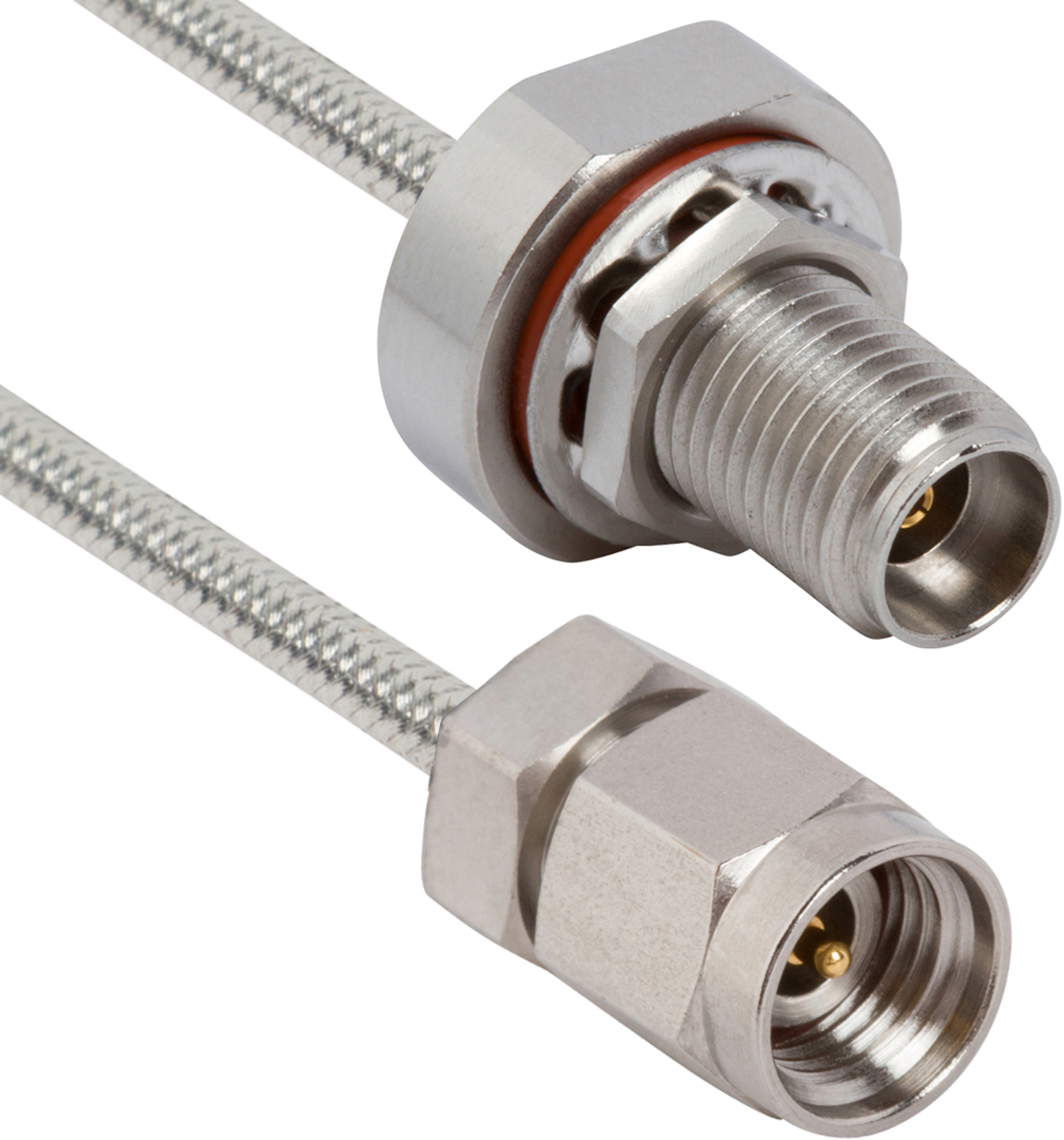

7015-1078
