P/N: 1521-60201

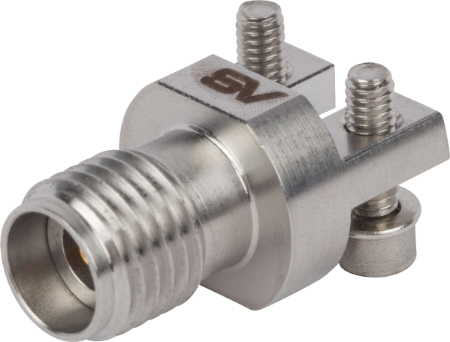

2.92mm Female Solderless PCB Edge Launch Connector, 2 Hole

In stock at Qty Order
Farnell 84
Newark 79
Mouser Electronics 42
Digi-Key Electronics 24
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder-free
Body Style 2 Hole
Frequency 40 GHz
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder-free
Body Style 2 Hole
Frequency 40 GHz
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1511-60111

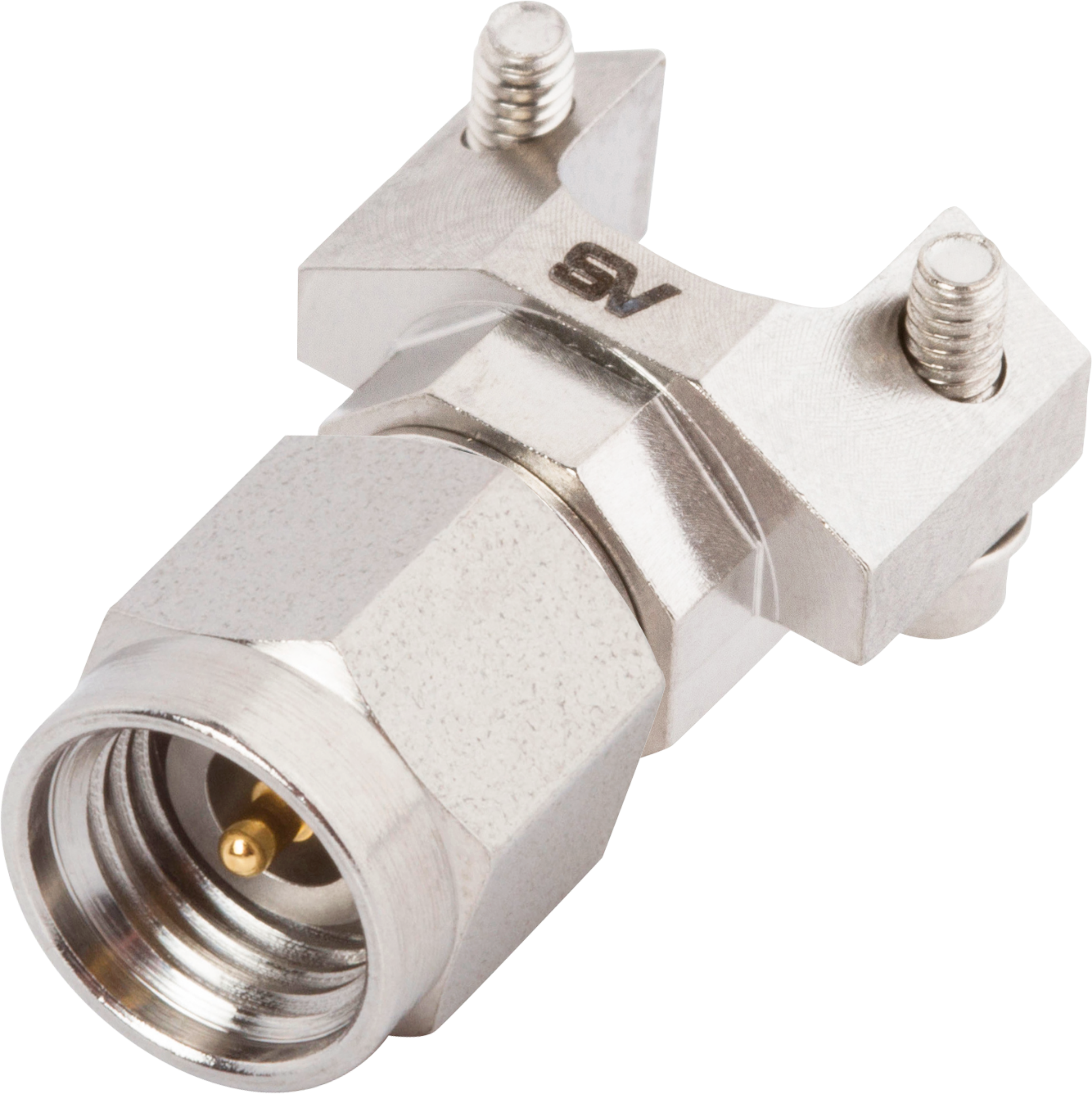

2.92mm Male Solderless PCB Edge Launch Connector, 2 Hole

Available Inventory: 83
SF1511-60111
2.92mm Connectors SF1511-60111
Datasheet
Part #   SF1521-60150

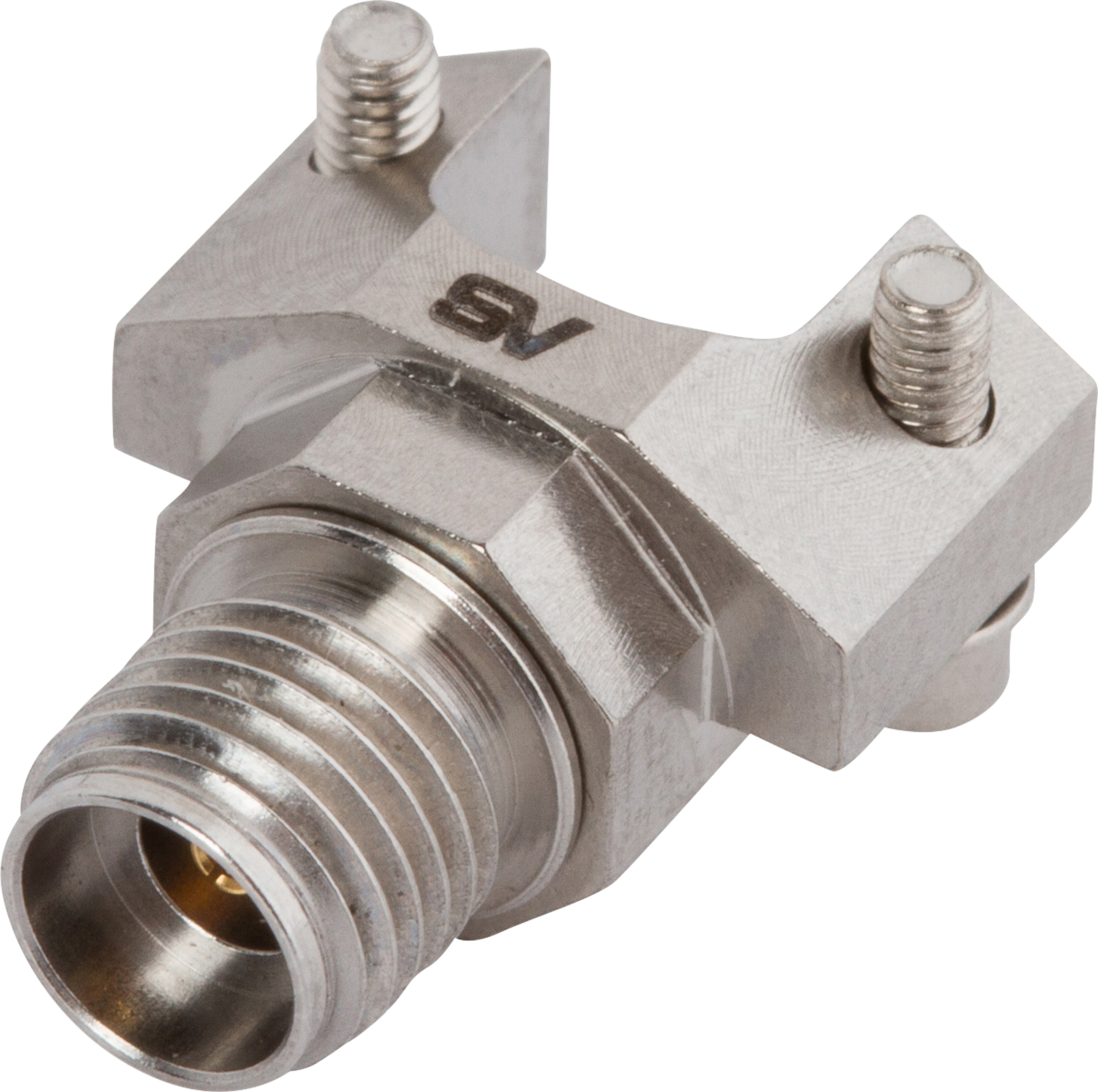

2.92mm Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole

Available Inventory: 211
SF1521-60150
2.92mm Connectors SF1521-60150
Datasheet
Part #   SF1521-60107

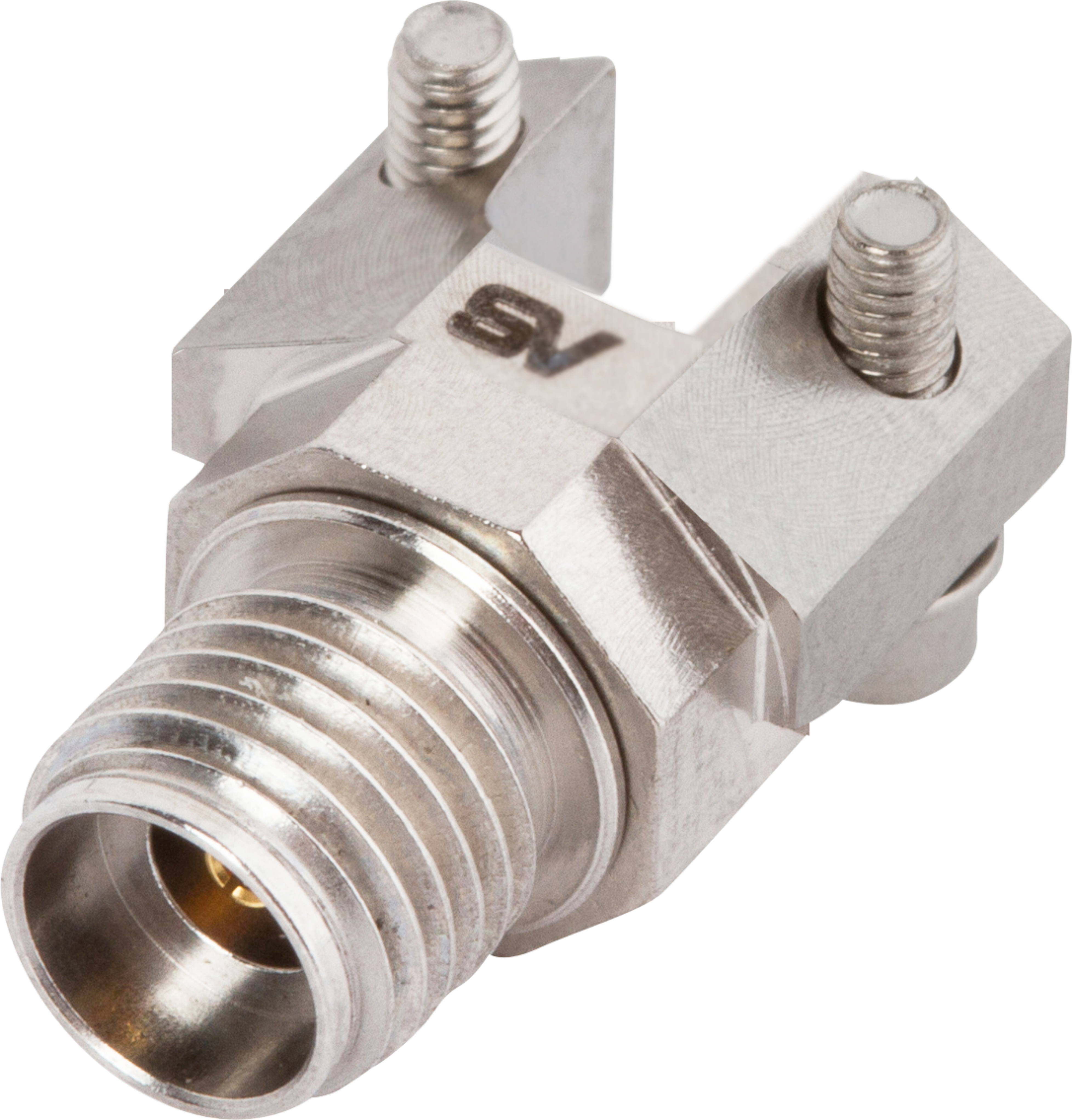

2.92mm Female Solderless PCB Edge Launch Connector, 2 Hole
