P/N: 1116-6092

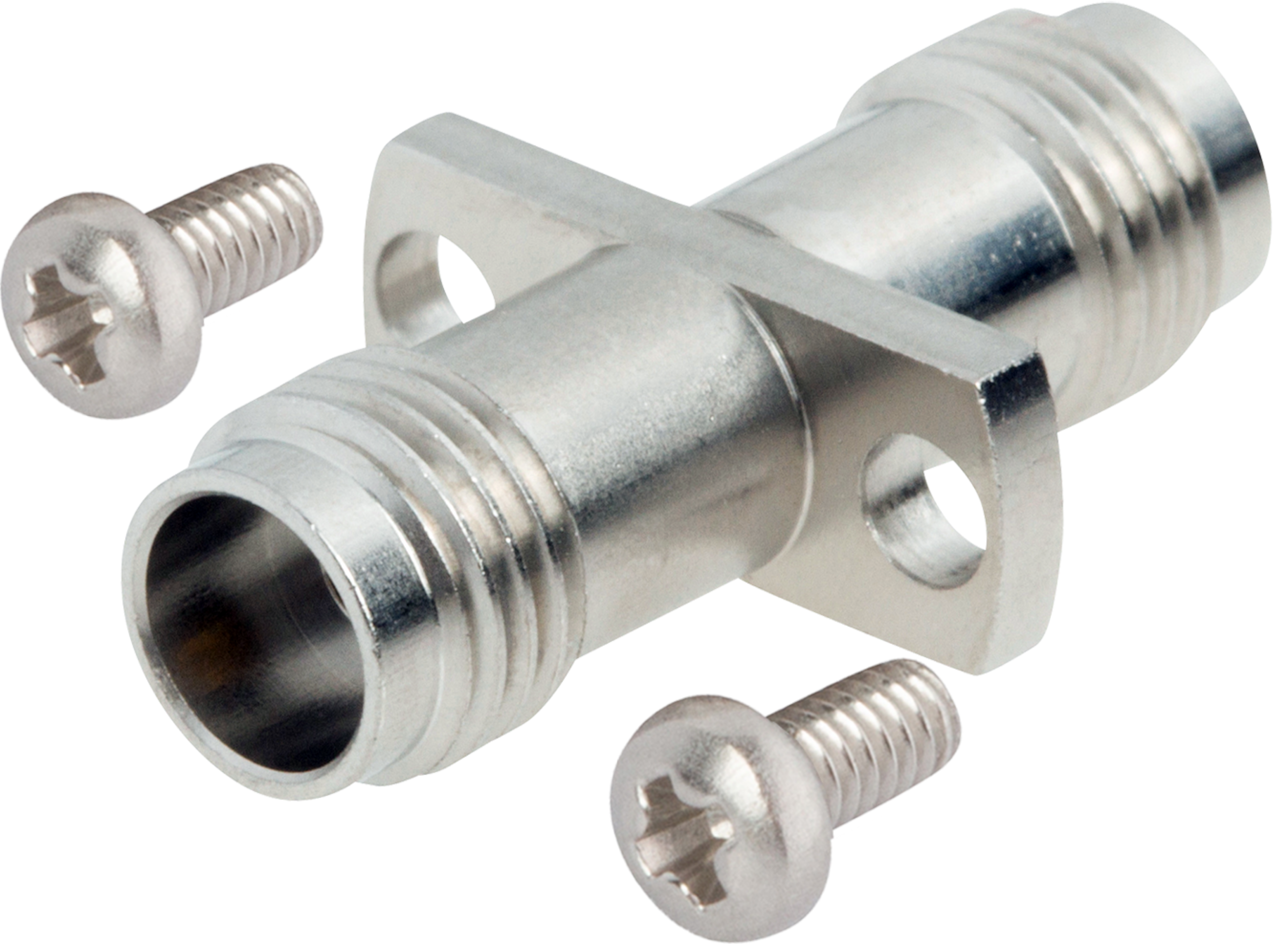

2.92mm Female to 2.4mm Female Flange Mount Adapter, 2 Hole, with Screws

In stock at Qty Order
Mouser Electronics 50
Digi-Key Electronics 22
Newark 20
Farnell 20
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style 2 Hole
Impedance 50 ohms
Frequency 40 GHz
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Finish Passivated
Gender 2 Jack (Female)
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style 2 Hole
Impedance 50 ohms
Frequency 40 GHz
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Finish Passivated
Gender 2 Jack (Female)
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1115-6128

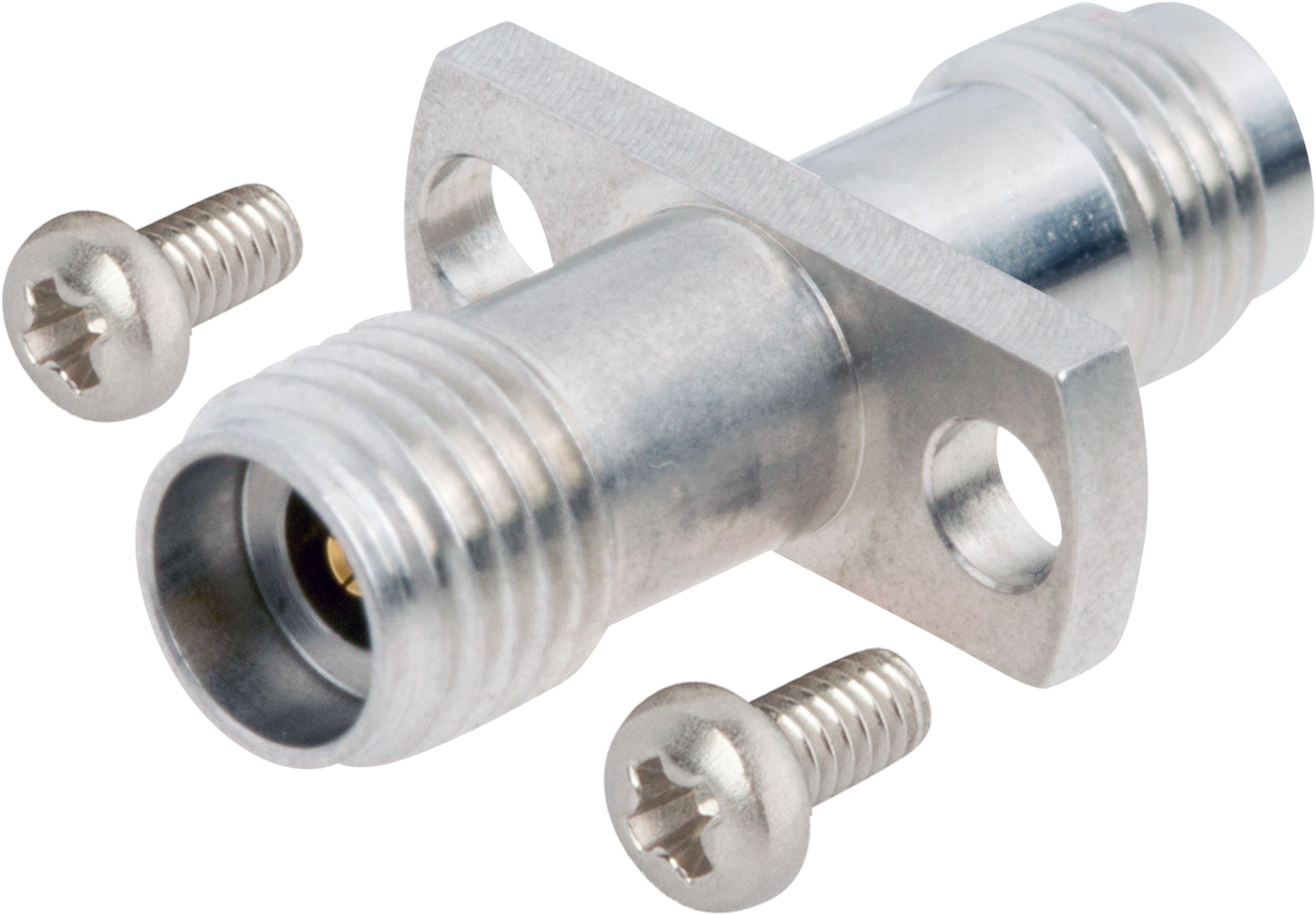

2.92mm Female to Female Flange Mount Adapter, 2 Hole, with Screws

Available Inventory: 134
1115-6128
2.92mm Adapters 1115-6128
Datasheet

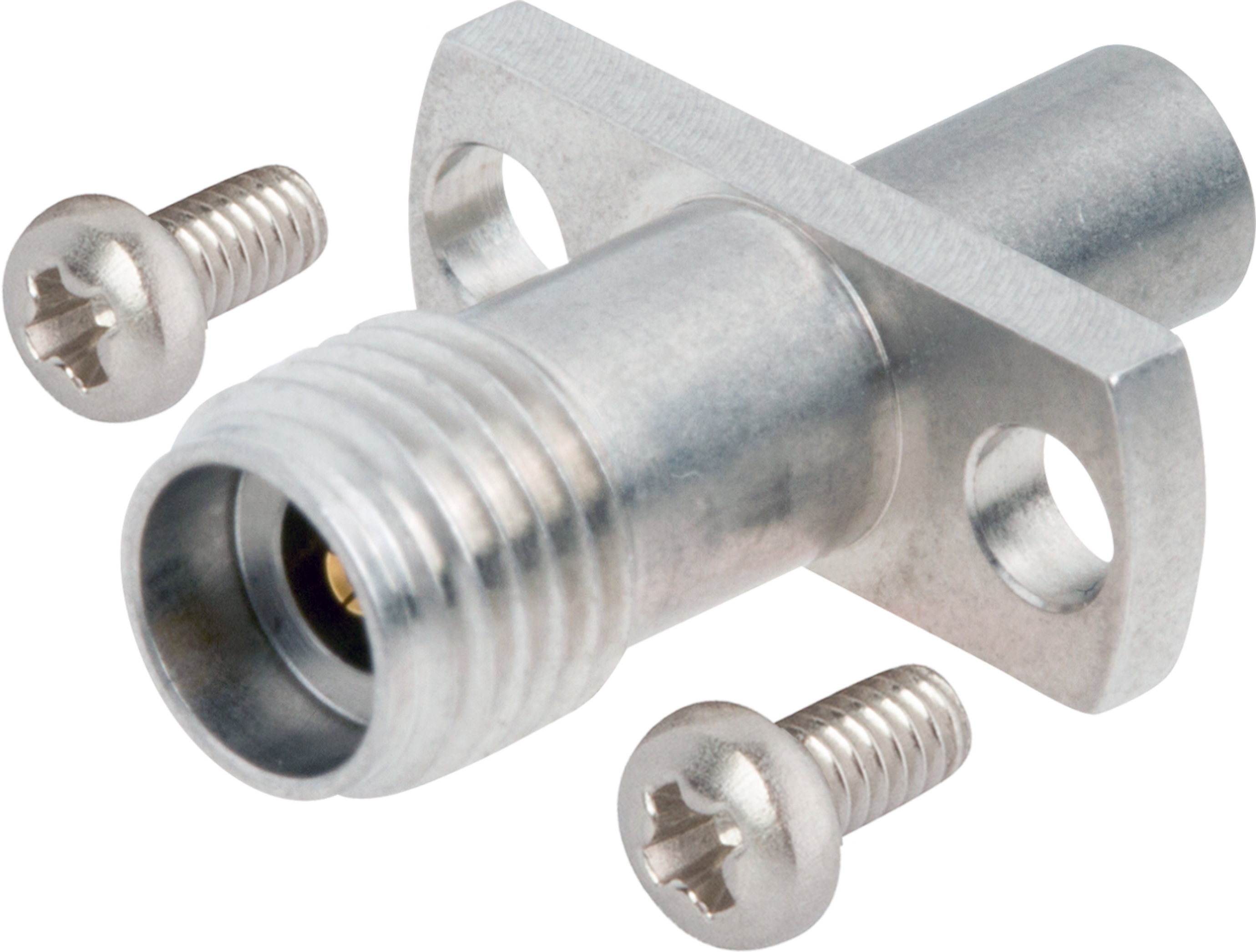

1116-6093
