P/N: SF1511-60071

2.92mm Male Connector for .085 Cable

In stock at Qty Order
Digi-Key Electronics 139
Mouser Electronics 93
Newark 31
TTI Inc Global Headquarters 5
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 40 GHz
Finish Passivated
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Cable Builder Attributes
Cable Builder Left Image 25869
Cable Builder Right Image 25870
Mating Connector SF1521-60124, SF1521-60115
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Plug (Male)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 40 GHz
Finish Passivated
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Cable Builder Attributes
Cable Builder Left Image 25869
Cable Builder Right Image 25870
Mating Connector SF1521-60124, SF1521-60115
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1521-60025

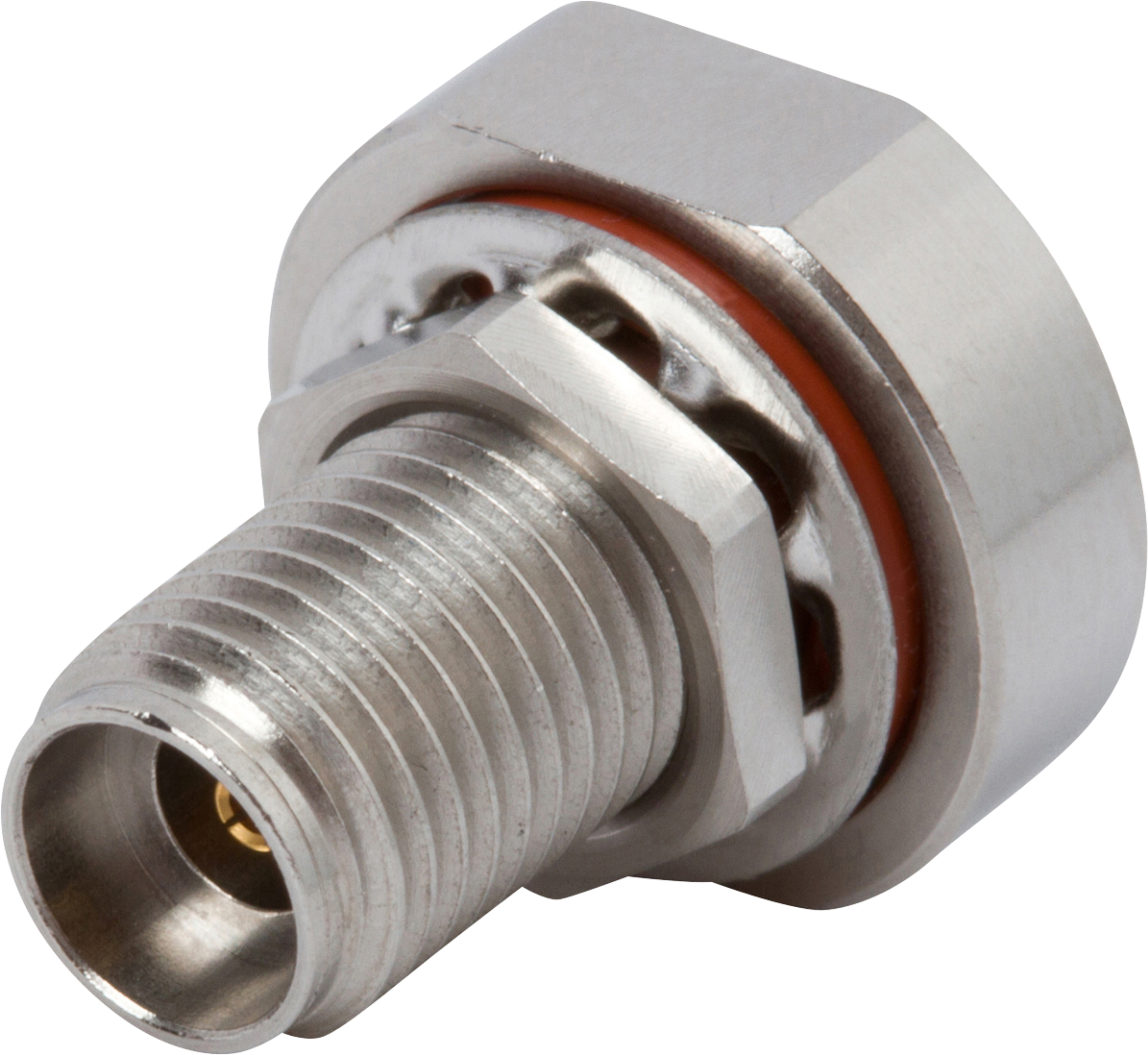

2.92mm Female Bulkhead Connector for .085 Cable

Available Inventory: 205
SF1521-60025
2.92mm Connectors SF1521-60025
Datasheet
Part #   SF1511-60069

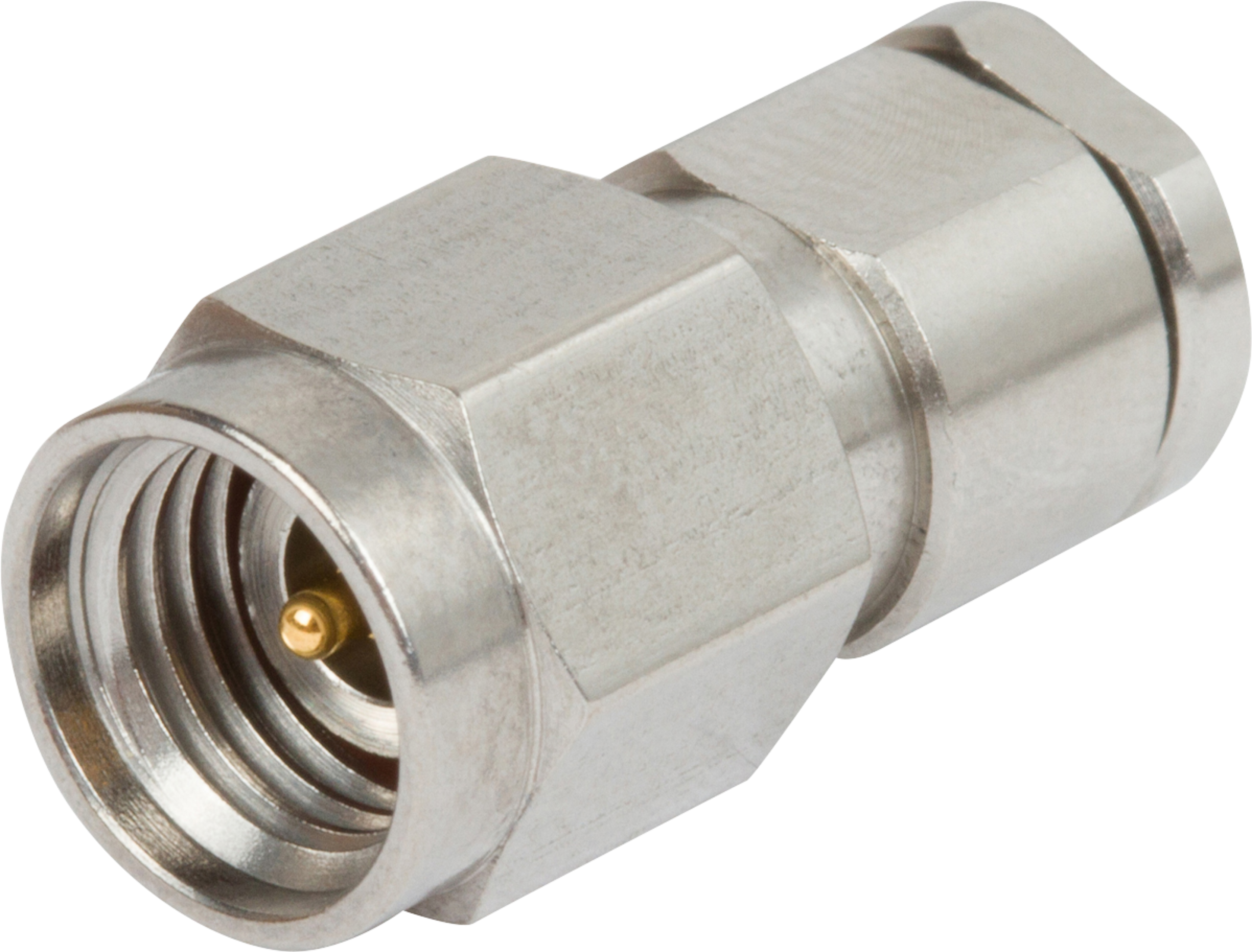

2.92mm Male Connector for .047 Cable

Available Inventory: 159
SF1511-60069
2.92mm Connectors SF1511-60069
Datasheet
Part #   SF1521-60077

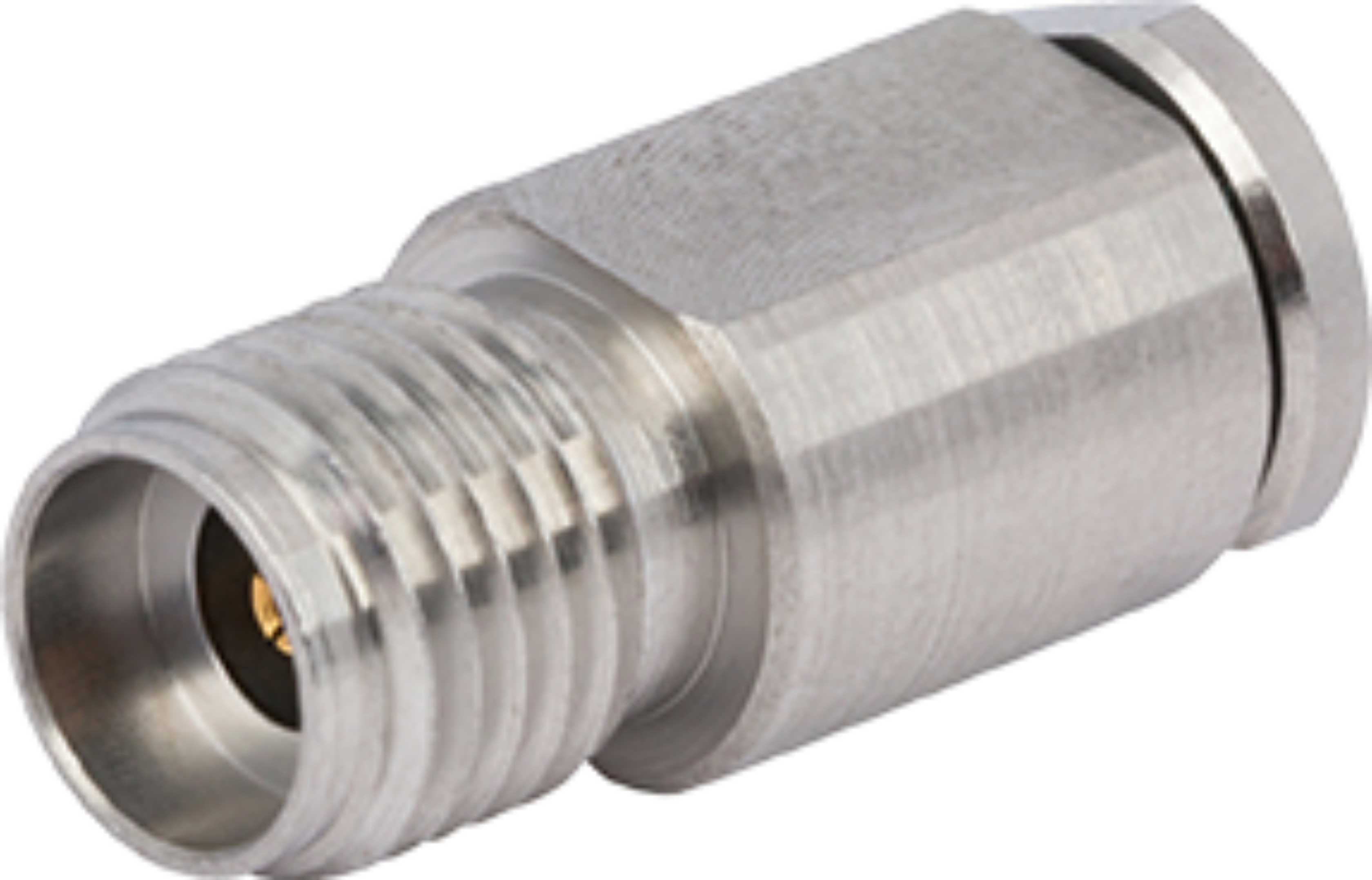

2.92mm Female Connector for .085 Cable
