P/N: SF1511-60069

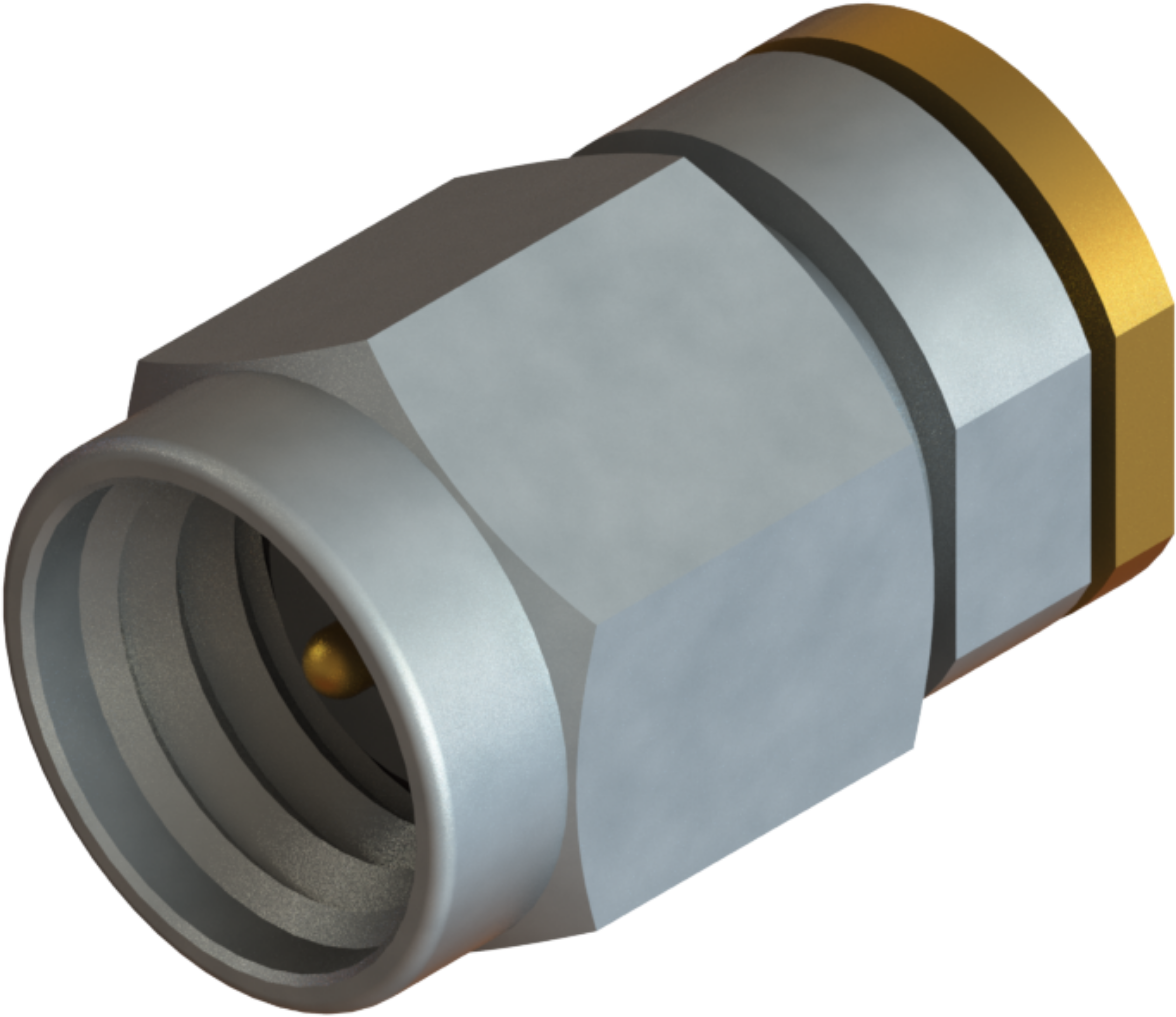

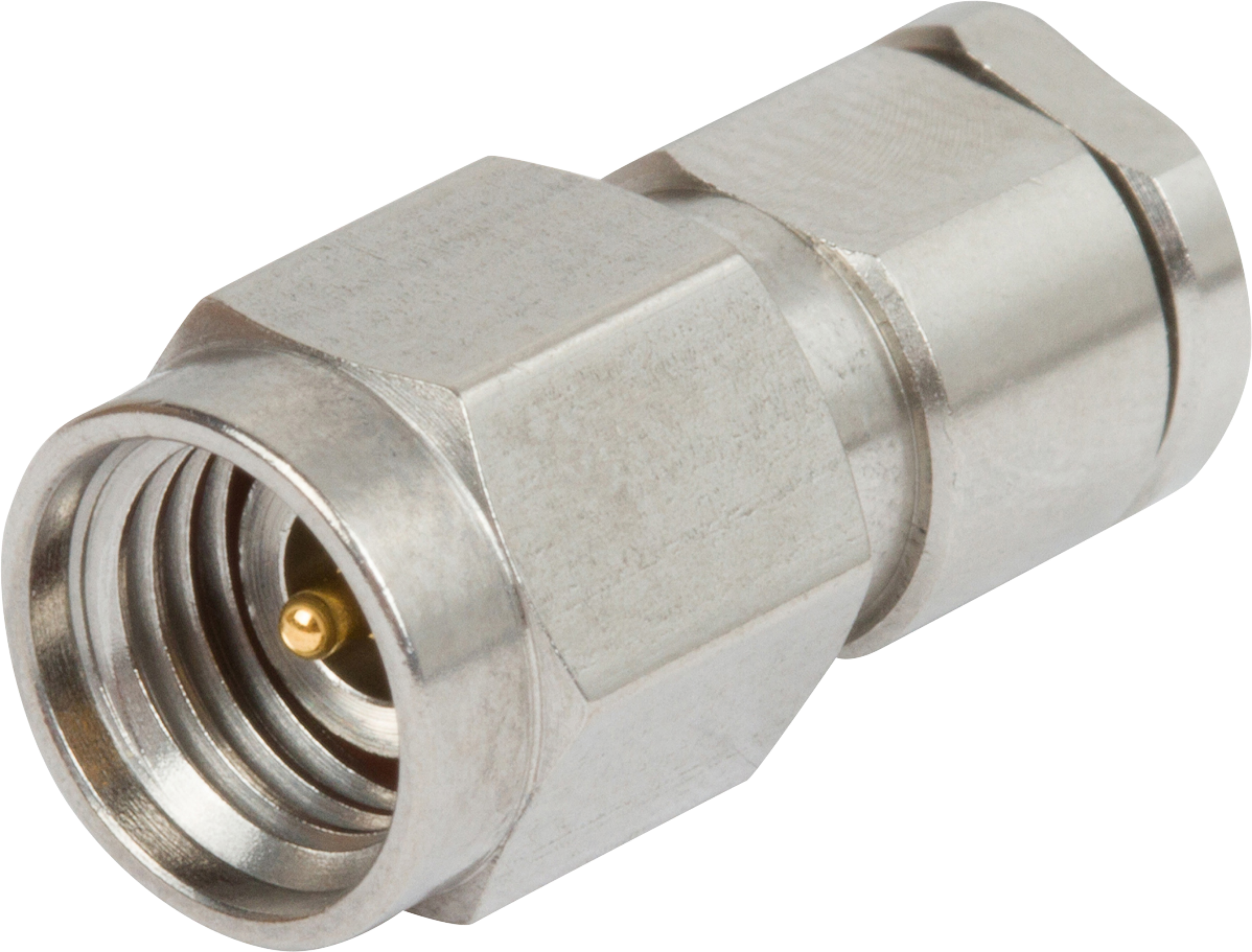

2.92mm Male Connector for .047 Cable

In stock at Qty Order
TTI Inc Global Headquarters 50
Farnell 26
Arrow Electronics Inc 24
Mouser Electronics 20
Newark 19
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
Frequency 40 GHz
Finish Passivated
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25867
Cable Builder Right Image 25868
Mating Connector SF1521-60124, SF1521-60115
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
Frequency 40 GHz
Finish Passivated
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25867
Cable Builder Right Image 25868
Mating Connector SF1521-60124, SF1521-60115
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF1521-60039

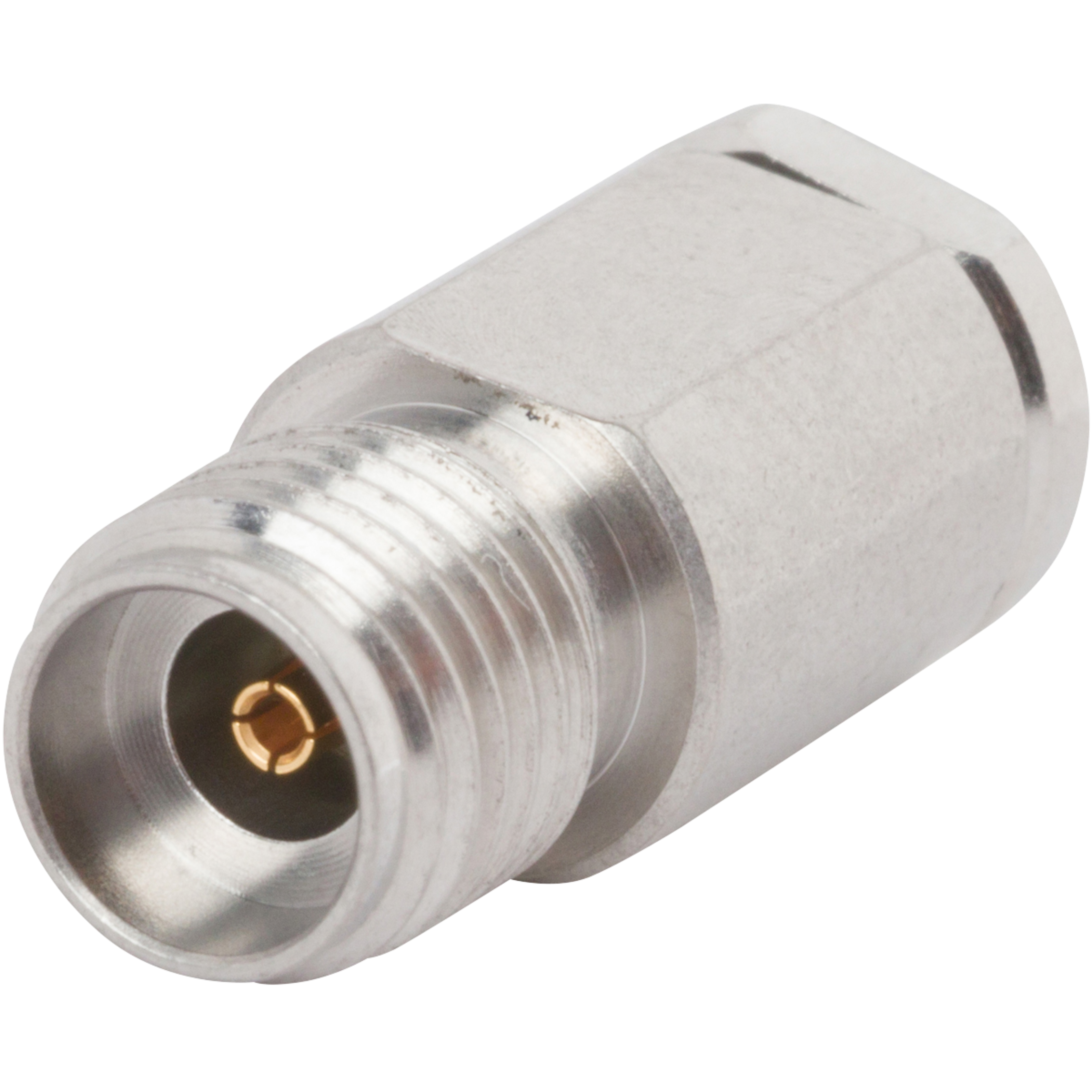

2.92mm Female Connector for .047 Cable
