2.92mm Male R/A to SMP Female R/A 12" Cable Assembly for .085 Cable
P/N: 7015-0995

In stock at Qty Order
Mouser Electronics 7
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Right Angle
Gender Plug (Male)
Gender 2 Jack (Female)
RF Series 2 SMP
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Coupling Threaded
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:08:51 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Right Angle
Gender Plug (Male)
Gender 2 Jack (Female)
RF Series 2 SMP
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Coupling Threaded
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7015-0992

2.92mm Male R/A to SMP Female R/A 6" Cable Assembly for .047 Cable

Available Inventory: 7
7015-0992
2.92mm Cable Assemblies 7015-0992
Datasheet
Part #   7015-0993

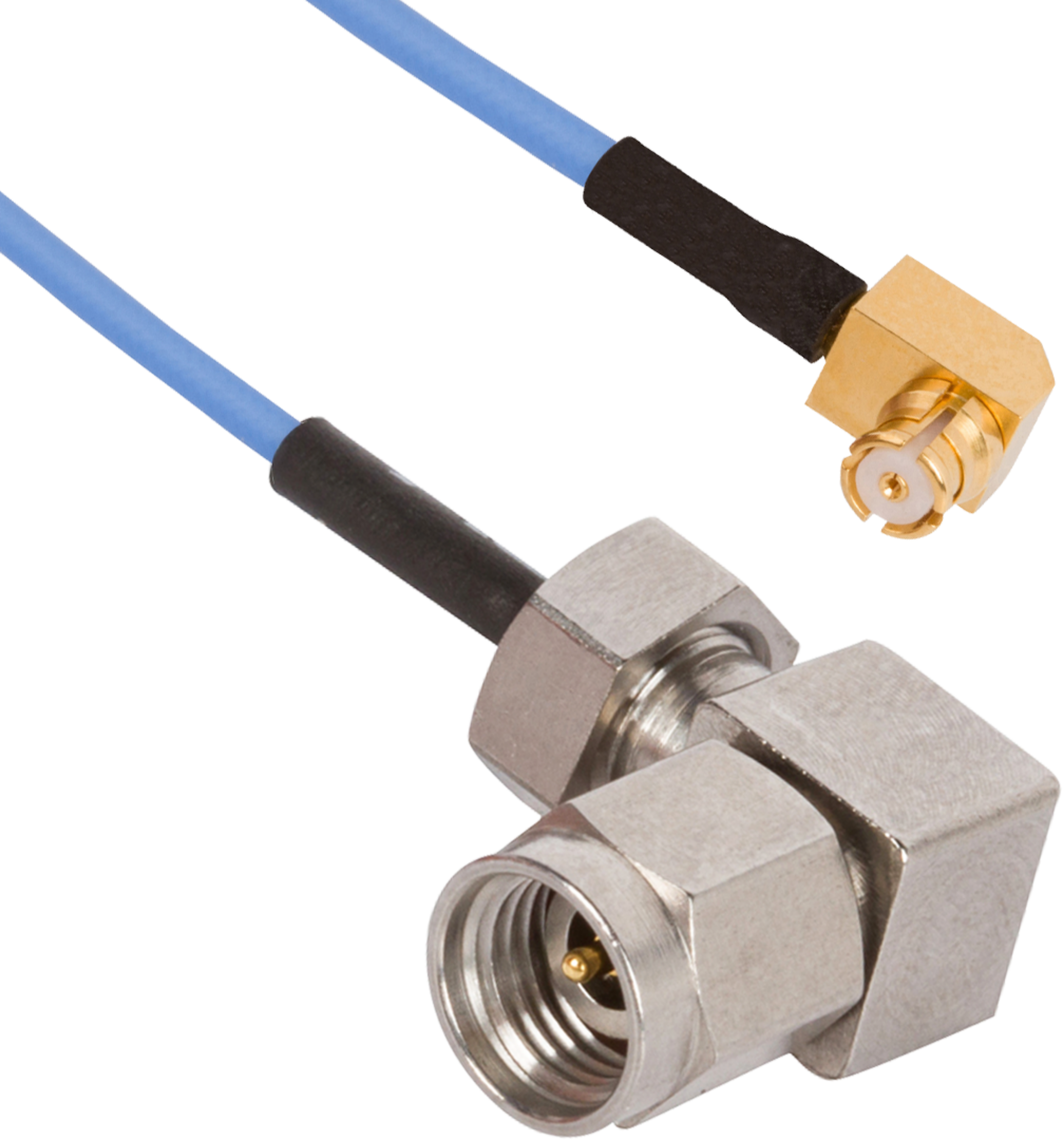

2.92mm Male R/A to SMP Female R/A 12" Cable Assembly for .047 Cable

Available Inventory: 10
7015-0993
2.92mm Cable Assemblies 7015-0993
Datasheet
Part #   7015-0994

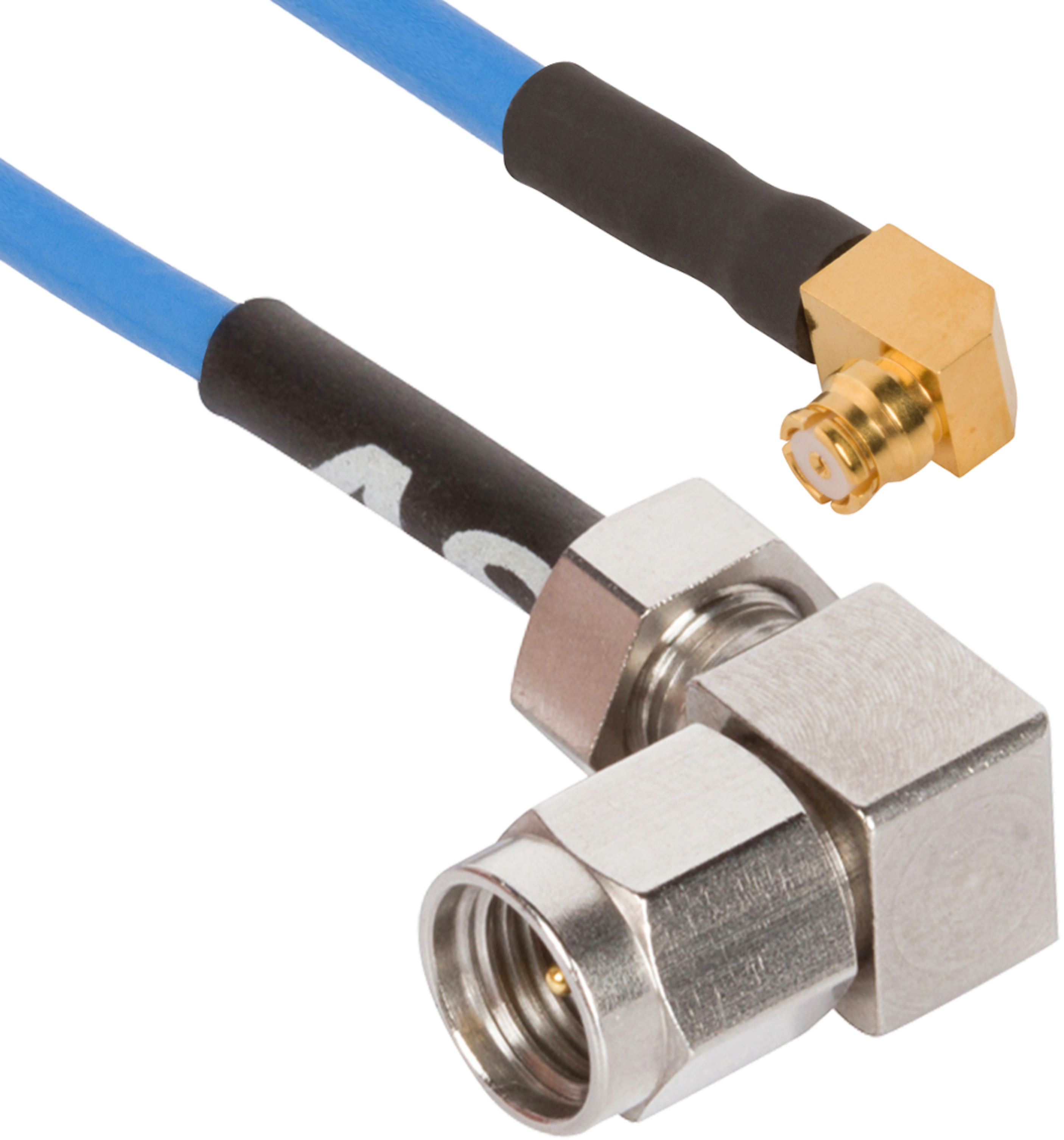

2.92mm Male R/A to SMP Female R/A 6" Cable Assembly for .085 Cable
