P/N: 7015-0992

2.92mm Male R/A to SMP Female R/A 6" Cable Assembly for .047 Cable

In stock at Qty Order
Digi-Key Electronics 10
Mouser Electronics 7
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Coupling Threaded
Frequency 40 GHz
Gender Plug (Male)
Impedance 50 ohms
RF Series 2 SMP
Orientation (Body) Right Angle
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability SMA
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Coupling Threaded
Frequency 40 GHz
Gender Plug (Male)
Impedance 50 ohms
RF Series 2 SMP
Orientation (Body) Right Angle
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability SMA
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1067

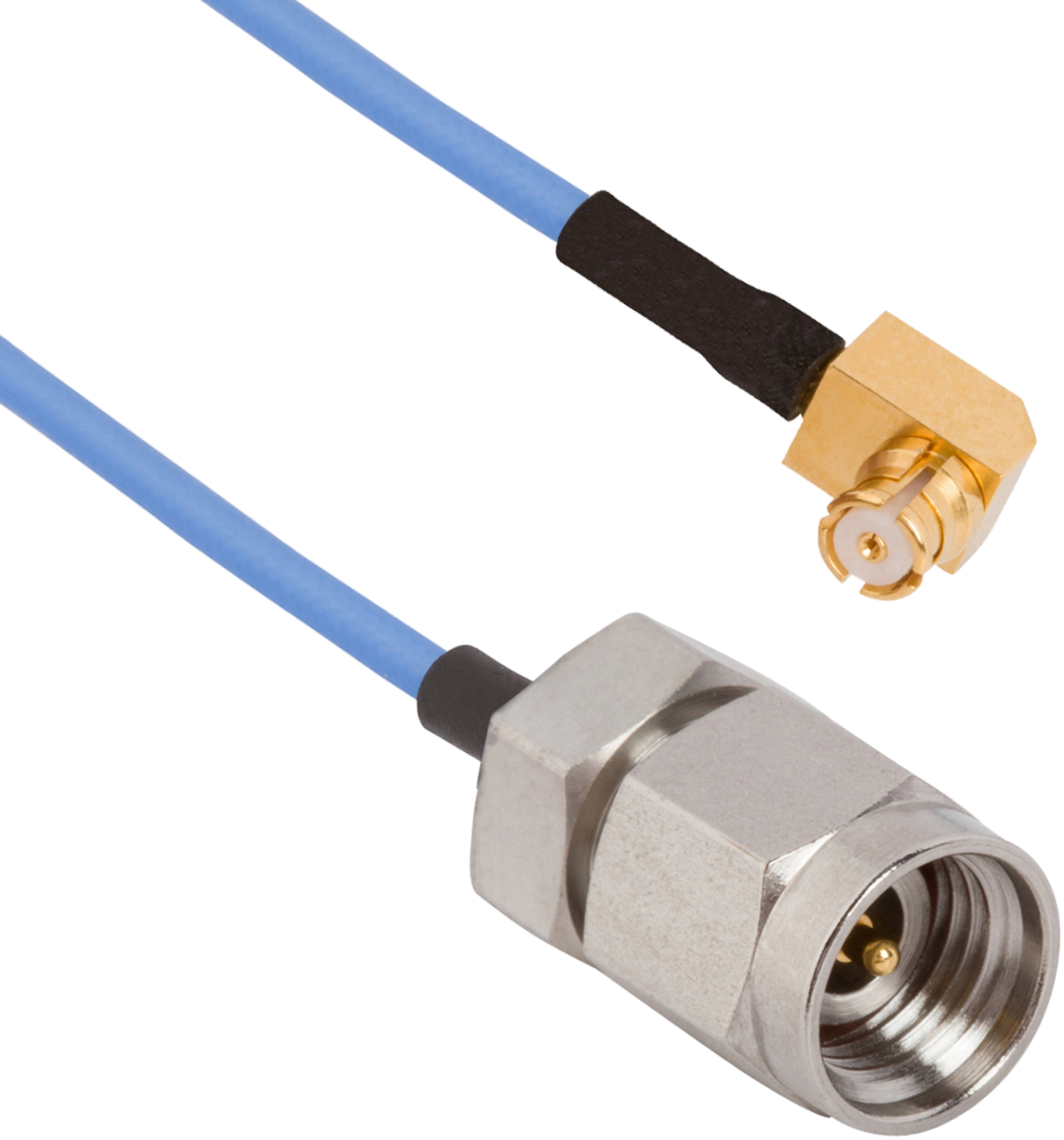

SMP Female R/A to 2.92mm Male 12" Cable Assembly for .047 Cable

Available Inventory: 2
7012-1067
SMP Cable Assemblies 7012-1067
Datasheet
Part #   7012-1066

SMP Female R/A to 2.92mm Male 6" Cable Assembly for .047 Cable

Available Inventory: 47
7012-1066
SMP Cable Assemblies 7012-1066
Datasheet
Part #   7015-0993

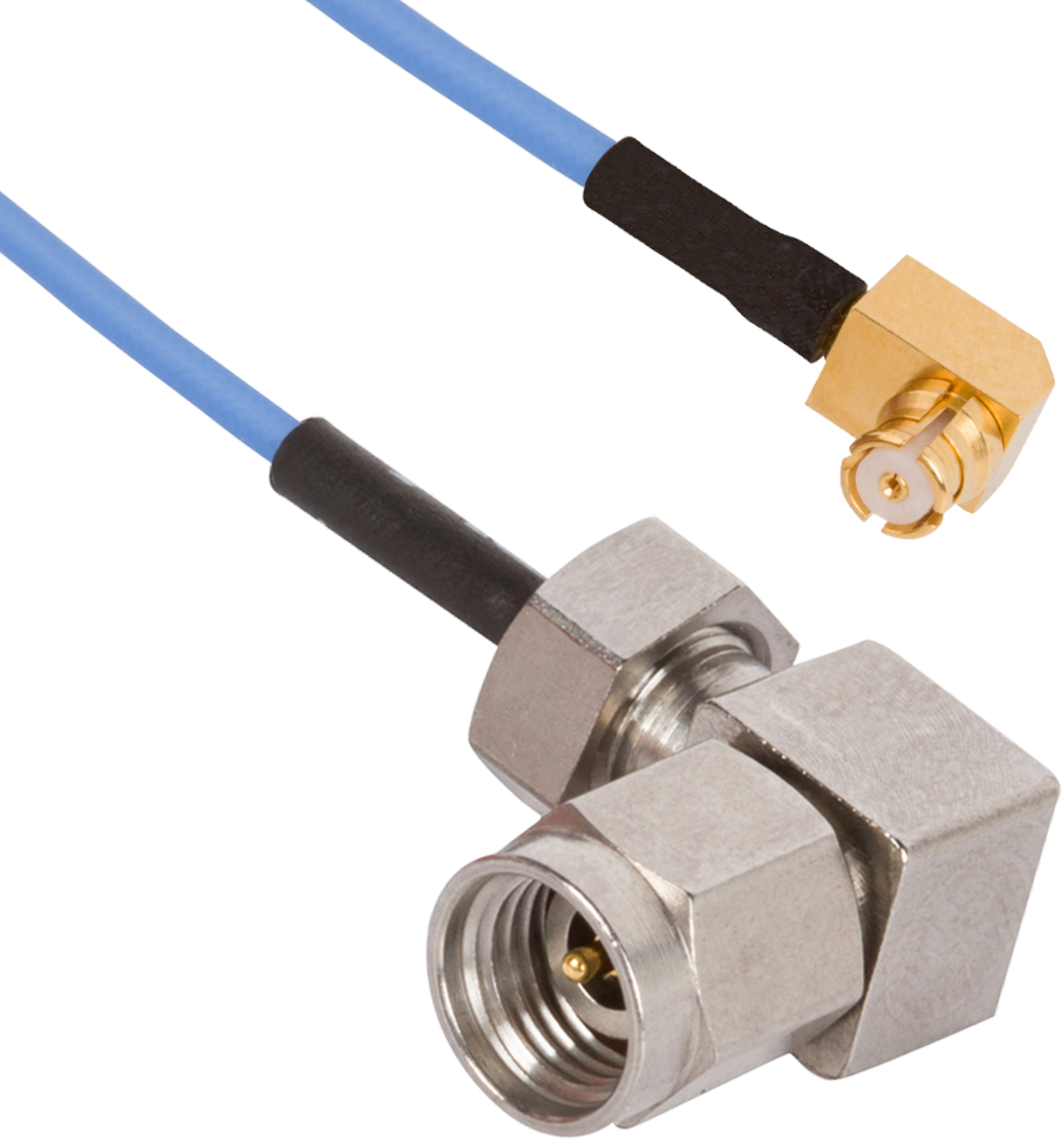

2.92mm Male R/A to SMP Female R/A 12" Cable Assembly for .047 Cable
