P/N: 7015-0997

2.92mm Male R/A to SMPM Female R/A 12" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 22
Digi-Key Electronics 5
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Gender 2 Jack (Female)
RF Series 2 SMPM
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Gender 2 Jack (Female)
RF Series 2 SMPM
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 12"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability SMA
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7015-0998

2.92mm Male R/A to SMPM Female R/A 6" Cable Assembly for .085 Cable

Available Inventory: 10
7015-0998
2.92mm Cable Assemblies 7015-0998
Datasheet
Part #   7015-0999

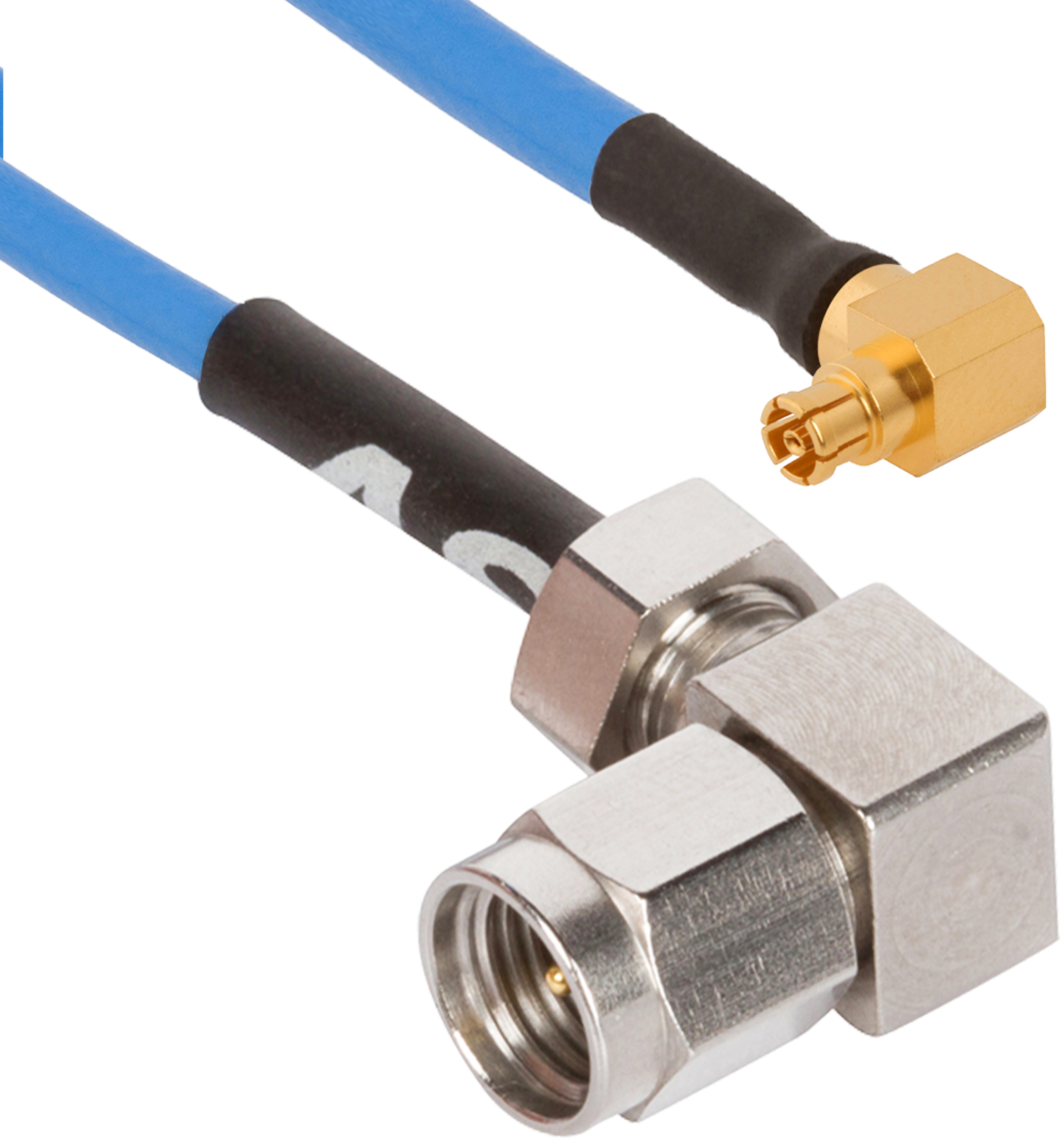

2.92mm Male R/A to SMPM Female R/A 12" Cable Assembly for .085 Cable

Available Inventory: 10
7015-0999
2.92mm Cable Assemblies 7015-0999
Datasheet
Part #   7015-0996

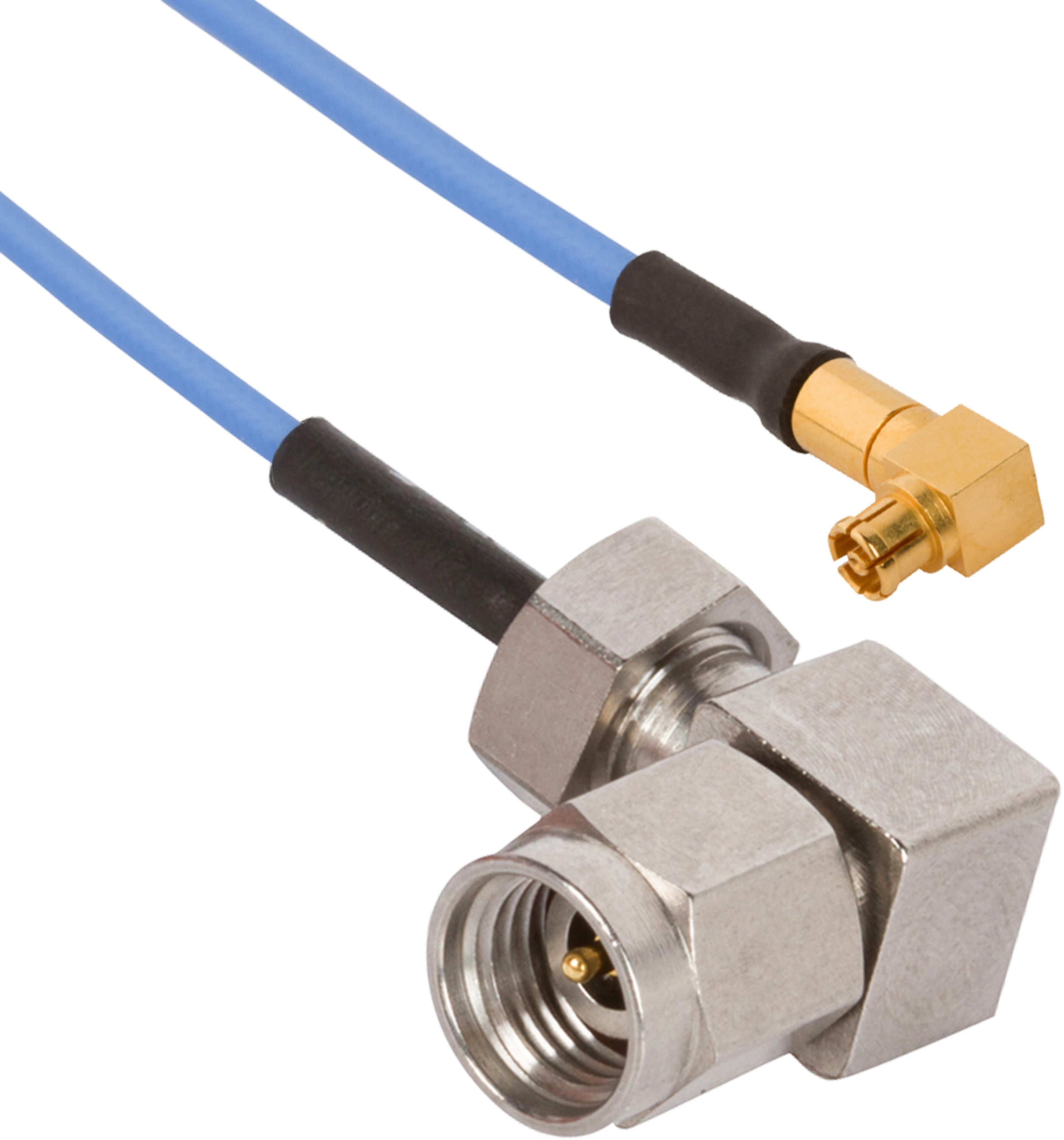

2.92mm Male R/A to SMPM Female R/A 6" Cable Assembly for .047 Cable
