P/N: 7015-0996

2.92mm Male R/A to SMPM Female R/A 6" Cable Assembly for .047 Cable

In stock at Qty Order
Mouser Electronics 10
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Right Angle
Gender Plug (Male)
Impedance 50 ohms
Frequency 40 GHz
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
Coupling Threaded
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Orientation (Body) Right Angle
Gender Plug (Male)
Impedance 50 ohms
Frequency 40 GHz
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
Coupling Threaded
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

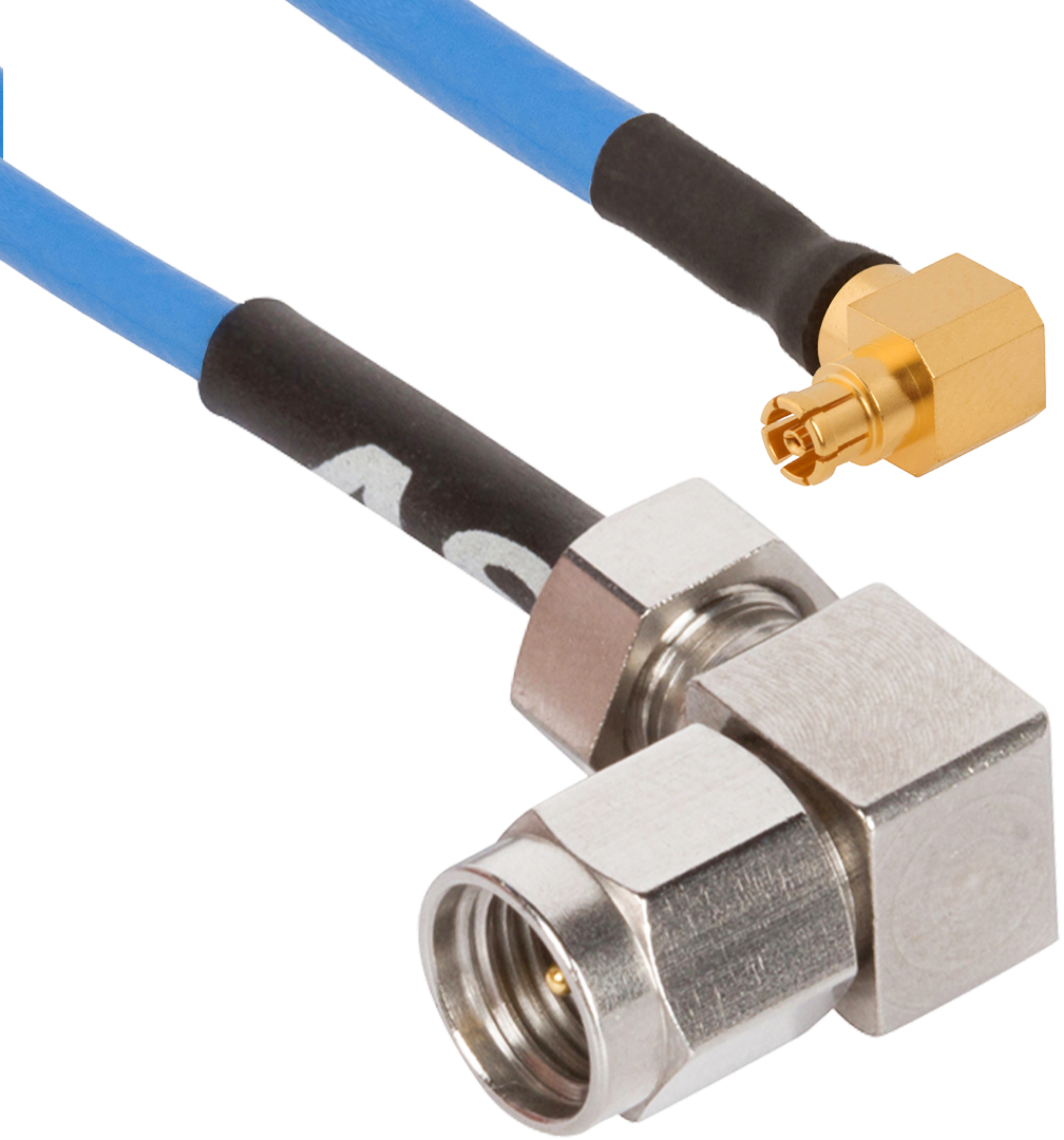

Part #   7015-0998

2.92mm Male R/A to SMPM Female R/A 6" Cable Assembly for .085 Cable

Available Inventory: 20
7015-0998
2.92mm Cable Assemblies 7015-0998
Datasheet
Part #   7015-0999

2.92mm Male R/A to SMPM Female R/A 12" Cable Assembly for .085 Cable

Available Inventory: 20
7015-0999
2.92mm Cable Assemblies 7015-0999
Datasheet

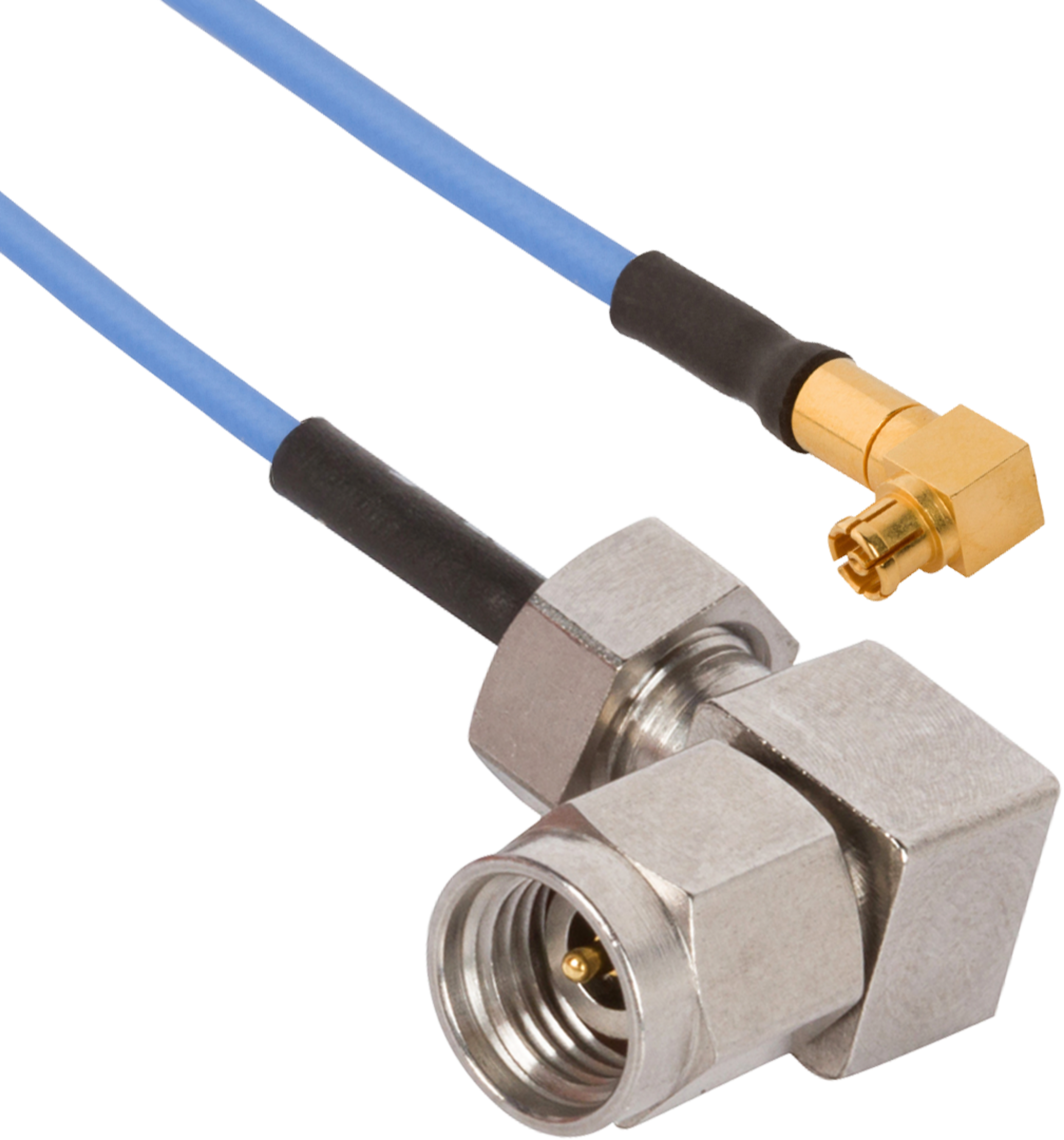

Part #   7015-0997
