P/N: SF1511-60119-2S

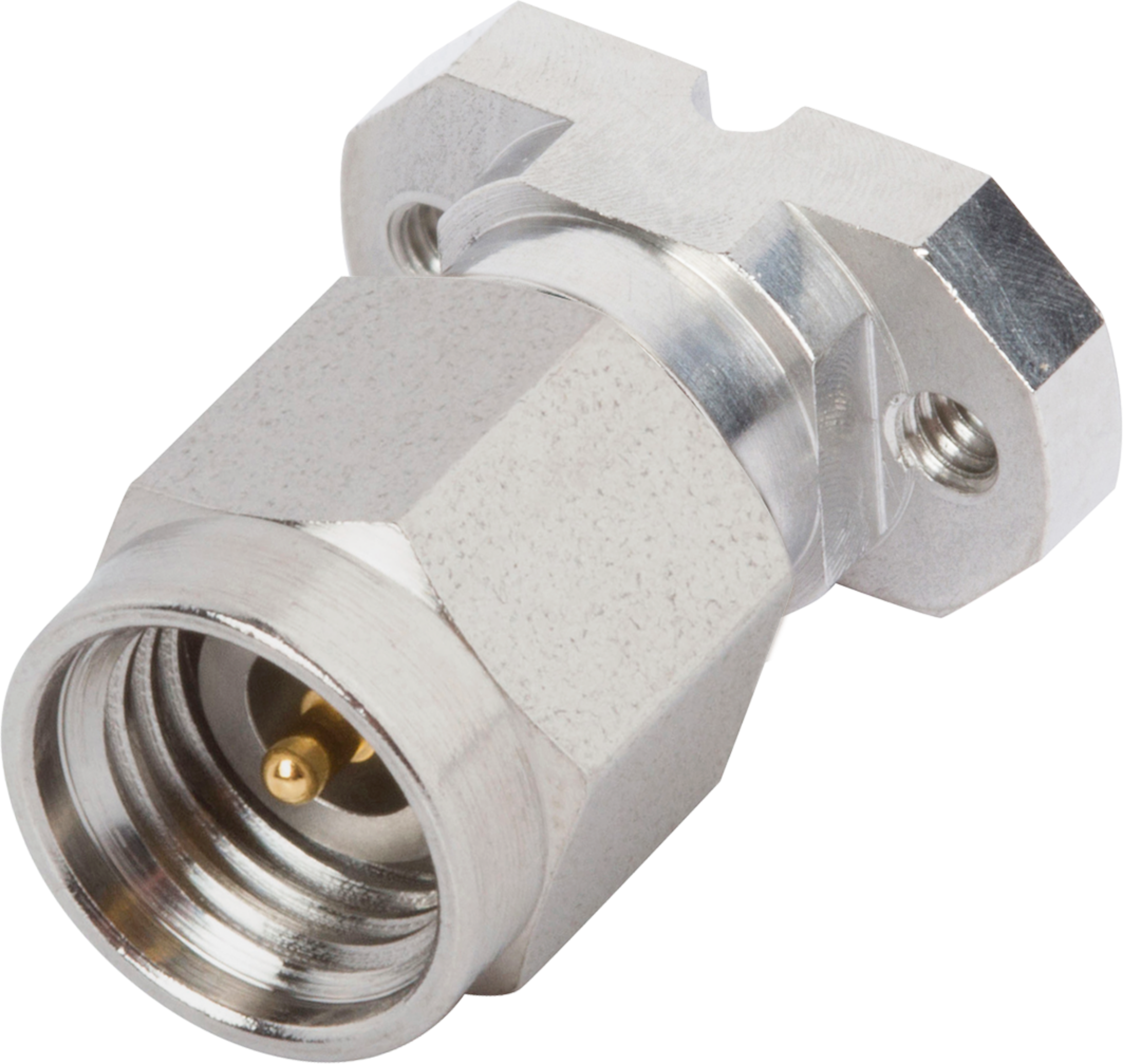

2.92mm Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 100
Mouser Electronics 96
Farnell 95
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.92 mm
Coupling Threaded
Mounting Type PCB Vertical Launch
Gender Plug (Male)
Orientation (Body) Straight
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.92 mm
Coupling Threaded
Mounting Type PCB Vertical Launch
Gender Plug (Male)
Orientation (Body) Straight
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

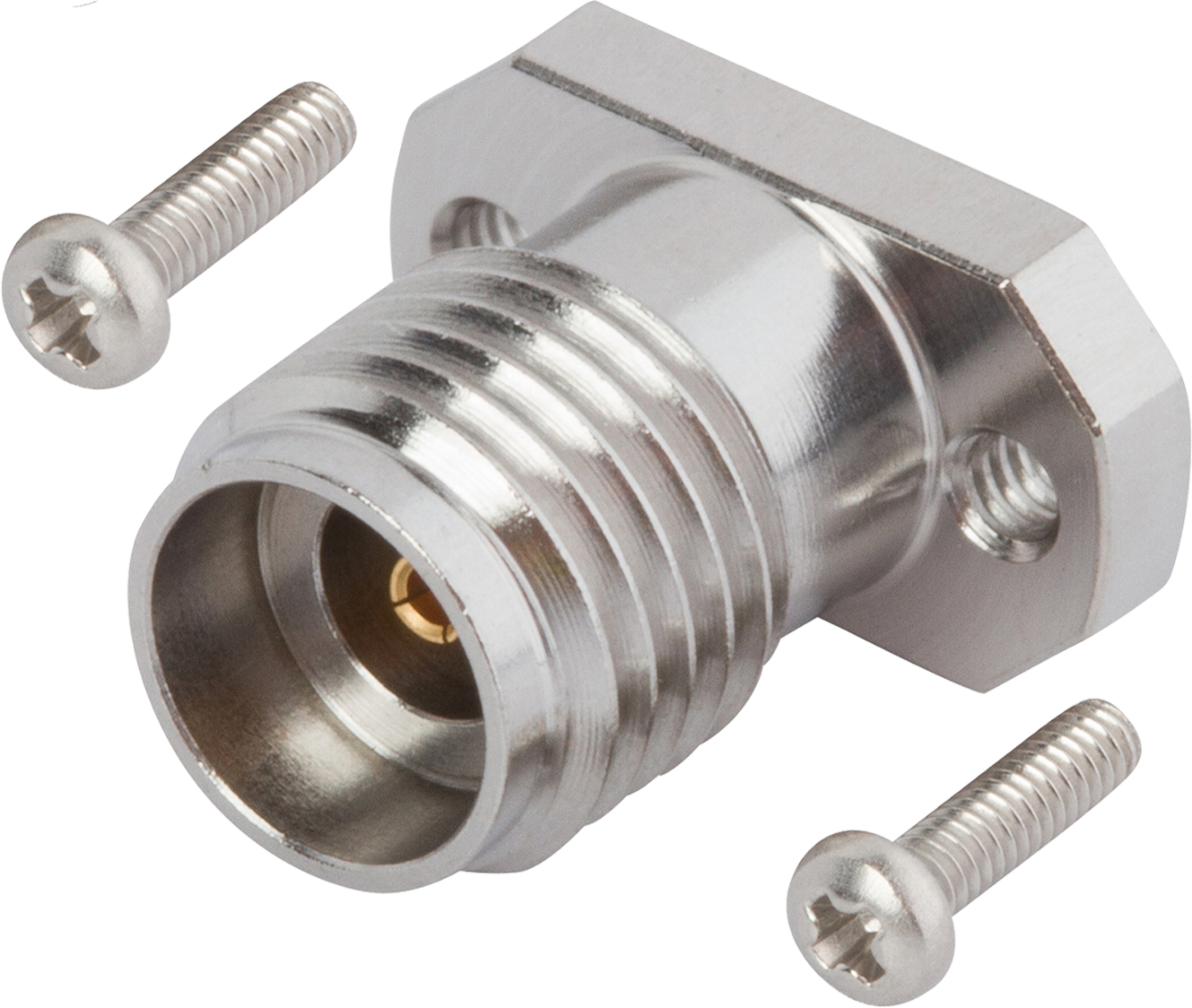

SF1521-60070-2S
2.92mm Connectors SF1521-60070-2S
Datasheet
SF1511-60119
2.92mm Connectors SF1511-60119
Datasheet

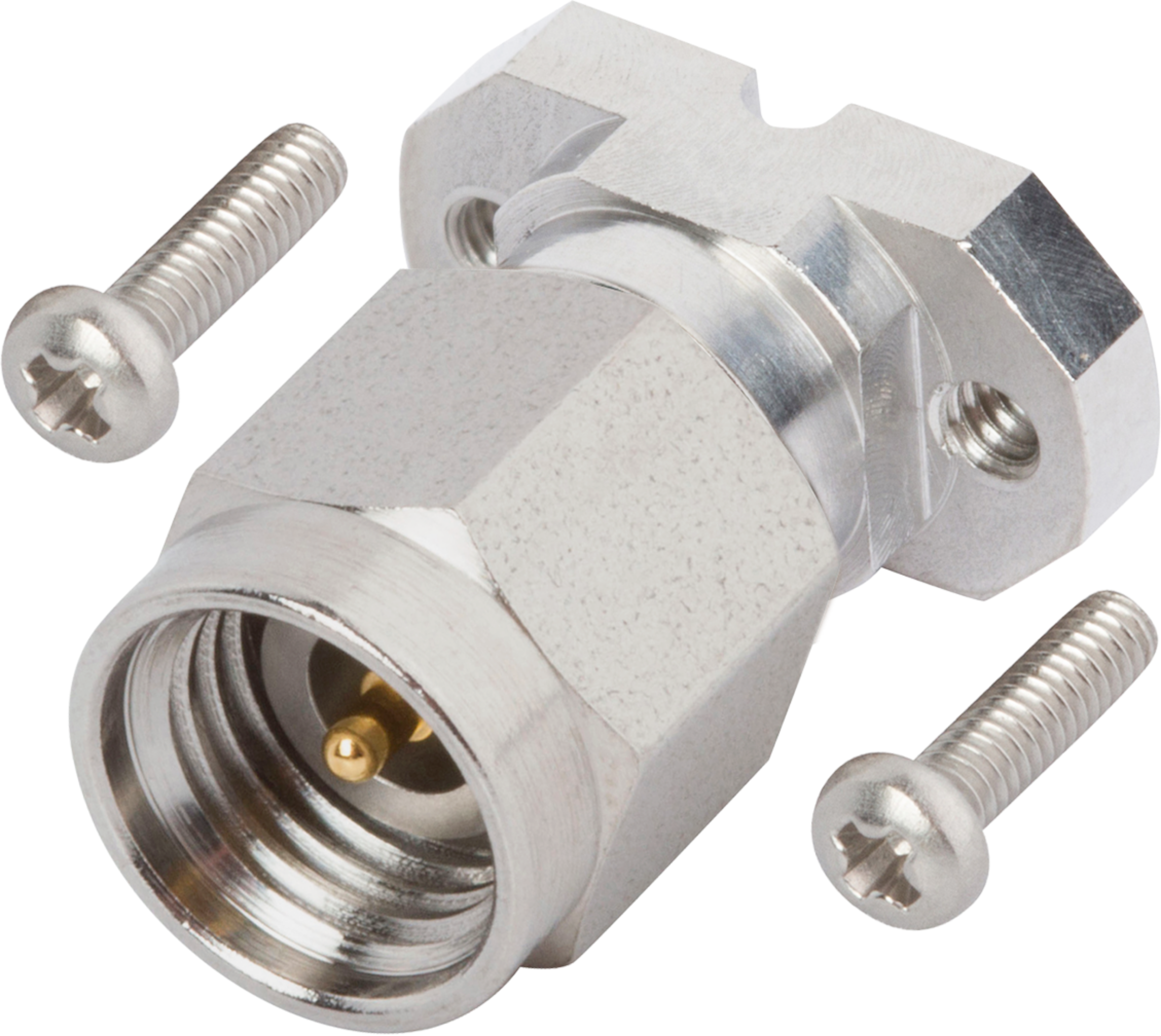

SF1511-60119-1S
