P/N: SF1521-60070-2S

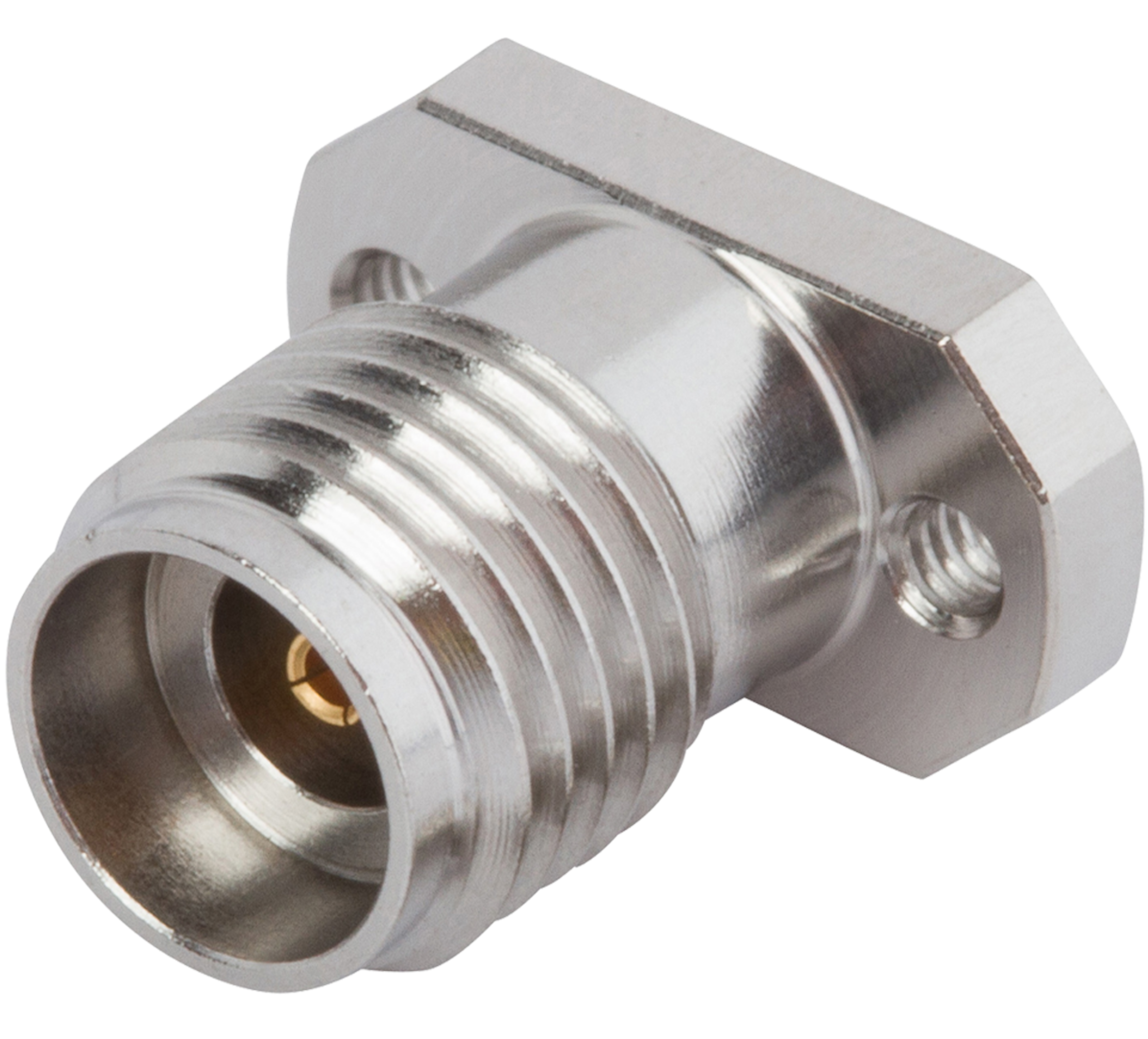

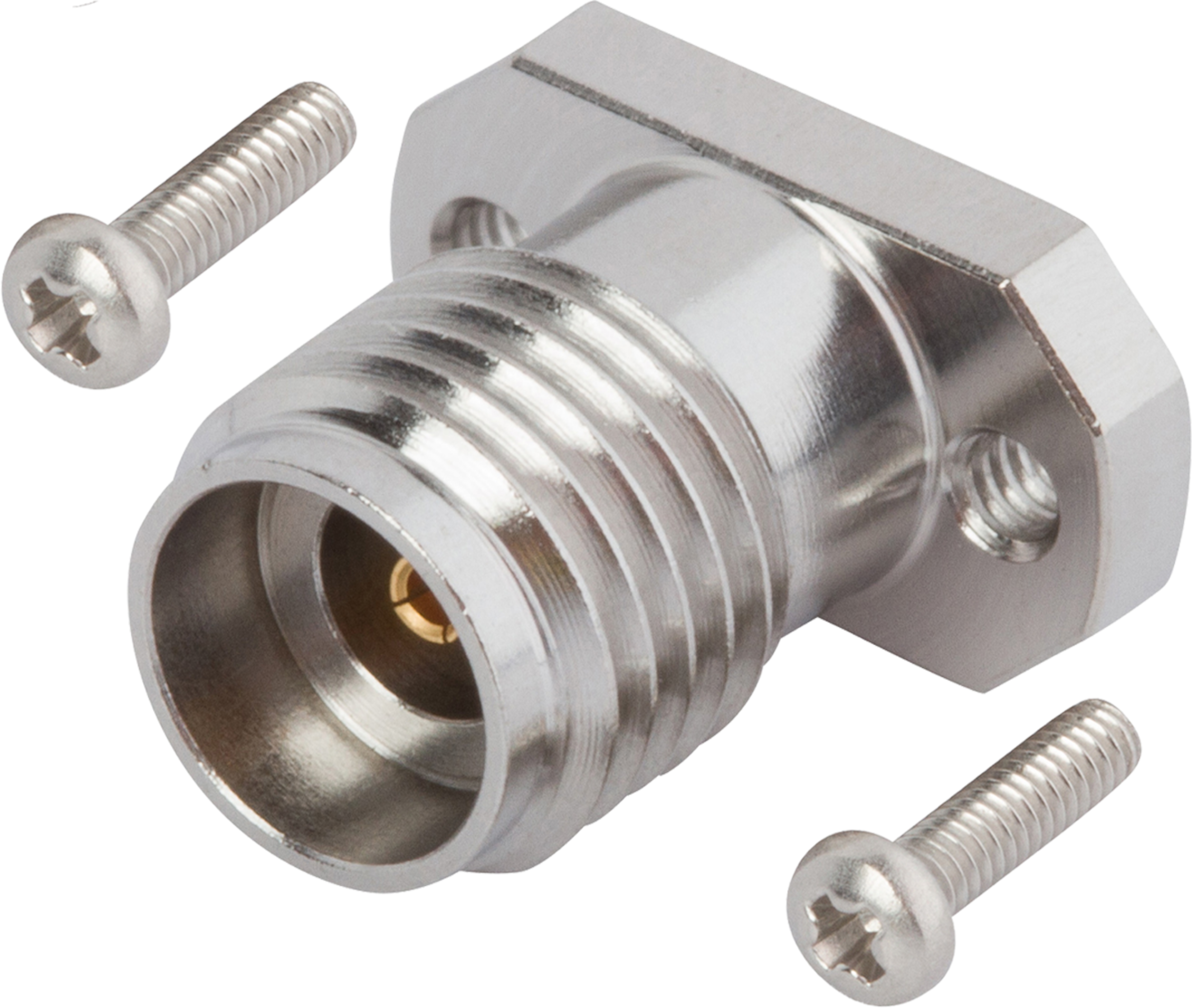

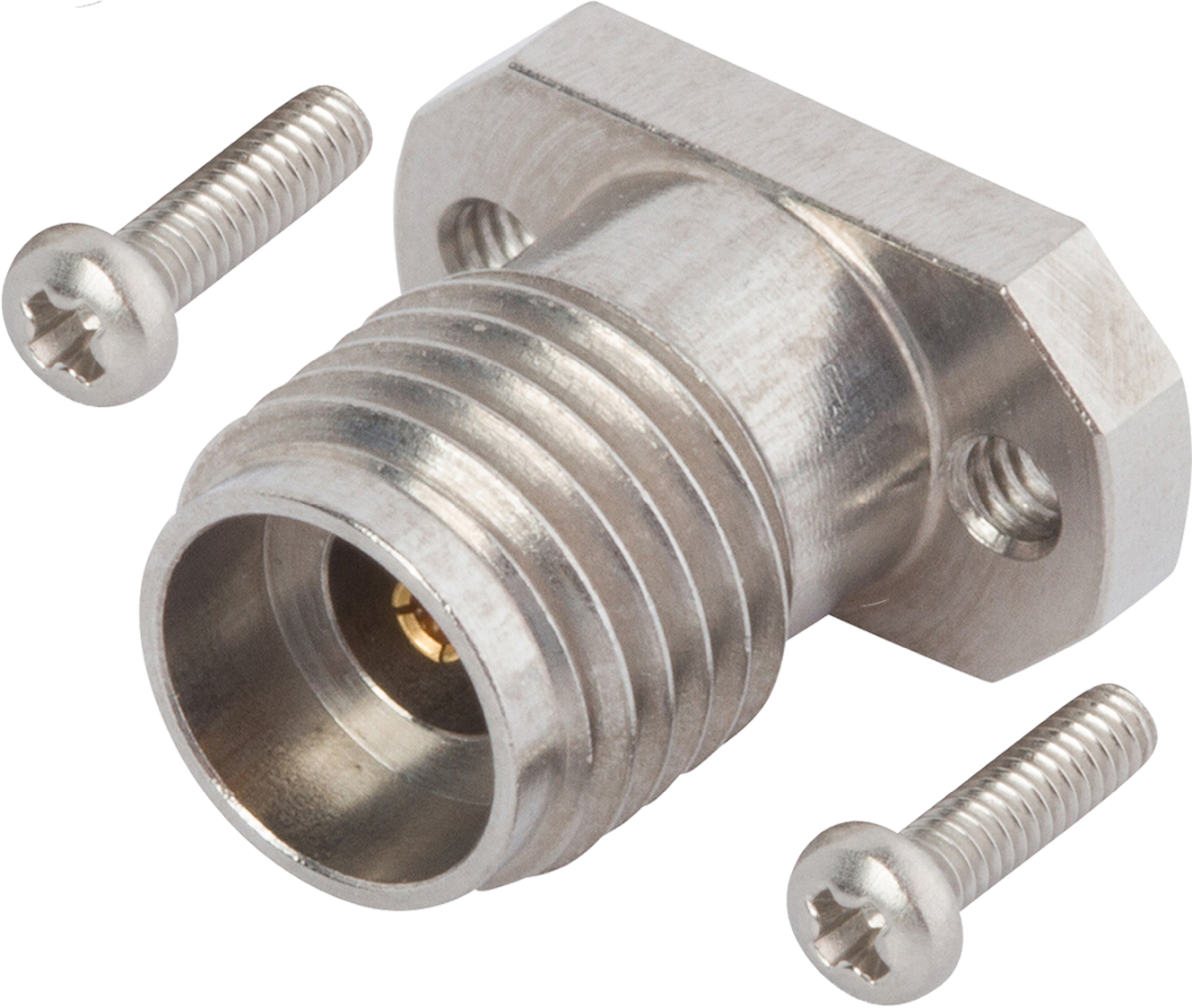

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
TTI Inc Global Headquarters 200
Mouser Electronics 58
Digi-Key Electronics 51
Heilind Electronics 25
Farnell 3
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Family Solderless
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Number of Ports Single
Termination Style Solder-free
Frequency 40 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Inter-mate ability SMA
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
