2.92mm Male to 2.92mm Male 6" Cable Assembly for .047 SuperFlex Cable
P/N: 7015-1108

In stock at Qty Order
Digi-Key Electronics 25
Mouser Electronics 10
Newark 10
Farnell 10
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series 2.92 mm
Cable Length 6"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 3/26/2023 1:15:27 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family SuperFlex
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
RF Series 2 2.92 mm
Gender 2 Plug (Male)
Number of Ports Single
Orientation 2 (Body) Straight
Cable Type 0.047 SuperFlex Coax
RF Series 2.92 mm
Cable Length 6"
Electrical
Frequency 33 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 750 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Intermateability SMA
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-7777

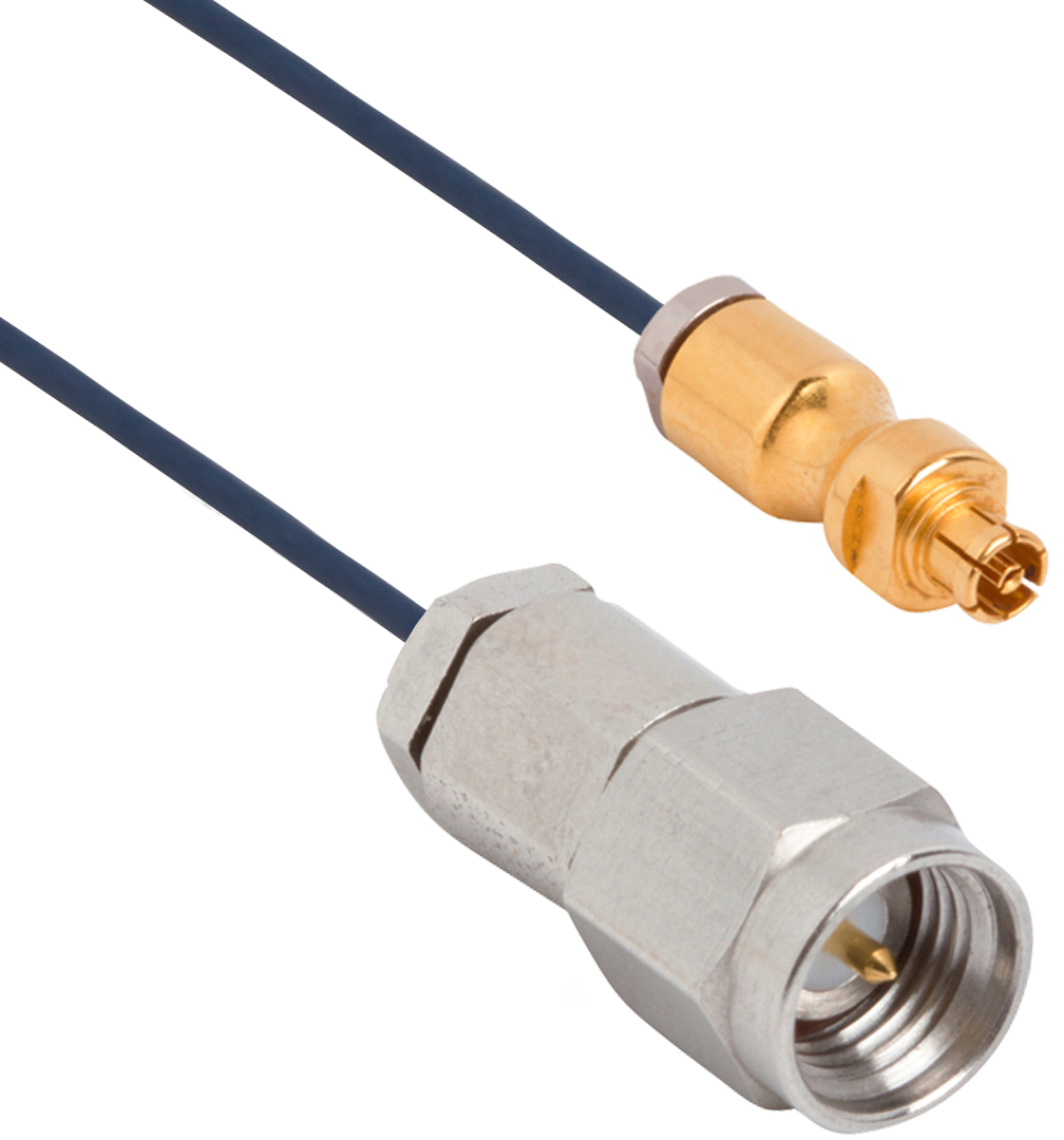

SMPM Female to SMA Male 12" Cable Assembly for .047 SuperFlex Cable"

Available Inventory: 31
7032-7777
SMPM Cable Assemblies 7032-7777
Datasheet
Part #   7029-3437

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable

Available Inventory: 77
7029-3437
SMA Cable Assemblies 7029-3437
Datasheet
Part #   7029-3436

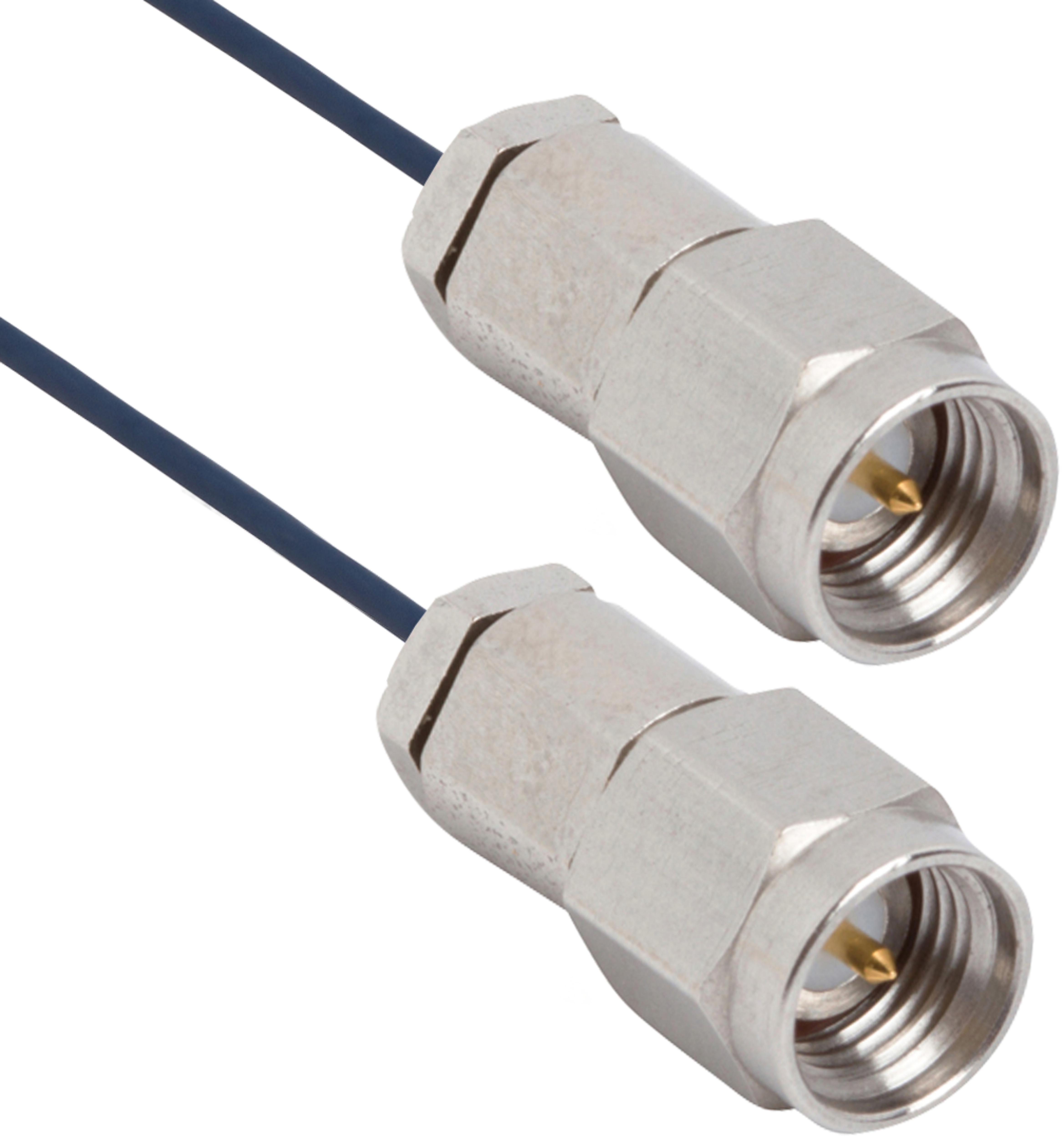

SMA Male to SMA Male 12" Cable Assembly for .047 SuperFlex Cable
