BMA Female Flange Mount Connector, 2 Hole, for .141 Cable
P/N: SF1732-6004

In stock at Qty Order
Mouser Electronics 44
Digi-Key Electronics 25
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Body Style 2 Hole
Mounting Type Panel
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Mating Cycles 5000
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:20:03 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Jack (Female)
Coupling Push-on
Orientation (Body) Straight
Body Style 2 Hole
Mounting Type Panel
Termination Style Solder
Number of Ports Single
Finish Passivated
Cable Type 0.140 Flexible Coax
Electrical
Impedance 50 ohms
Frequency 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Mating Cycles 5000
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1552-6002

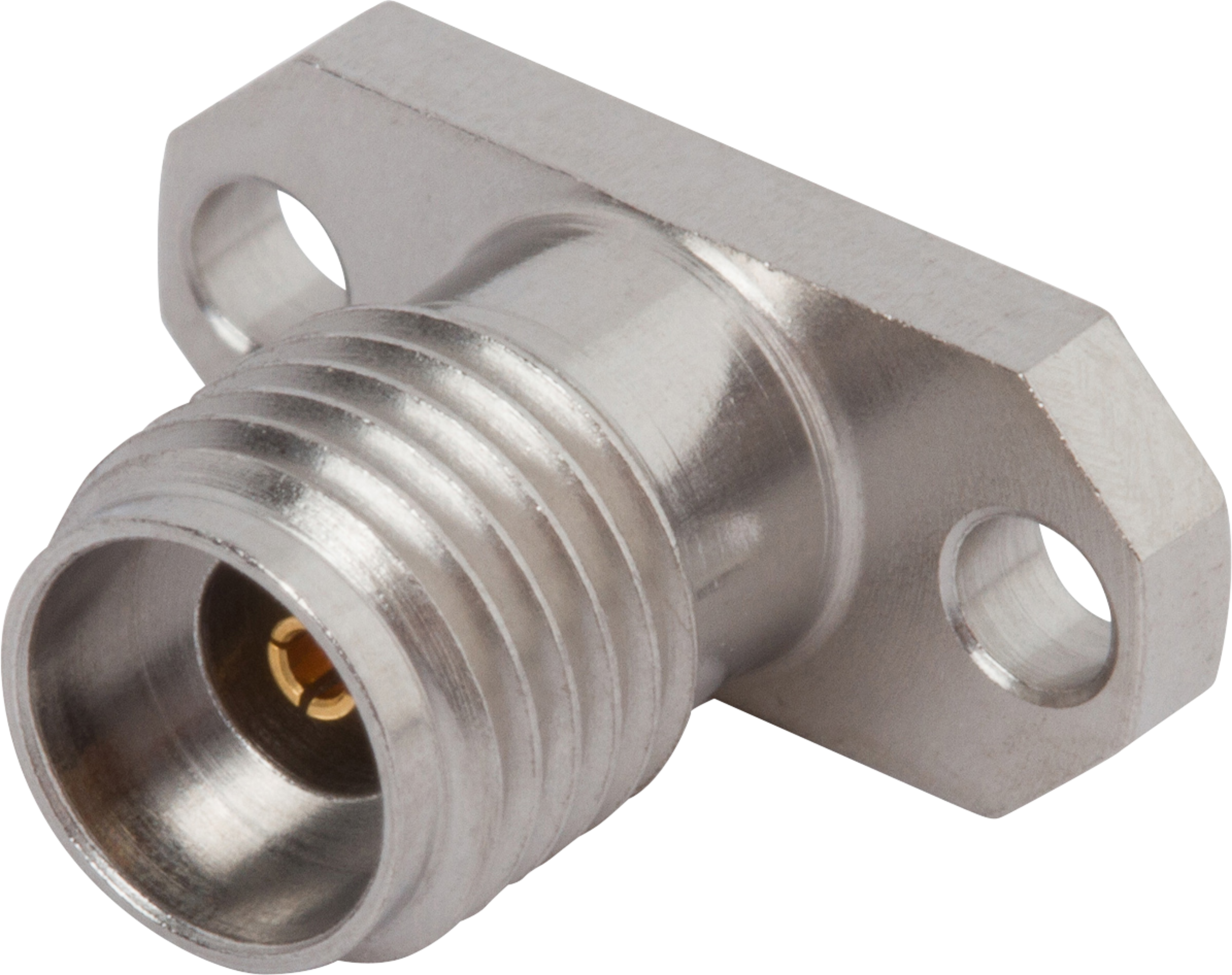

2.92mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)

Available Inventory: 1046
SF1552-6002
2.92mm Connectors SF1552-6002
Datasheet
Part #   SF1621-60017

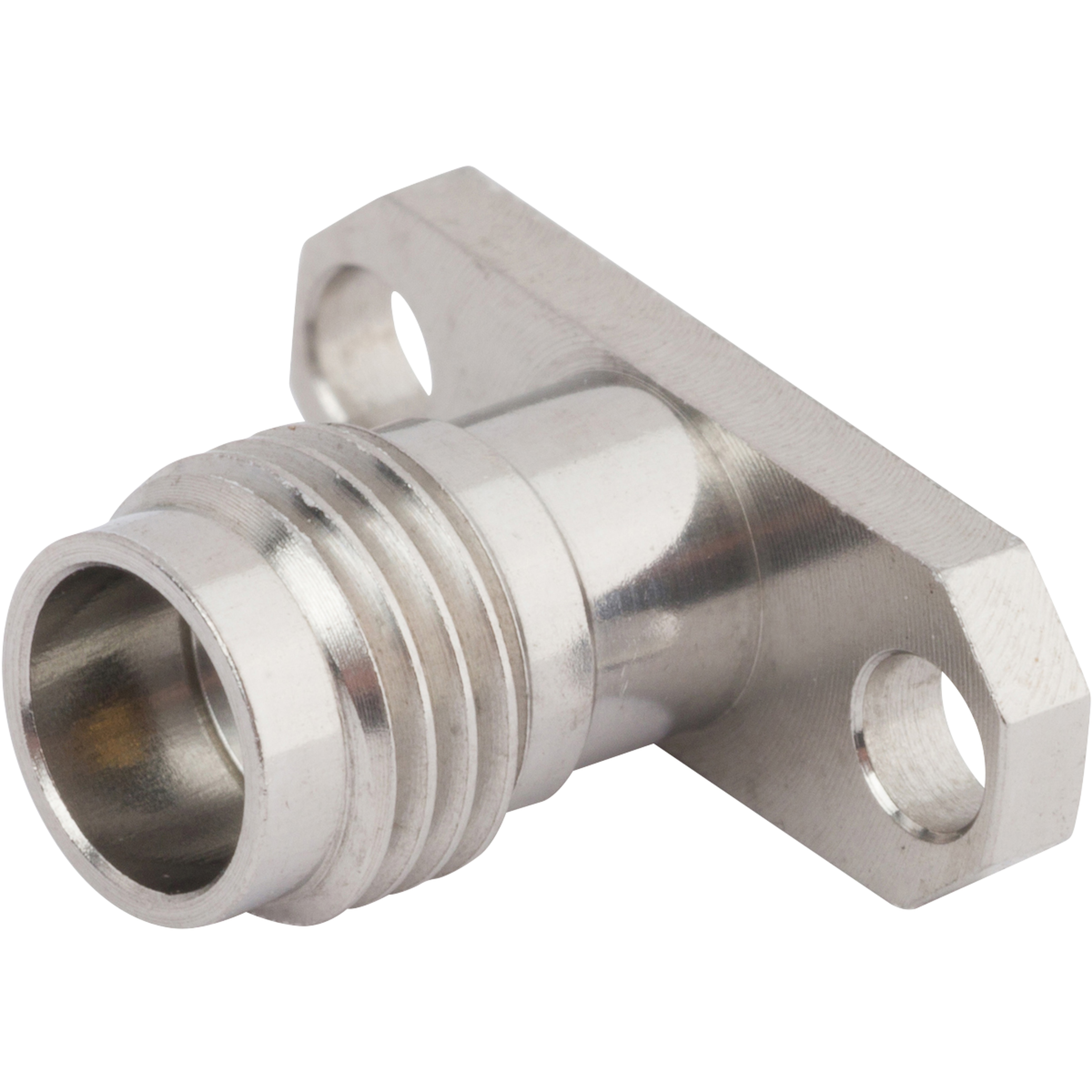

2.4mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)

Available Inventory: 45
SF1621-60017
2.4mm Connectors SF1621-60017
Datasheet
Part #   SF1733-6006

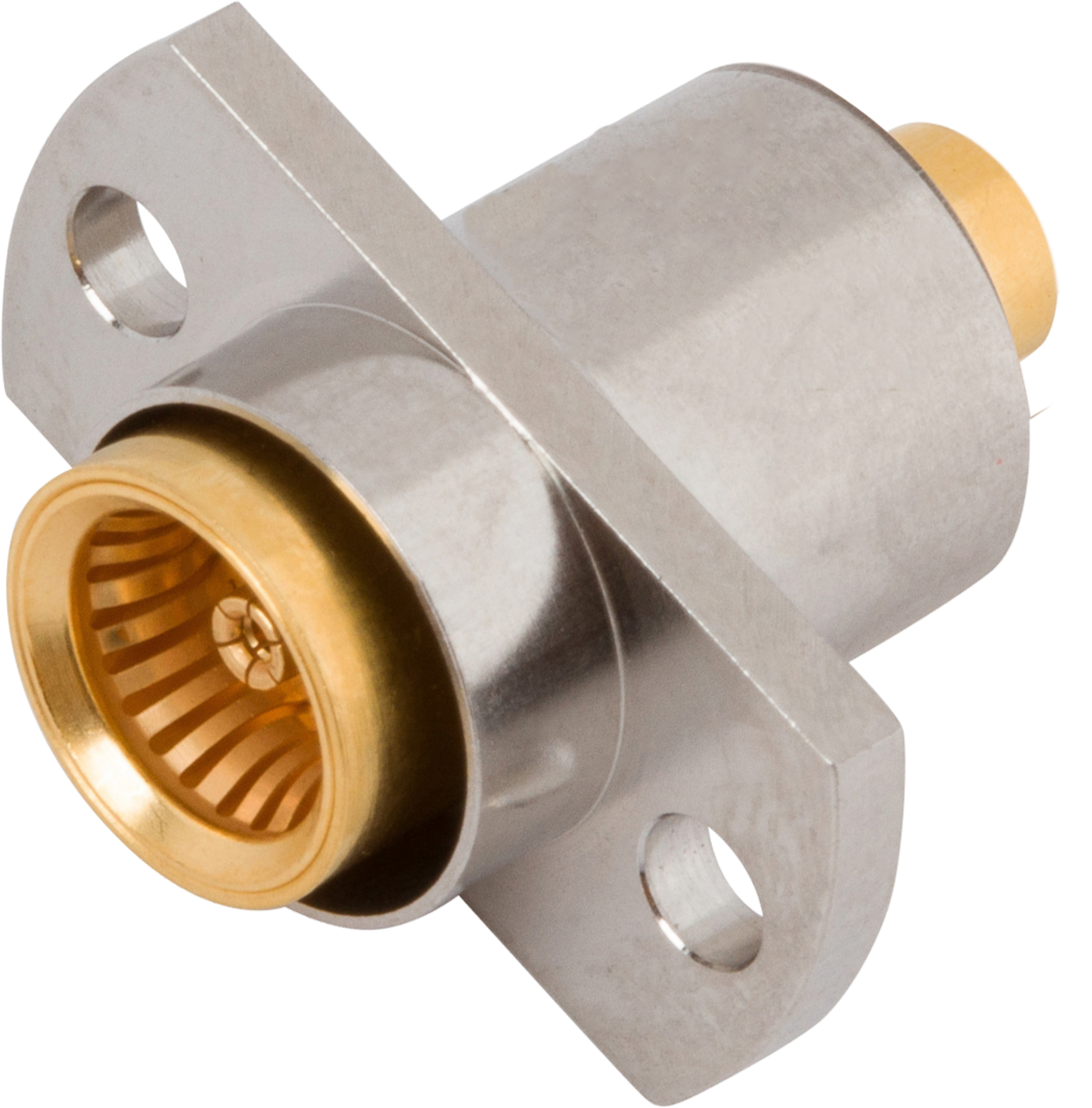

BMA Female Flange Mount Connector, 2 Hole, for .085 Cable
