P/N: 1785-6001

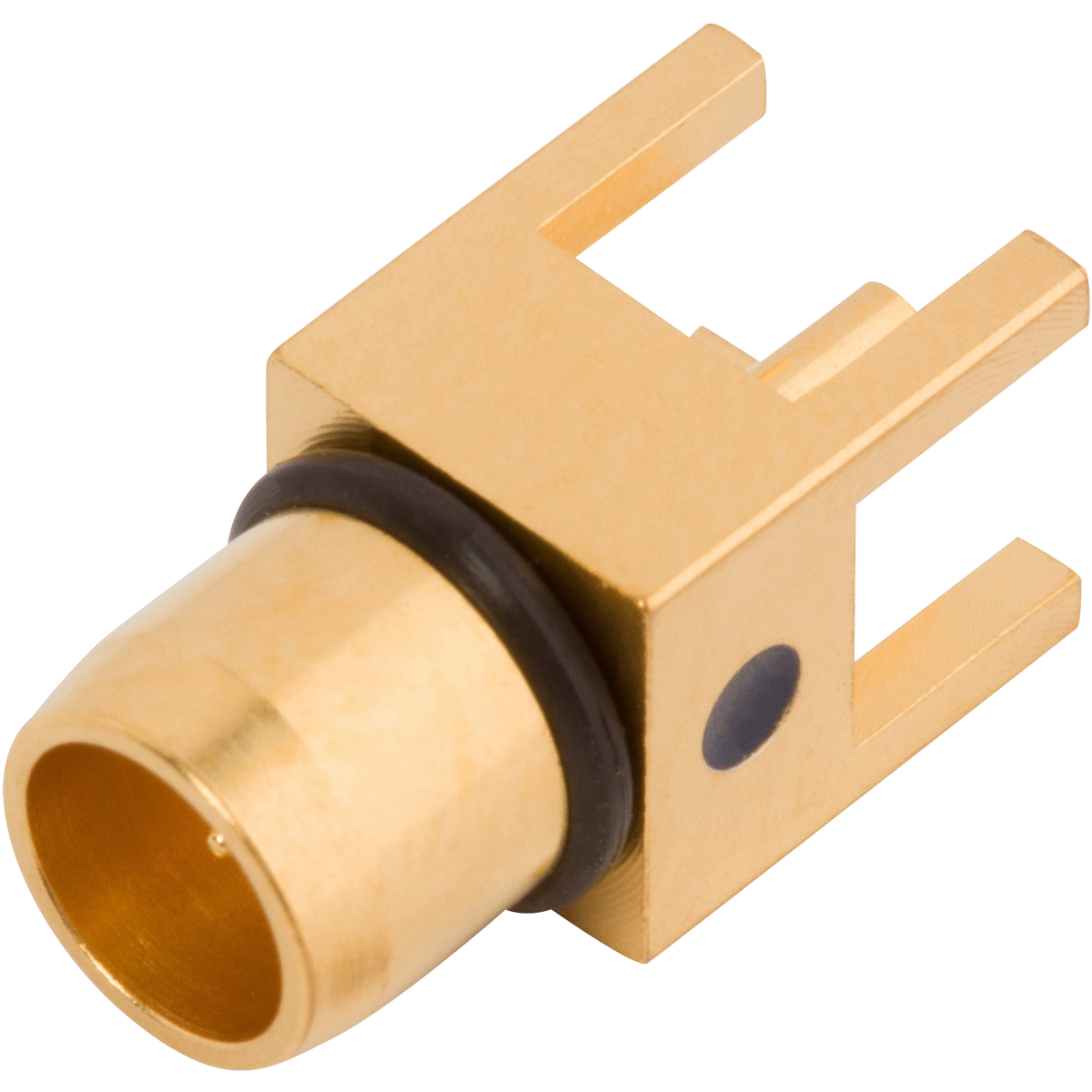

BMA Male PCB Thru-Hole Connector

In stock at Qty Order
Microwave Components LLC 161
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Frequency 18 GHz
Mounting Type PCB Vertical Launch
Termination Style Solder
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Frequency 18 GHz
Mounting Type PCB Vertical Launch
Termination Style Solder
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 5000
Mechanical
Insertion Force 3.0 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 1.5 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1785-0003

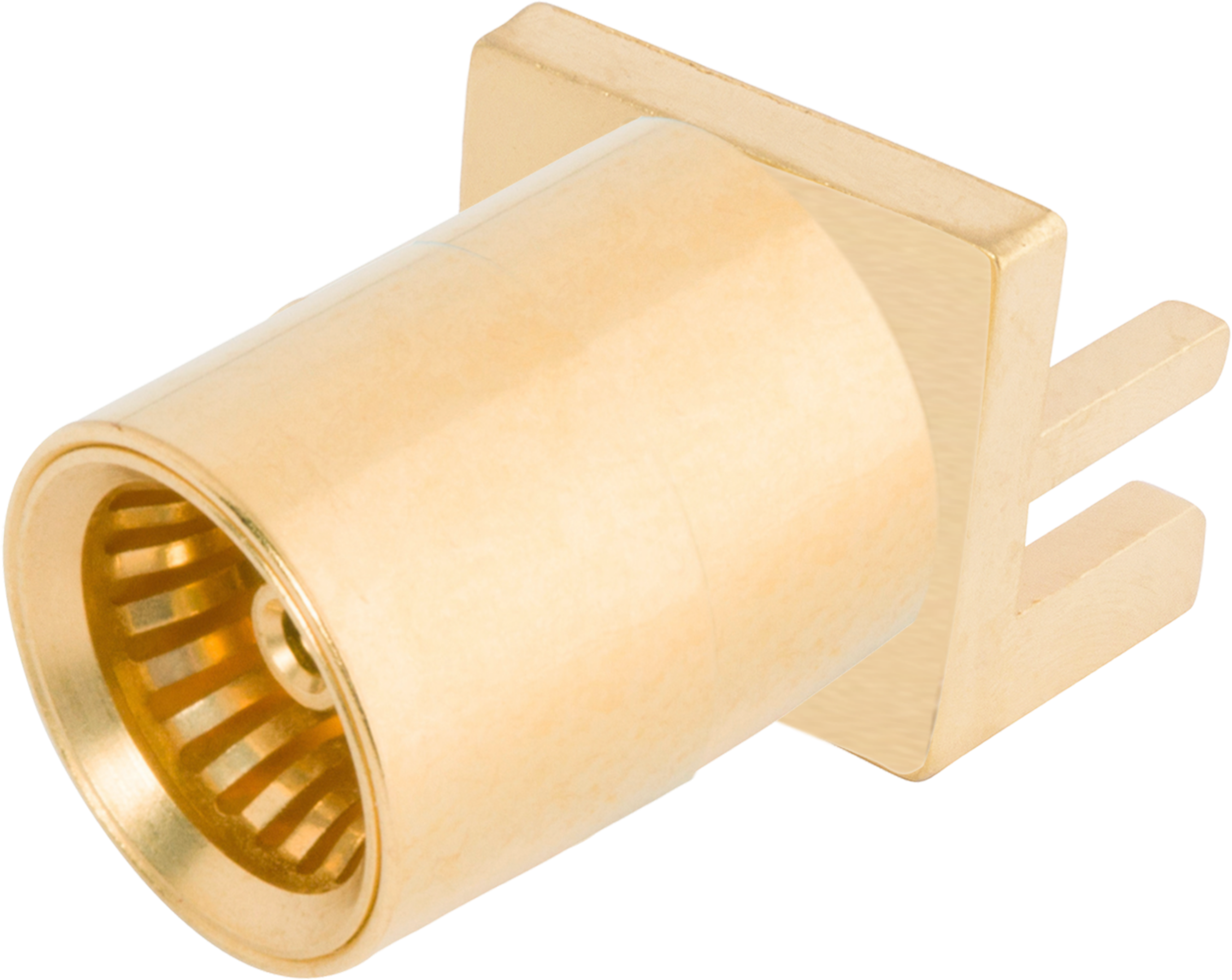

BMA Female PCB Edge Launch Connector

Available Inventory: 99
1785-0003
BMA Connectors 1785-0003
Datasheet
Part #   1785-6001

BMA Male PCB Thru-Hole Connector

Available Inventory: 161
1785-6001
BMA Connectors 1785-6001
Datasheet
Part #   1789-6001

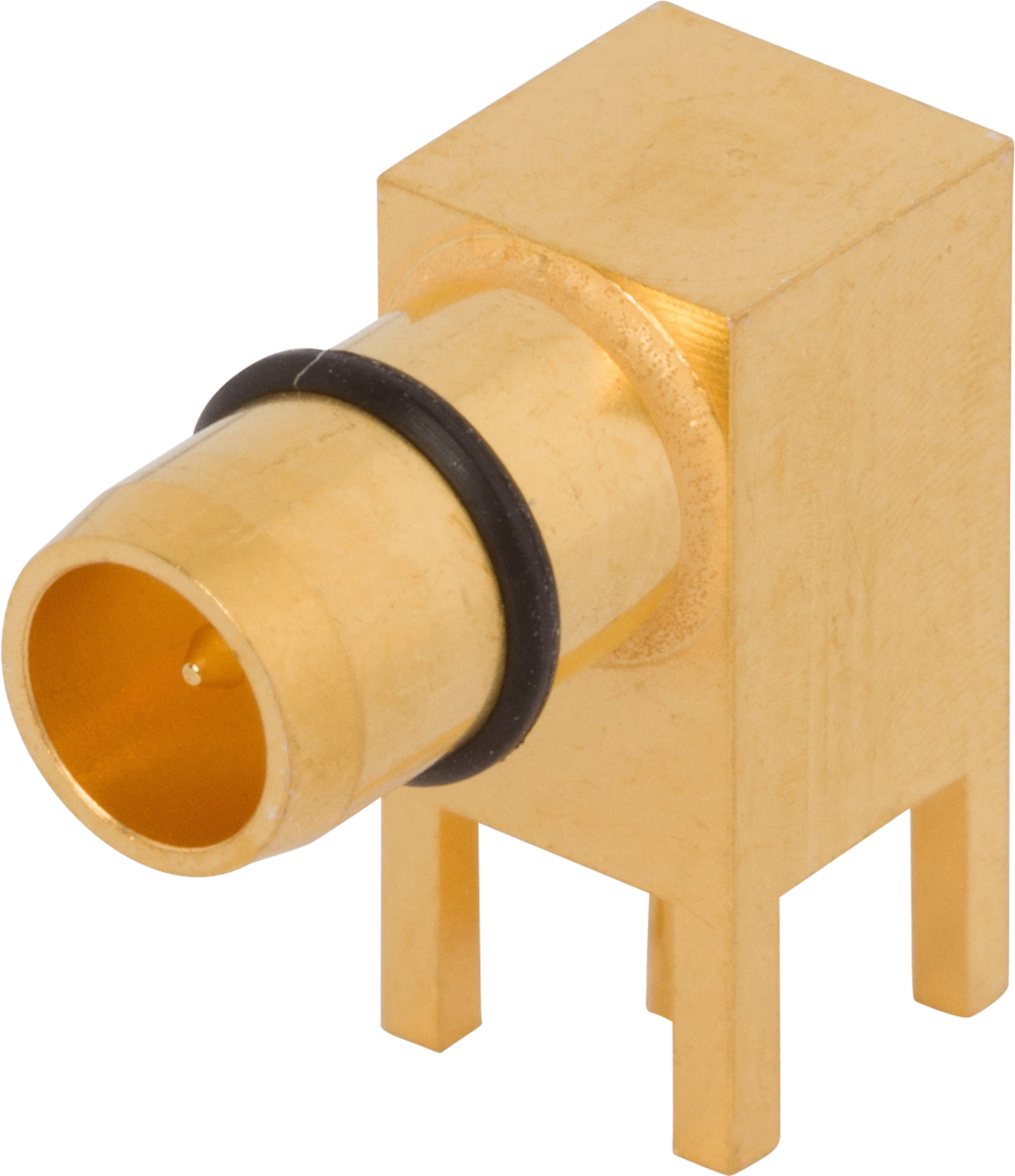

BMA Male PCB Thru-Hole Connector, R/A
