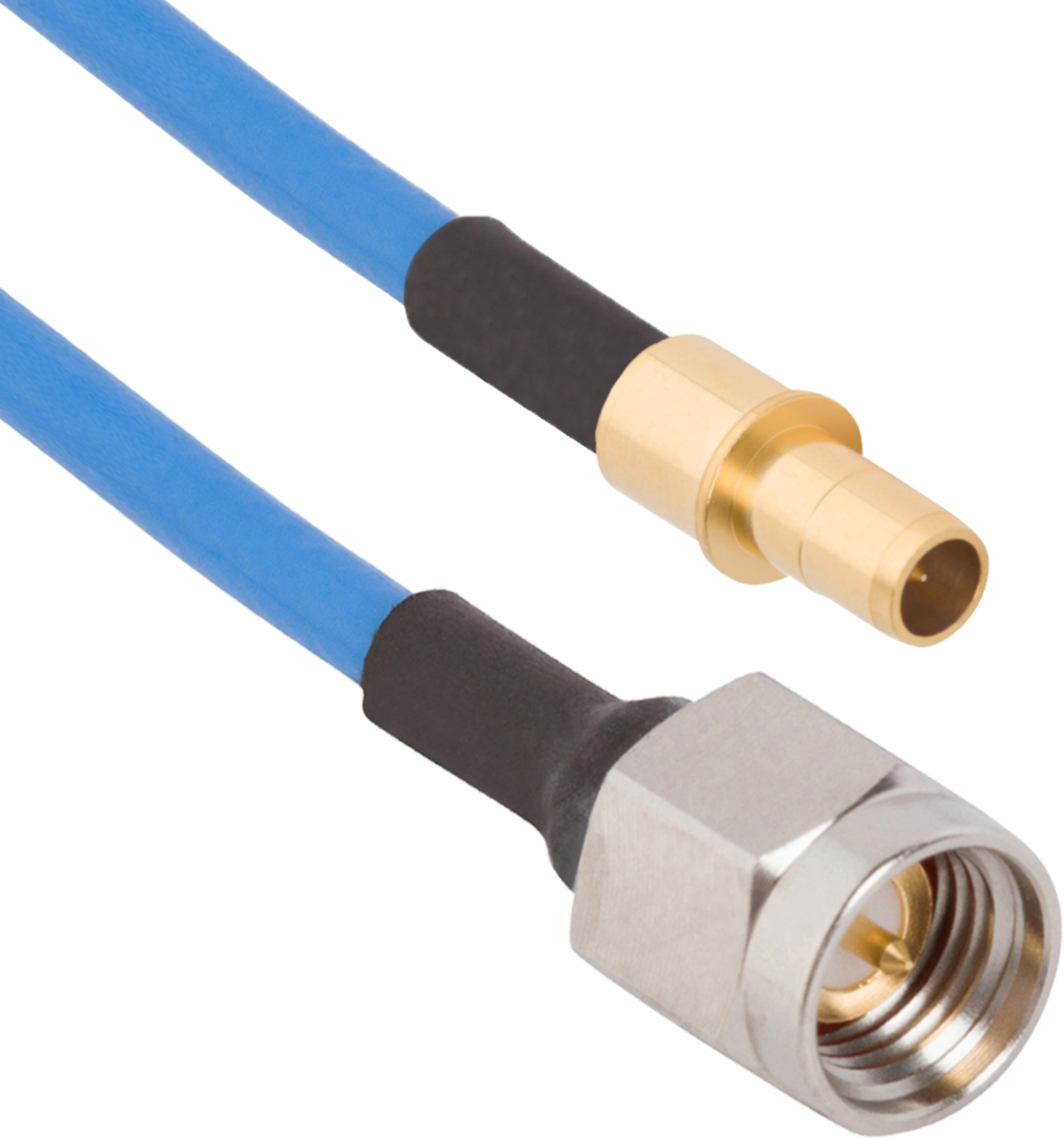

BMA (Size 8) D38999 Pin Contact to SMA Male 12" Cable Assembly for .085 Cable
P/N: 7093-0180

In stock at Qty Order
Farnell 25
Mouser Electronics 24
Digi-Key Electronics 20
Newark 19
Products specifications
Attribute name Attribute value
RF Series BMA
Gender Pin
Orientation (Body) Straight
Coupling Push-on
Mounting Type D38999
Style Size 8
Termination Style Solder
Number of Ports Single
Gender 2 Plug (Male)
RF Series 2 SMA
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 3.0 lbs
Withdrawal Force 1.5 lbs
Mating Cycles 5000
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/2/2022 1:04:28 AM
