Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Jack (Female) |
| Cable Type | 0.085 Flexible Coax |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Gold |
| RF Series | BMB |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 22 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.0 lbs |
| Withdrawal Force | 6 oz |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Gender | Jack (Female) |
| Cable Type | 0.085 Flexible Coax |
| Orientation (Body) | Straight |
| Coupling | Push-on |
| Finish | Gold |
| RF Series | BMB |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 22 GHz |
| Shielding Effectiveness | ≥ -90 dB |
| Dielectric withstanding Voltage | 1500 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Insertion Force | 2.0 lbs |
| Withdrawal Force | 6 oz |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Related products
4941-60002
BMB Contacts 4941-60002
4951-60005
BMB Connectors 4951-60005
4951-60006
BMB Connectors 4951-60006
Customers Also Viewed

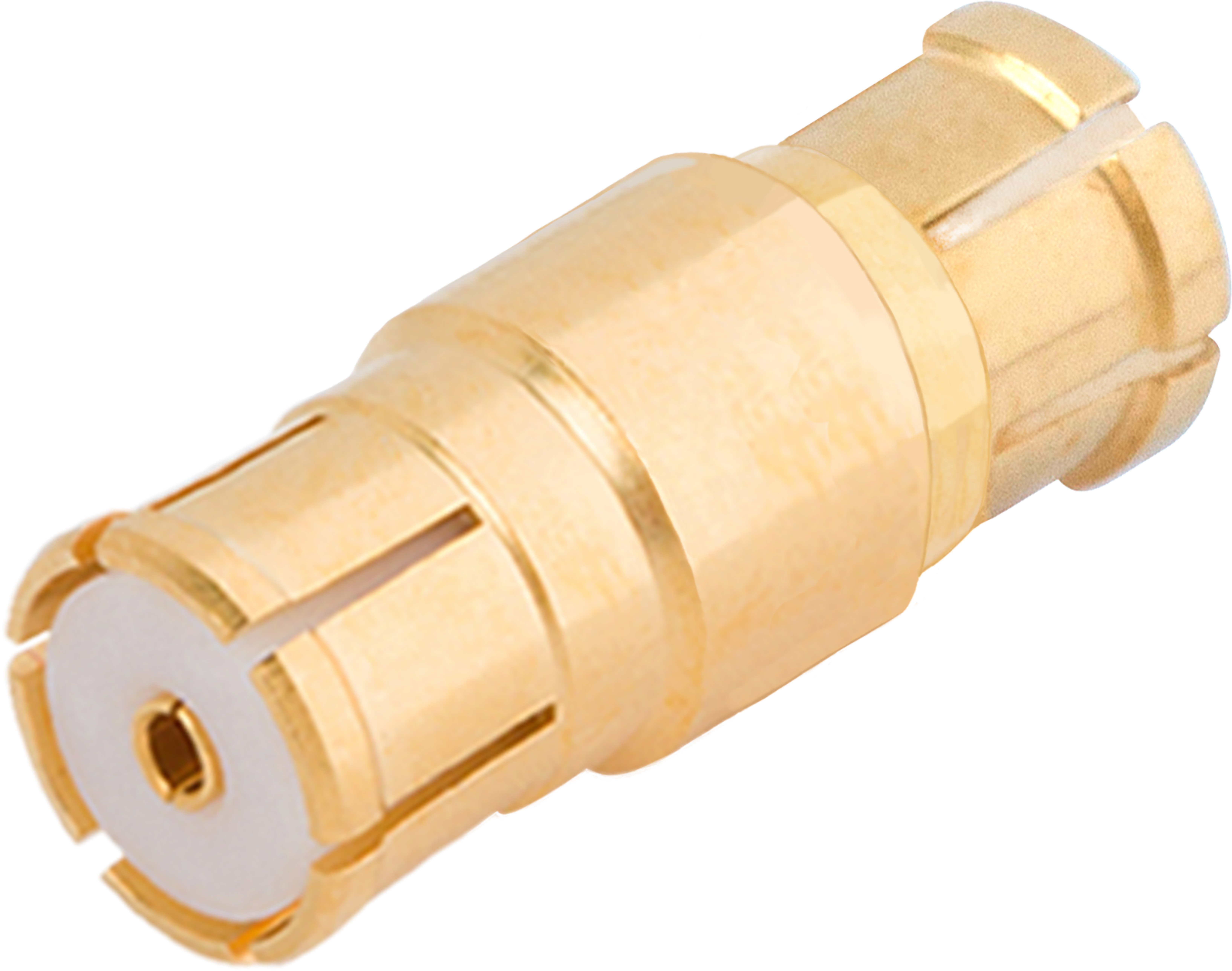

1149-4012
BMB Connector 1149-4012

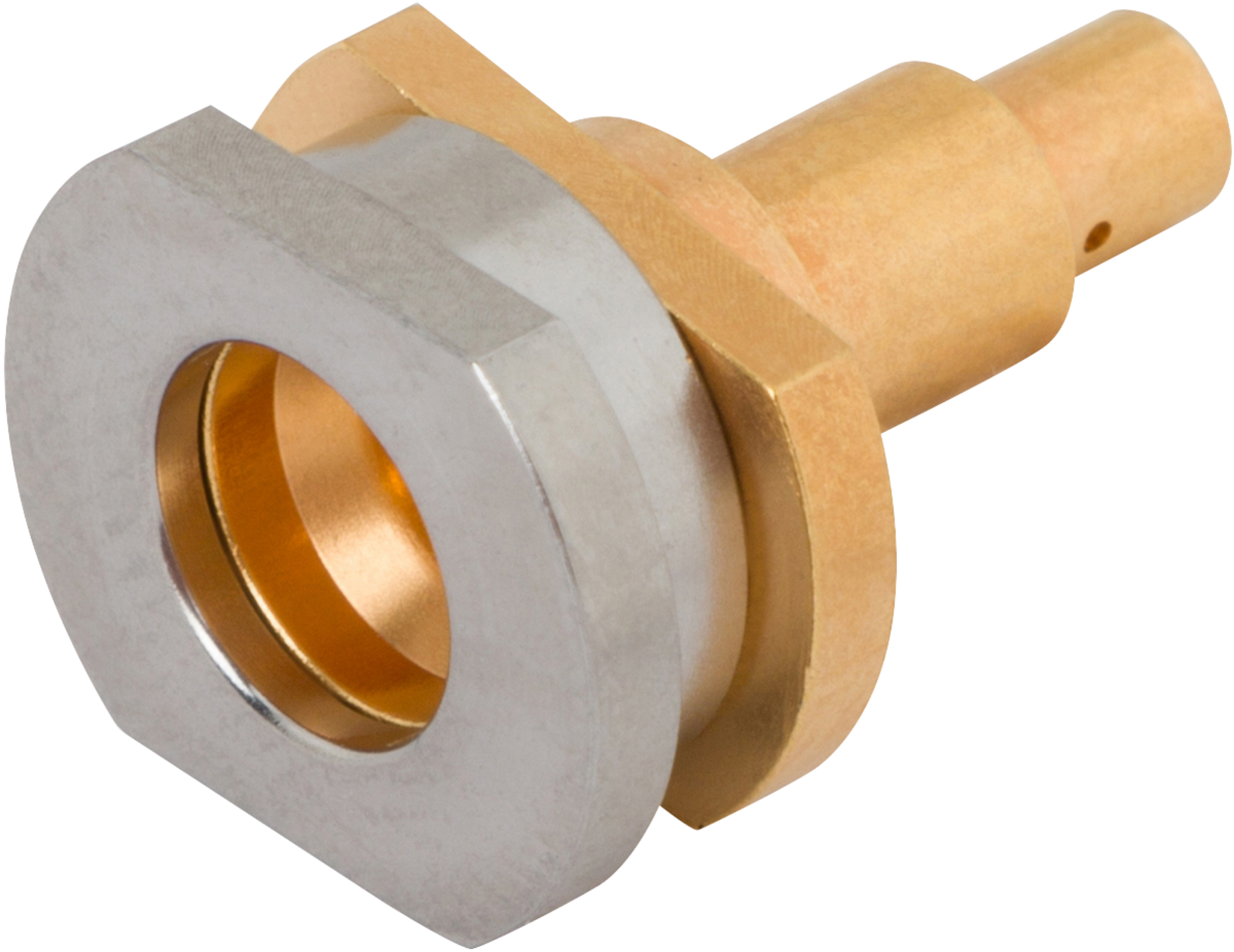

4911-60031
BMB Connector 4911-60031

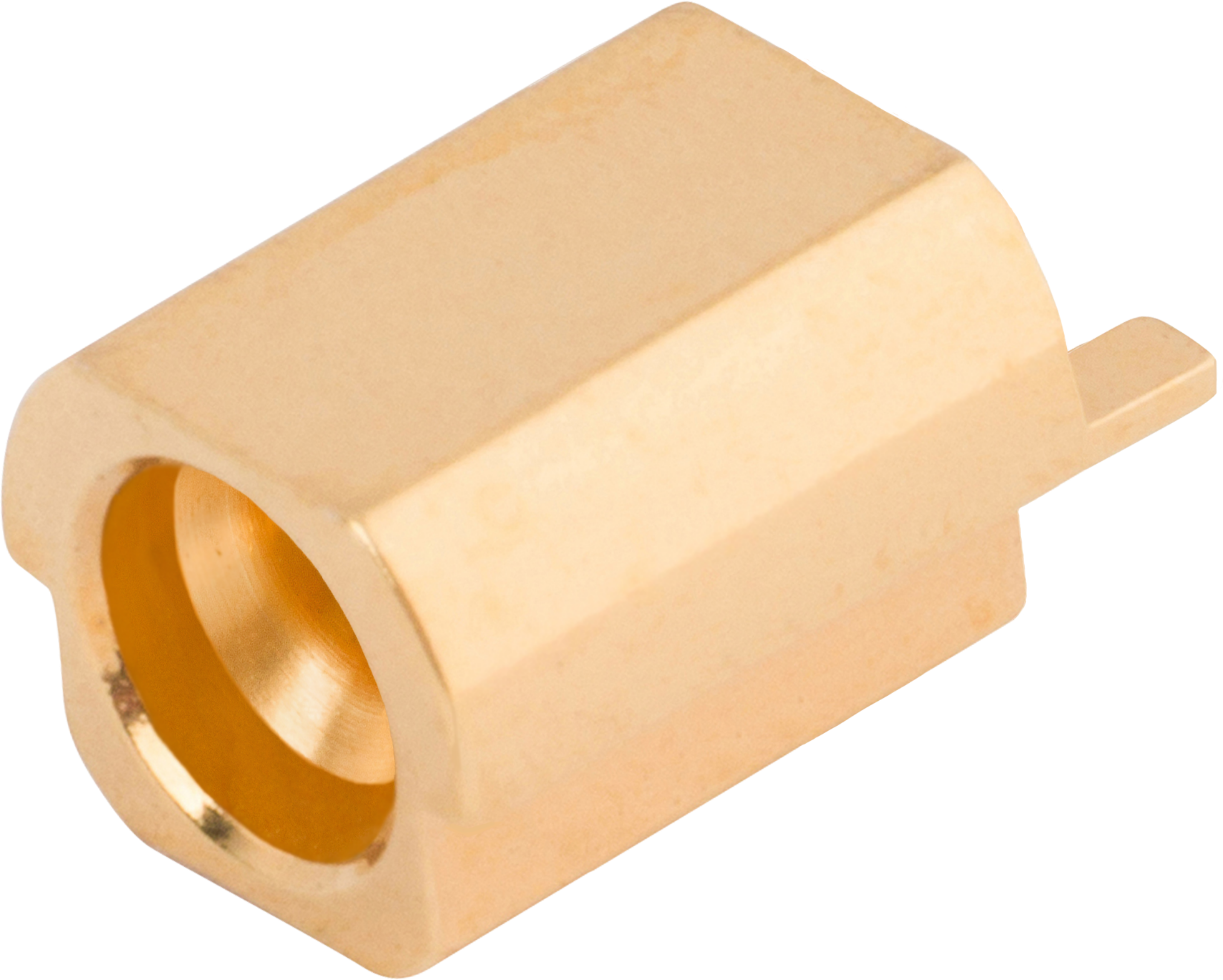

4911-60029
