BMB RF Interconnects

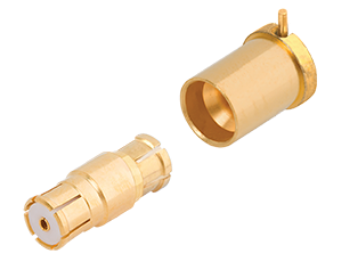

SV Microwave’s BMB product line offers a comprehensive range of RF interconnects. This includes standard and bulkhead cable connectors for a variety of cable types and PCB connectors, between-series RF adapters developed to support the testing and calibration of SOSA-aligned open systems, and SOSA-aligned D38999 Size 8 pin and socket contacts. This product line is ideal for use in board-to-board solutions, with connectors in both Full Detent and Smooth Bore options, as well as a bullet. This product line is rated to work up to 22 GHz, ensuring reliable and high-performance RF solutions.
Features / Benefits:
- MIL-STD-348, SOSA-Aligned Interface
- D38999 compatible and gang mateable for versatility
- Larger form factor for higher-power RF applications than SMP
- More durable while offering same benefits as SMPx series
Applications:
- 5G Communications
- Mil-Aero
- Board-to-Board Solutions
- Test and Measurement
- Open System Designs
The specifications below are typical for the connector series, but may not apply to this particular part. Please see the datasheet for full specifications.
BMB
| Impedance (Ω) | 50 |
| Frequency GHz | 22 GHz |
| Shielding Effectiveness | -90 dB - F(GHz) |
| Dielectric withstanding Voltage | 1000 VRMS |
| Mating Cycles | 500 |
| Insertion Force | 2.0 lbs |
| Withdrawal Force | 6.0 oz |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
