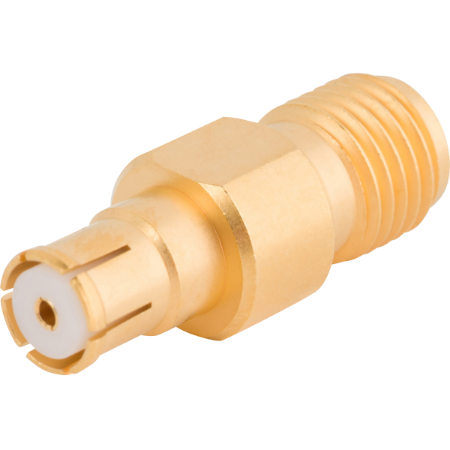

BMB Female to SMA Female Adapter
P/N: 1149-6412

Name: BMB Female to SMA Female Adapter | 1146-6412
SKU: 1149-6412
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
RF Series	BMB
Gender	Jack (Female)
Orientation (Body)	Straight
Coupling	Push-on
Finish	Gold
RF Series 2	SMA
Gender 2	Jack (Female)
Orientation 2 (Body)	Straight
Electrical
Impedance	50 ohms
Frequency	18 GHz
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1500 VRMS
Mechanical
Mating Cycles	500
Insertion Force	2.0 lbs
Withdrawal Force	6 oz
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Thermal Shock	MIL-STD-202, Method 107, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
