P/N: SF1189-6104

BMZ Female to SMA Male Adapter, 2 Hole

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Jack (Female)
Orientation (Body) Straight
Impedance 50 ohms
Mounting Type Panel
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Body Style 2 Hole
Coupling Push-on
Frequency 18 GHz
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Jack (Female)
Orientation (Body) Straight
Impedance 50 ohms
Mounting Type Panel
Finish Passivated
RF Series 2 SMA
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Body Style 2 Hole
Coupling Push-on
Frequency 18 GHz
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 0.75 lbs
Withdrawal Force 0.13 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1189-6103

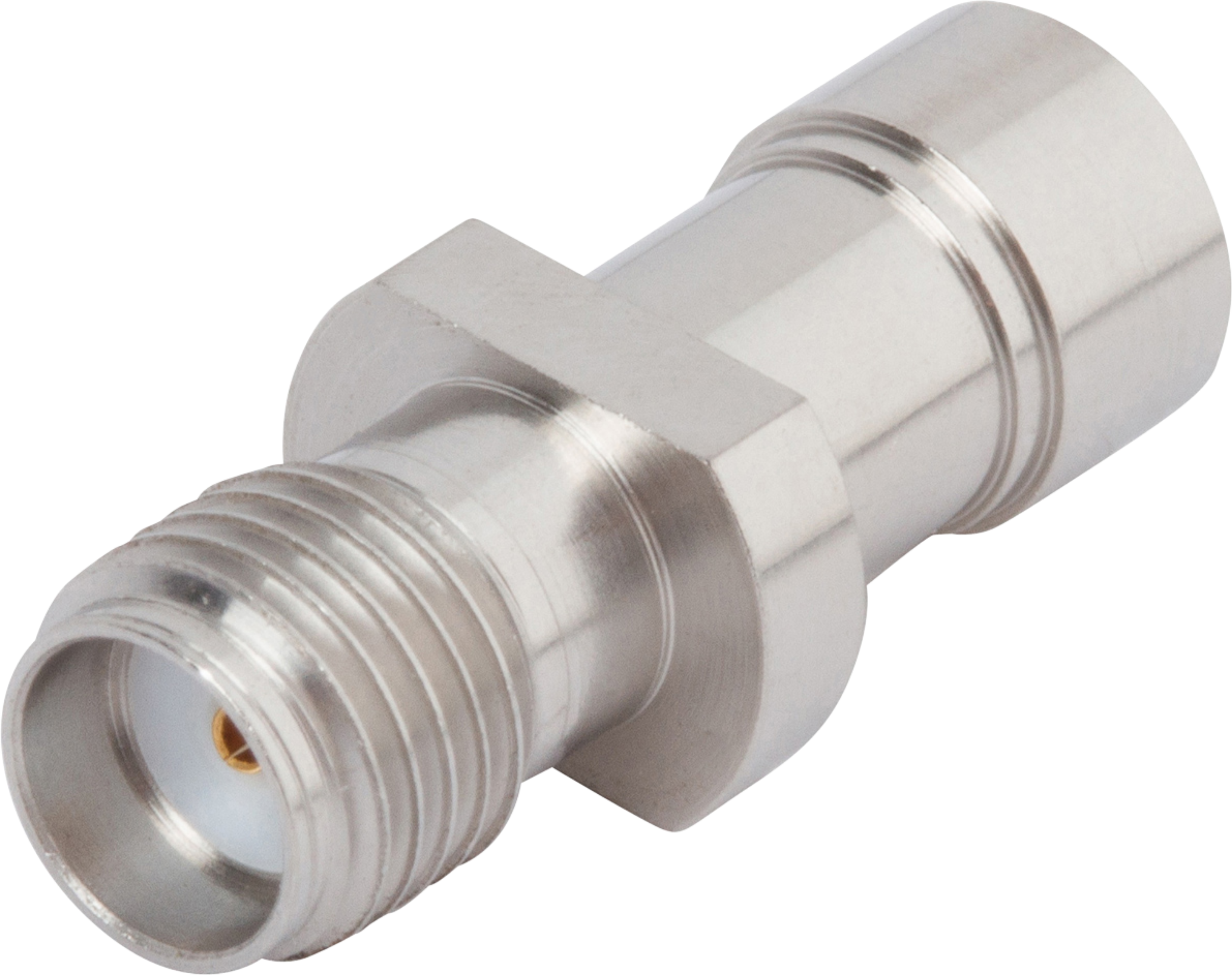

BMZ Male to SMA Female Adapter

Available Inventory: 104
SF1189-6103
BMZ Adapters SF1189-6103
Datasheet
Part #   SF1189-6001

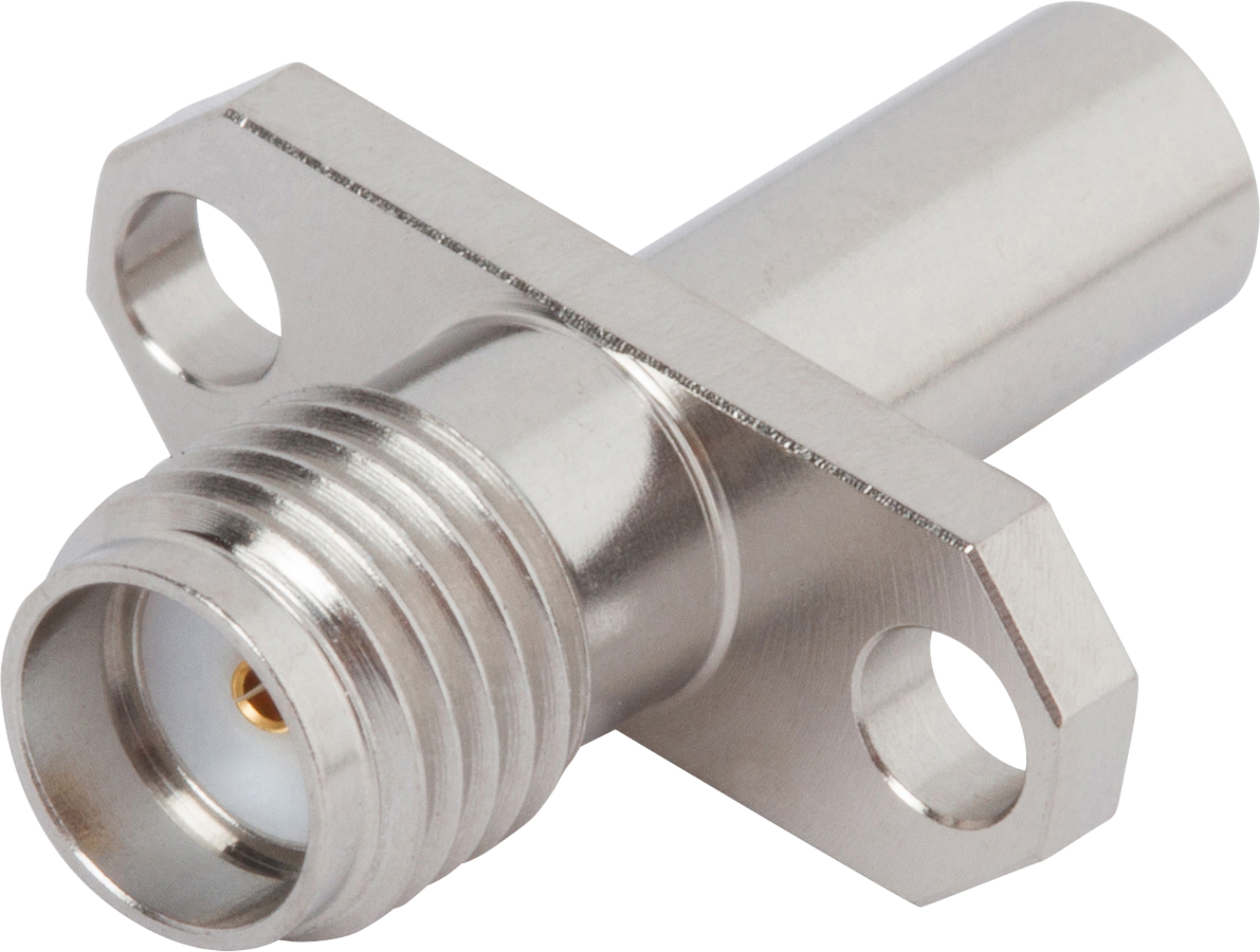

BMZ Female to SMA Female Adapter, 2 Hole

Available Inventory: 67
SF1189-6001
BMZ Adapters SF1189-6001
Datasheet
Part #   SF1189-6009

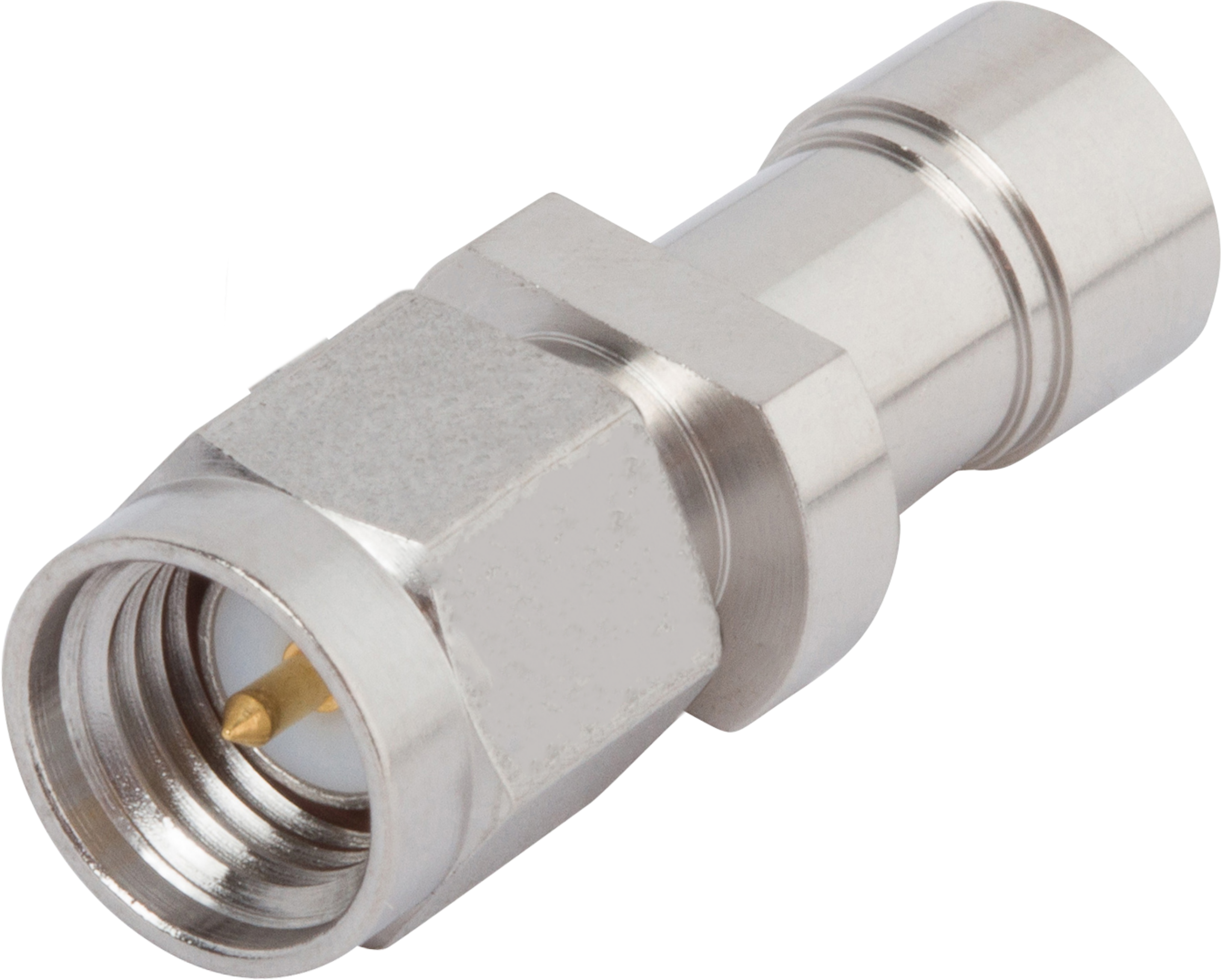

BMZ Male to SMA Male Adapter
