P/N: SF1189-6103

BMZ Male to SMA Female Adapter

In stock at Qty Order
A.E. Petsche Company 54
Mouser Electronics 50
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Plug (Male)
Orientation (Body) Straight
Frequency 18 GHz
Impedance 50 ohms
Coupling Push-on
Finish Passivated
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -80 dB
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Plug (Male)
Orientation (Body) Straight
Frequency 18 GHz
Impedance 50 ohms
Coupling Push-on
Finish Passivated
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 1000 VRMS
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -80 dB
Mating Cycles 500
Mechanical
Insertion Force 0.75 lbs
Temperature Rating -65°C to +165°C
Withdrawal Force 0.13 lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1189-6001

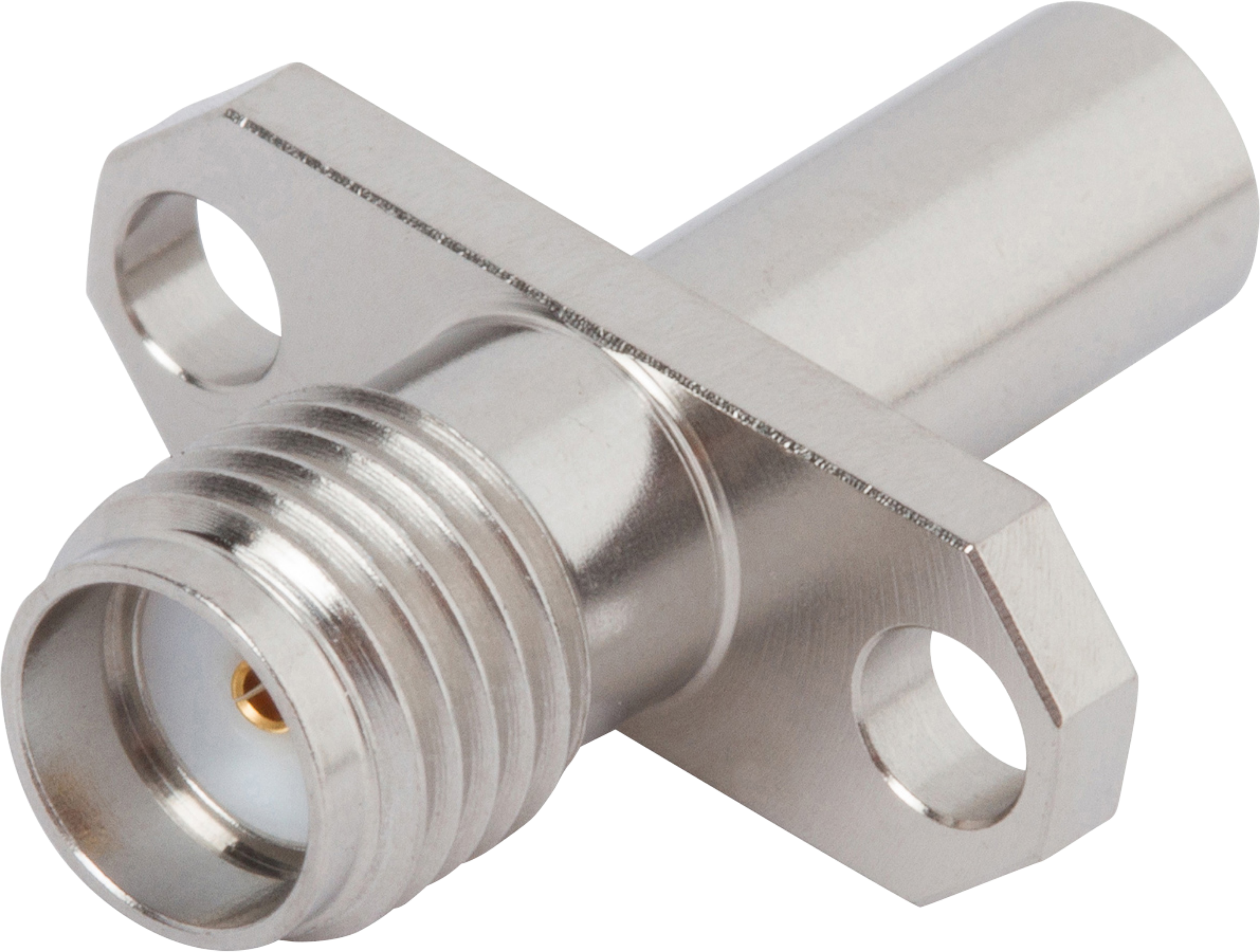

BMZ Female to SMA Female Adapter, 2 Hole

Available Inventory: 67
SF1189-6001
BMZ Adapters SF1189-6001
Datasheet
Part #   SF1189-6009

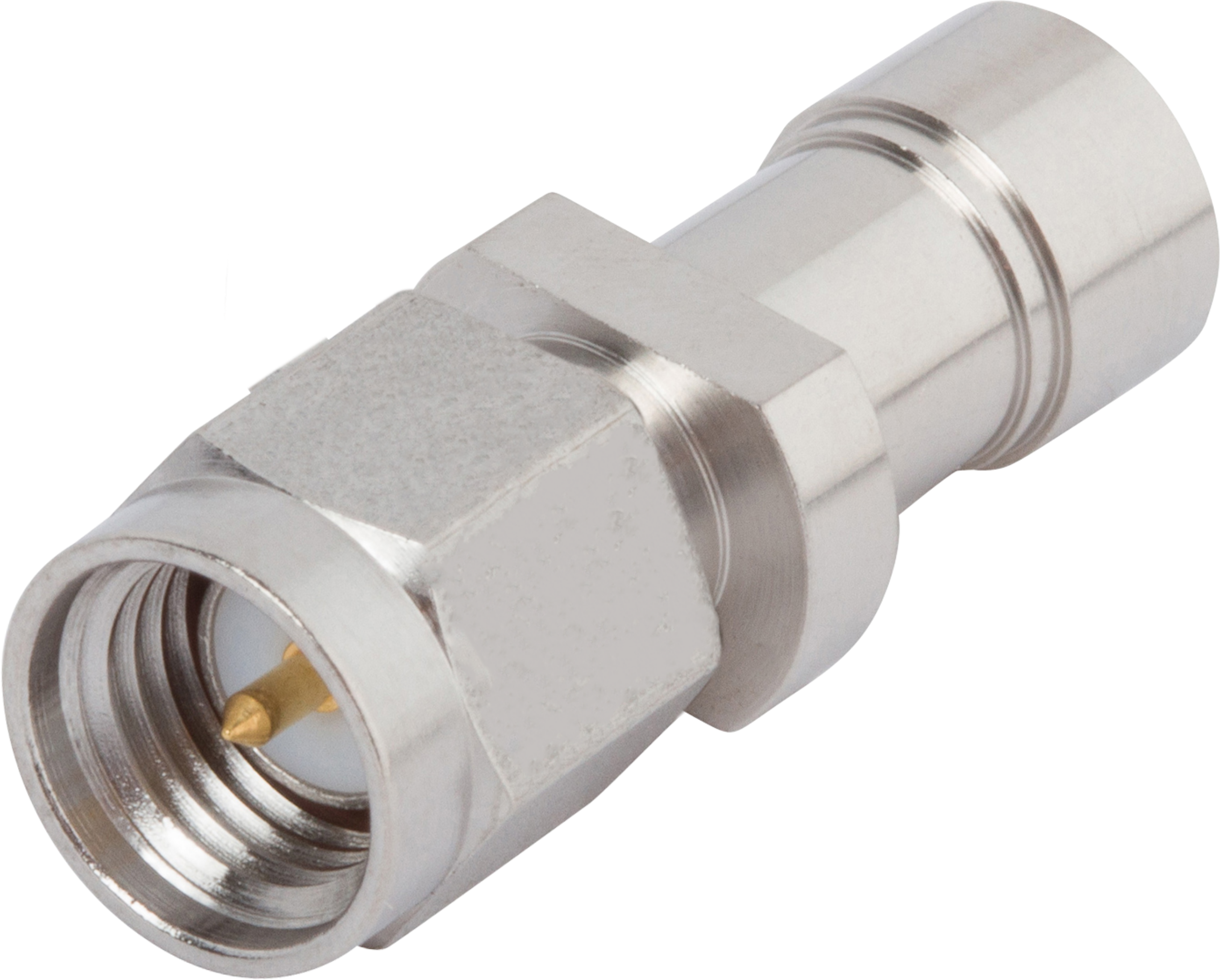

BMZ Male to SMA Male Adapter

Available Inventory: 0
SF1189-6009
BMZ Adapters SF1189-6009
Datasheet
Part #   SF1189-6104

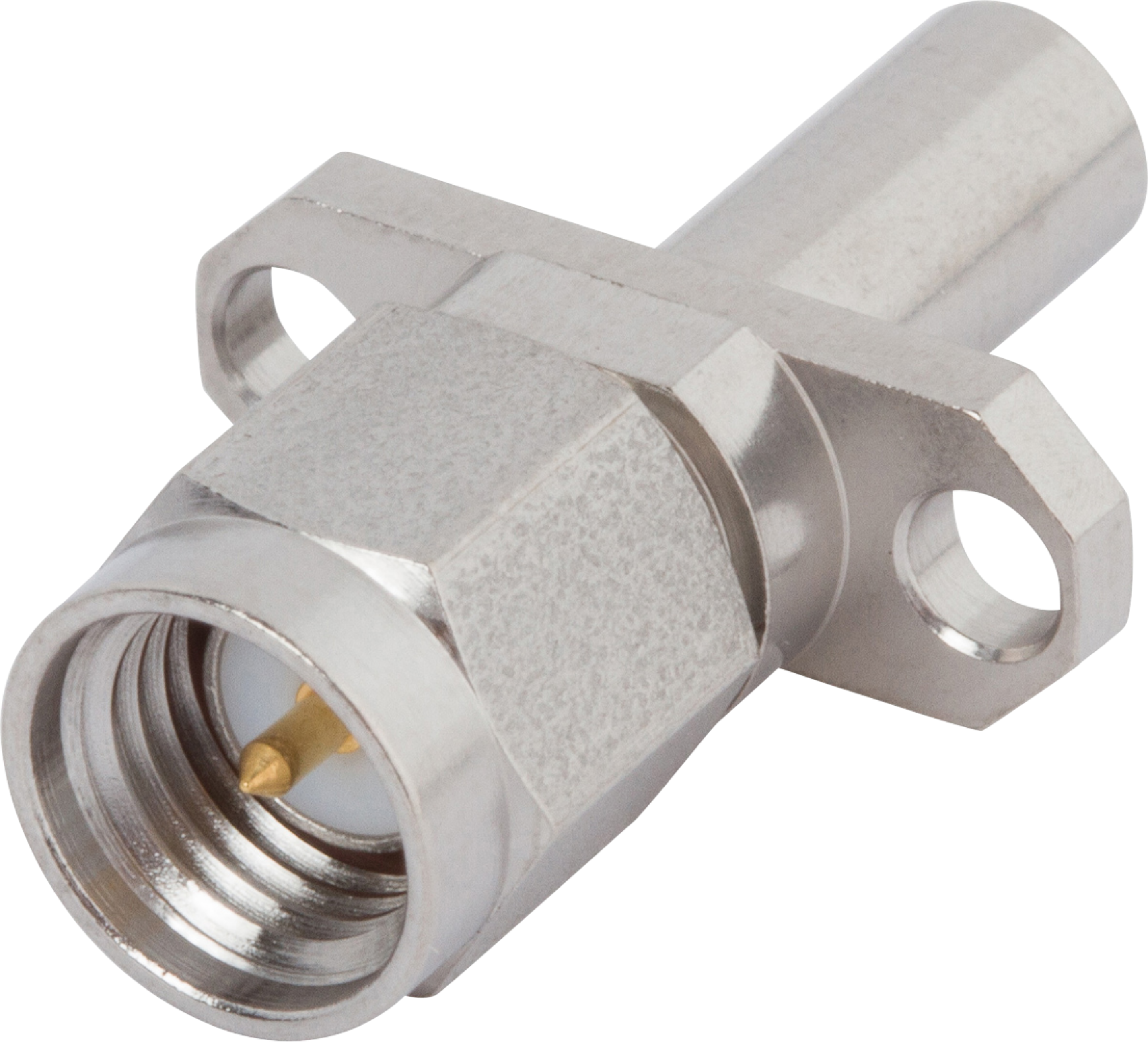

BMZ Female to SMA Male Adapter, 2 Hole
