BMZ Male Flange Mount Connector, 2 Hole, for .085 Cable
P/N: SF8903-6003

In stock at Qty Order
Mouser Electronics 10
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type Panel
Coupling Push-on
Body Style 2 Hole
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 0.75 lbs
Mating Cycles 500
Withdrawal Force 0.13 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:06:26 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BMZ
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type Panel
Coupling Push-on
Body Style 2 Hole
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Insertion Force 0.75 lbs
Mating Cycles 500
Withdrawal Force 0.13 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF8835-6000

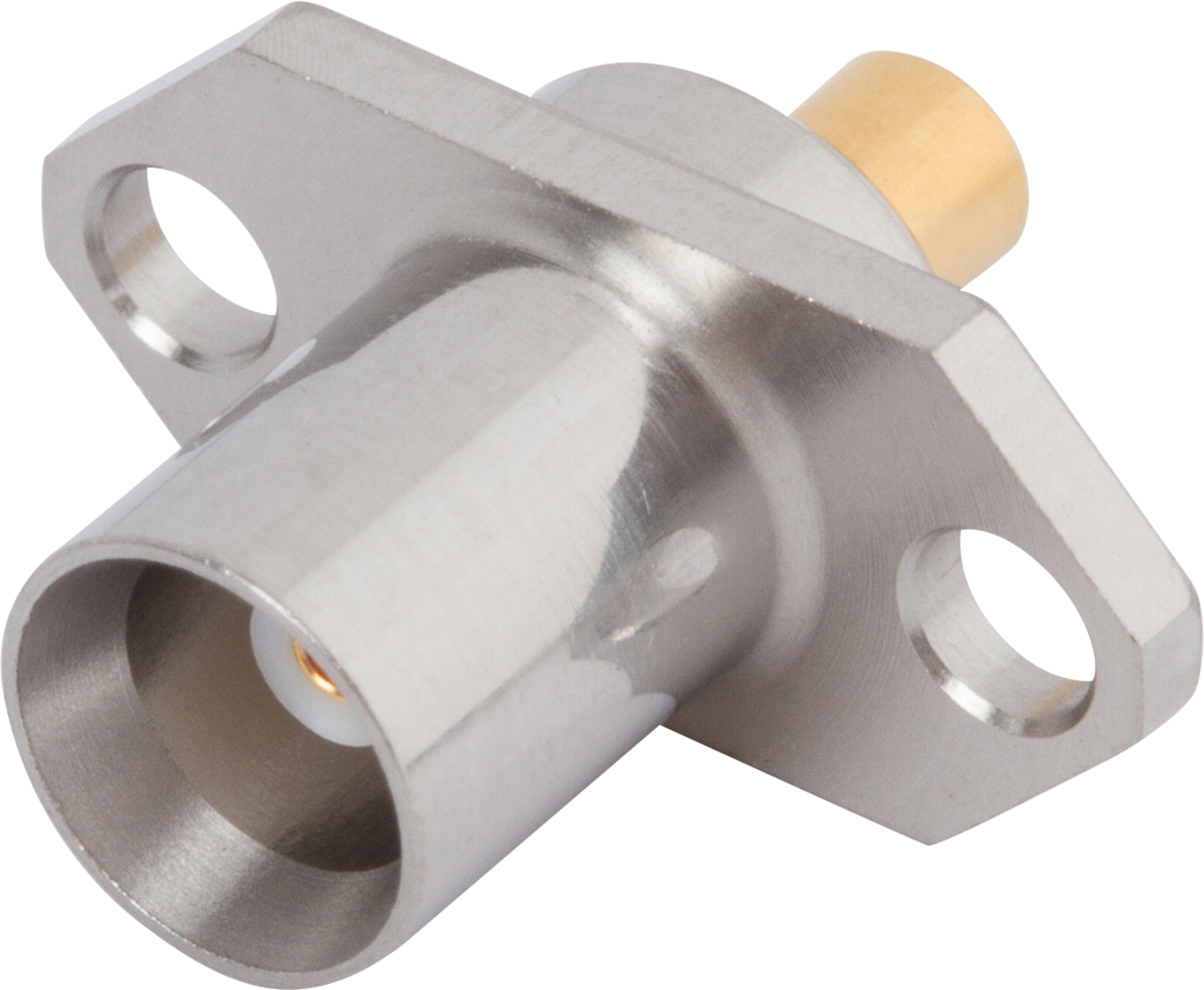

BZ Female Flange Mount Connector, 2 Hole, for .141 Cable

Available Inventory: 0
SF8835-6000
BZ Connectors SF8835-6000
Datasheet
Part #   SF8901-6003

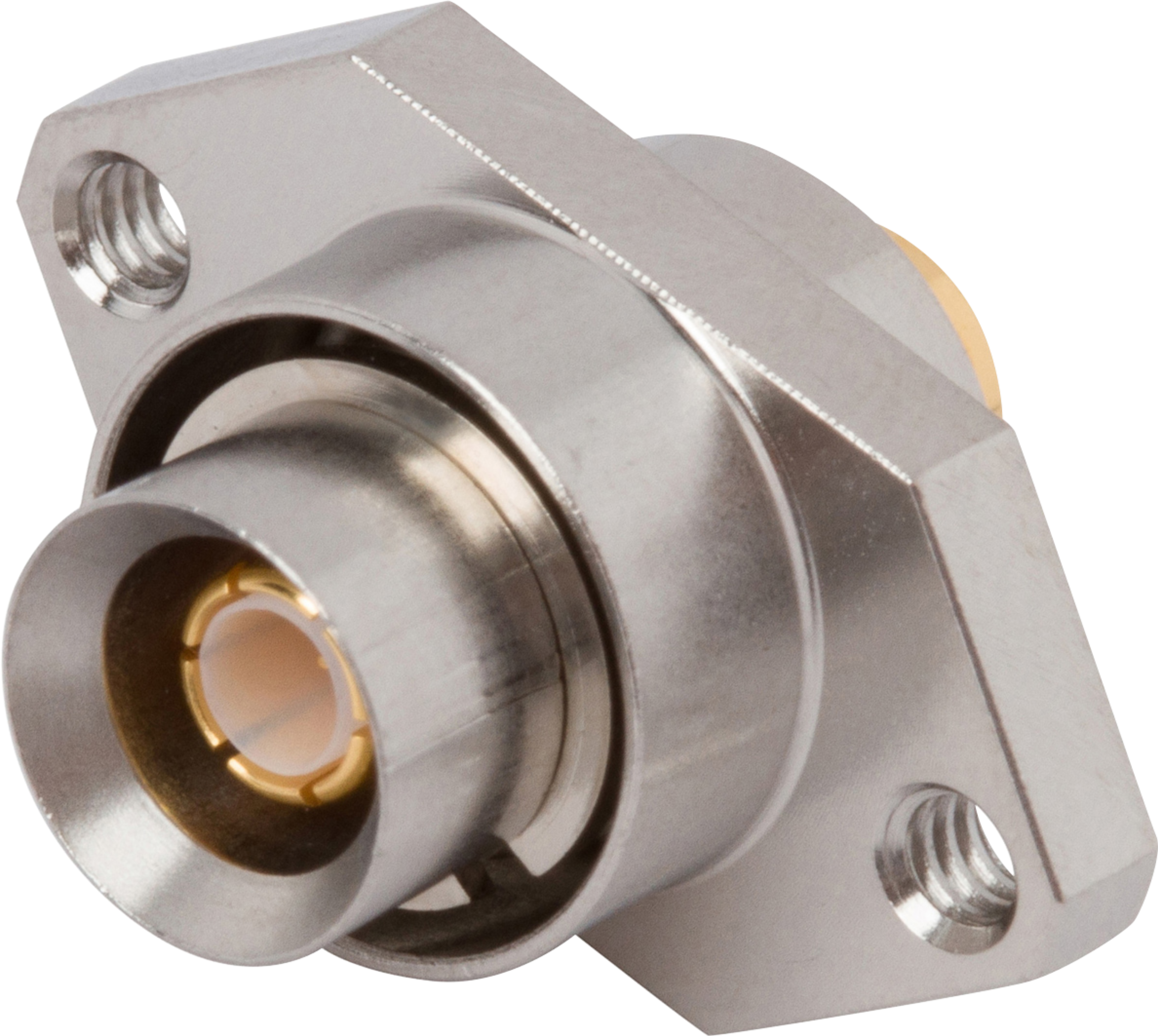

BMZ Male Flange Mount Connector, 2 Hole, for .141 Cable

Available Inventory: 93
SF8901-6003
BMZ Connectors SF8901-6003
Datasheet
Part #   SF8921-60029

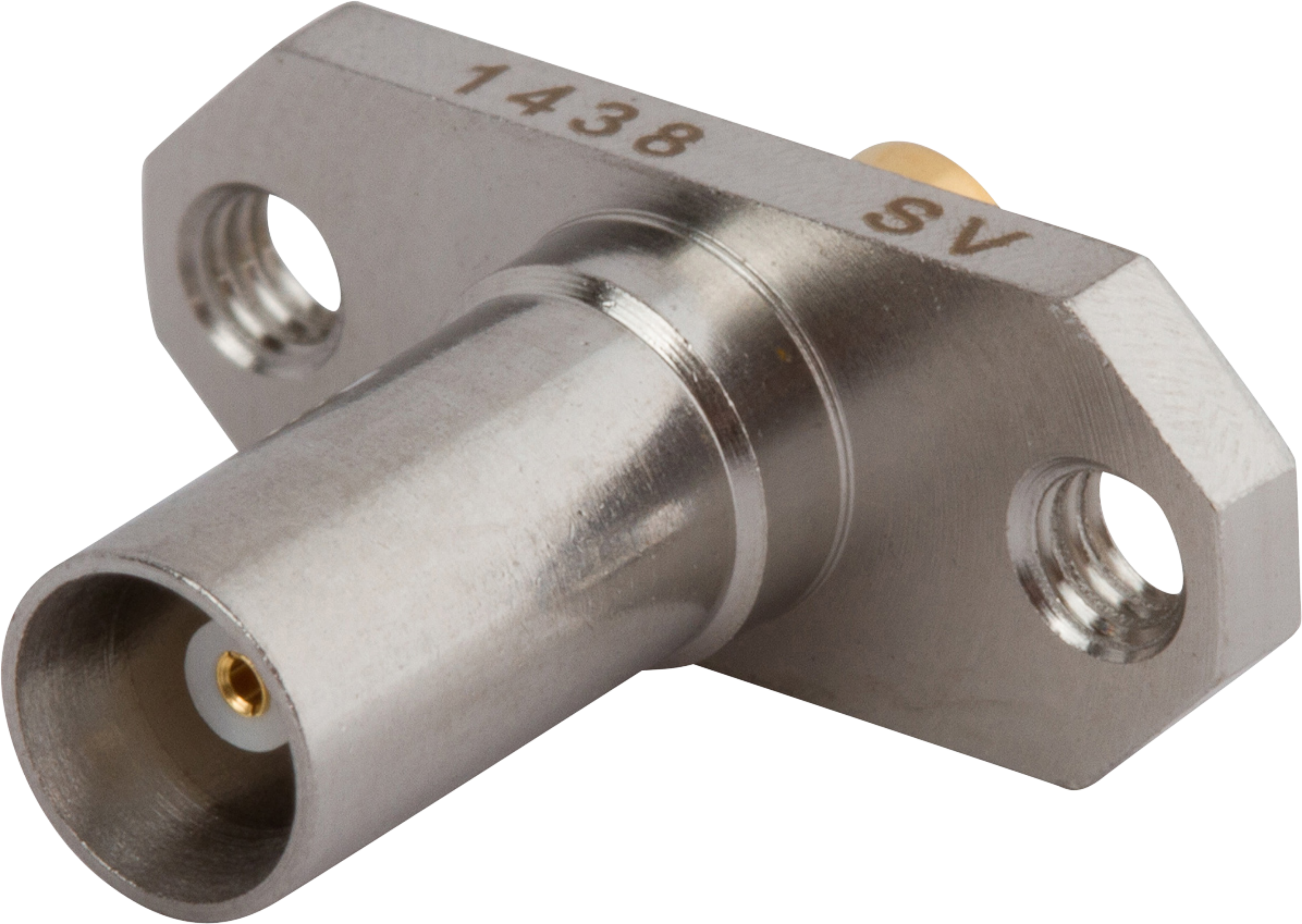

BMZ Female Flange Mount Connector, 2 Hole, for .141 Cable
