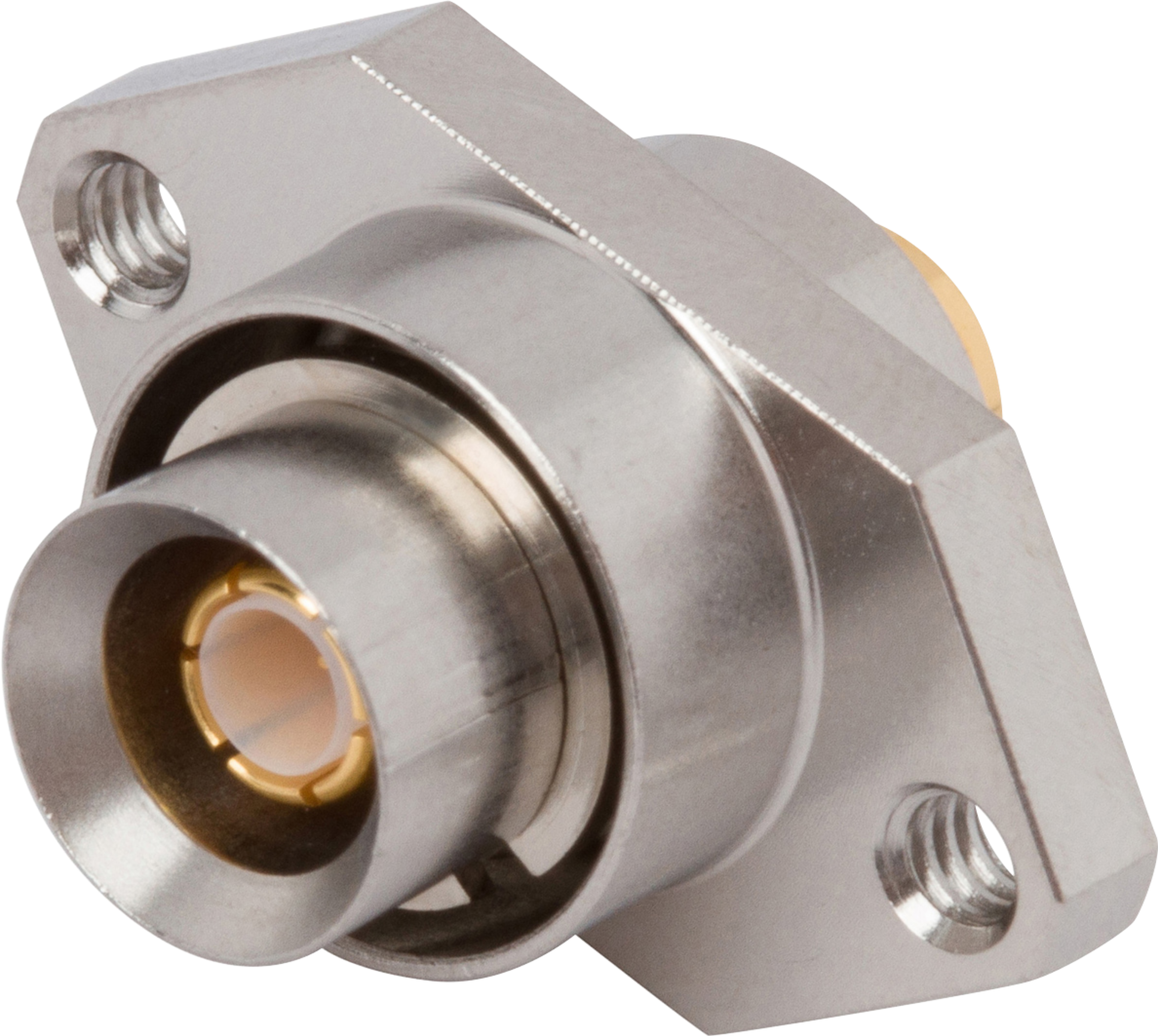

Attribute name | Attribute value |
---|---|
Gender | Plug (Male) |
RF Series | BMZ |
Orientation (Body) | Straight |
Coupling | Push-on |
Mounting Type | Panel |
Body Style | 2 Hole |
Frequency | 18 GHz |
Impedance | 50 ohms |
Finish | Passivated |
Cable Type | 0.140 Flexible Coax |
Electrical | |
Impedance (Ω) | 50 |
Shielding Effectiveness | ≥ -80 dB |
Frequency GHz | 18 GHz |
Dielectric withstanding Voltage | 1000 VRMS |
Mating Cycles | 500 |
Mechanical | |
Insertion Force | 0.75 lbs |
Withdrawal Force | 0.13 lbs |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Temperature Rating | -65°C to +165°C |
Environmental | |
Vibration | MIL-STD-202, Method 204, Condition D |
Shock | MIL-STD-202, Method 213, Condition I |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
