P/N: SF8820-6001

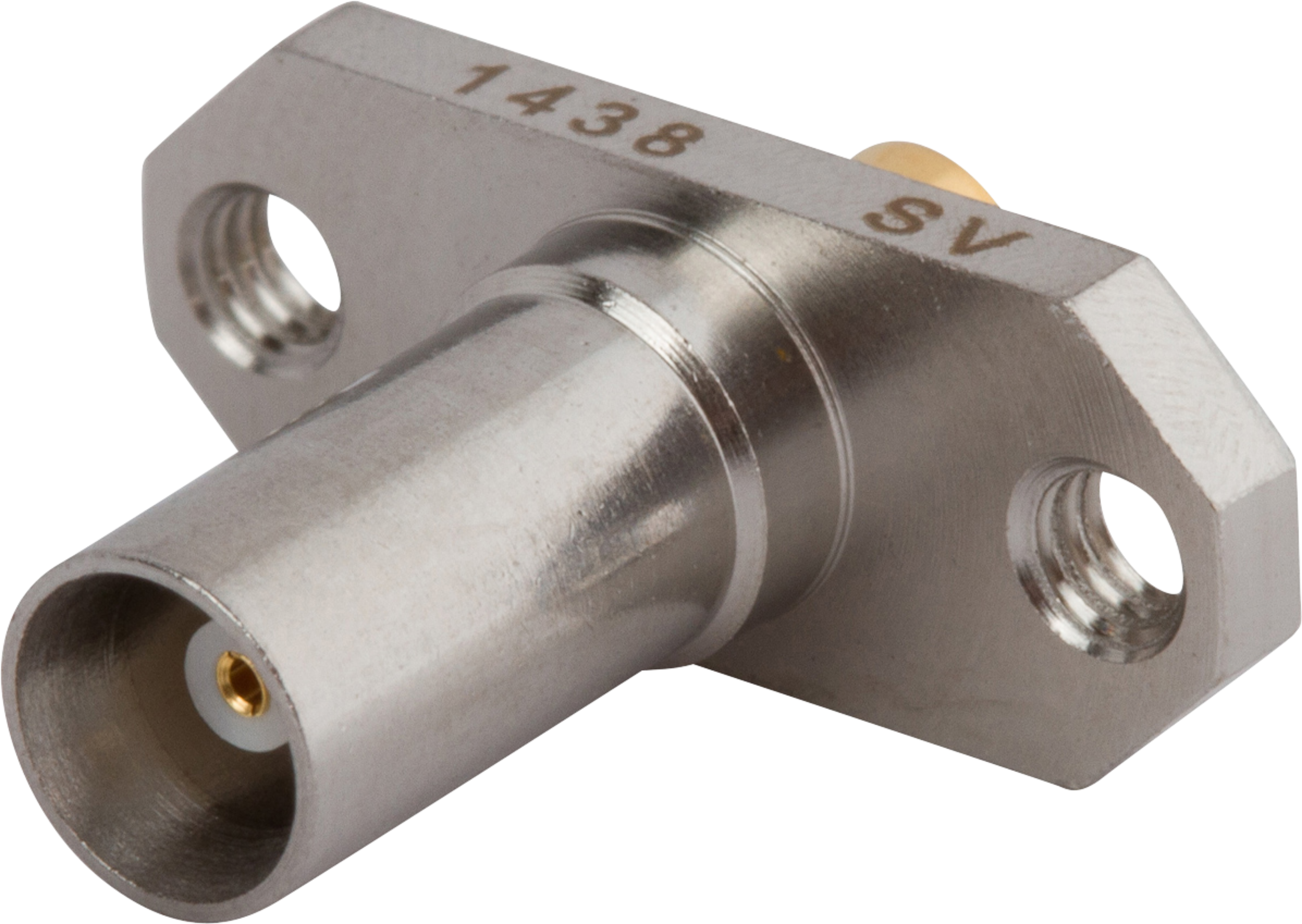

BZ Female Flange Mount Connector, 2 Hole, for .085 Cable

In stock at Qty Order
Microwave Components LLC 1
Products specifications
Attribute name Attribute value
RF Series BZ
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Mounting Type Panel
Body Style 2 Hole
Frequency 3 GHz
Impedance 50 ohms
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.0 lbs
Withdrawal Force 1.25 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series BZ
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
Mounting Type Panel
Body Style 2 Hole
Frequency 3 GHz
Impedance 50 ohms
Finish Passivated
Cable Type 0.085 Flexible Coax
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Insertion Force 2.0 lbs
Withdrawal Force 1.25 lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF3321-60003

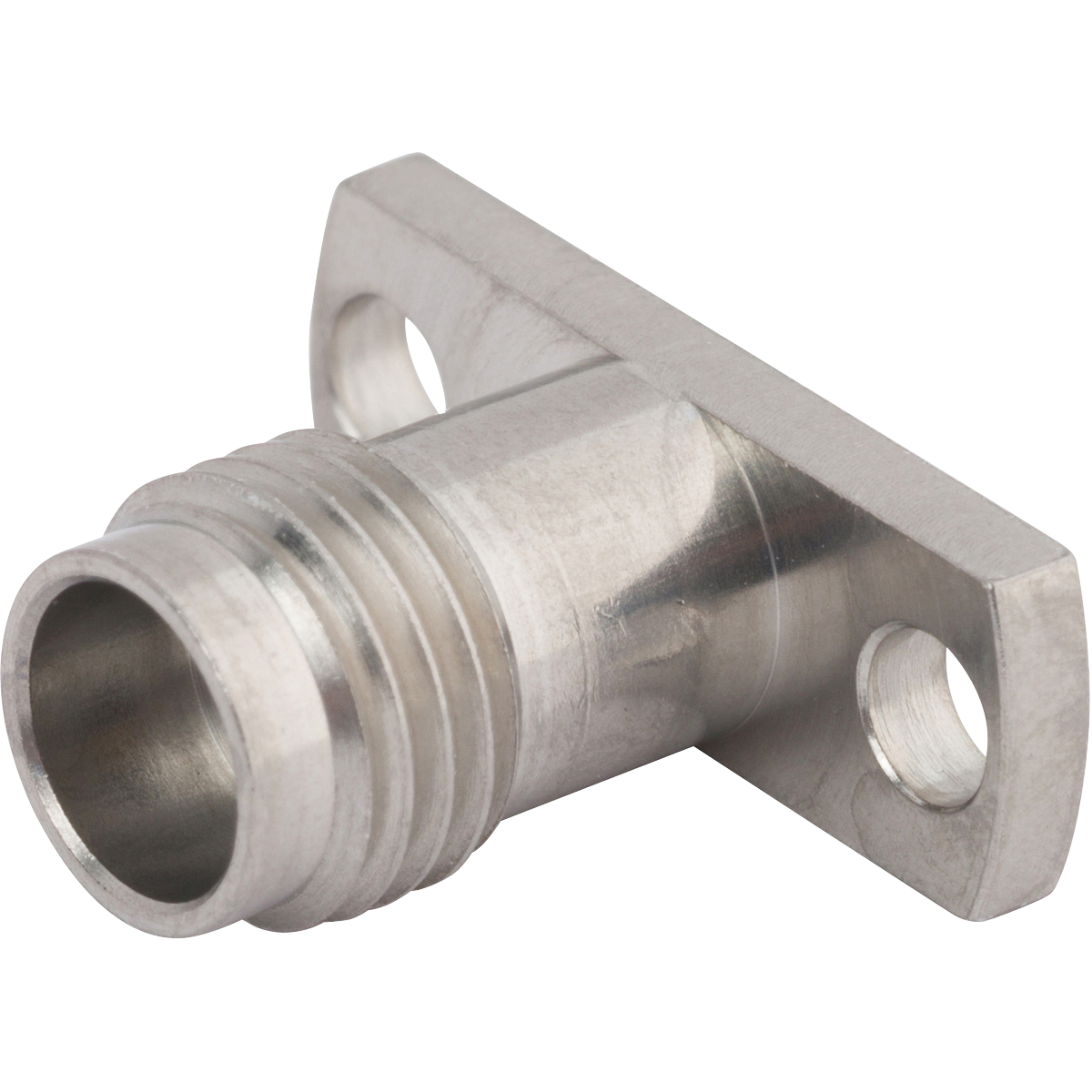

1.85mm Female Flange Mount Connector, 2 Hole (Accepts .009 Pin)

Available Inventory: 89
SF3321-60003
1.85mm Connectors SF3321-60003
Datasheet
Part #   SF8835-6000

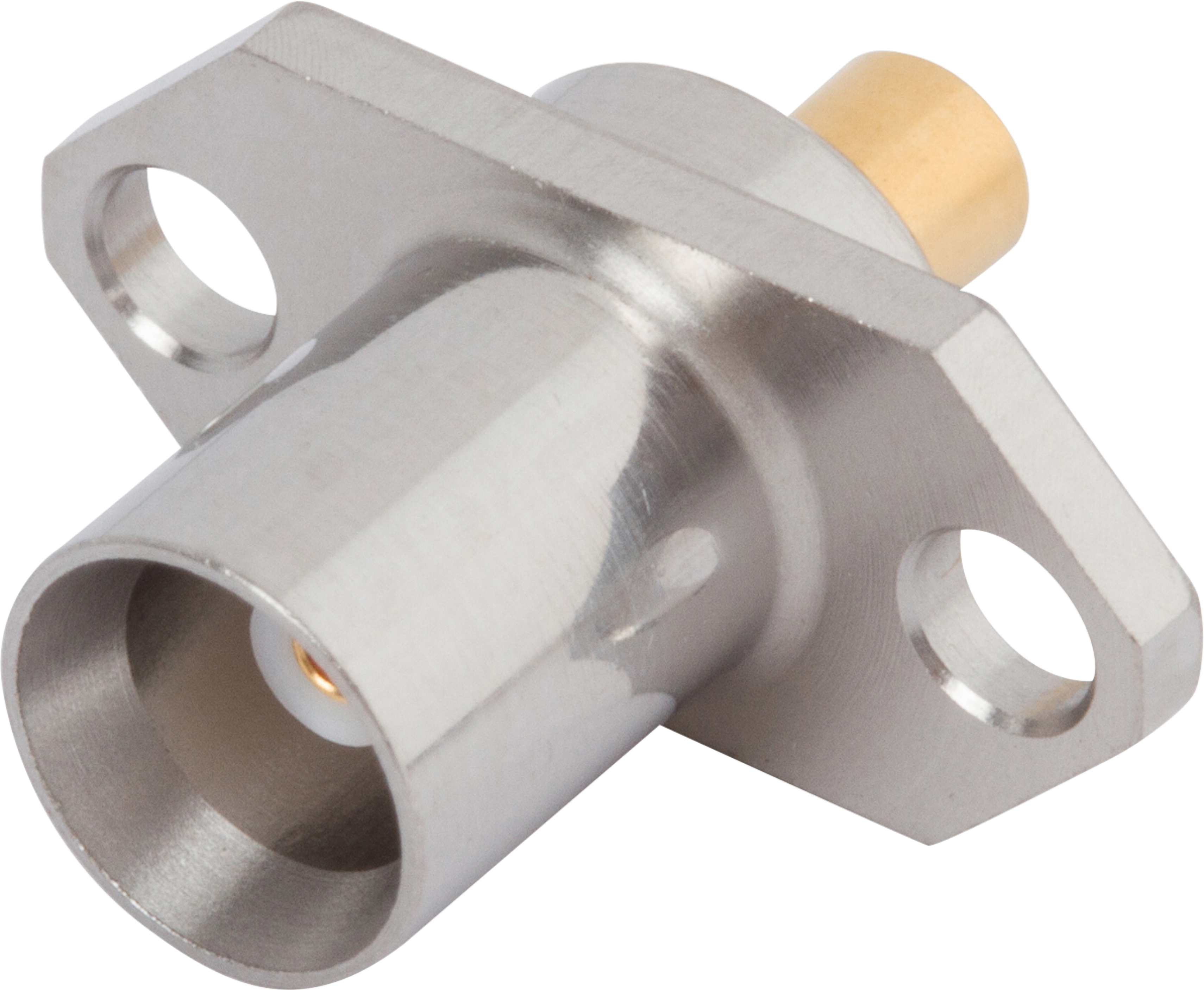

BZ Female Flange Mount Connector, 2 Hole, for .141 Cable
