D38999 Pin and Socket Contacts in Stock at SV Microwave

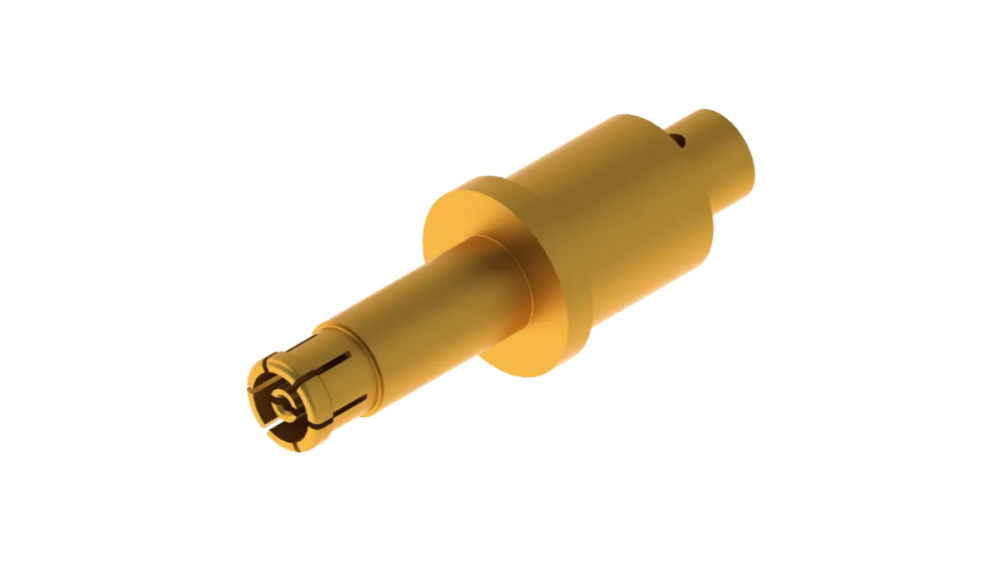

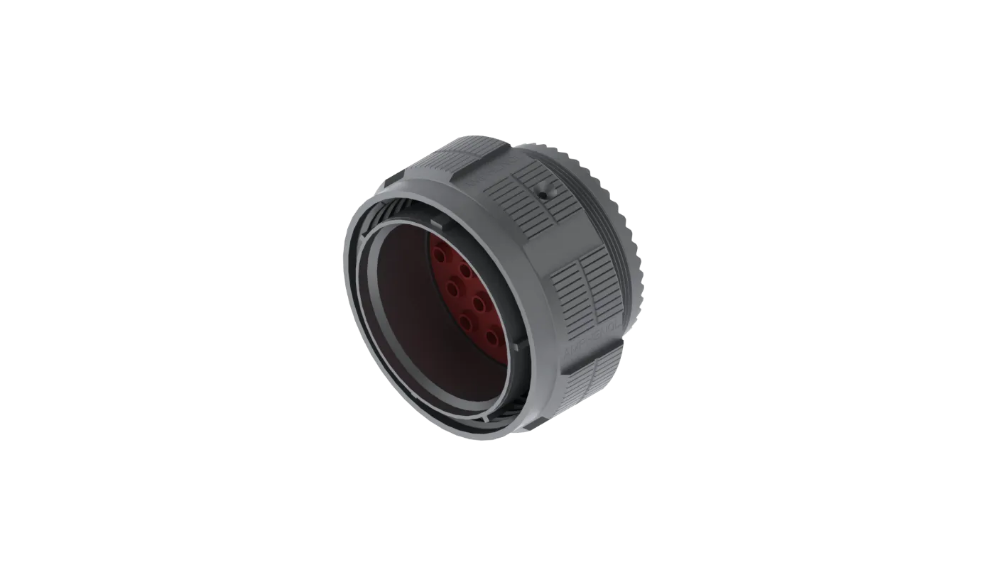

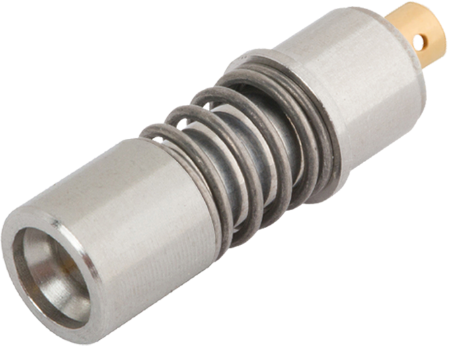

SV Microwave’s D38999 Pin and Socket Contacts are in stock now. These are aligned to the latest specifications set forth by SOSA. The coaxial contacts are compatible with both standard and series III housing and are available in BMB size 8 and SMPM size 12. These contacts are ideal solutions for embedded system applications that transition from a chassis to outside of the box. Check out the technical specifications and place your order today.
SOSA Standards in Embedded System Applications
The SOSA (Sensor Open System Architecture) is a consortium, that aims to fulfill the Department of Defense's mandate by replacing expensive tailored solutions with collaboratively designed standard architecture. SOSA helps in the structuring of technology standards within the field of embedded computing systems and transits into higher-level assembly applications. SV Microwave has been an active participant in these standards committees for over a decade and remains a strong contributor to RF interconnects. The company has played a key part in ensuring that industry-standard interfaces such as SMPM and SMPS are incorporated into open standards.
Features and Benefits
1. Size 8 BMB - 22 GHz, Size 12 SMPM - 65 GHz
2. Size 8 contacts fit larger cable, when loss matters most
3. Size 12 contacts rated to the higher frequency, when frequency and density matter
4. SOSA™ Aligned high frequency RF contacts for D38999
5. Industry-trusted, standardized interfaces per MIL-STD-348
6. Electrical impedance 50 ohm
7. Superior thermal and shock resistance
8. Temperature rating -65°C to +165°C
Applications
1. Ideal for Embedded Systems
2. Military and Aerospace Applications
3. Applicable in Severe/Harsh Environments
Product’s Part Numbers and Details
Access the product’s part numbers to discover the products quickly.
| Part No. | Description |
| 4941-60001 | BMB Pin D38999 Contact (Size 8) for Ø.087” LL Cable |
| 4941-60002 | BMB Pin D38999 Contact (Size 8) for Ø.141” Cable |
| 4951-60005 | BMB Socket D38999 Contact (Size 8) for Ø.087” LL Cable |
| 4951-60006 | BMB Socket D38999 Contact (Size 8) for Ø.141” Cable |
| 9321-40004 | SMPM Pin (Size 12) D38999 Contact for .047 Cable |
| SF3211-60153 | SMPM Socket (Size 12) D38999 Contact for .047 Cable |
