P/N: 2942-6045

SMA Female Bulkhead Connector for .141 Cable

In stock at Qty Order
Master Electronics 187
Digi-Key Electronics 102
Heilind Electronics 32
TTI Inc Global Headquarters 9
Mouser Electronics 8
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Body Style Jamnut/Bulkhead
Mounting Type Panel
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
Number of Ports Single
Cable Type 0.140 Flexible Coax
Finish Gold
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Body Style Jamnut/Bulkhead
Mounting Type Panel
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
Number of Ports Single
Cable Type 0.140 Flexible Coax
Finish Gold
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   2922-6007

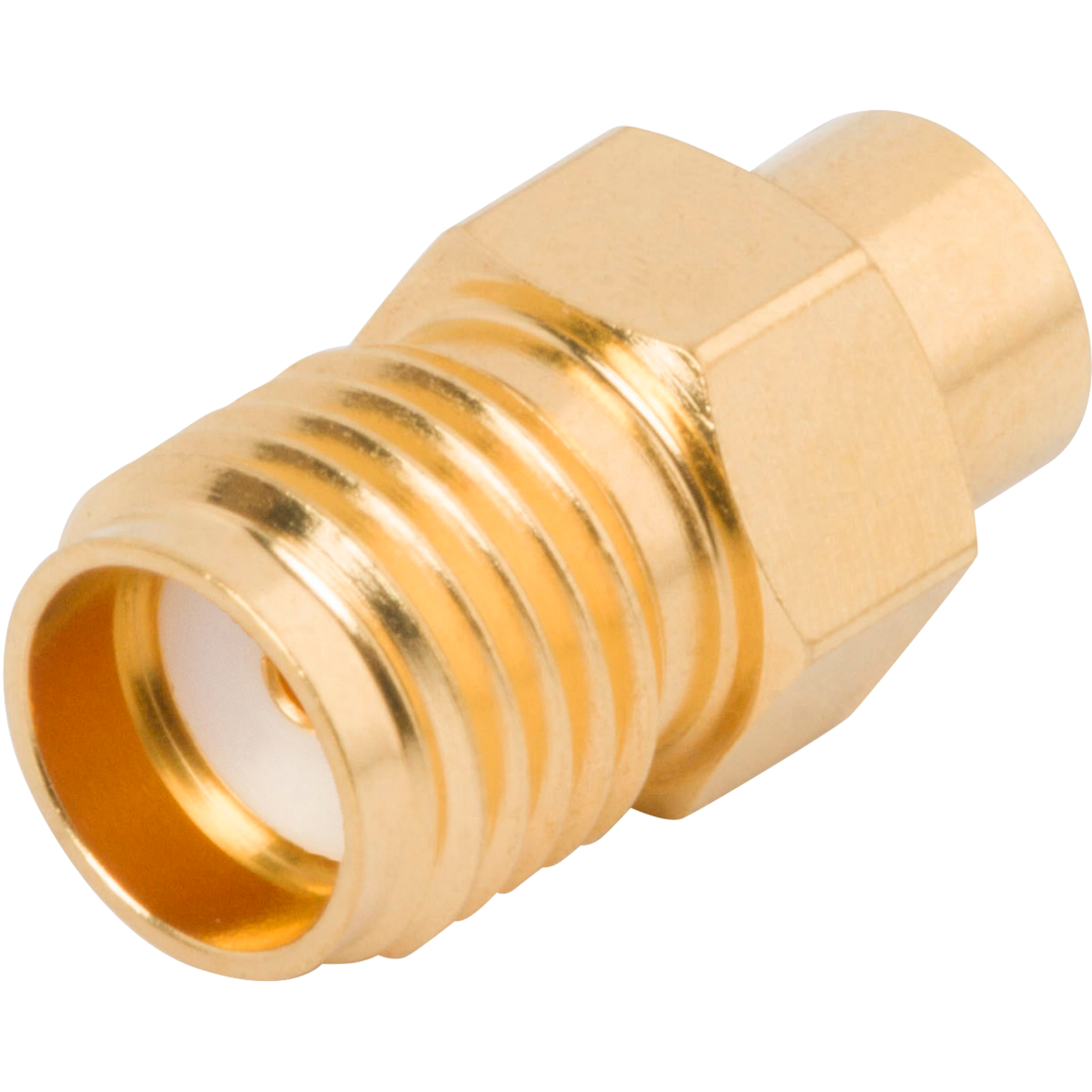

SMA Female Connector for .141 Cable

Available Inventory: 1577
2922-6007
SMA Connectors 2922-6007
Datasheet
Part #   2944-6001

SMA Female Bulkhead Connector for .047 Cable

Available Inventory: 746
2944-6001
SMA Connectors 2944-6001
Datasheet
Part #   2946-6012

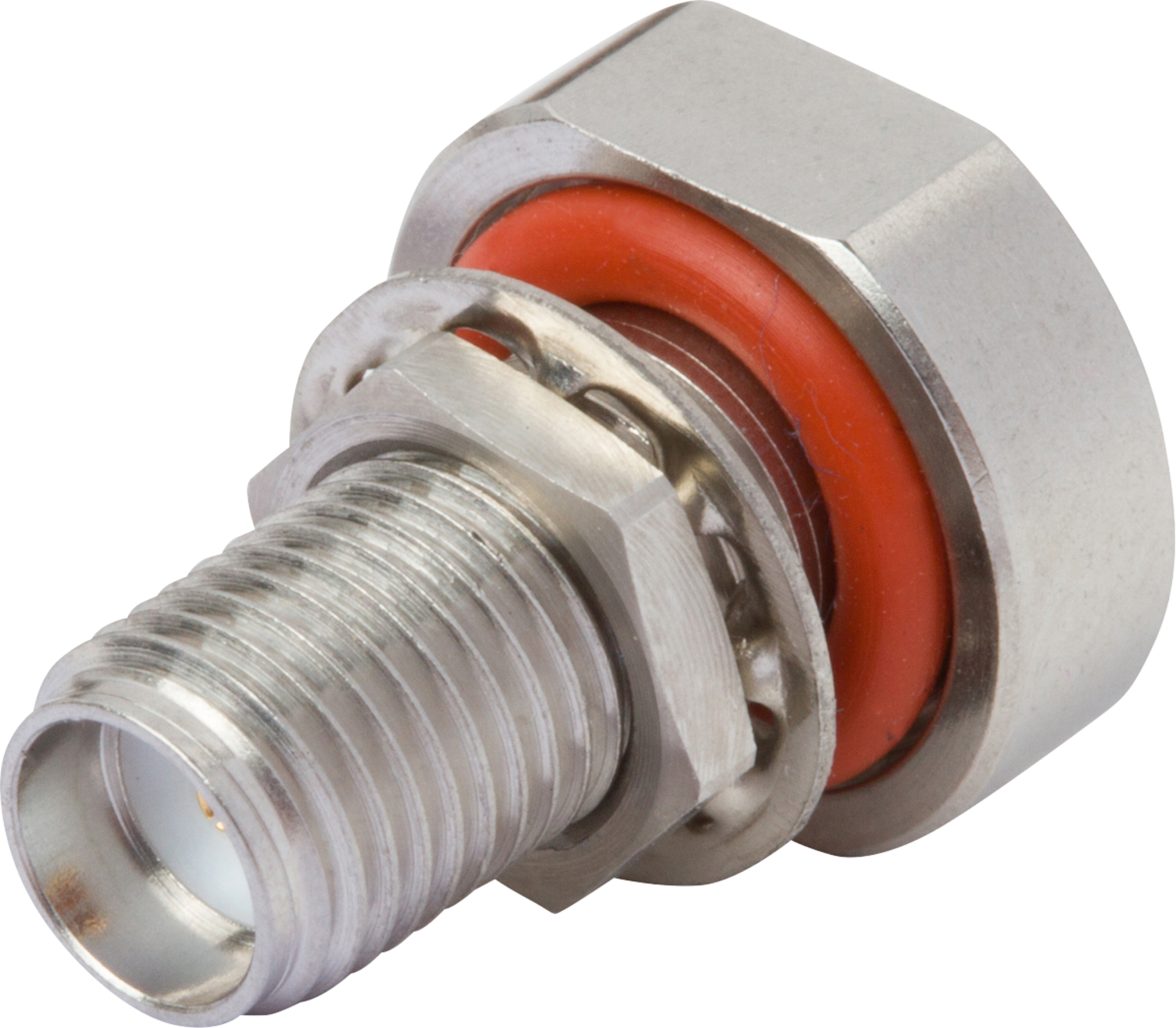

SMA Female Bulkhead Connector for .085 Cable
