P/N: SF6545-6017

PN Female Bulkhead Connector for .085 Cable

In stock at Qty Order
CW Swift & Associates 81
Microwave Components LLC 4
Products specifications
Attribute name Attribute value
RF Series PN
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Number of Ports Single
Termination Style Solder
Frequency 18 GHz
Finish Passivated
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 3000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PN
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Number of Ports Single
Termination Style Solder
Frequency 18 GHz
Finish Passivated
Cable Type 0.085 Flexible Coax
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 3000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   SF6545-6003

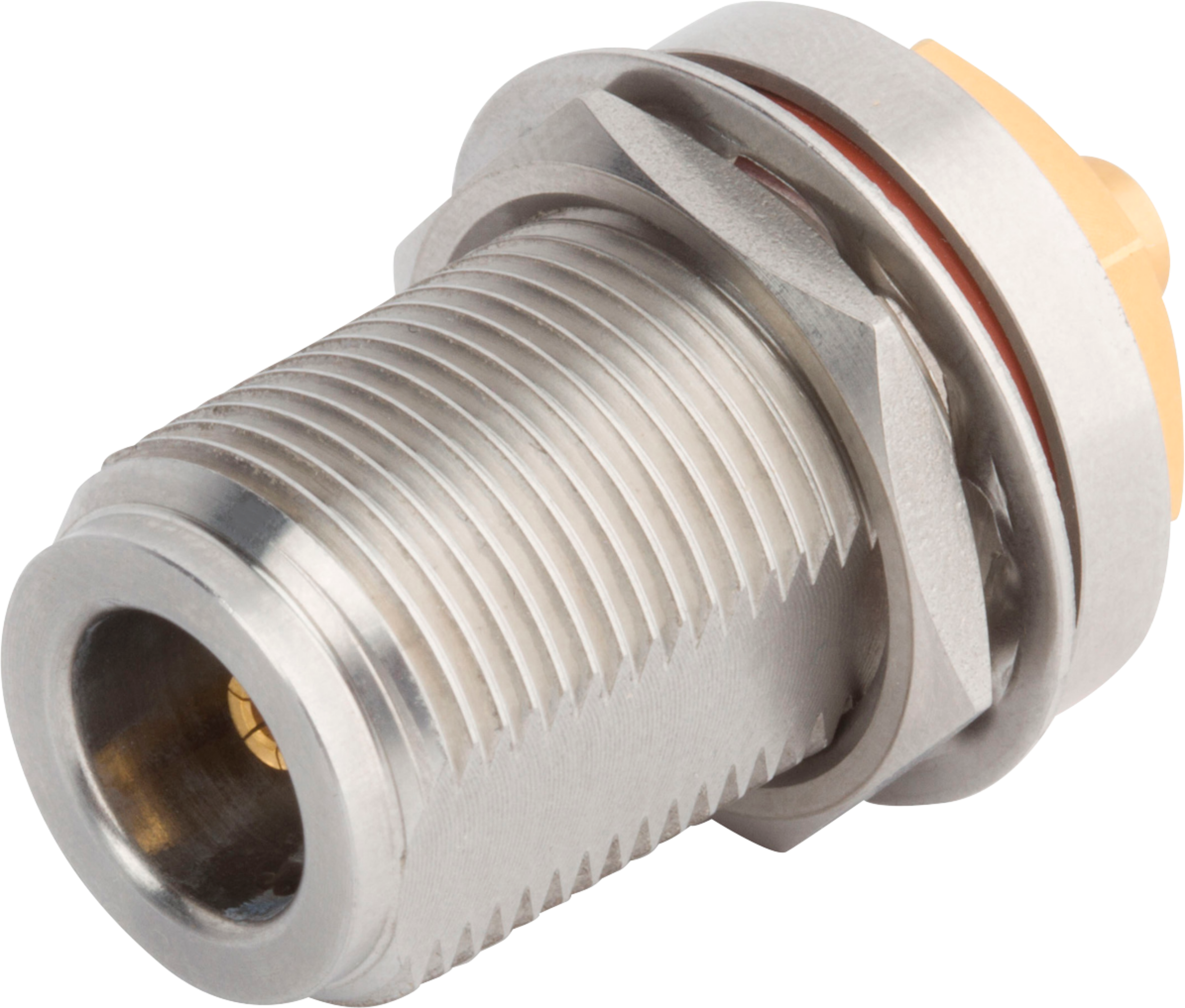

PN Female Bulkhead Connector for .141 Cable

Available Inventory: 329
SF6545-6003
PN Connectors SF6545-6003
Datasheet
Part #   5021-00026

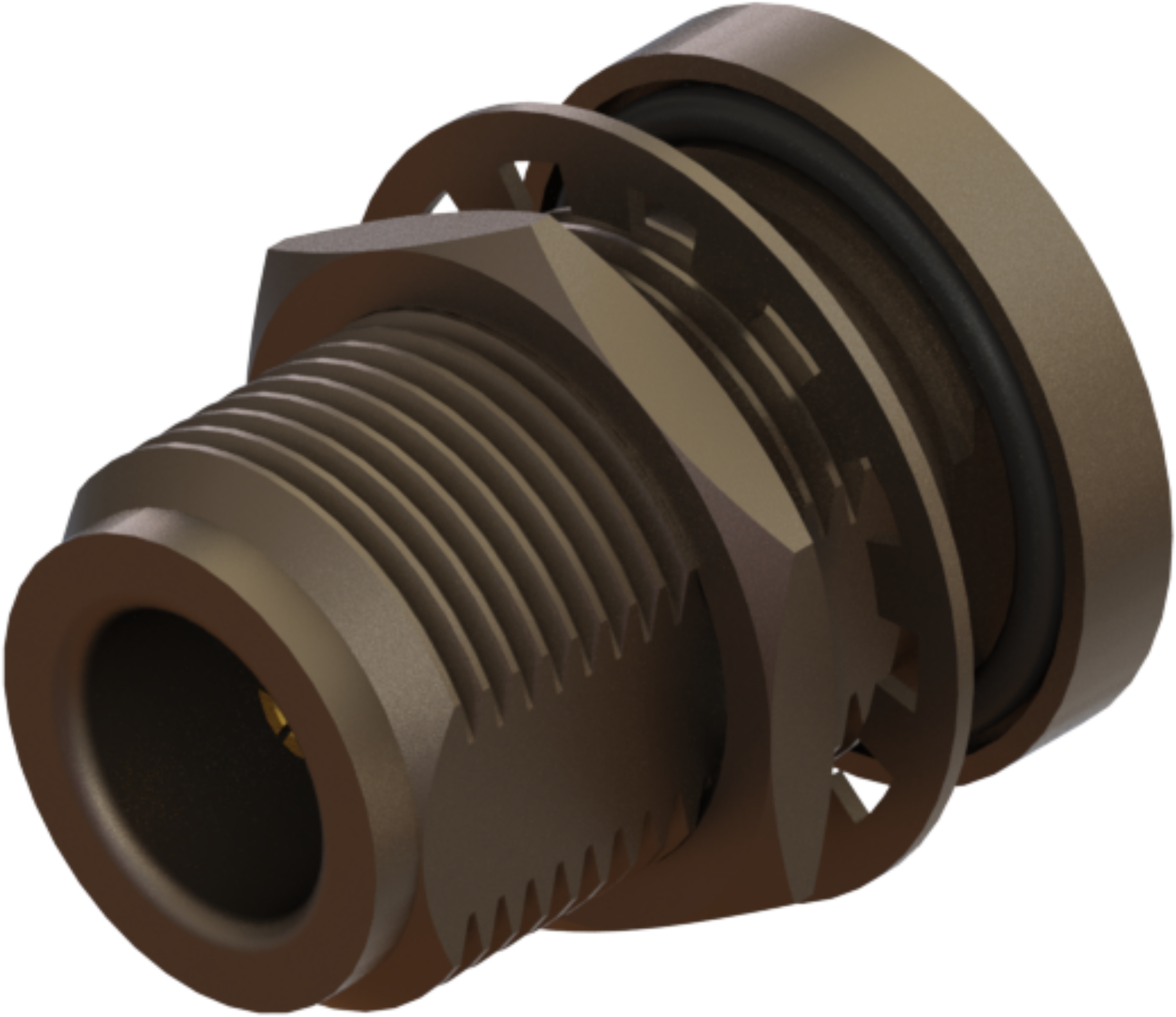

Type N Female Bulkhead Connector for .085 Cable

Available Inventory: 0
5021-00026
Type N Connectors 5021-00026
Datasheet
Part #   SF1104-6007

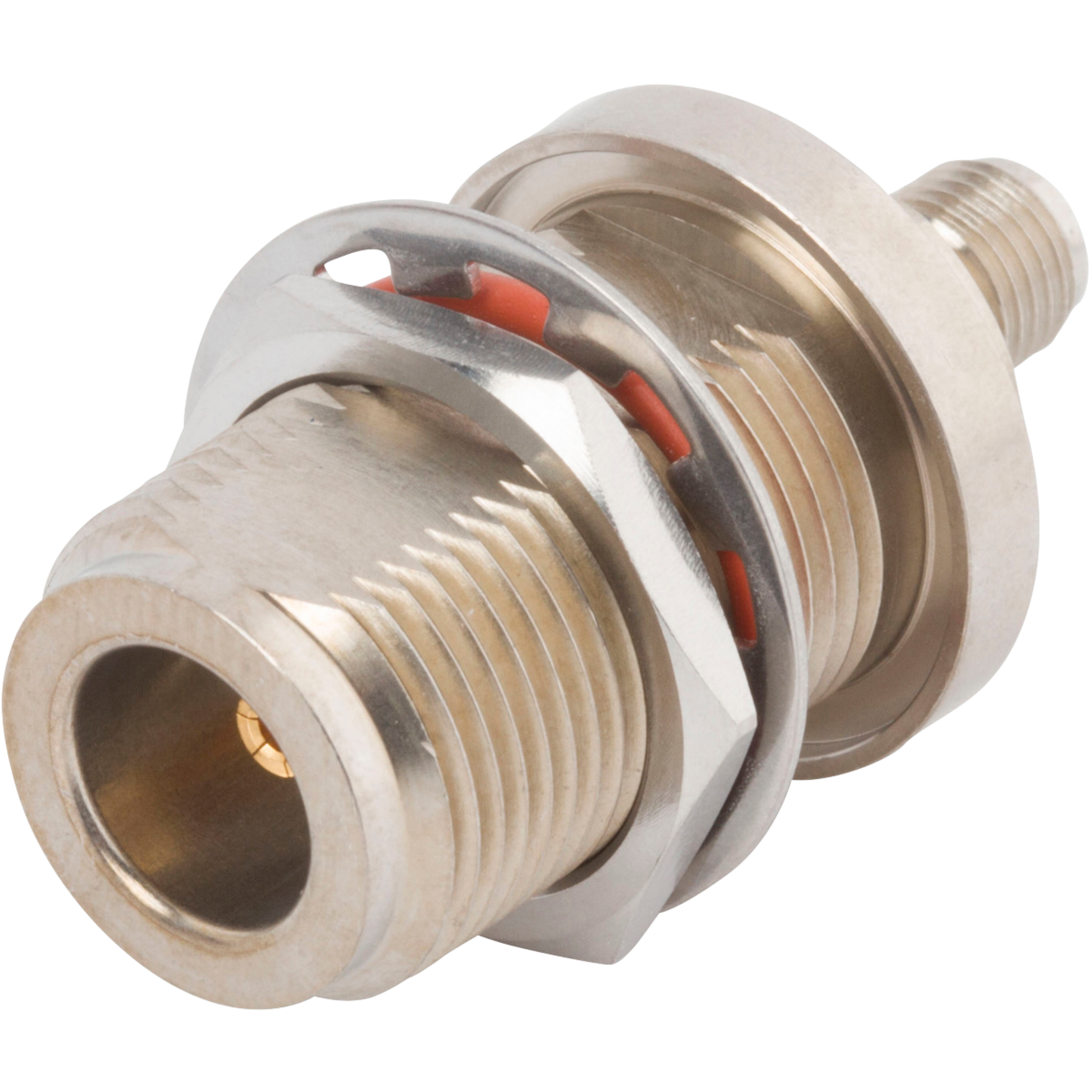

SMA Female to PN Female Bulkhead Hermetic Adapter
