P/N: 5021-00026

Type N Female Bulkhead Connector for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series Type N
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type Panel
Coupling Threaded
Termination Style Solder
Number of Ports Single
Body Style Jamnut/Bulkhead
Frequency 11 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 11 GHz
Mating Cycles 500
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series Type N
Gender Jack (Female)
Orientation (Body) Straight
Mounting Type Panel
Coupling Threaded
Termination Style Solder
Number of Ports Single
Body Style Jamnut/Bulkhead
Frequency 11 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 11 GHz
Mating Cycles 500
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Customers Also Viewed
Part #   5011-00034

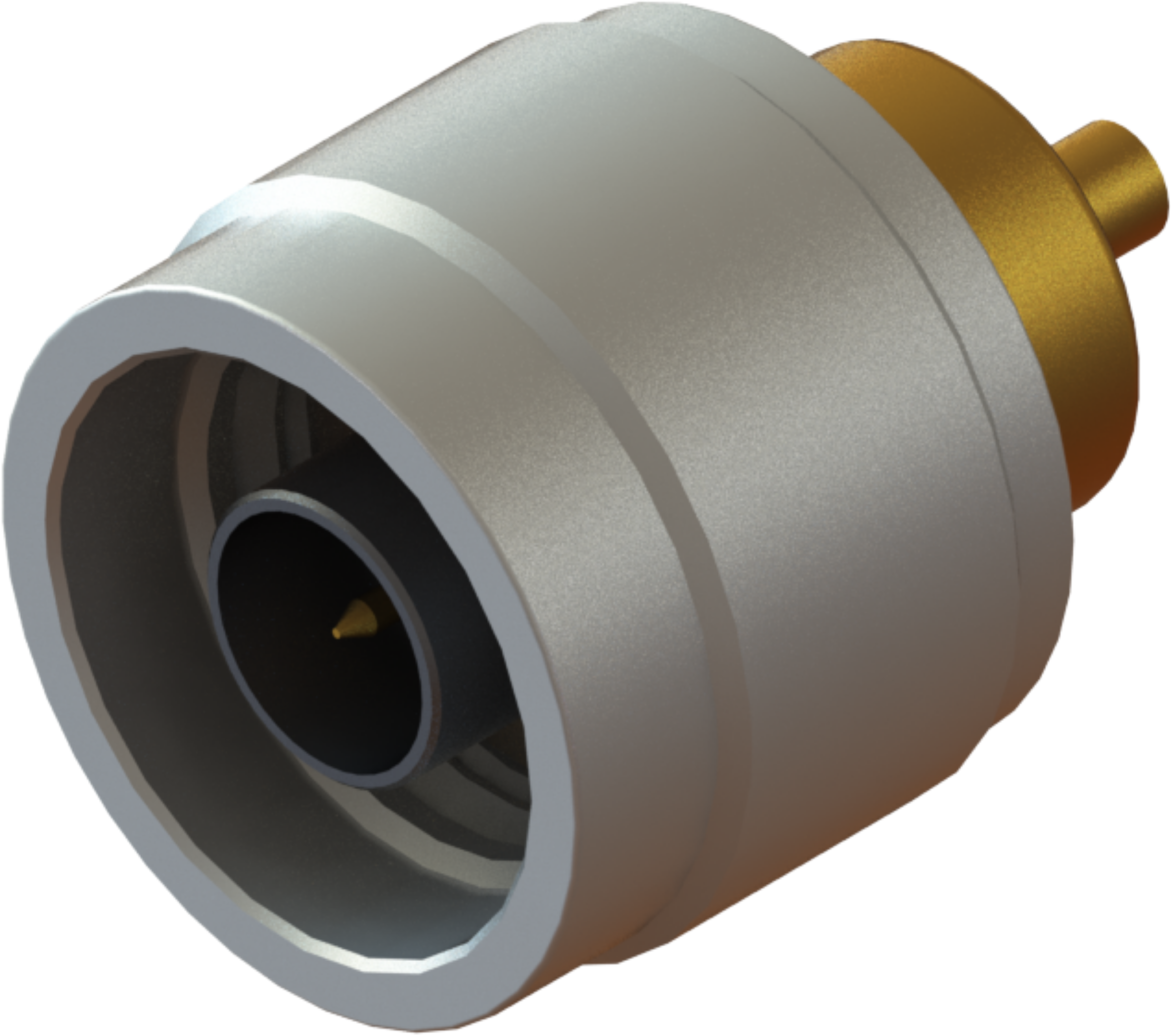

Type N Male Connector for .085 Cable

Available Inventory: 88
5011-00034
Type N Connectors 5011-00034
Datasheet
Part #   5011-00035

Type N Male Connector for .141 Cable

Available Inventory: 50
5011-00035
Type N Connectors 5011-00035
Datasheet
Part #   5021-00027

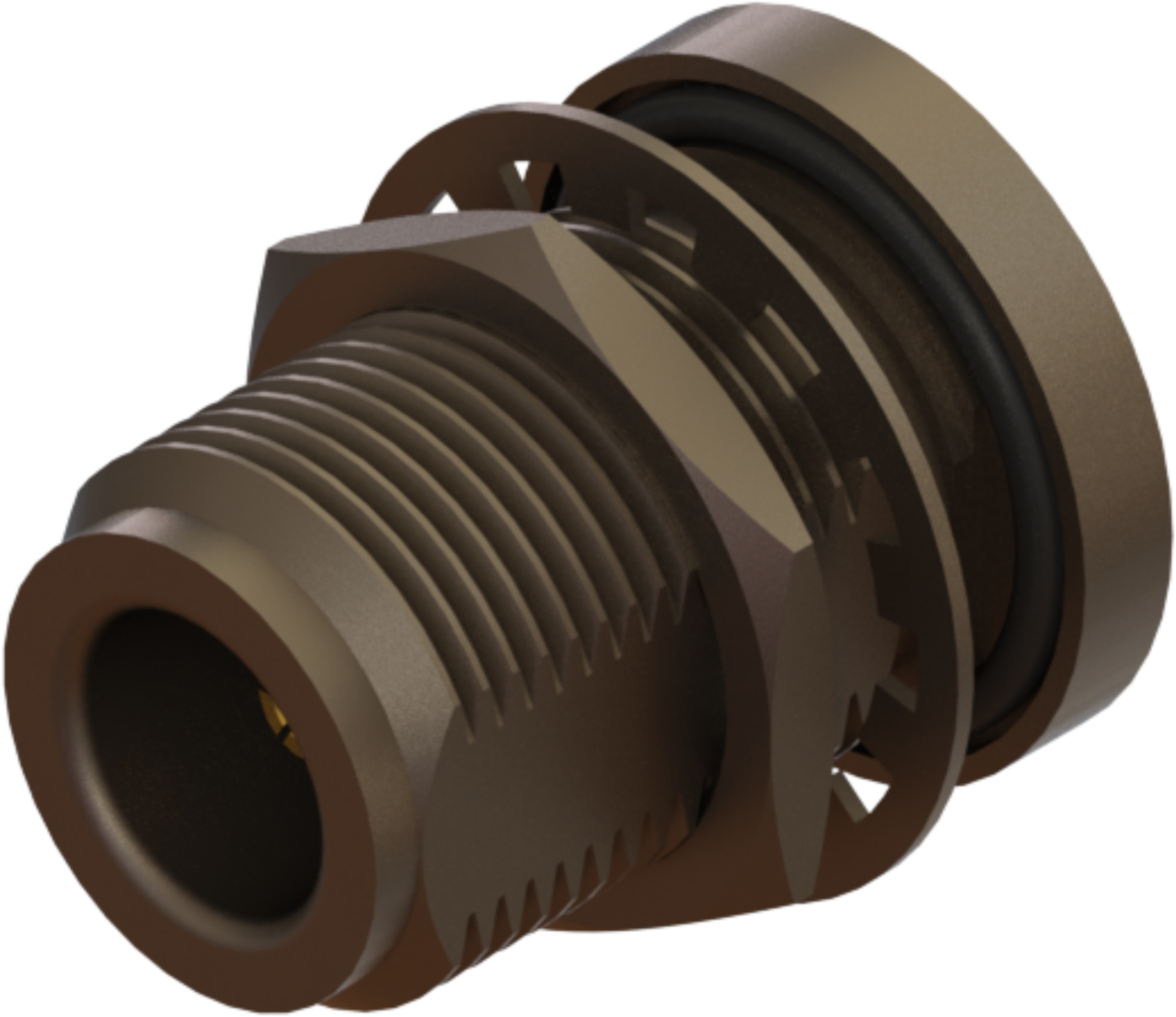

Type N Female Bulkhead Connector for .141 Cable
