PN Male Connector for .085 Cable
P/N: SF6511-60010

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series PN
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
Cable Type 0.085 Flexible Coax
Number of Ports Single
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PN
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Finish Passivated
Cable Type 0.085 Flexible Coax
Number of Ports Single
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 3000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 12 - 15 in - lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF6505-6003

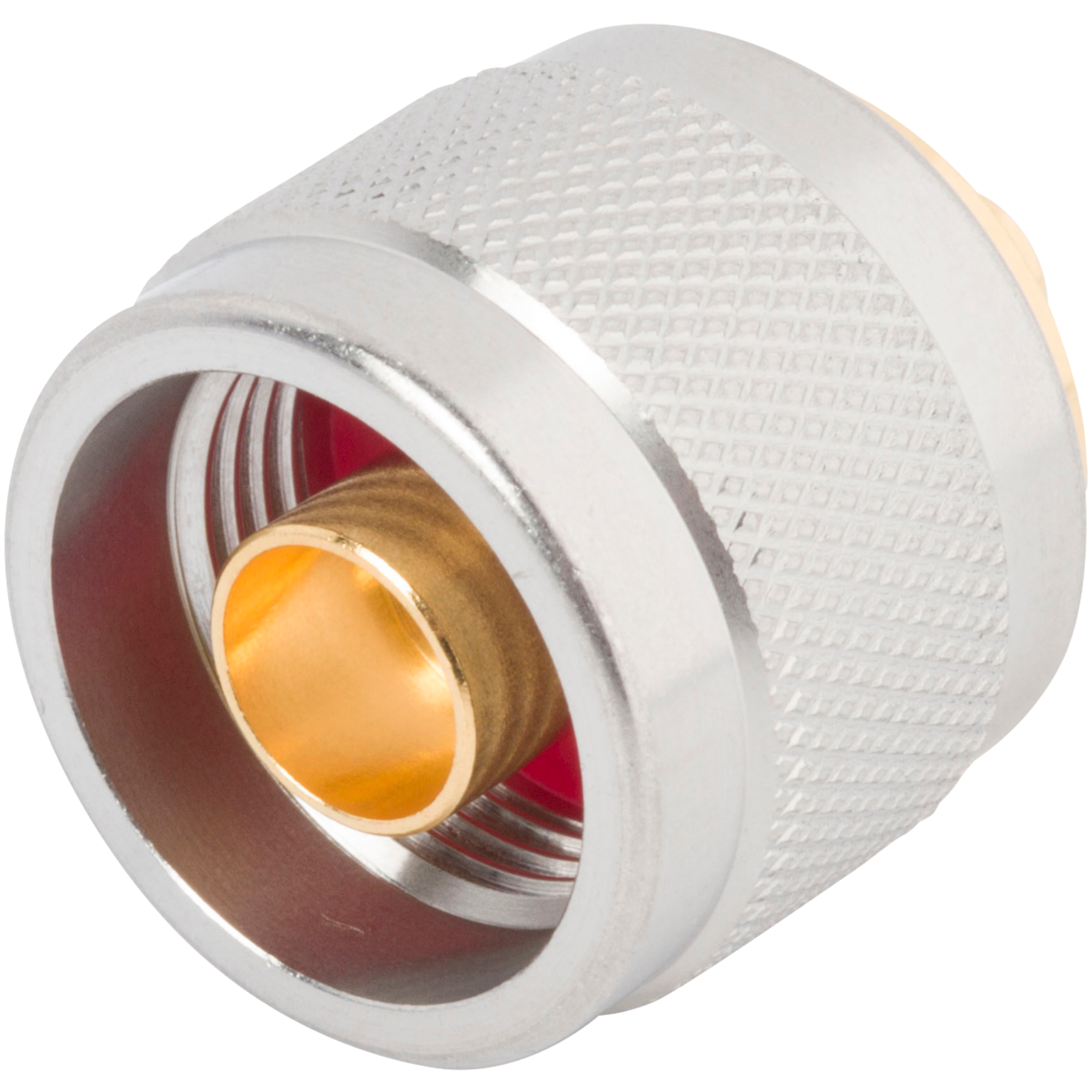

PN Male Connector for .141 Cable

Available Inventory: 54
SF6505-6003
PN Connectors SF6505-6003
Datasheet
Part #   SF6545-6003

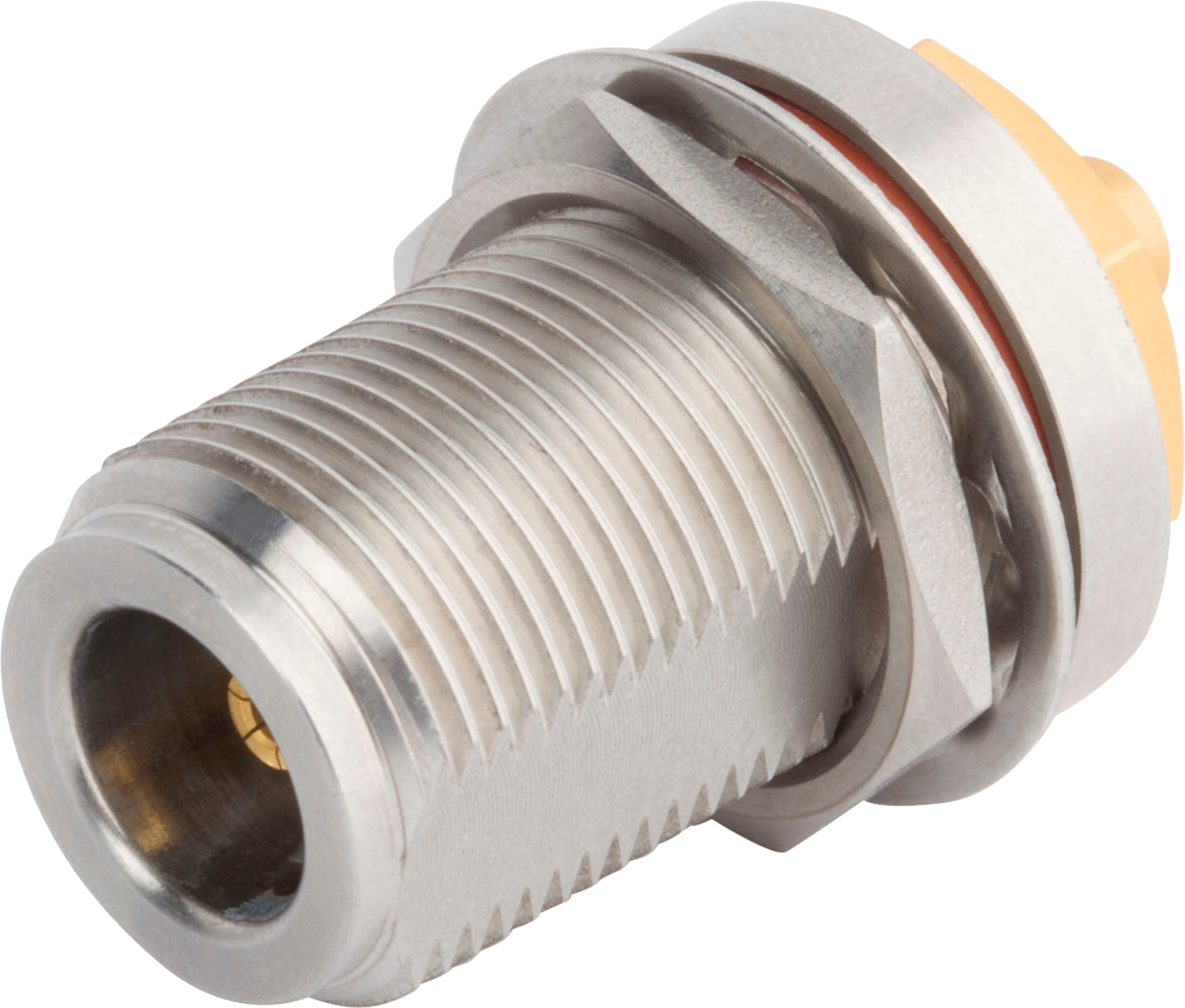

PN Female Bulkhead Connector for .141 Cable
