P/N: SF4546-6011

PTNC Female Bulkhead Connector for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series PTNC
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Body Style Jamnut/Bulkhead
Mounting Type Panel
Number of Ports Single
Frequency 18 GHz
Termination Style Solder
Finish Passivated
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PTNC
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Body Style Jamnut/Bulkhead
Mounting Type Panel
Number of Ports Single
Frequency 18 GHz
Termination Style Solder
Finish Passivated
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF3321-60007

1.85mm Female Bulkhead Connector for .085 Cable

Available Inventory: 0
SF3321-60007
1.85mm Connectors SF3321-60007
Datasheet
Part #   SF4546-6010

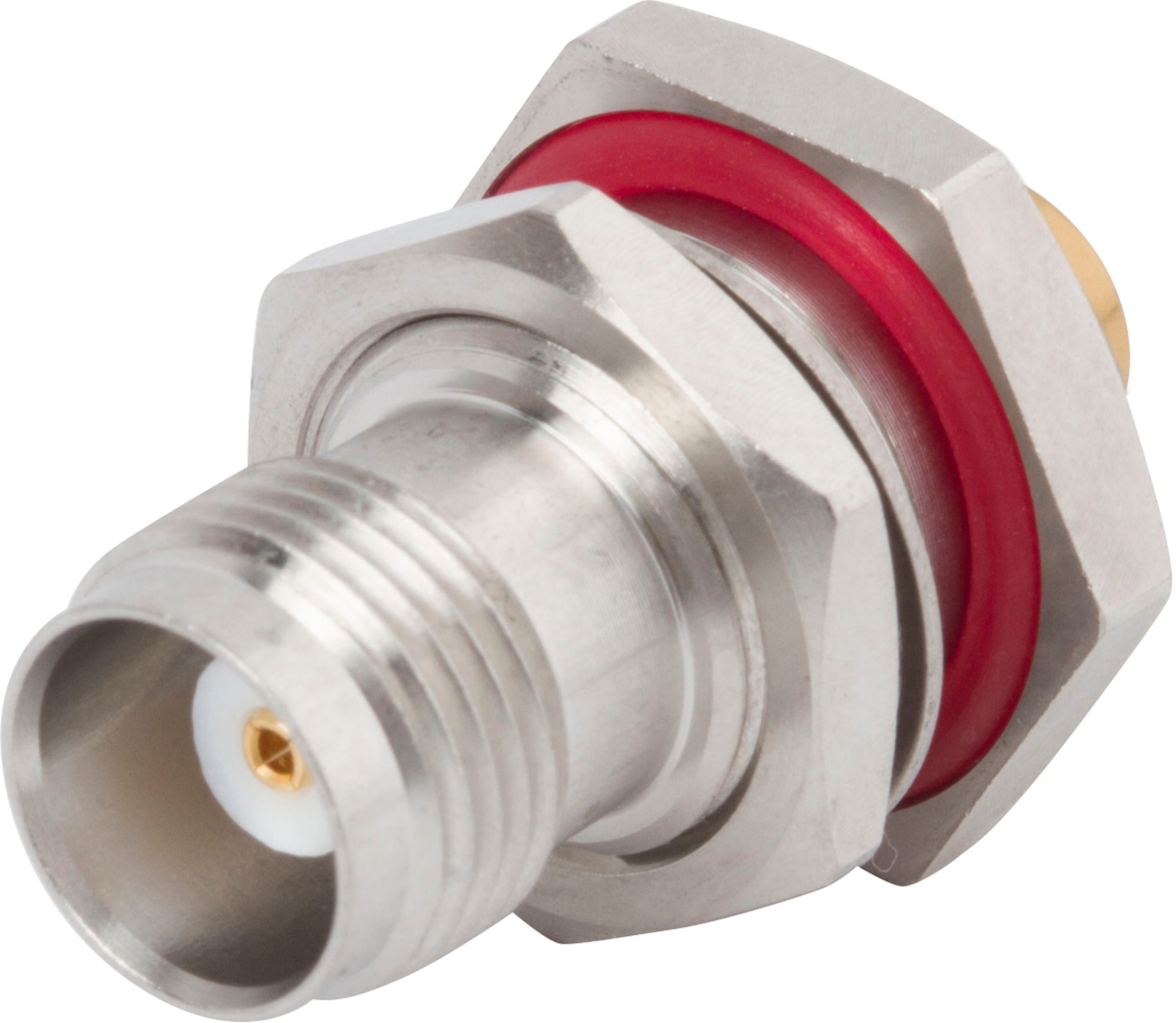

PTNC Female Bulkhead Connector for .141 Cable

Available Inventory: 84
SF4546-6010
PTNC Connectors SF4546-6010
Datasheet
Part #   SF6545-6003

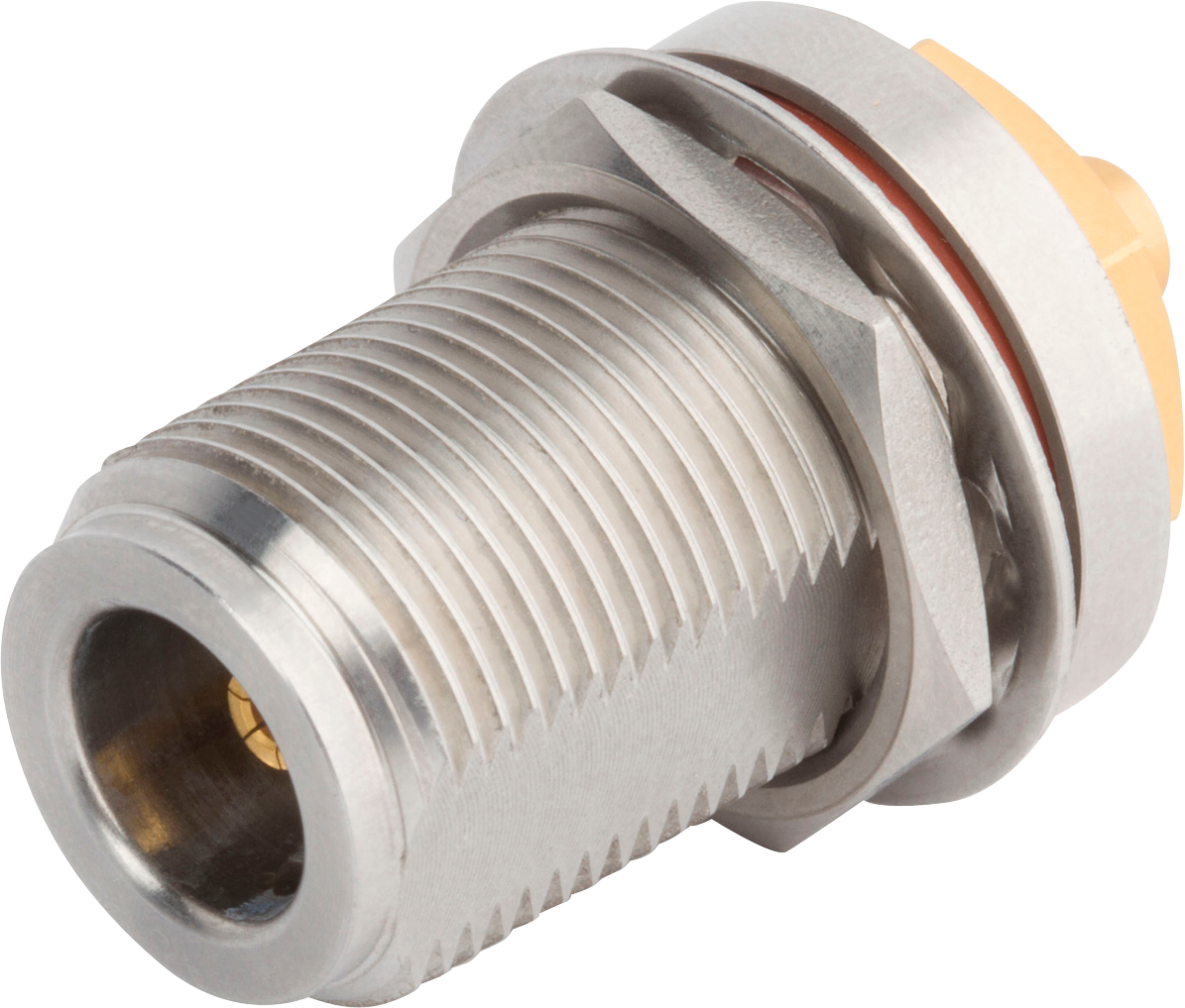

PN Female Bulkhead Connector for .141 Cable
