P/N: SF4501-6023

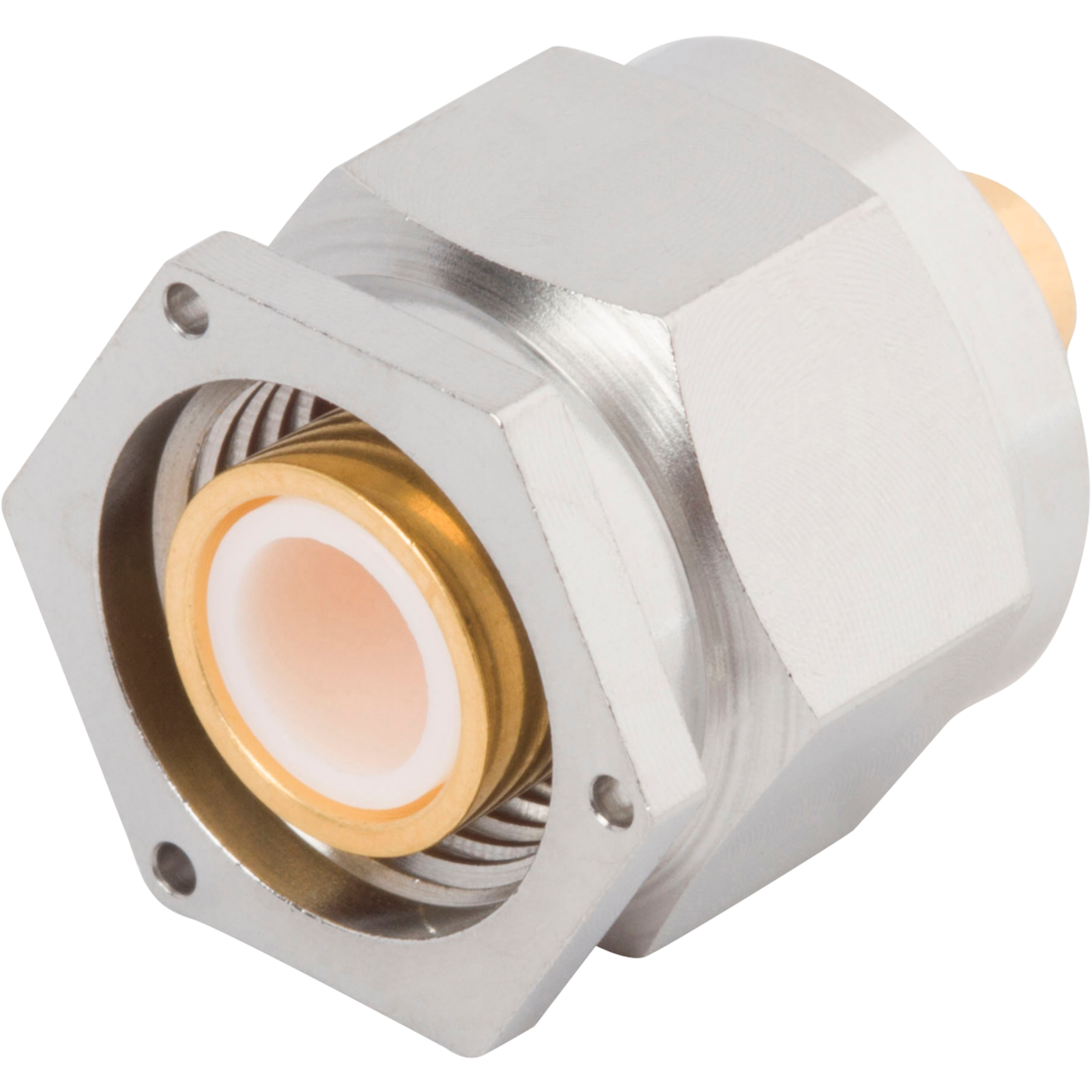

PTNC Male Connector, Lockwire Holes for .085 Cable

In stock at Qty Order
Digi-Key Electronics 50
Mouser Electronics 14
Products specifications
Attribute name Attribute value
RF Series PTNC
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PTNC
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF4501-6039

PTNC Male Connector, Lockwire Holes for .141 Cable

Available Inventory: 0
SF4501-6039
PTNC Connectors SF4501-6039
Datasheet
Part #   4011-00043

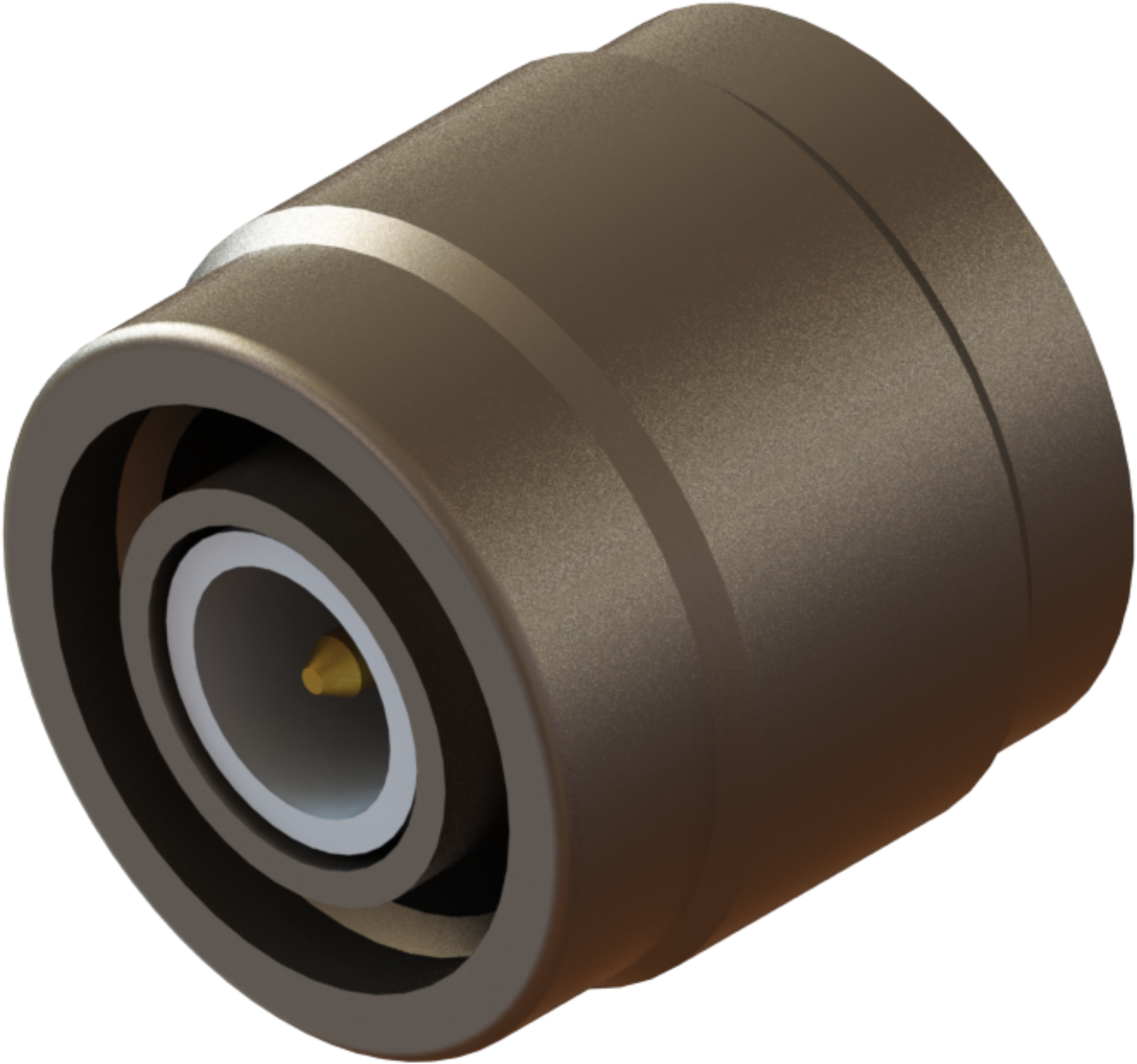

TNC Male Connector for .085 Cable
