P/N: SF4501-6039

PTNC Male Connector, Lockwire Holes for .141 Cable

In stock at Qty Order
Mouser Electronics 48 On Order
Products specifications
Attribute name Attribute value
RF Series PTNC
Coupling Threaded
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Finish Passivated
Cable Type 0.140 Flexible Coax
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series PTNC
Coupling Threaded
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Solder
Number of Ports Single
Frequency 18 GHz
Finish Passivated
Cable Type 0.140 Flexible Coax
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

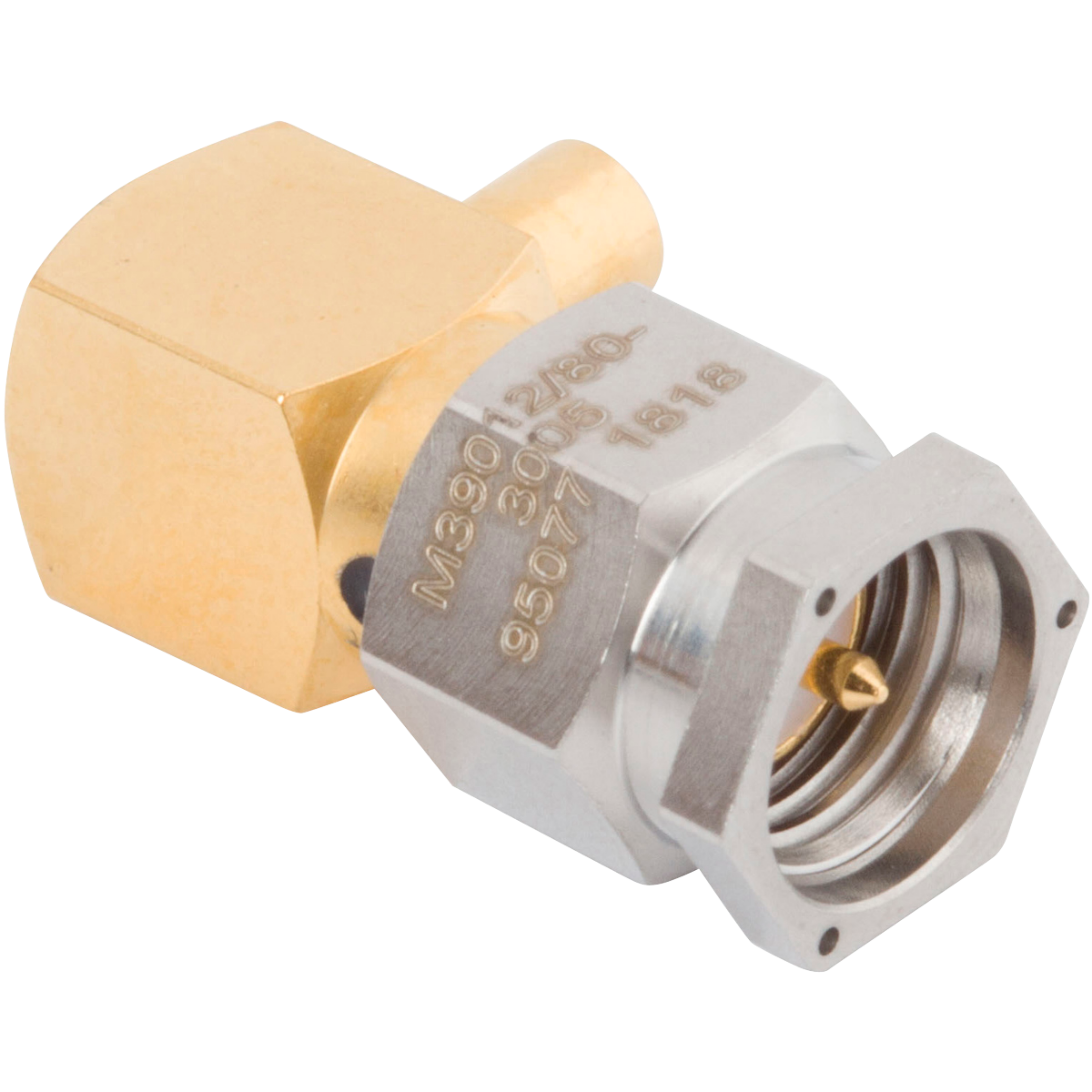

Part #   M39012/80-3008

SMA Male Connector, Lockwire Holes, R/A for .141 Cable

Available Inventory: 125
M39012/80-3008
SMA Connectors M39012/80-3008
Datasheet

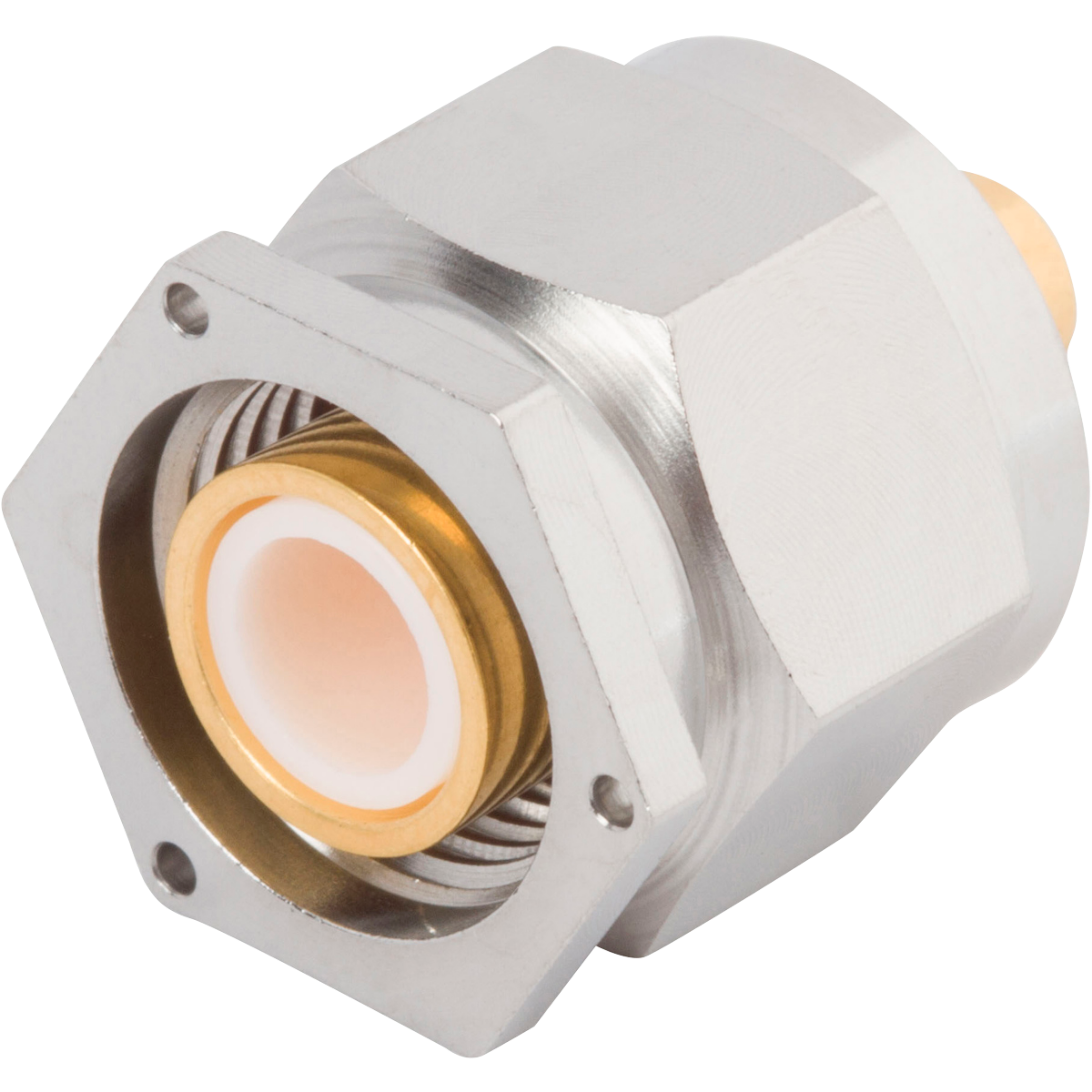

Part #   SF4501-6023

PTNC Male Connector, Lockwire Holes for .085 Cable

Available Inventory: 64
SF4501-6023
PTNC Connectors SF4501-6023
Datasheet

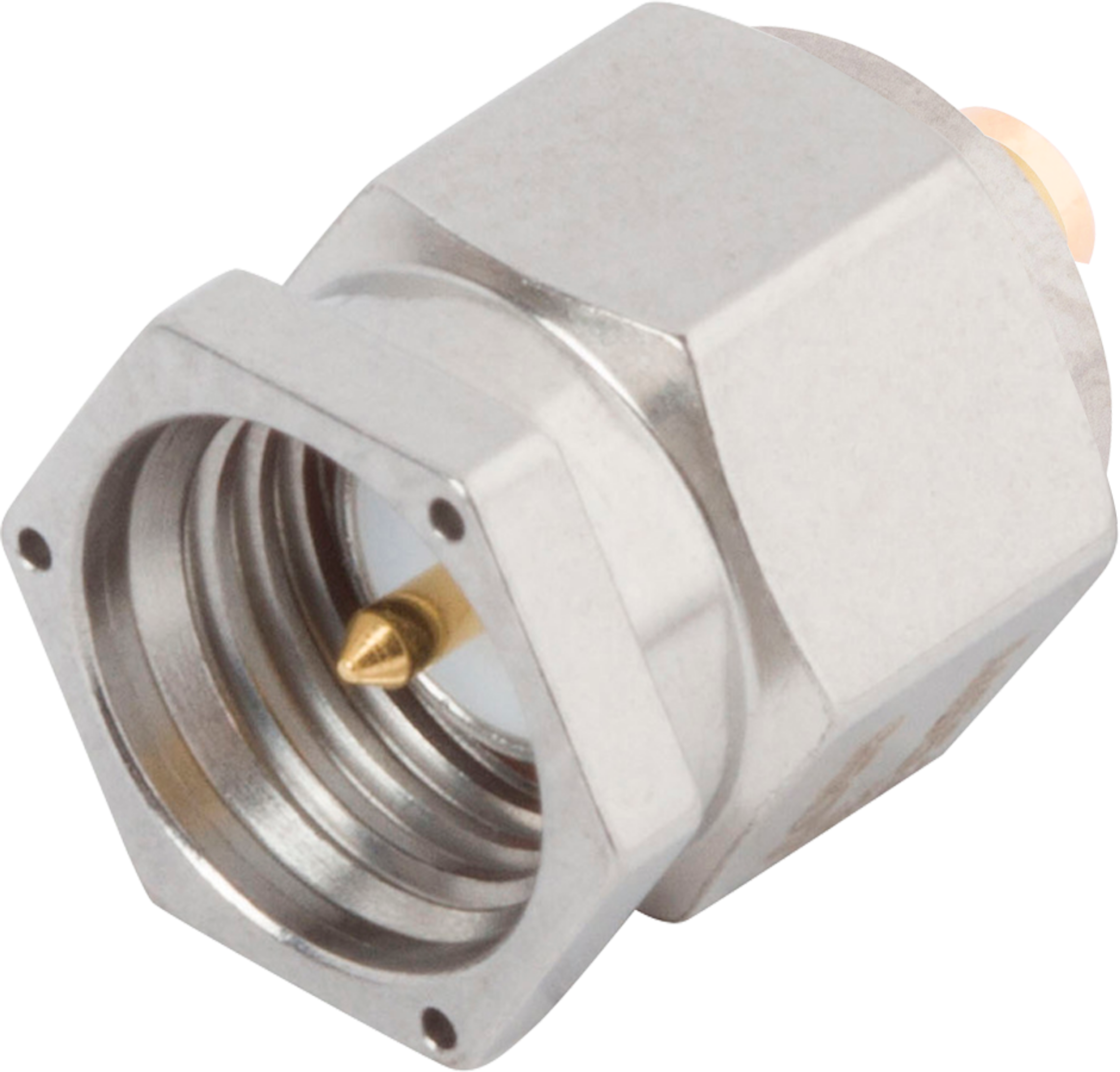

Part #   M39012/79B3002
