P/N: 2944-6001

SMA Female Bulkhead Connector for .047 Cable

In stock at Qty Order
Digi-Key Electronics 400
TTI Inc Global Headquarters 230
Mouser Electronics 100
A.E. Petsche Company 16
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style Jamnut/Bulkhead
Mounting Type Panel
Number of Ports Single
Impedance 50 ohms
Frequency 18 GHz
Finish Passivated
Termination Style Solder
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25843
Cable Builder Right Image 25844
Mating Connector 2906-6002, 2911-40023
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Body Style Jamnut/Bulkhead
Mounting Type Panel
Number of Ports Single
Impedance 50 ohms
Frequency 18 GHz
Finish Passivated
Termination Style Solder
Cable Type 0.047 Flexible Coax
Cable Builder Attributes
Cable Builder Left Image 25843
Cable Builder Right Image 25844
Mating Connector 2906-6002, 2911-40023
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   2942-6045

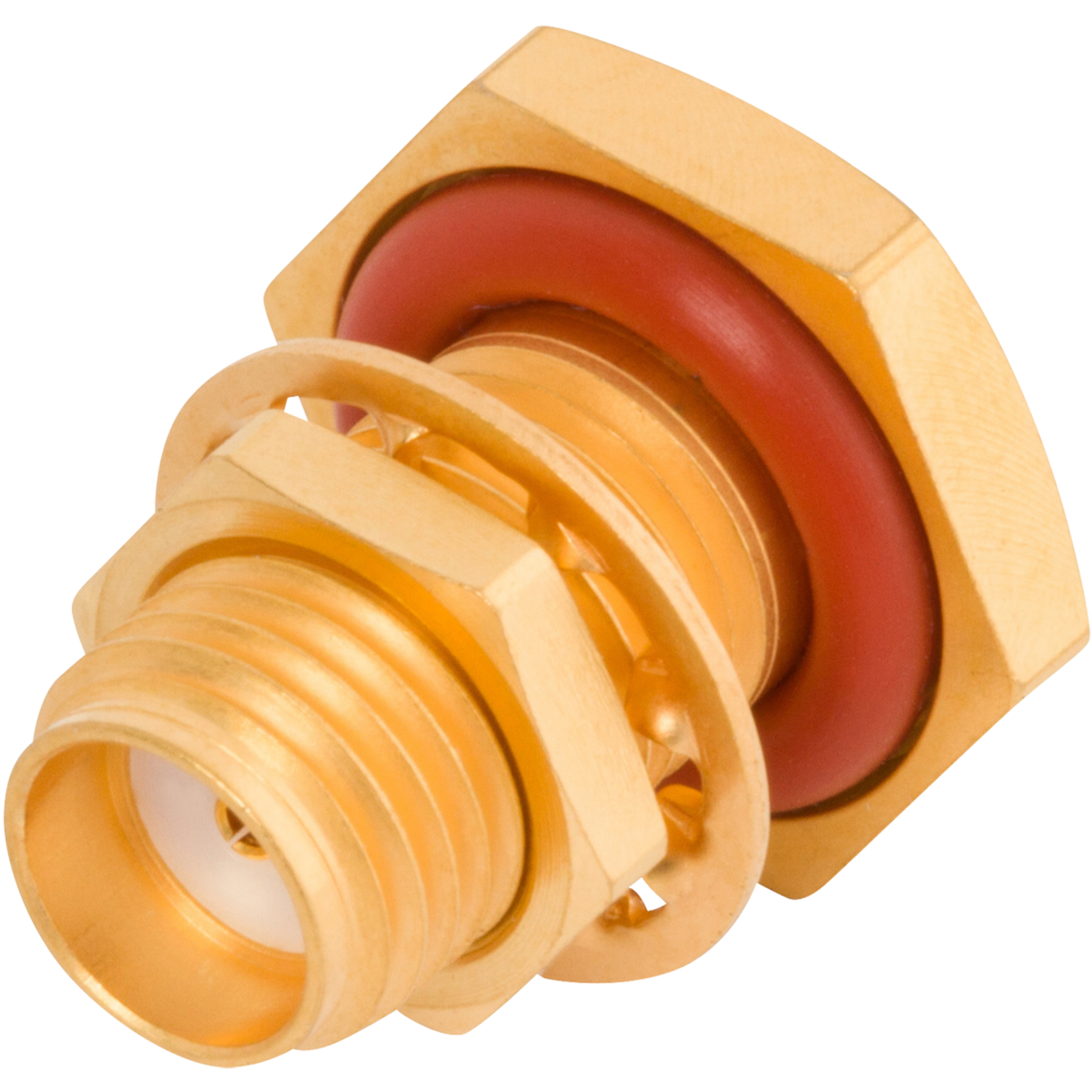

SMA Female Bulkhead Connector for .141 Cable

Available Inventory: 338
2942-6045
SMA Connectors 2942-6045
Datasheet
Part #   2946-6012

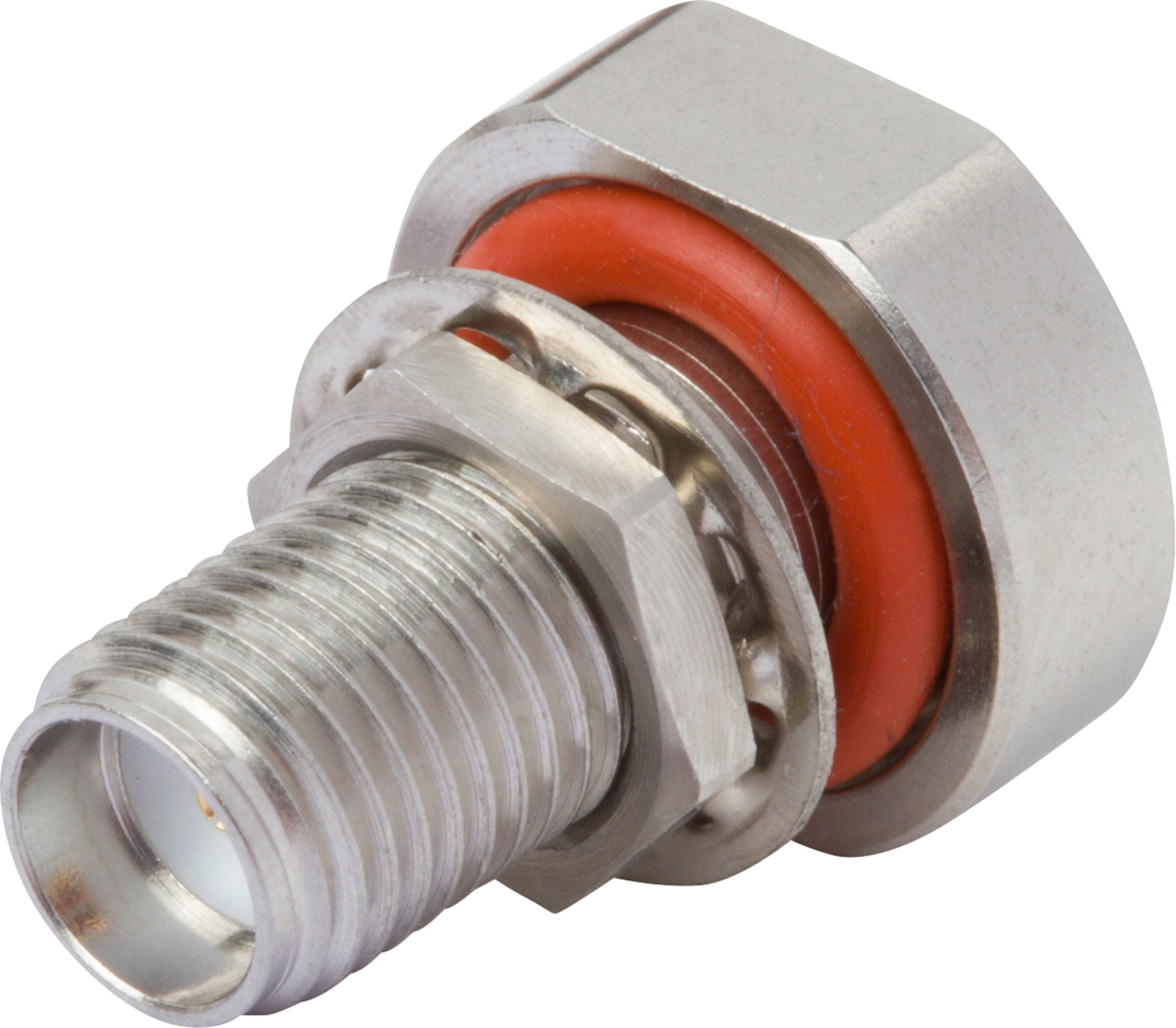

SMA Female Bulkhead Connector for .085 Cable

Available Inventory: 114
2946-6012
SMA Connectors 2946-6012
Datasheet
Part #   2990-6002

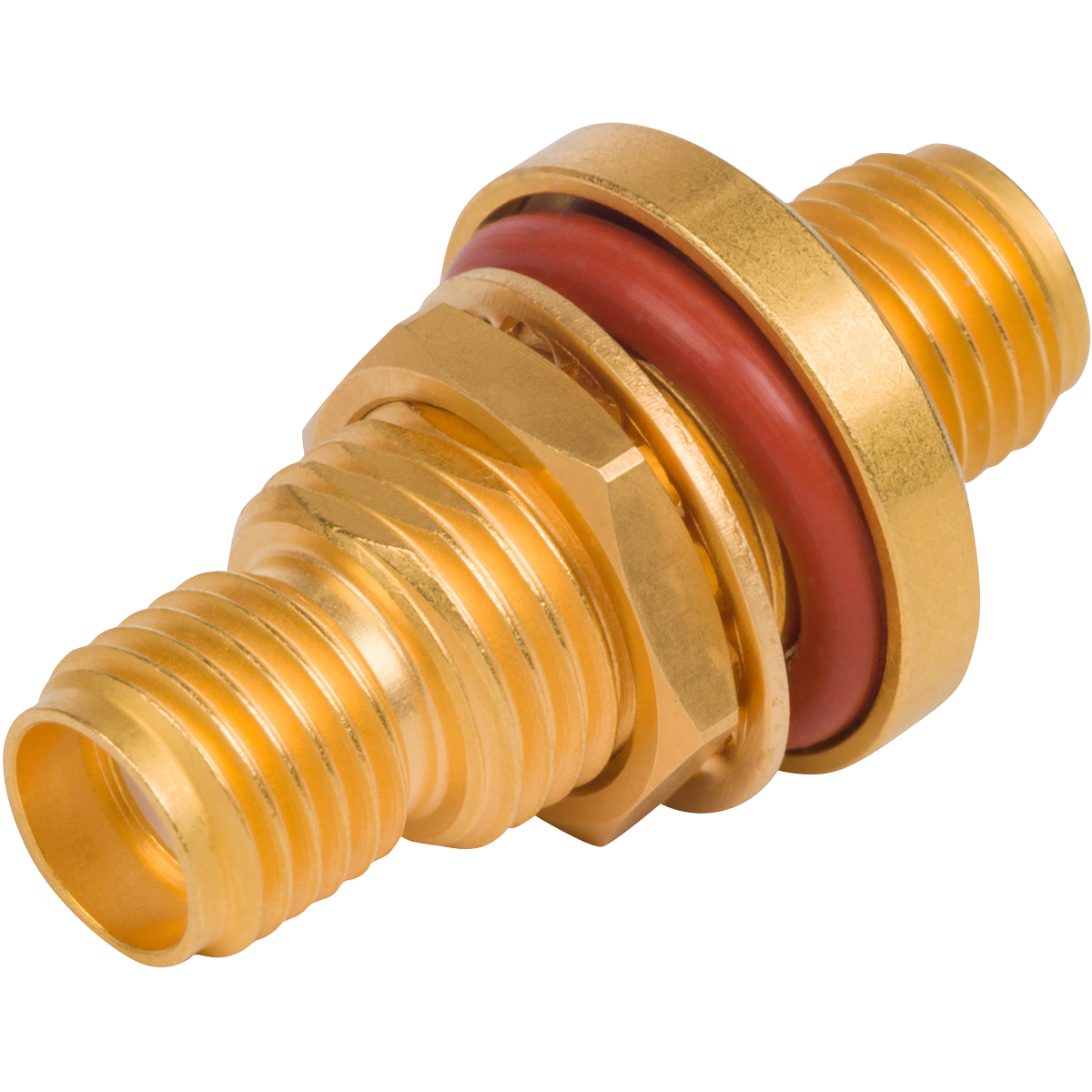

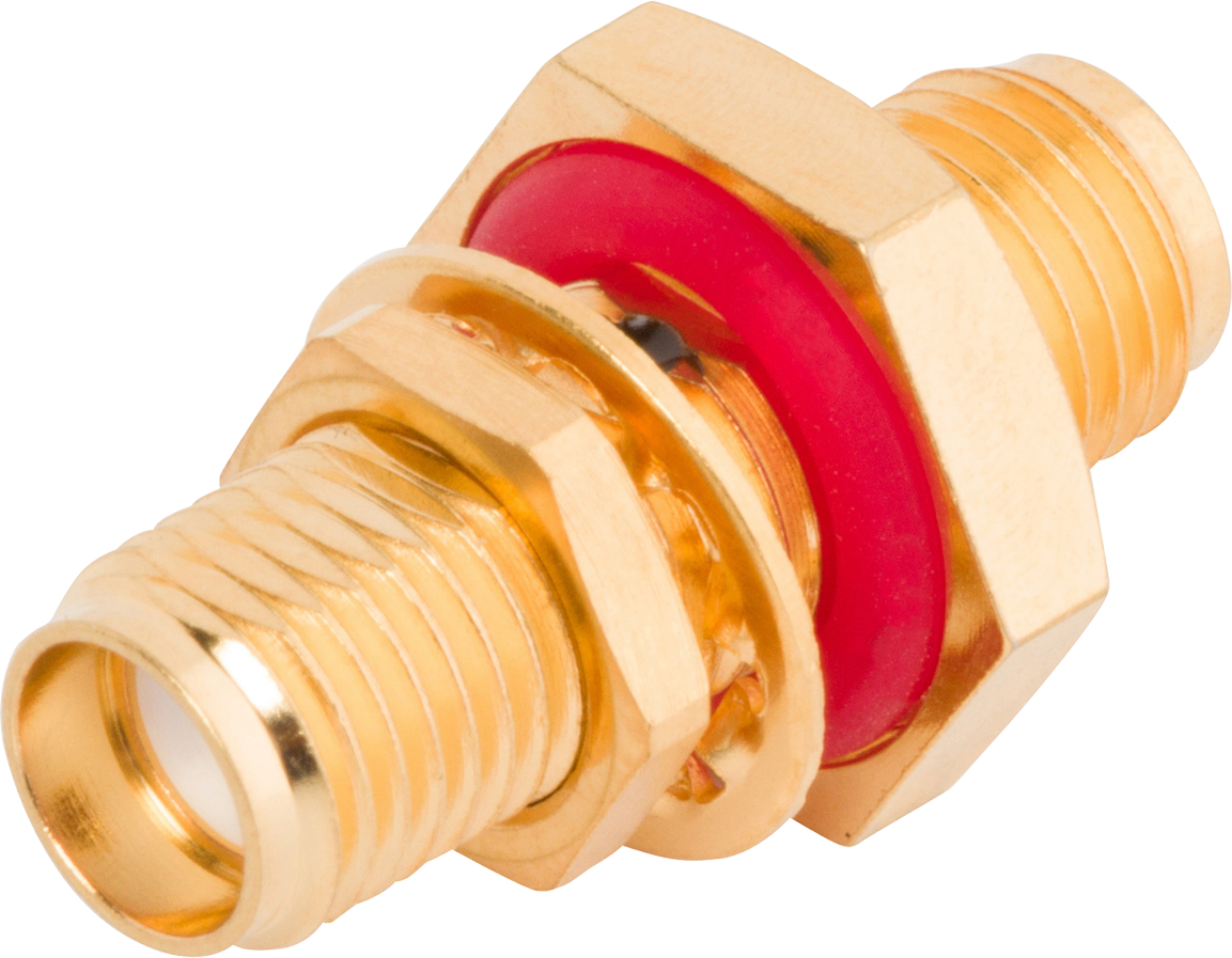

SMA Female to Female Bulkhead Adapter
