P/N: M39012/59-3026

SMA Female Bulkhead Connector for RG-174 Cable

In stock at Qty Order
Digi-Key Electronics 51
Microwave Components LLC 50
Mouser Electronics 9
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Cable Type RG-174
MIL-SPEC M39012
Finish Passivated
Electrical
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type Panel
Body Style Jamnut/Bulkhead
Termination Style Crimp
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Cable Type RG-174
MIL-SPEC M39012
Finish Passivated
Electrical
Shielding Effectiveness ≥ -90 dB
Impedance (Ω) 50
Frequency GHz 18 GHz
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Vibration MIL-STD-202, Method 204, Condition D
Customers Also Viewed
Part #   2946-6012

SMA Female Bulkhead Connector for .085 Cable

Available Inventory: 114
2946-6012
SMA Connectors 2946-6012
Datasheet
Part #   5021-00027

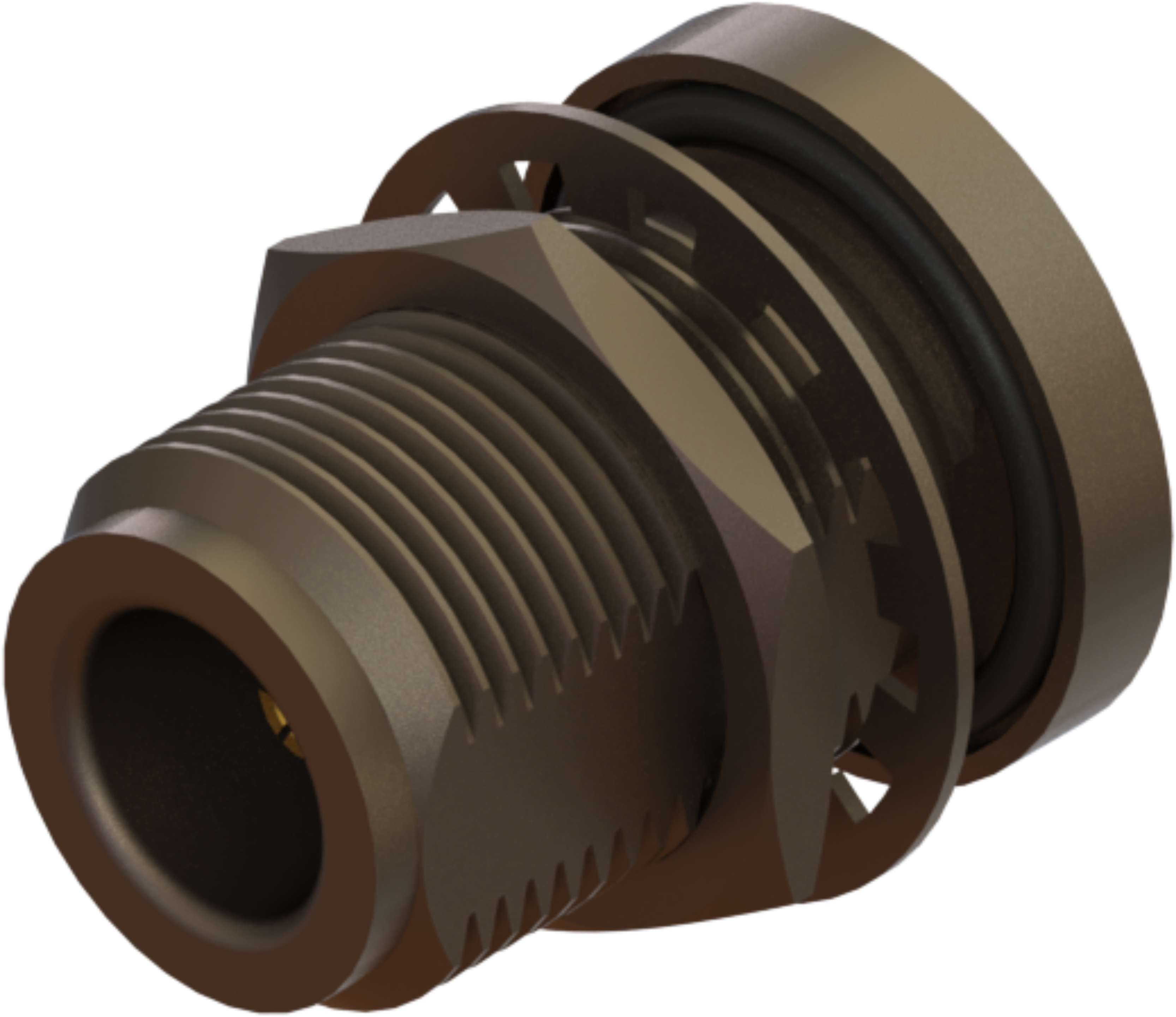

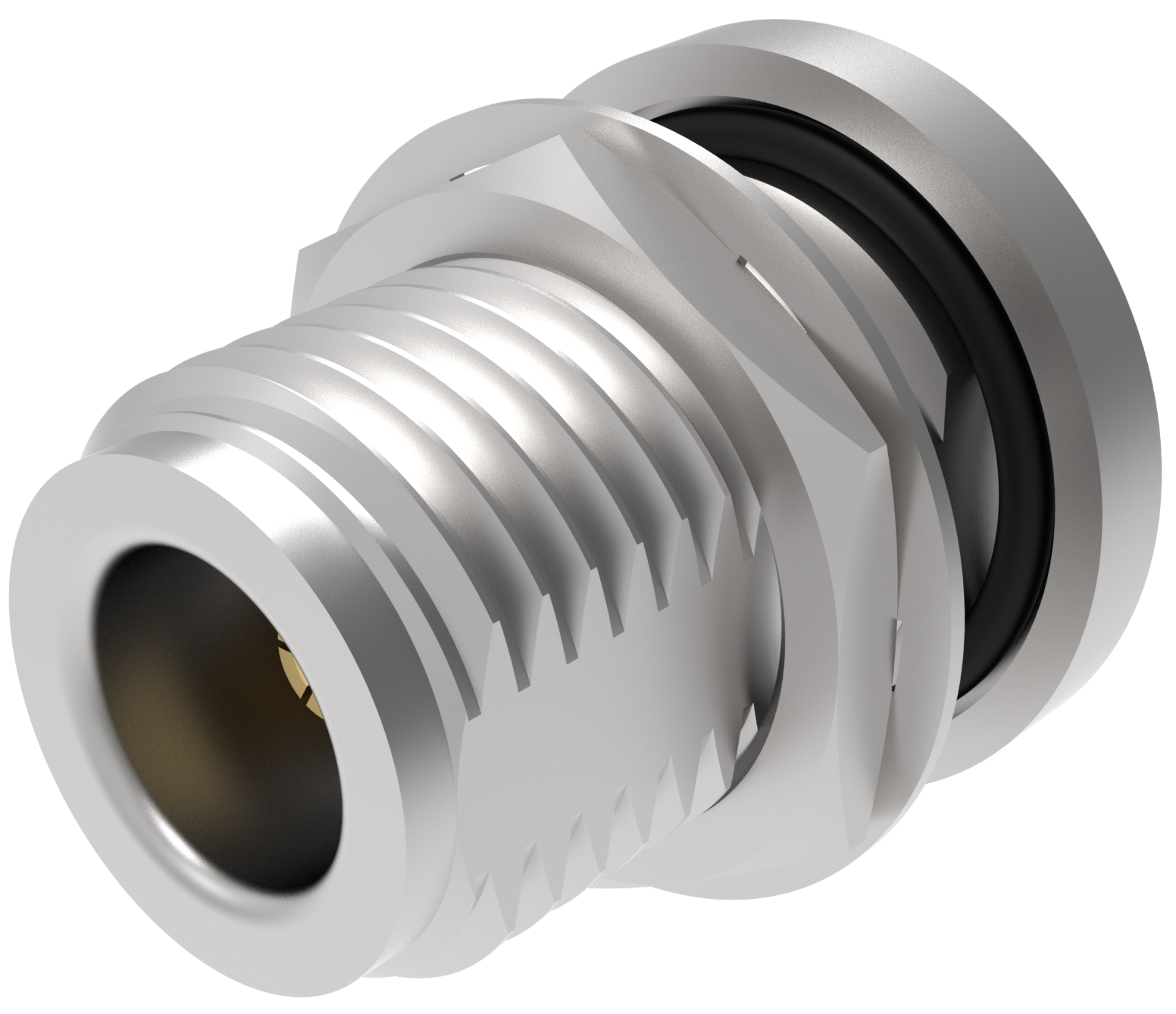

Type N Female Bulkhead Connector for .141 Cable
