P/N: 2921-00058

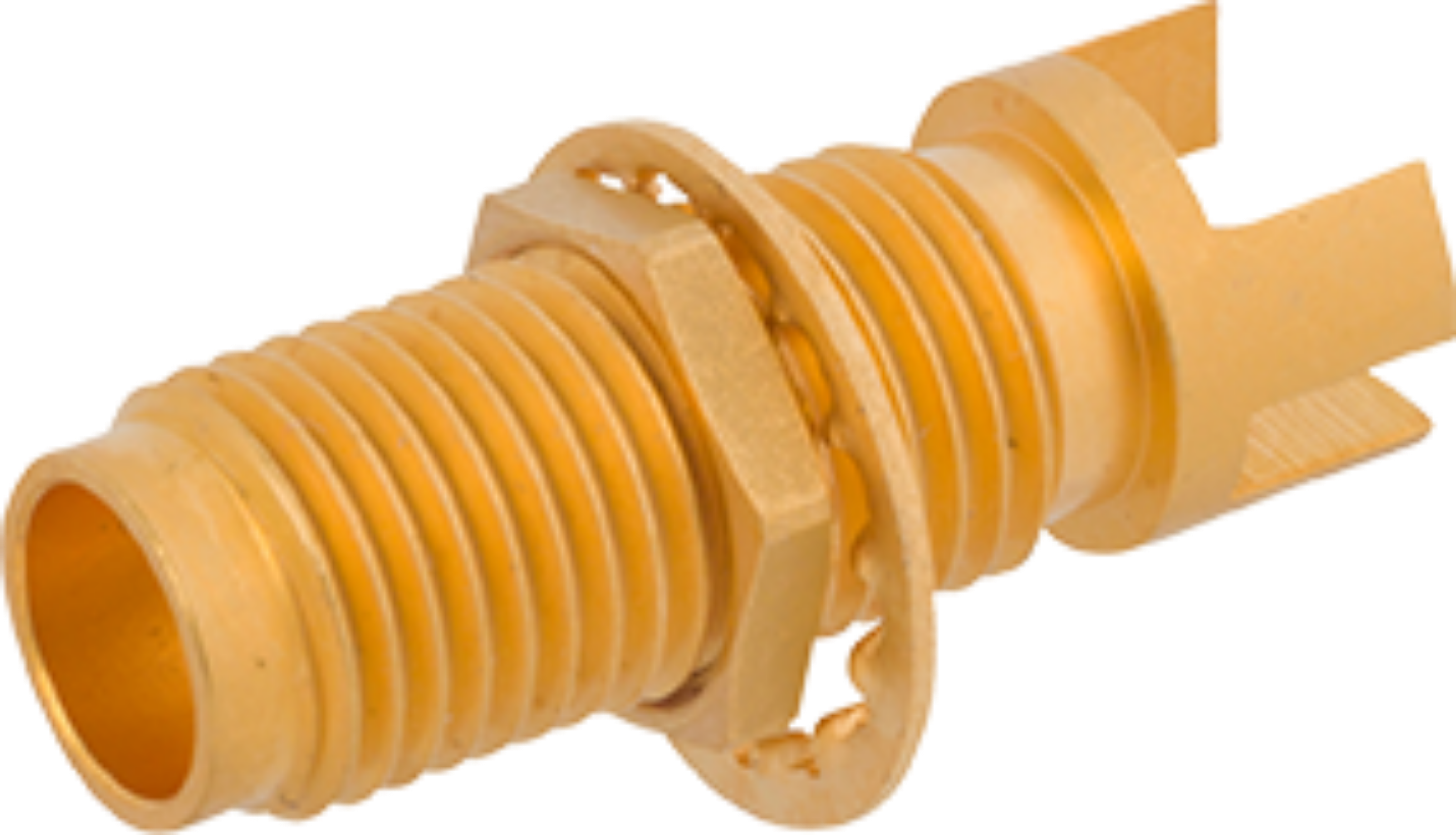

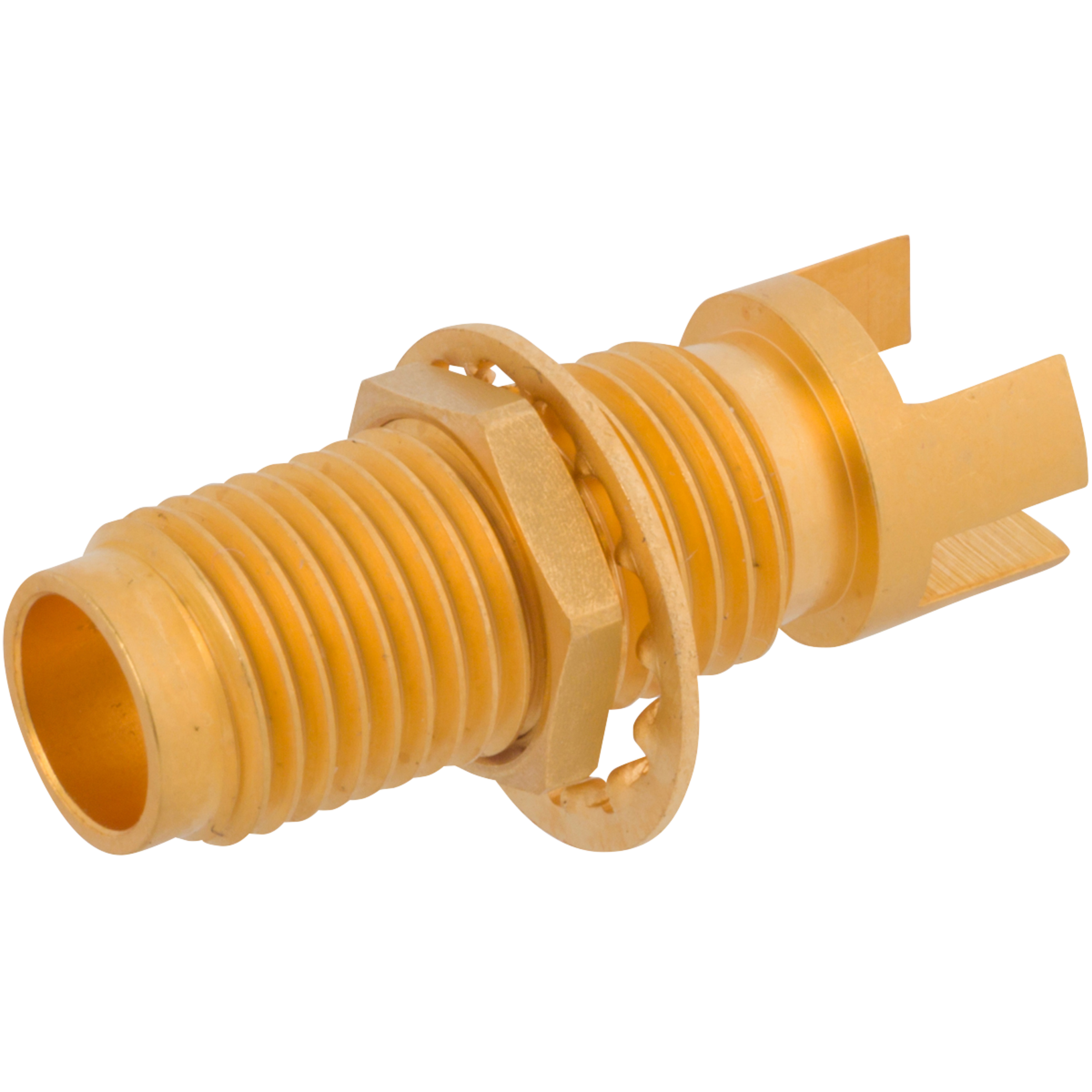

SMA Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

In stock at Qty Order
Mouser Electronics 100 On Order
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Mounting Type PCB Edge Launch
Frequency 18 GHz
Impedance 50 ohms
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Mounting Type PCB Edge Launch
Frequency 18 GHz
Impedance 50 ohms
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1521-00010

2.92mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 0
1521-00010
2.92mm Connectors 1521-00010
Datasheet
Part #   1621-00003

2.4mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 0
1621-00003
2.4mm Connectors 1621-00003
Datasheet
Part #   2921-00057

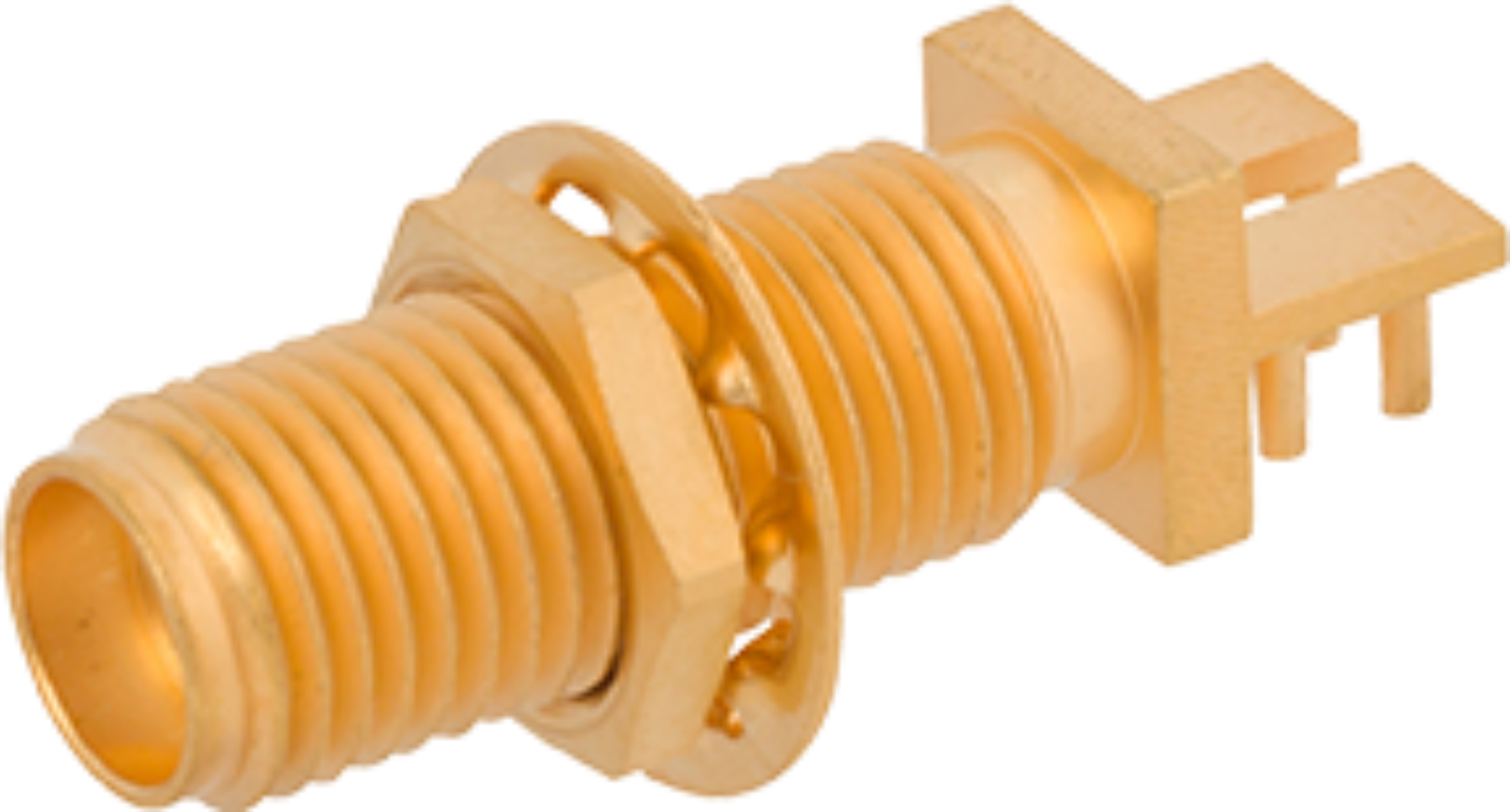

SMA Female Bulkhead PCB Edge Launch Connector, 4 Legs
