P/N: 1521-00010

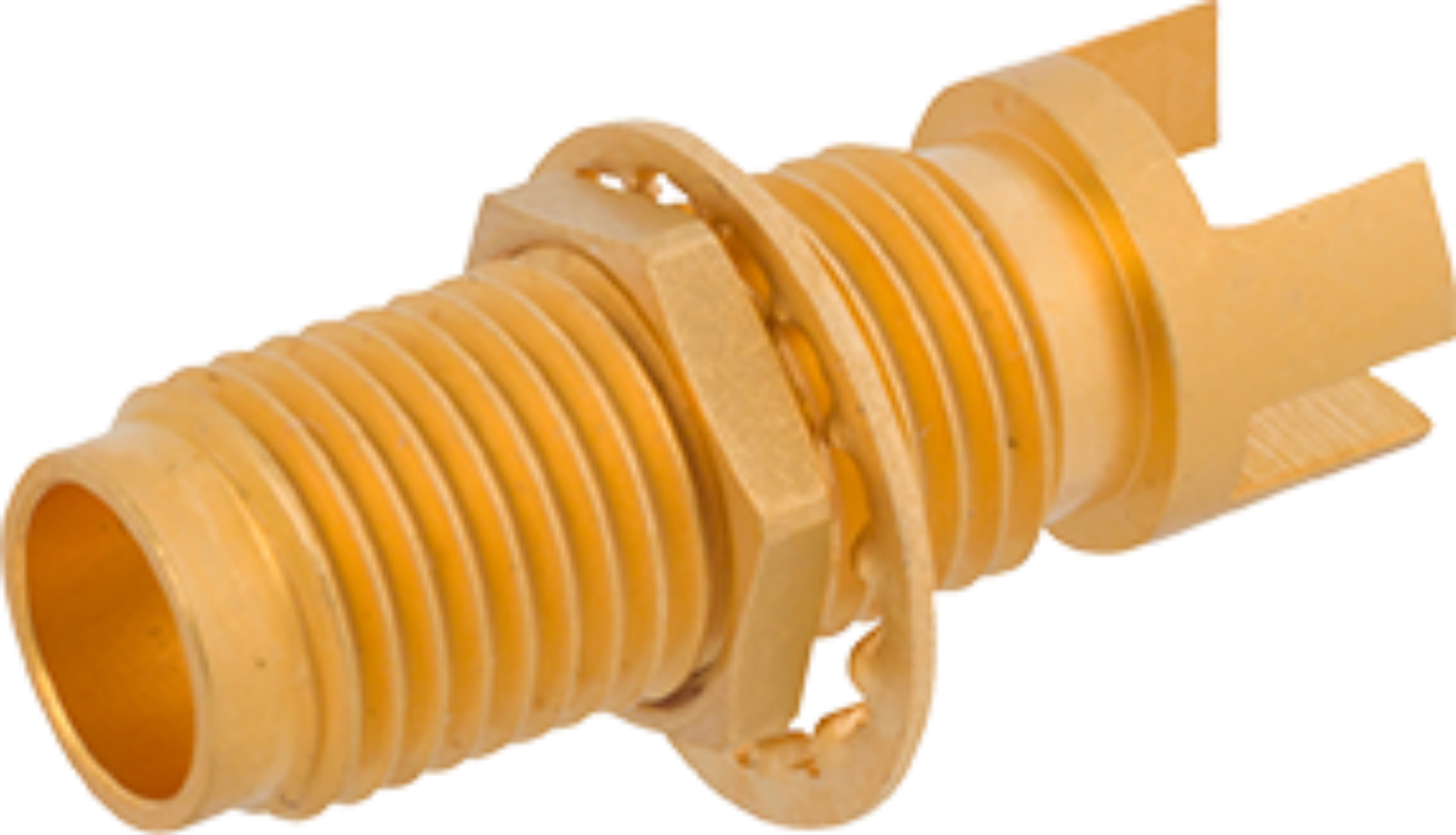

2.92mm Female Bulkhead PCB Edge Launch Connector, .062" PCB Thickness

In stock at Qty Order
Mouser Electronics 100 On Order
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Impedance 50 ohms
Termination Style Solder
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Frequency GHz 40 GHz
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Orientation (Body) Straight
Coupling Threaded
Frequency 40 GHz
Impedance 50 ohms
Termination Style Solder
Finish Gold
Body Style Jamnut/Bulkhead
Electrical
Impedance (Ω) 50
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Frequency GHz 40 GHz
Mating Cycles 500
Mechanical
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   1521-00009

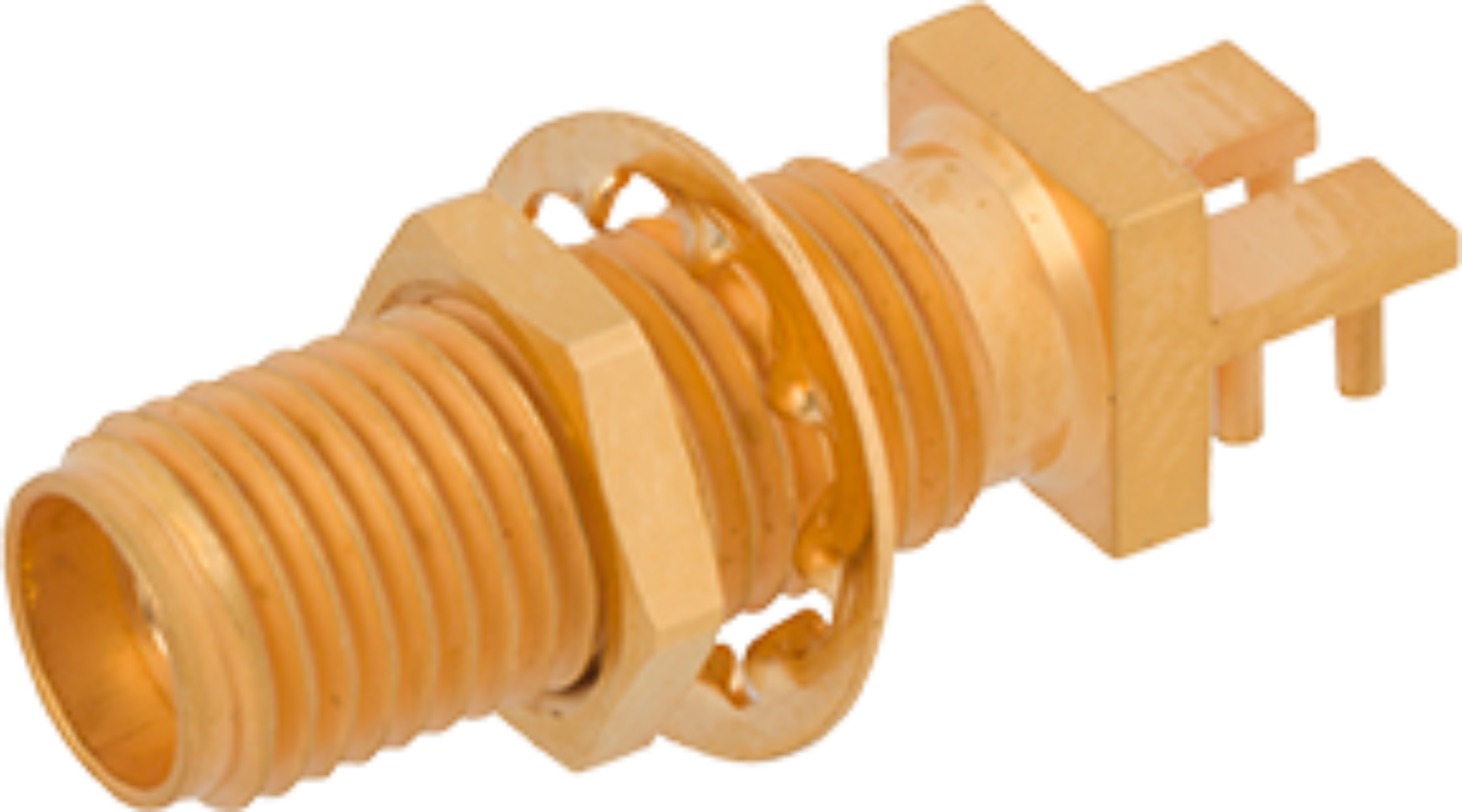

2.92mm Female Bulkhead PCB Edge Launch Connector, 4 Leg

Available Inventory: 0
1521-00009
2.92mm Connectors 1521-00009
Datasheet
Part #   2921-00057

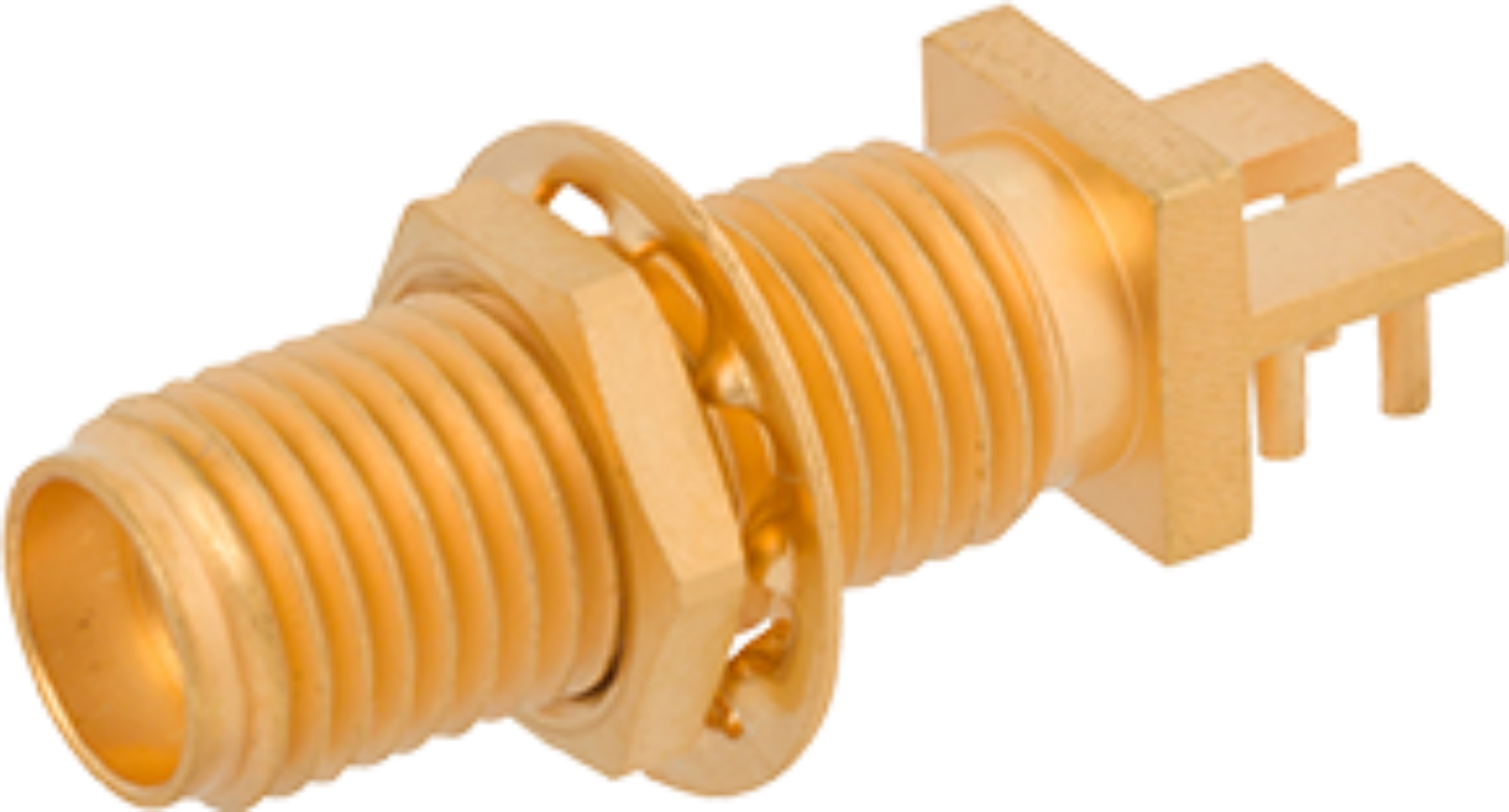

SMA Female Bulkhead PCB Edge Launch Connector, 4 Legs
