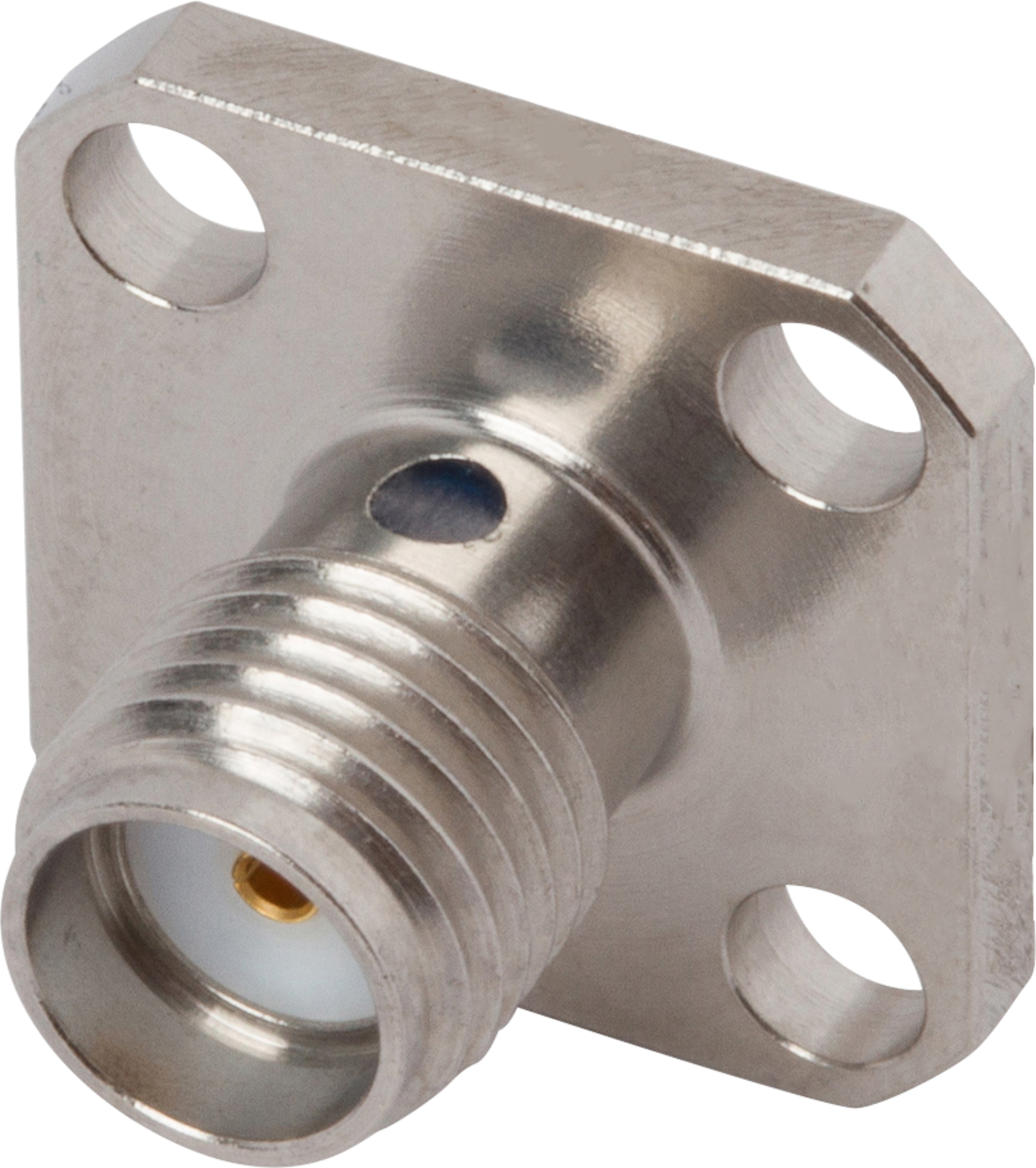

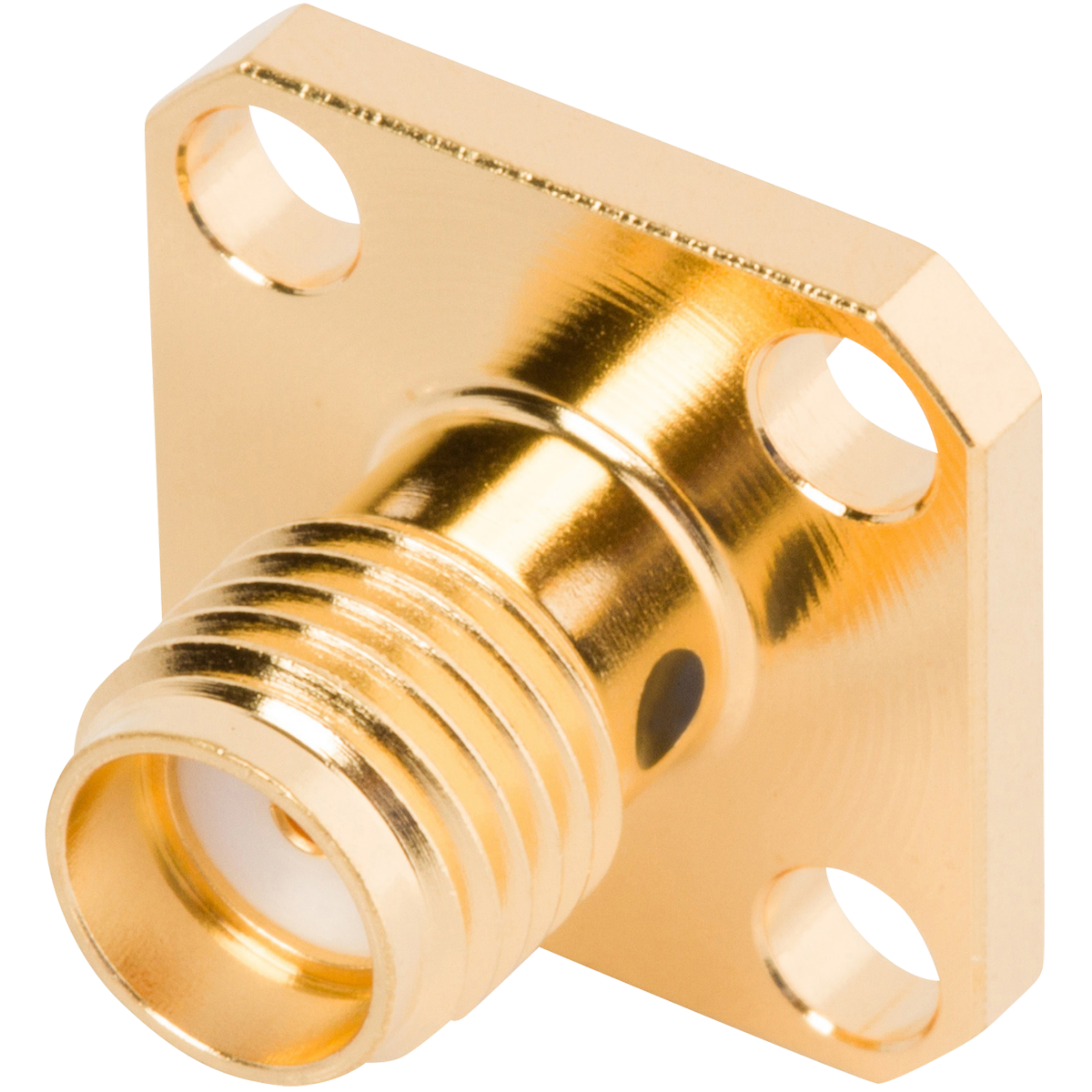

Attribute name | Attribute value |
---|---|
Gender | Jack (Female) |
Coupling | Threaded |
Orientation (Body) | Straight |
Body Style | 4 Hole |
Mounting Type | Panel |
Termination Style | Solder |
Number of Ports | Single |
Frequency | 18 GHz |
Impedance | 50 ohms |
MIL-SPEC | M39012 |
Finish | Gold |
Cable Type | 0.085 Flexible Coax |
RF Series | SMA |
Electrical | |
Impedance (Ω) | 50 |
Frequency GHz | 18 GHz |
Dielectric withstanding Voltage | 1000 VRMS |
Mating Cycles | 500 |
Shielding Effectiveness | ≥ -90 dB |
Mechanical | |
Mating Torque | 7 - 10 in - lbs |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Inter-mate ability | 2.92mm |
Temperature Rating | -65°C to +165°C |
Environmental | |
Vibration | MIL-STD-202, Method 204, Condition D |
Shock | MIL-STD-202, Method 213, Condition I |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
