P/N: 2921-61493

SMA Female PCB Edge Launch Connector, 4 Legs

In stock at Qty Order
Digi-Key Electronics 683
Mouser Electronics 202
TTI Inc Global Headquarters 100
Newark 7
Farnell 7
Heilind Electronics 3
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

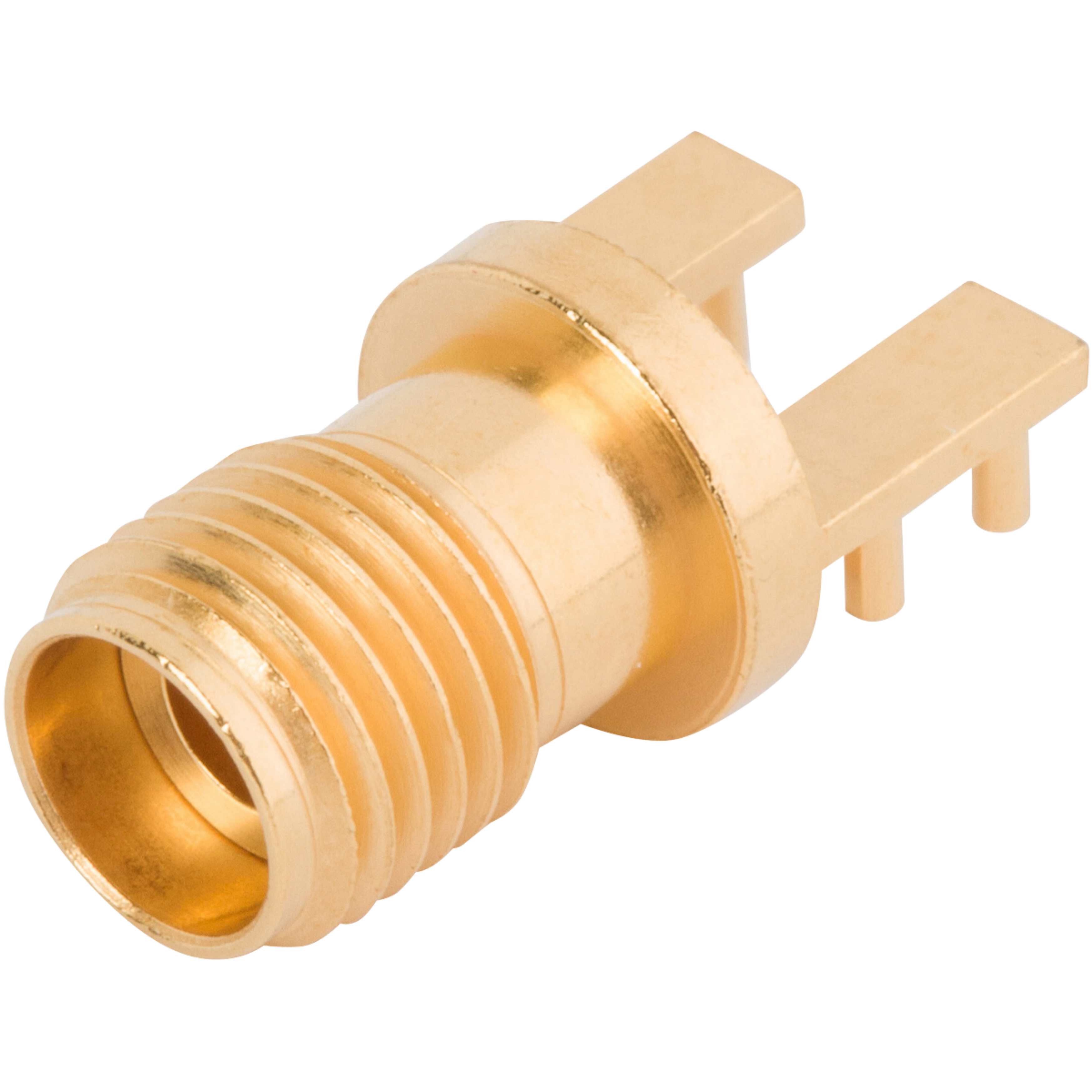

Part #   1521-00002

2.92mm Female PCB Edge Launch Connector, 4 Leg

Available Inventory: 1078
1521-00002
2.92mm Connectors 1521-00002
Datasheet

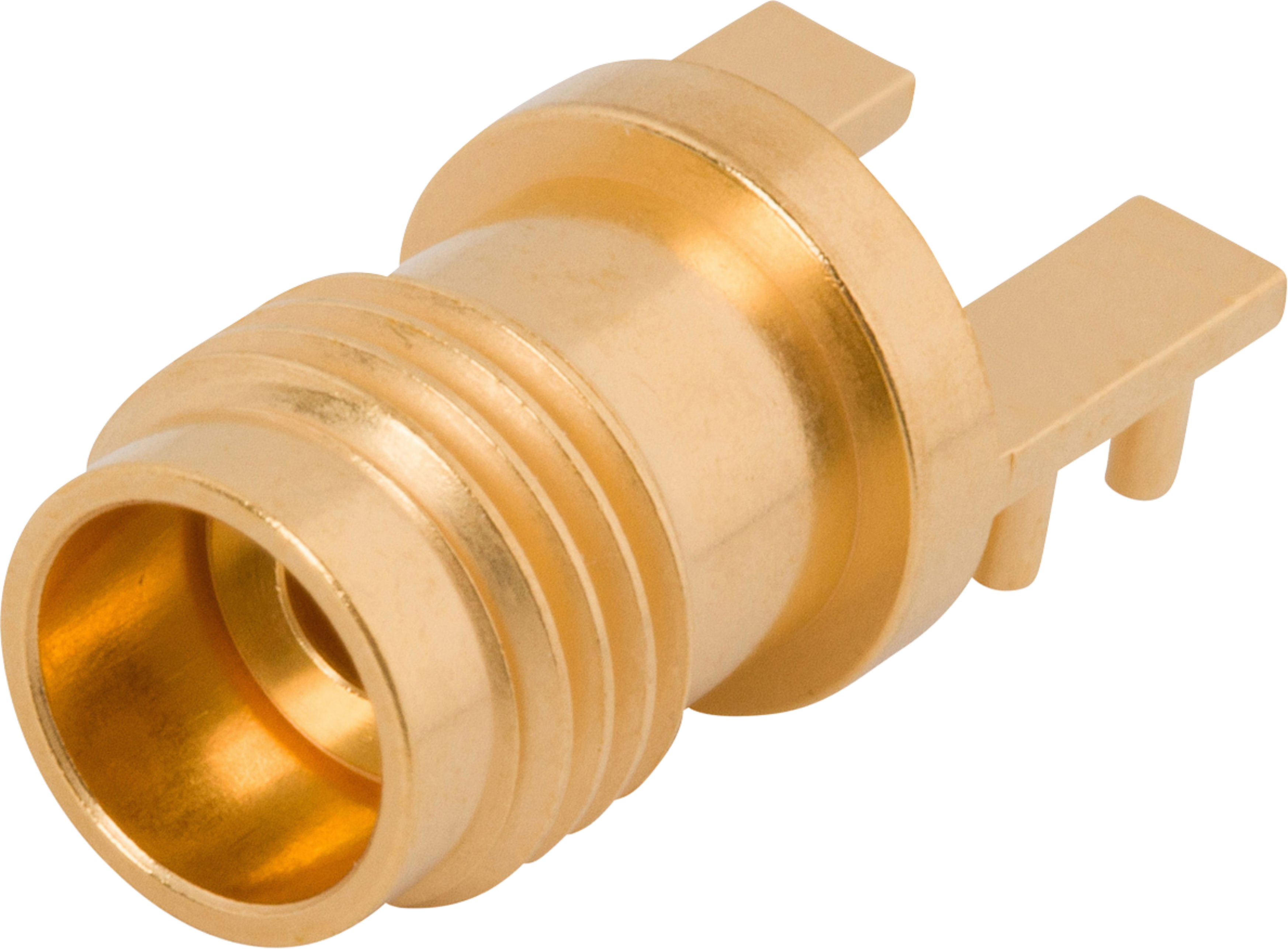

Part #   1621-60050

2.4mm Female PCB Edge Launch Connector, 4 Legs

Available Inventory: 39
1621-60050
2.4mm Connectors 1621-60050
Datasheet

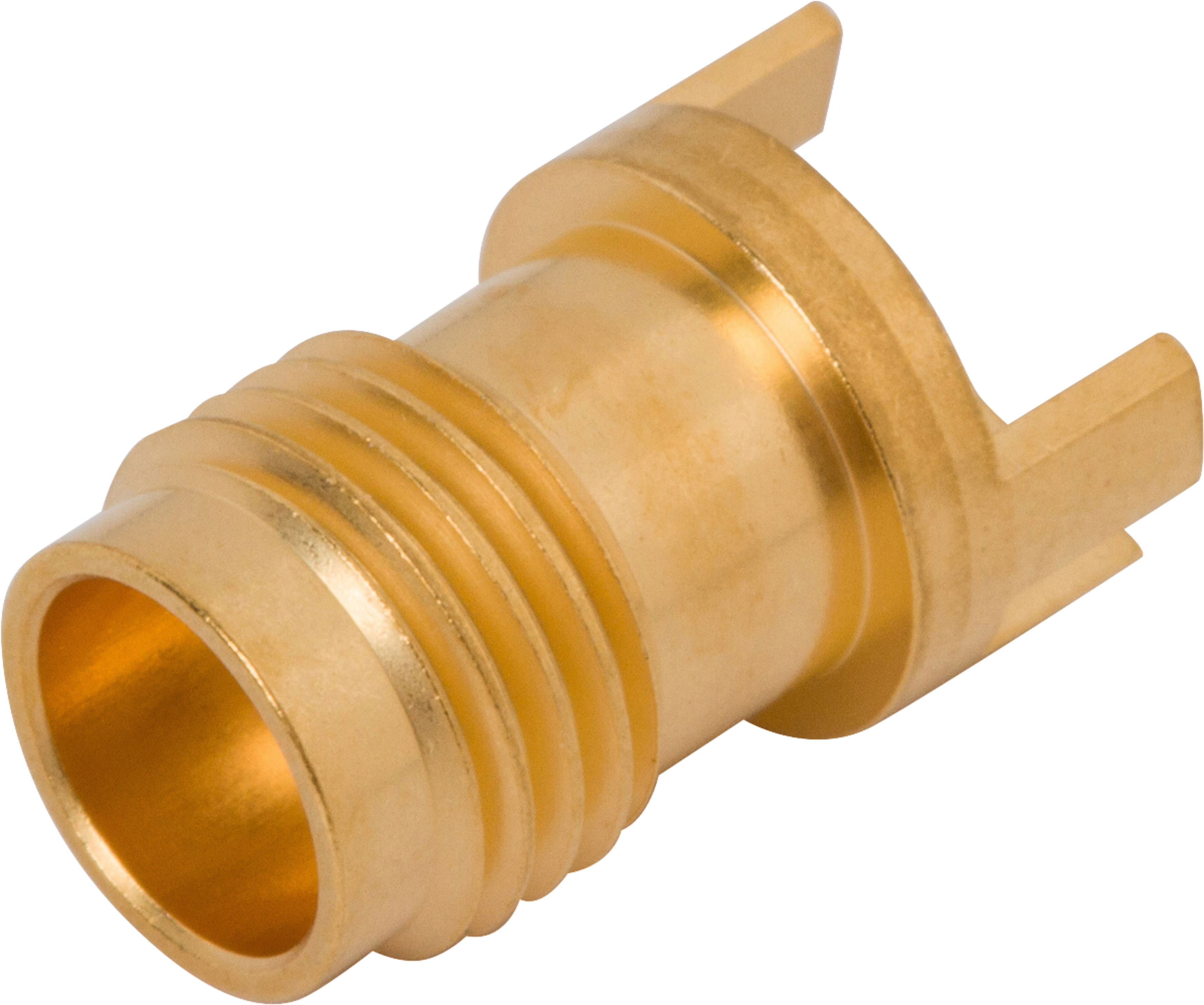

Part #   1621-60051
