P/N: 1521-00002

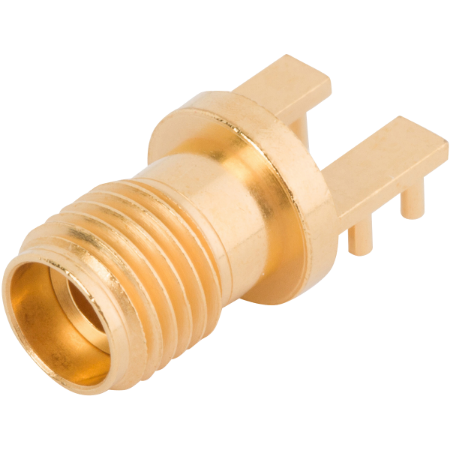

2.92mm Female PCB Edge Launch Connector, 4 Leg

In stock at Qty Order
Digi-Key Electronics 421
Mouser Electronics 295
Arrow Electronics Inc 229
Heilind Electronics 62
Master Electronics 44
TTI Inc Global Headquarters 27
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Orientation (Body) Straight
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.92 mm
Gender Jack (Female)
Mounting Type PCB Edge Launch
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
Orientation (Body) Straight
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 750 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1521-60051

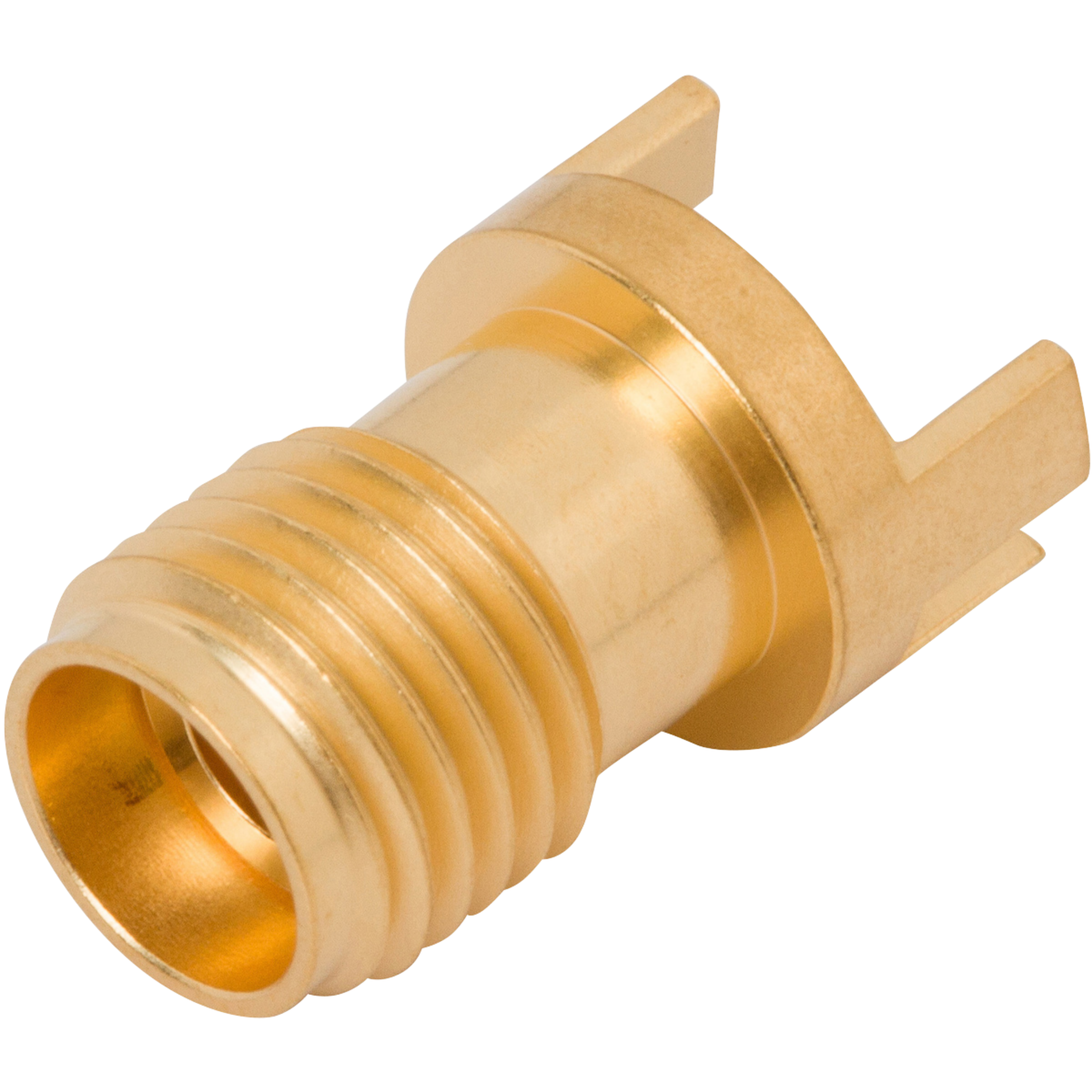

2.92mm Female PCB Edge Launch Connector, .062" PCB Thickness"

Available Inventory: 1967
1521-60051
2.92mm Connectors 1521-60051
Datasheet
Part #   1621-60008

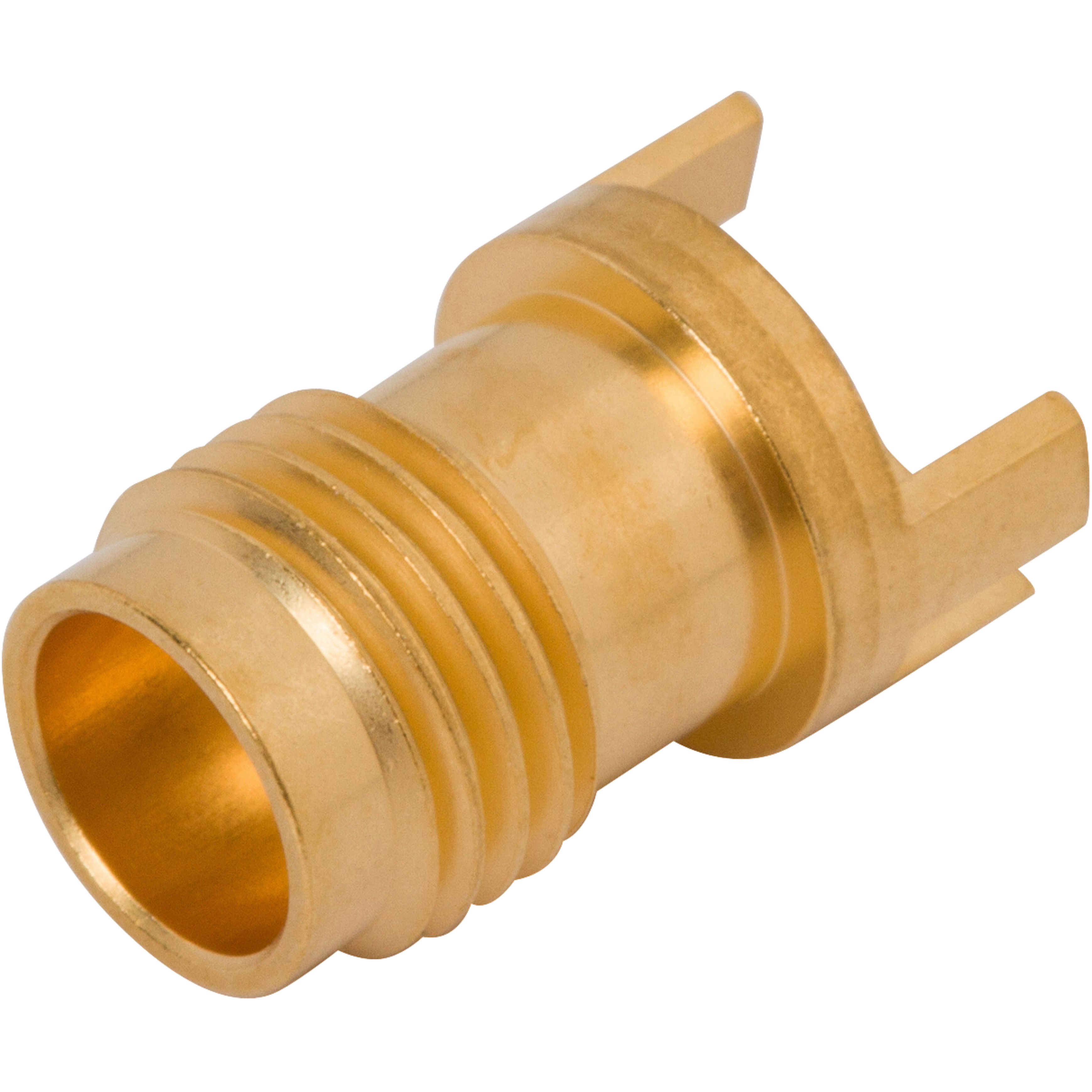

2.4mm Female PCB Edge Launch Connector, .062" PCB Thickness

Available Inventory: 205
1621-60008
2.4mm Connectors 1621-60008
Datasheet
Part #   1521-60125

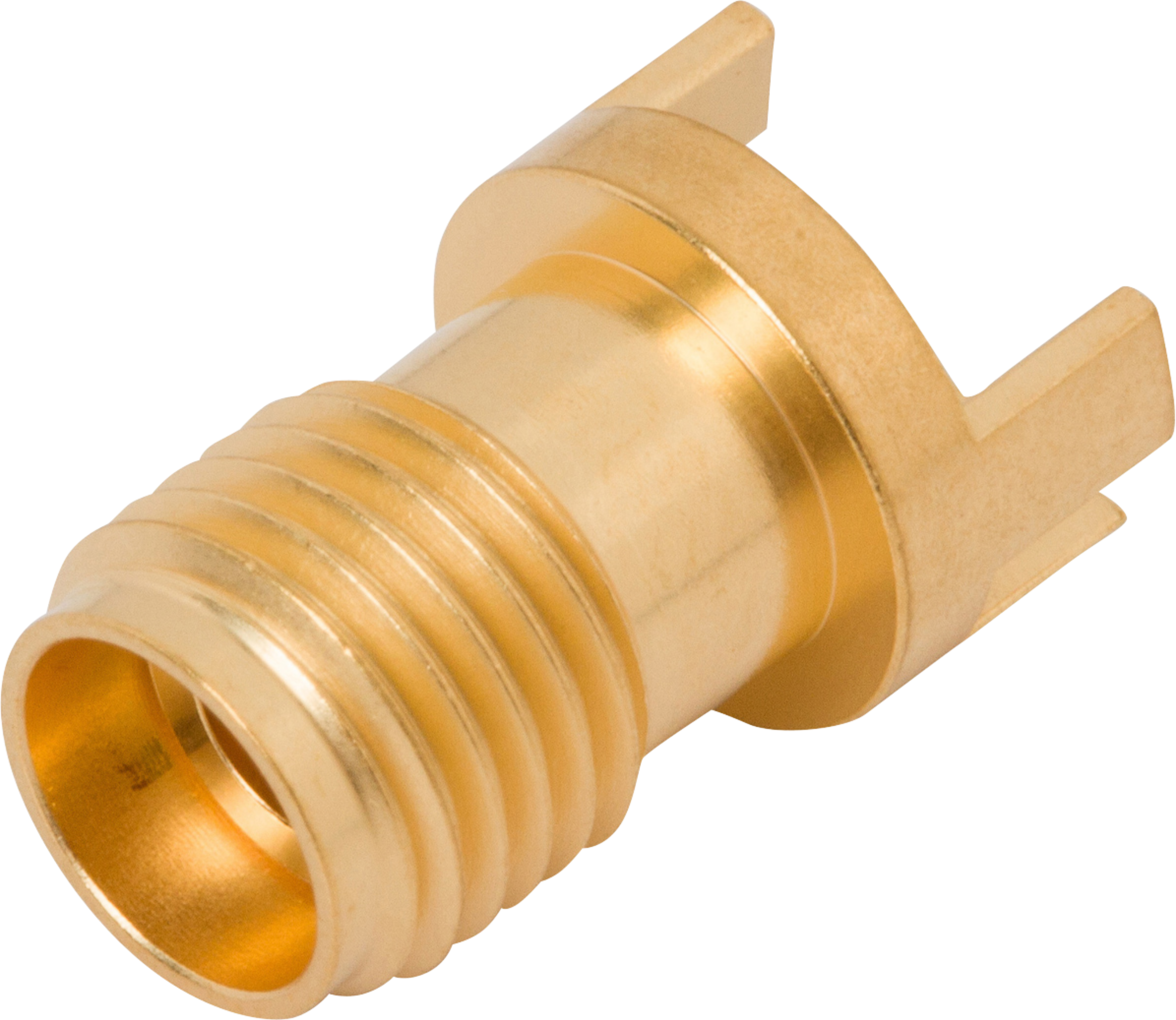

2.92mm Female PCB Edge Launch Connector, .093" PCB Thickness"
