P/N: 2985-6004

SMA Female PCB Thru-Hole Connector

In stock at Qty Order
Mouser Electronics 250
Digi-Key Electronics 237
Master Electronics 100
Products specifications
Attribute name Attribute value
Gender Jack (Female)
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Termination Style Solder
Impedance 50 ohms
Frequency 18 GHz
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Jack (Female)
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Vertical Launch
Termination Style Solder
Impedance 50 ohms
Frequency 18 GHz
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   2985-6035

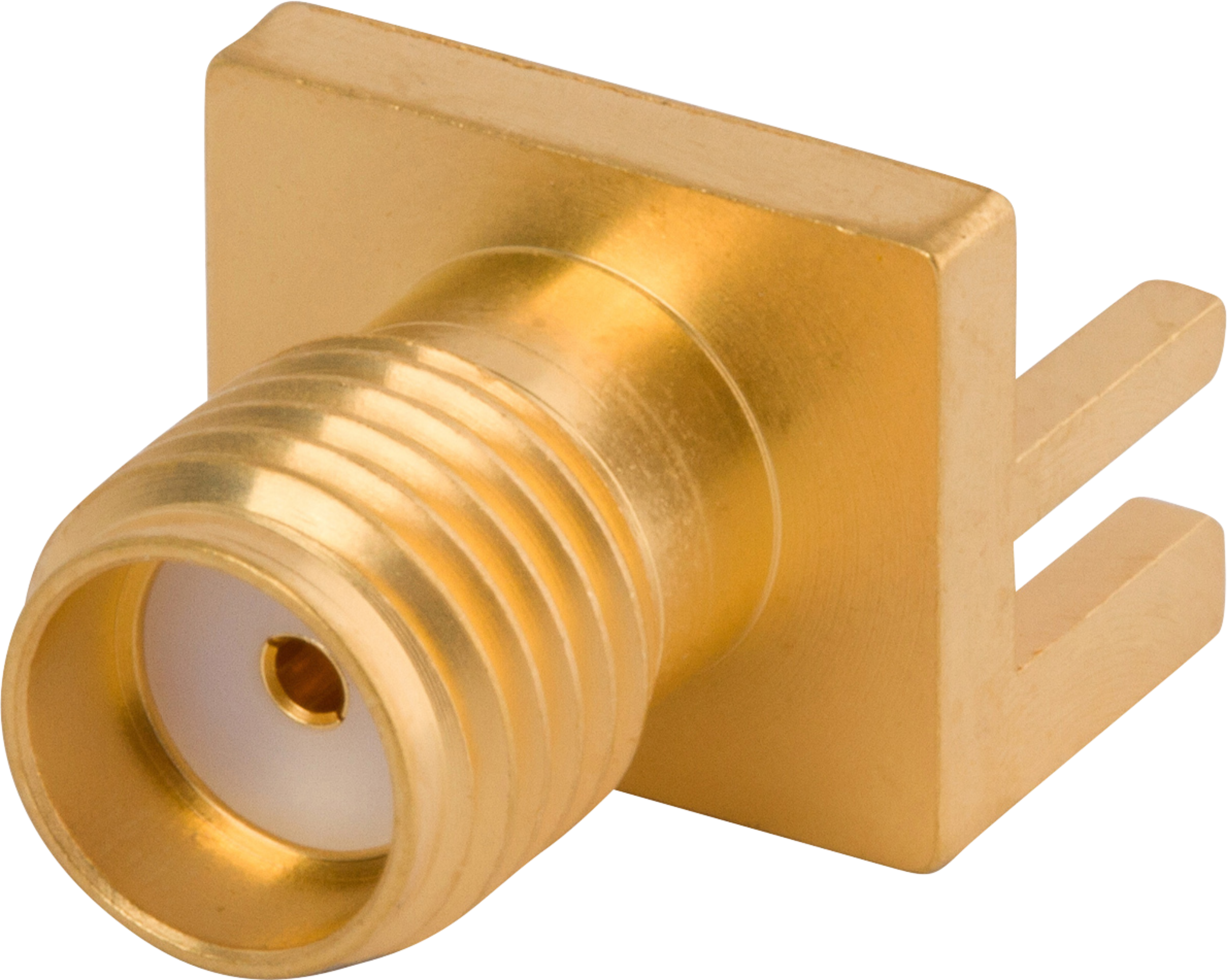

SMA Female PCB Edge Launch Connector, .063" PCB Thickness"

Available Inventory: 636
2985-6035
SMA Connectors 2985-6035
Datasheet
Part #   2986-6001

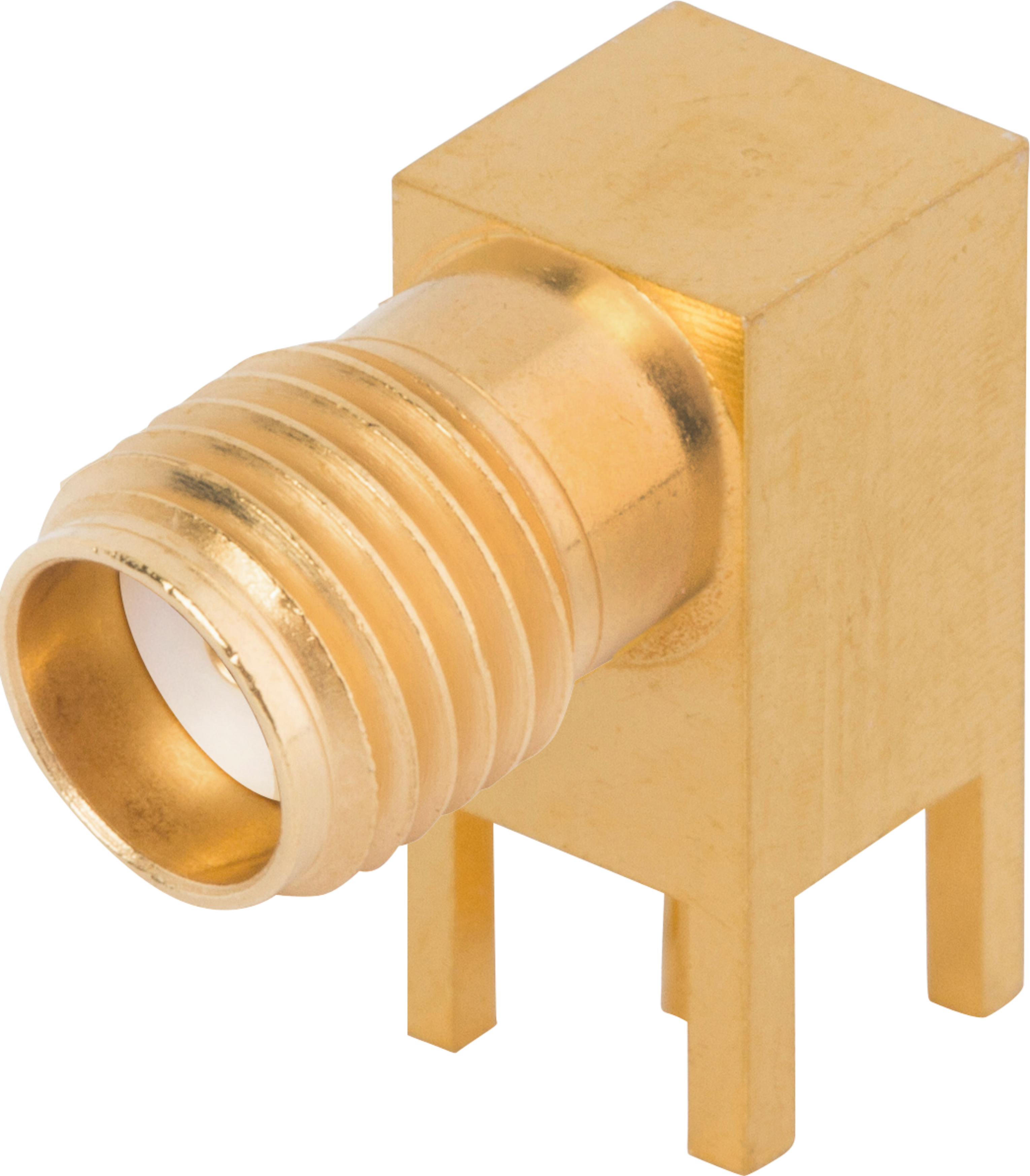

SMA Female PCB Thru-Hole Connector, R/A

Available Inventory: 6
2986-6001
SMA Connectors 2986-6001
Datasheet
Part #   SF2921-61560

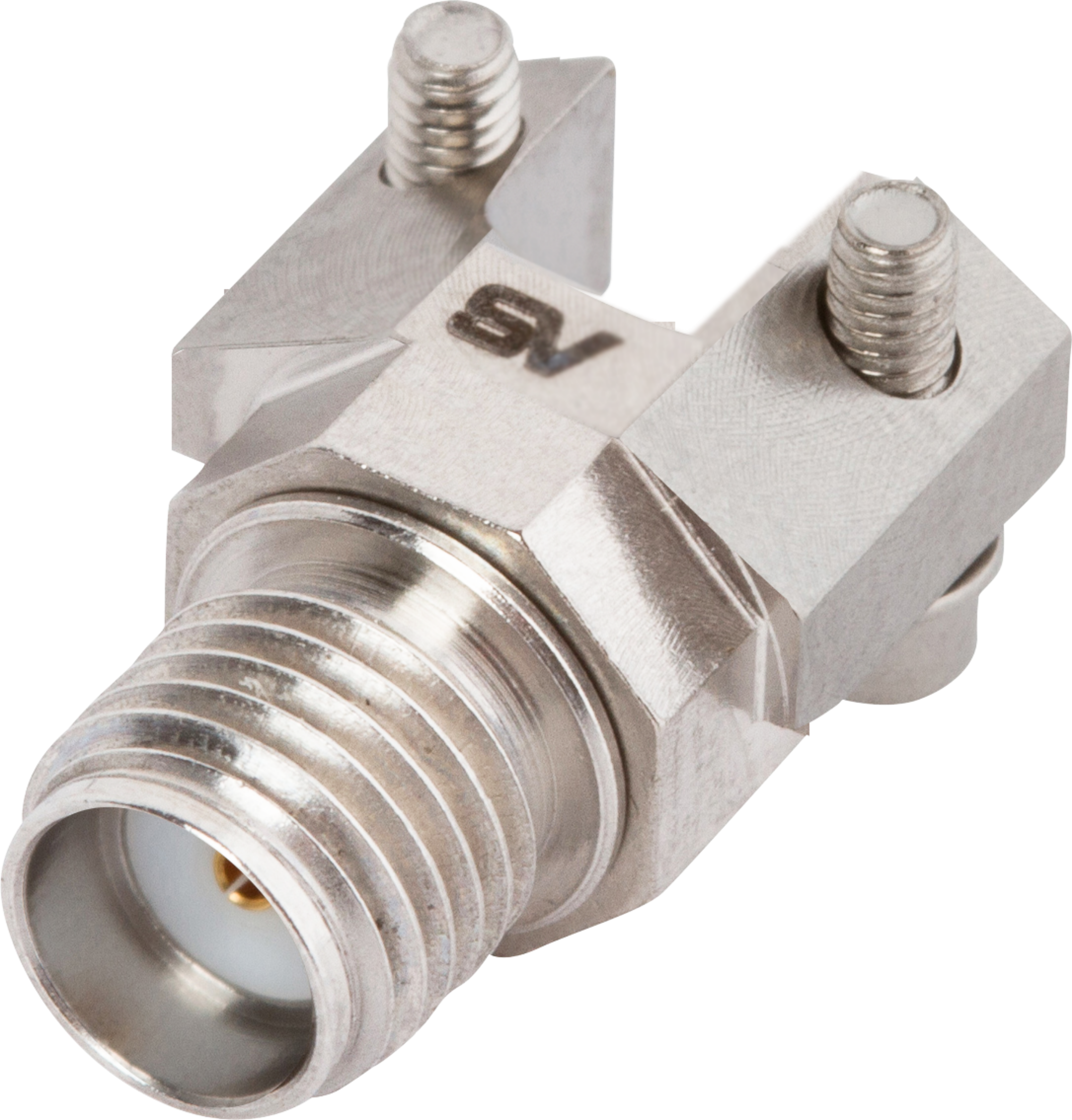

SMA Female Solderless PCB Reduced Flange Edge Launch Connector, 2 Hole
