SMA Female PCB Edge Launch Connector, .063" PCB Thickness"
P/N: 2985-6035

In stock at Qty Order
Newark 107
Master Electronics 100
TTI Inc Global Headquarters 88
Mouser Electronics 75
Farnell 52
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Last Update: 12/2/2022 1:06:57 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Dielectric withstanding Voltage 1000 VRMS
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

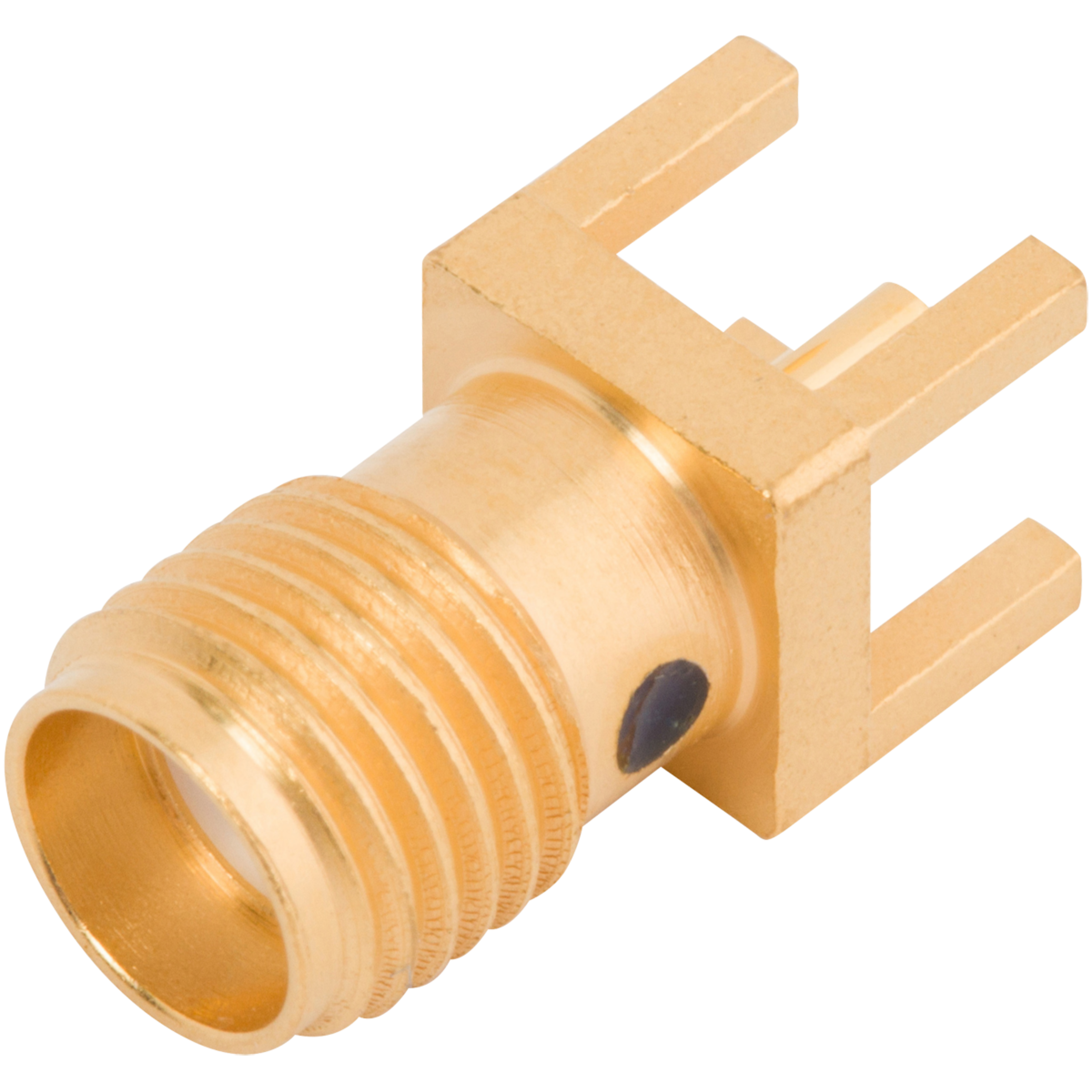

Part #   2985-6004

SMA Female PCB Thru-Hole Connector

Available Inventory: 1204
2985-6004
SMA Connectors 2985-6004
Datasheet
Part #   2985-6036

SMA Female PCB Edge Launch Connector, .042" PCB Thickness"

Available Inventory: 118
2985-6036
SMA Connectors 2985-6036
Datasheet

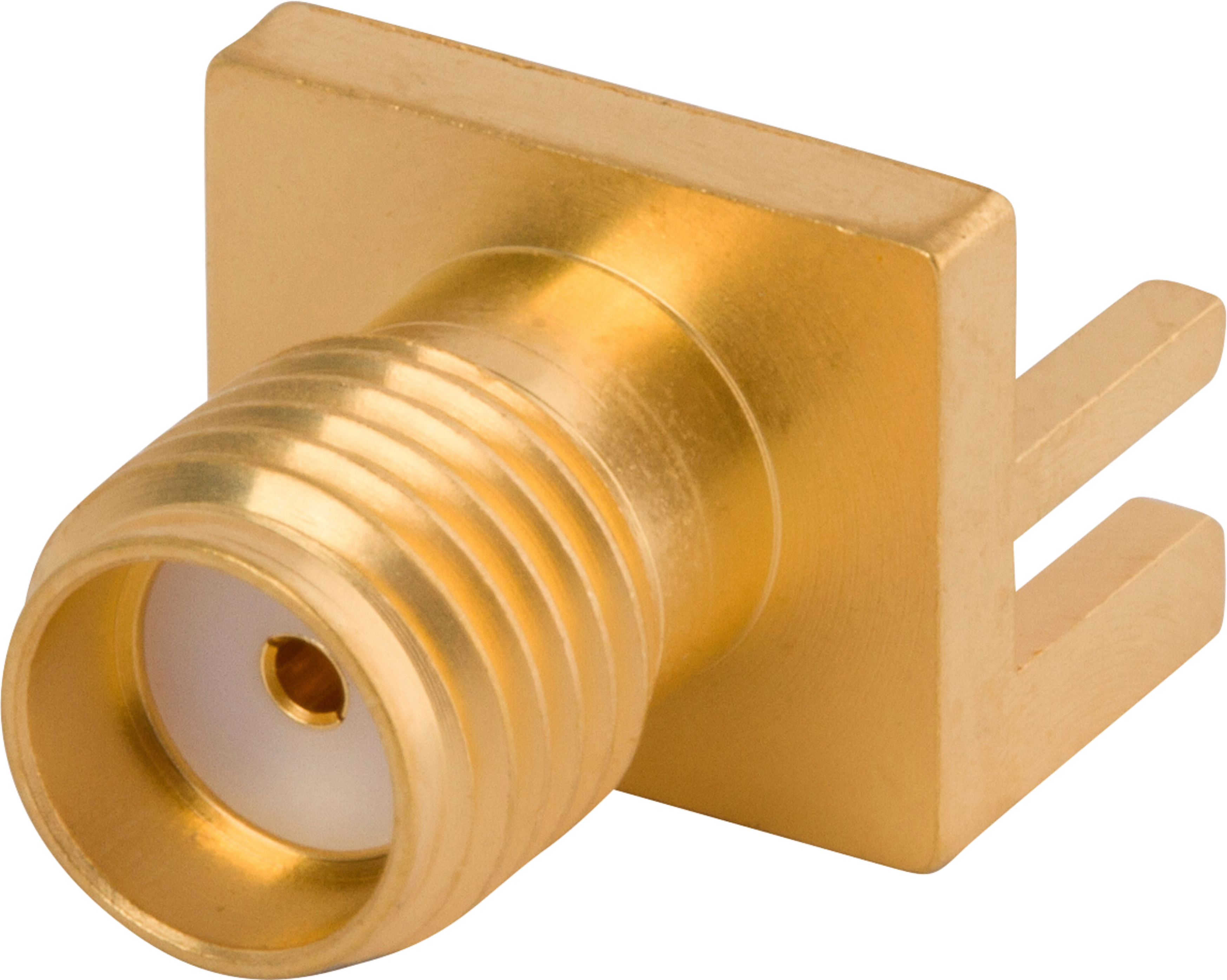

Part #   2985-6037
