P/N: SF2921-61356-1S

SMA Female Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (Stripline)

In stock at Qty Order
Digi-Key Electronics 2689
Mouser Electronics 291
Master Electronics 250
PEI-Genesis 250
Electro Enterprises Inc 250
TTI Inc Global Headquarters 180
Interstate Connecting Components 76
Farnell 37
Heilind Electronics 25
Farnell 15
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Orientation (Body) Straight
RF Series SMA
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Orientation (Body) Straight
RF Series SMA
Coupling Threaded
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Termination Style Solder-free
Finish Passivated
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Cycles 500
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF2921-61356

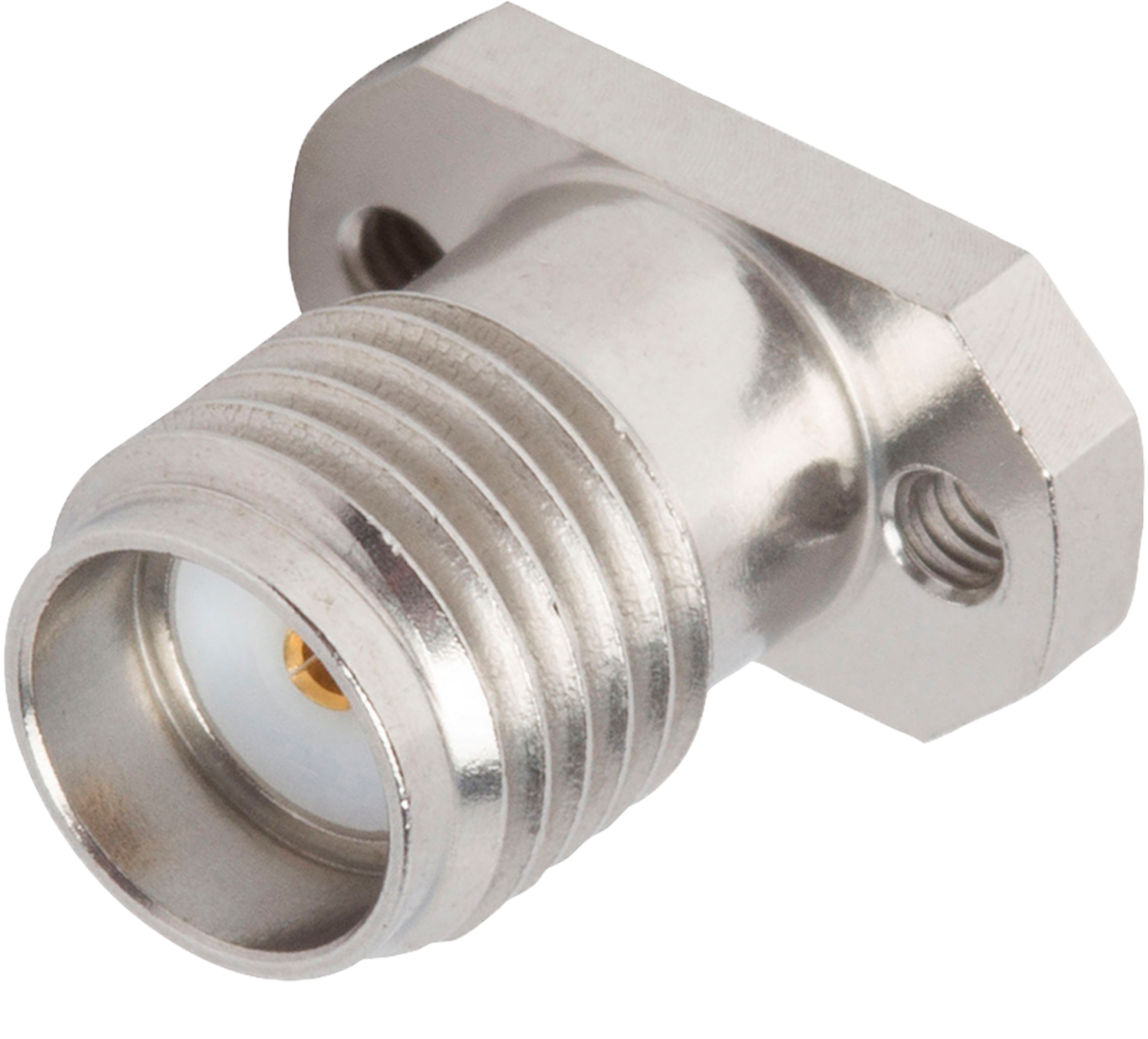

SMA Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)

Available Inventory: 6215
SF2921-61356
SMA Connectors SF2921-61356
Datasheet

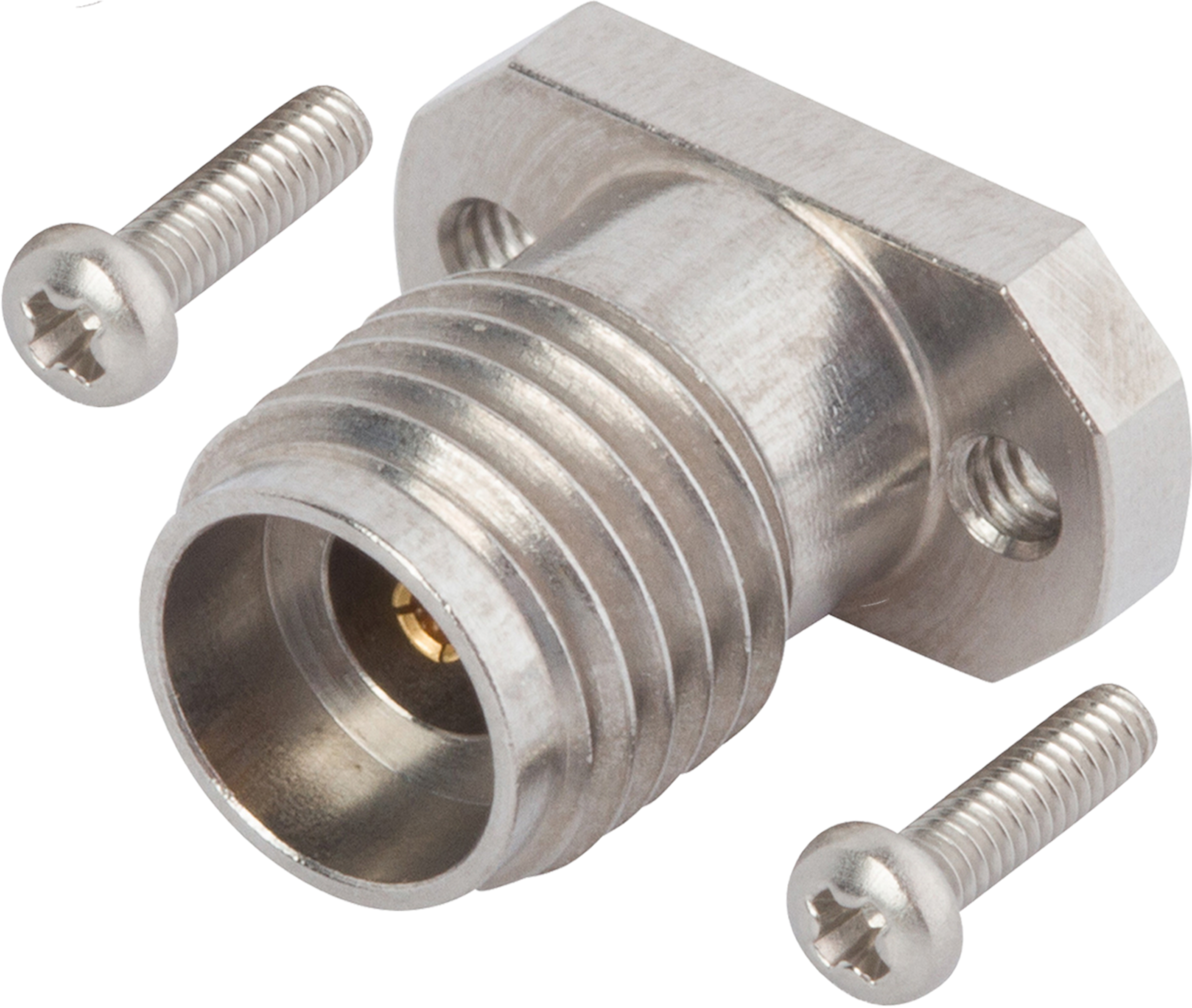

SF1521-60061-1S
2.92mm Connectors SF1521-60061-1S
Datasheet

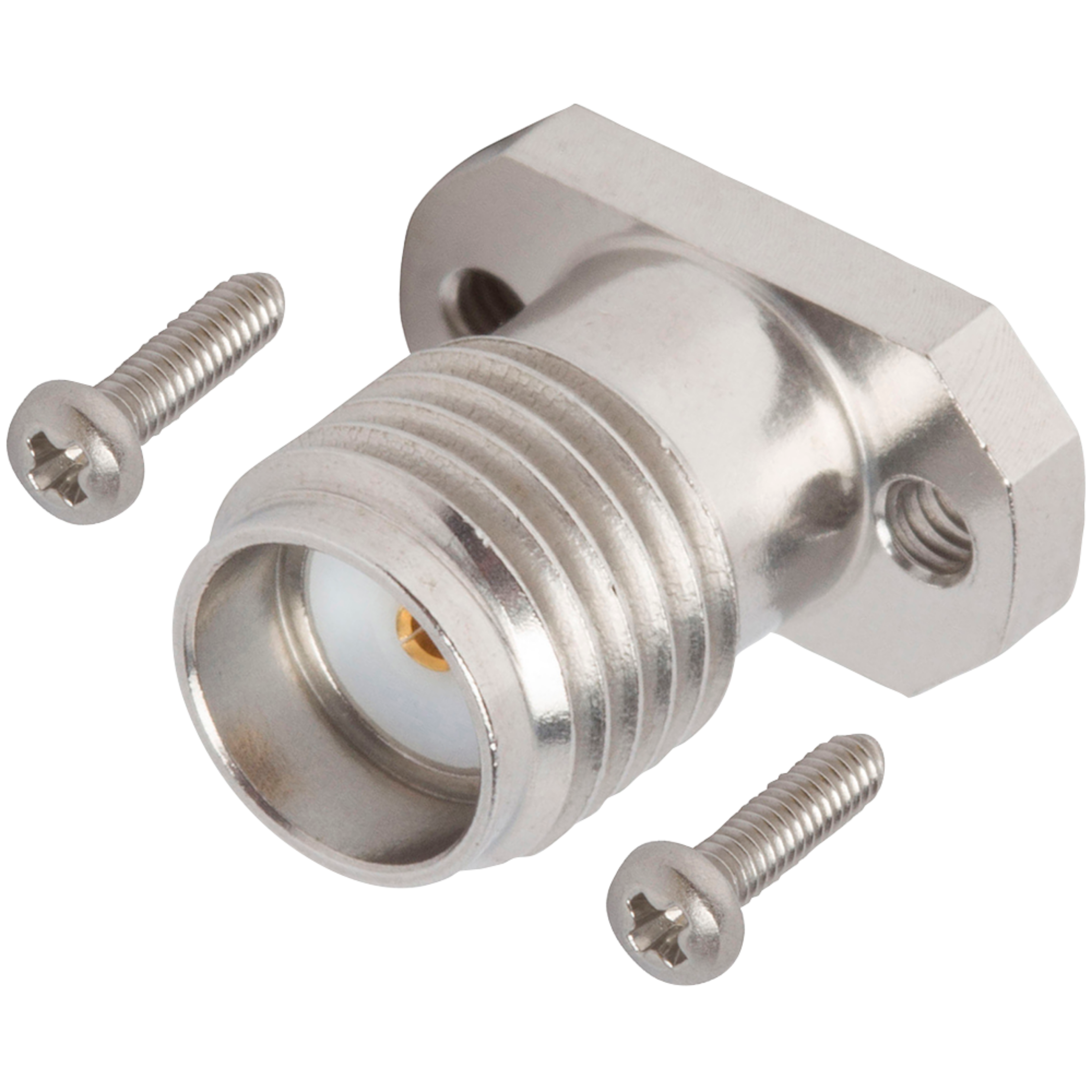

SF2921-61356-2S
