P/N: SF1521-60061-1S

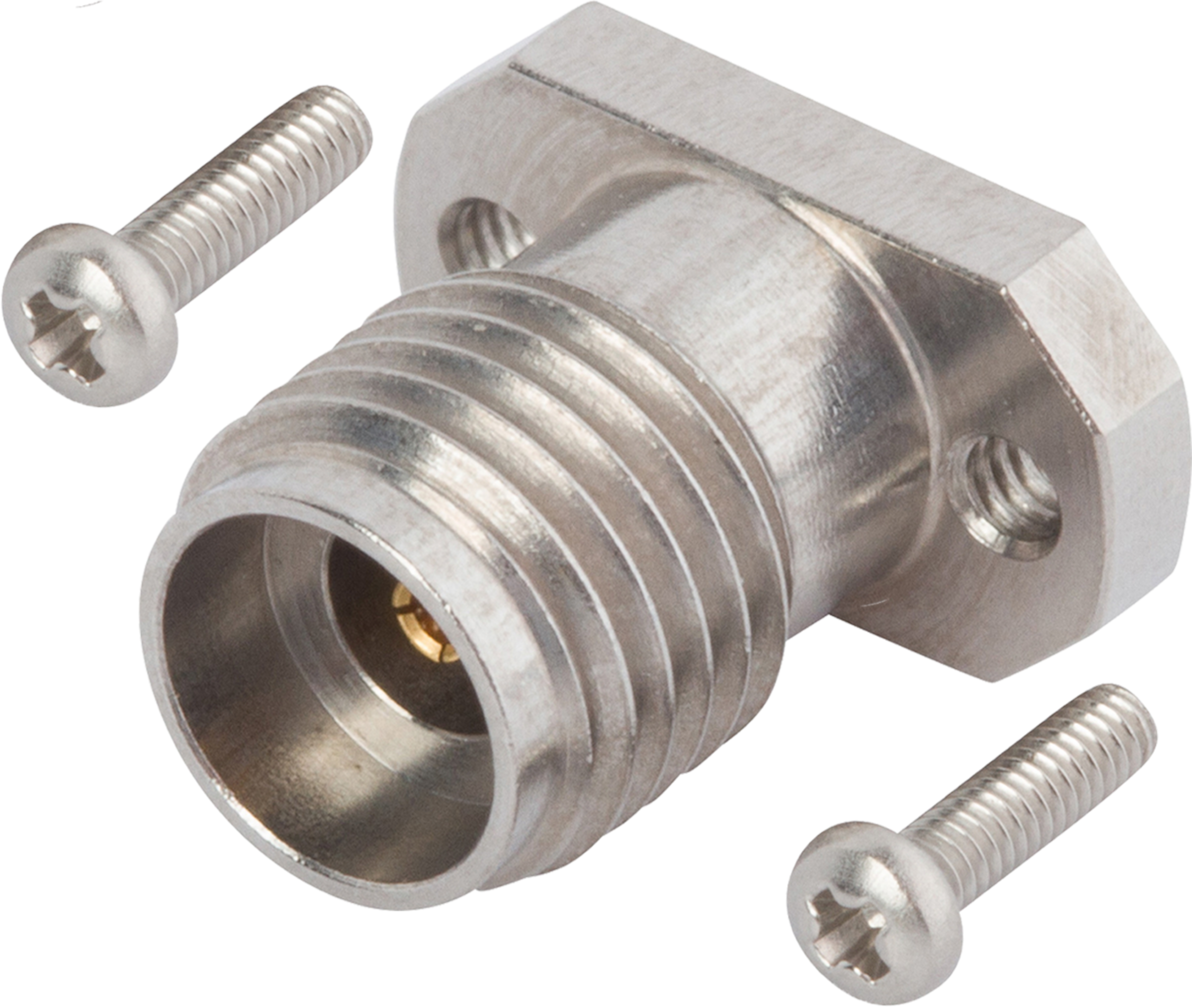

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 4.76mm Screws (Stripline)

In stock at Qty Order
Digi-Key Electronics 622
Mouser Electronics 315
TTI Inc Global Headquarters 212
Master Electronics 155
Arrow Electronics Inc 10
Heilind Electronics 5
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Termination Style Solder-free
Finish Passivated
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Frequency GHz 40 GHz
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
Gender Jack (Female)
RF Series 2.92 mm
Orientation (Body) Straight
Coupling Threaded
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Frequency 40 GHz
Impedance 50 ohms
Termination Style Solder-free
Finish Passivated
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -100 dB
Frequency GHz 40 GHz
Dielectric withstanding Voltage 750 VRMS
Mating Cycles 500
Mechanical
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Mating Torque 7 - 10 in - lbs
Inter-mate ability SMA
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Product tags
Customers Also Viewed
Part #   SF1521-60061

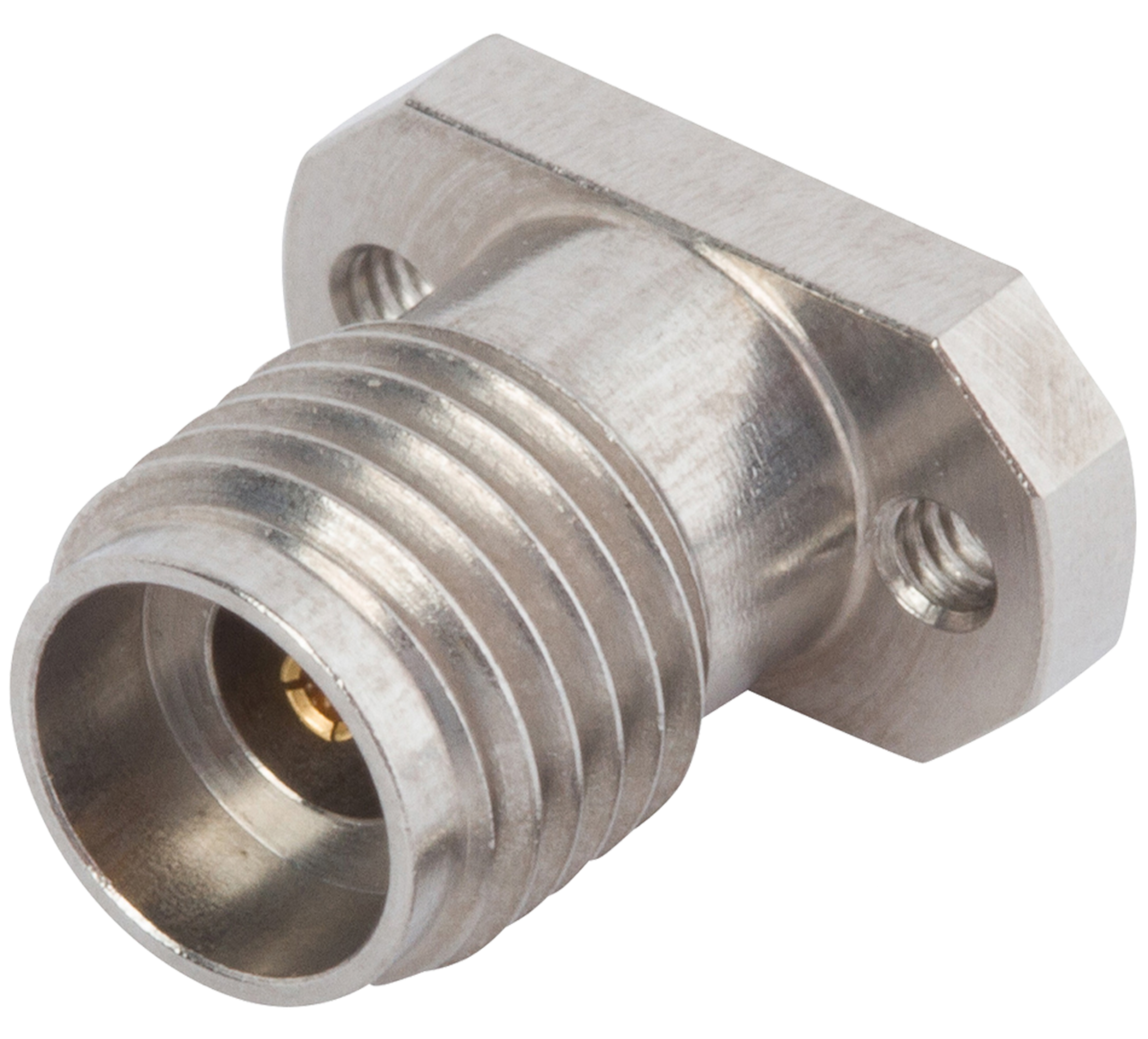

2.92mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
