P/N: M39012/55-3028

SMA Male Cable Connector, Lockwire Holes, for RG-58 Cable

In stock at Qty Order
Electro Enterprises Inc 904
Newark 245
Mouser Electronics 196
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Crimp
Impedance 50 ohms
Number of Ports Single
Frequency 11 GHz
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Coupling Threaded
Gender Plug (Male)
Orientation (Body) Straight
Termination Style Crimp
Impedance 50 ohms
Number of Ports Single
Frequency 11 GHz
MIL-SPEC M39012
Finish Passivated
Cable Type RG-58
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mating Cycles 500
Mechanical
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   M39012/55-3009

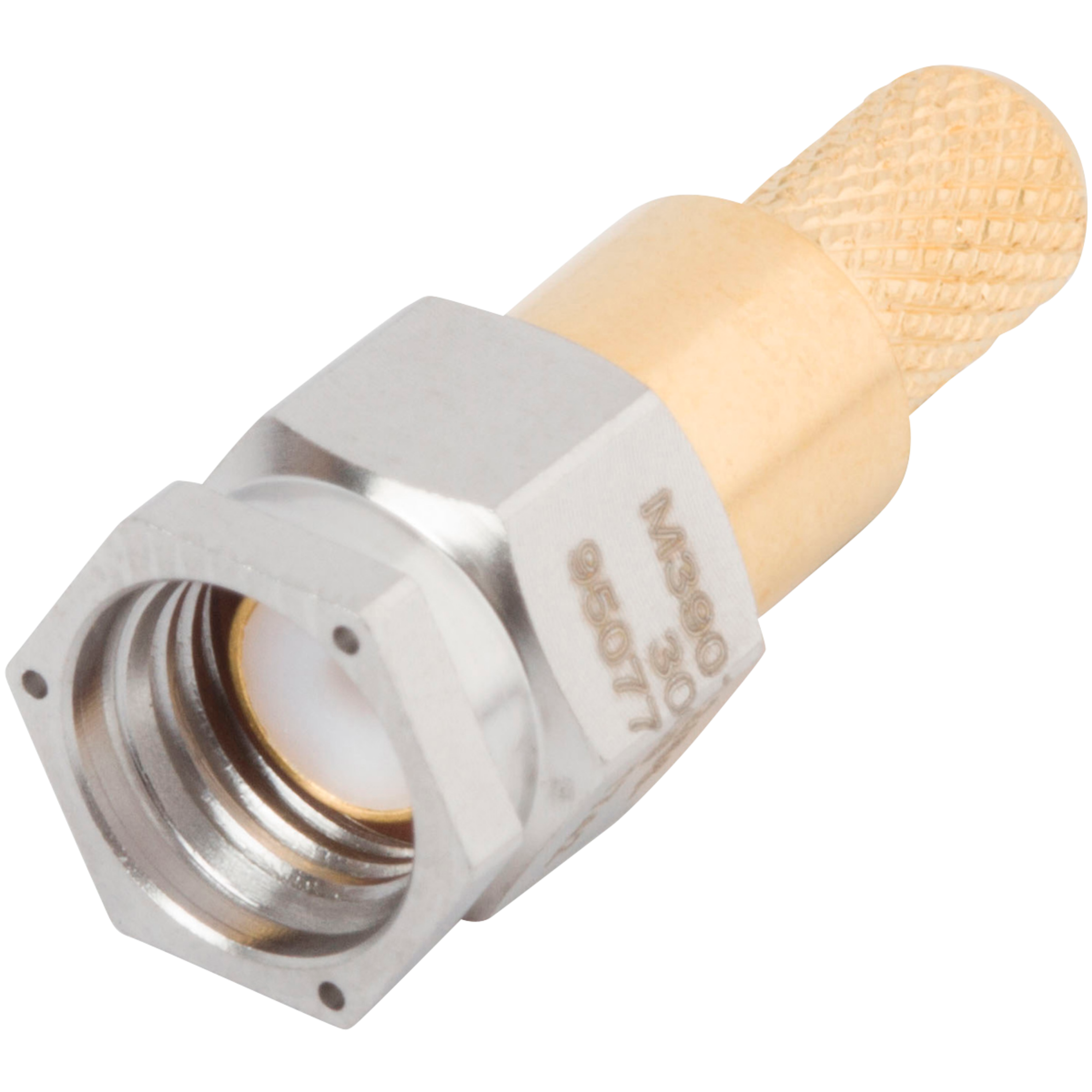

SMA Male Cable Connector, Lockwire Holes for RG-58 Cable

Available Inventory: 429
M39012/55-3009
SMA Connectors M39012/55-3009
Datasheet
Part #   M39012/55-3007

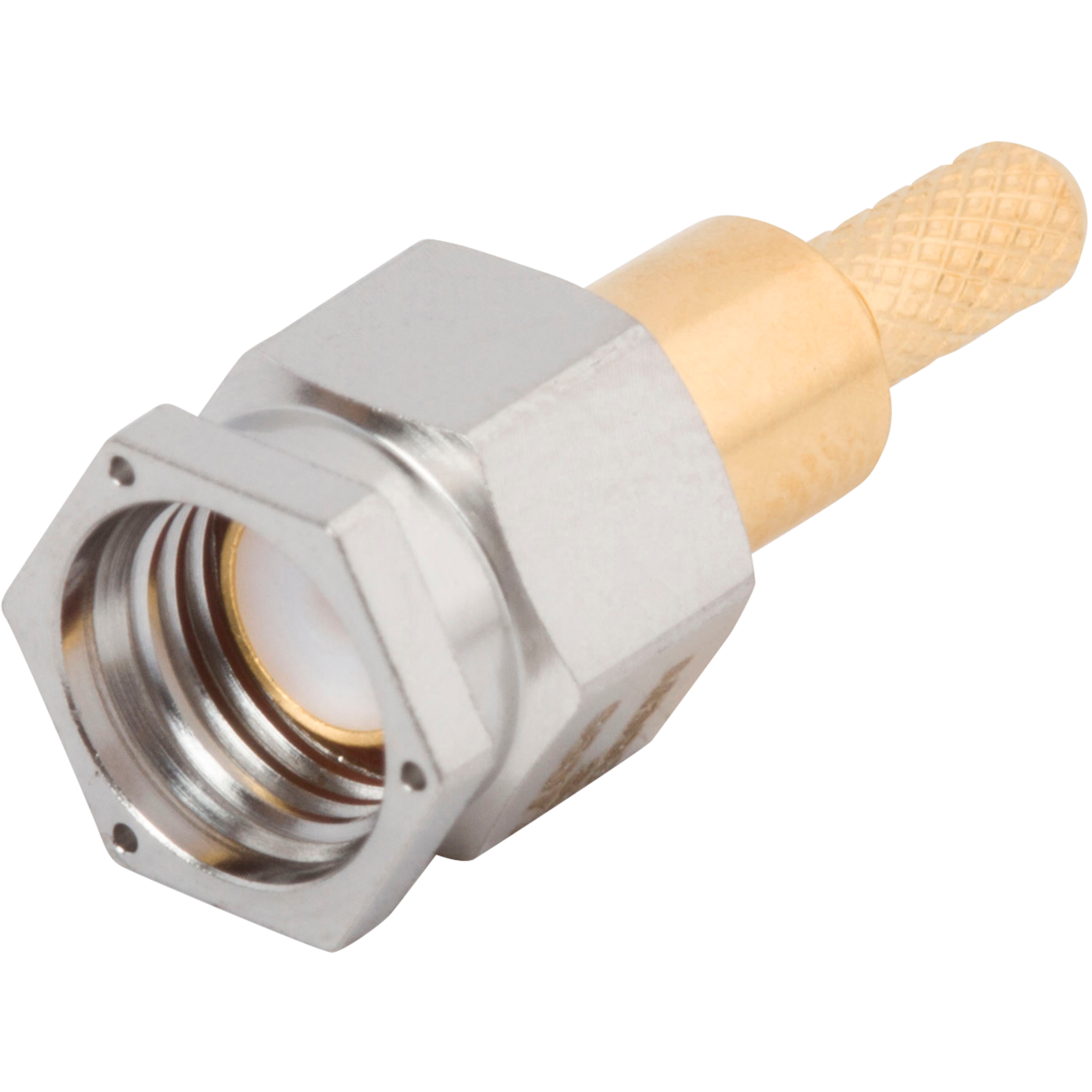

SMA Male Cable Connector, Lockwire Holes, for RG-174 Cable

Available Inventory: 86
M39012/55-3007
SMA Connectors M39012/55-3007
Datasheet
Part #   M39012/55-3026

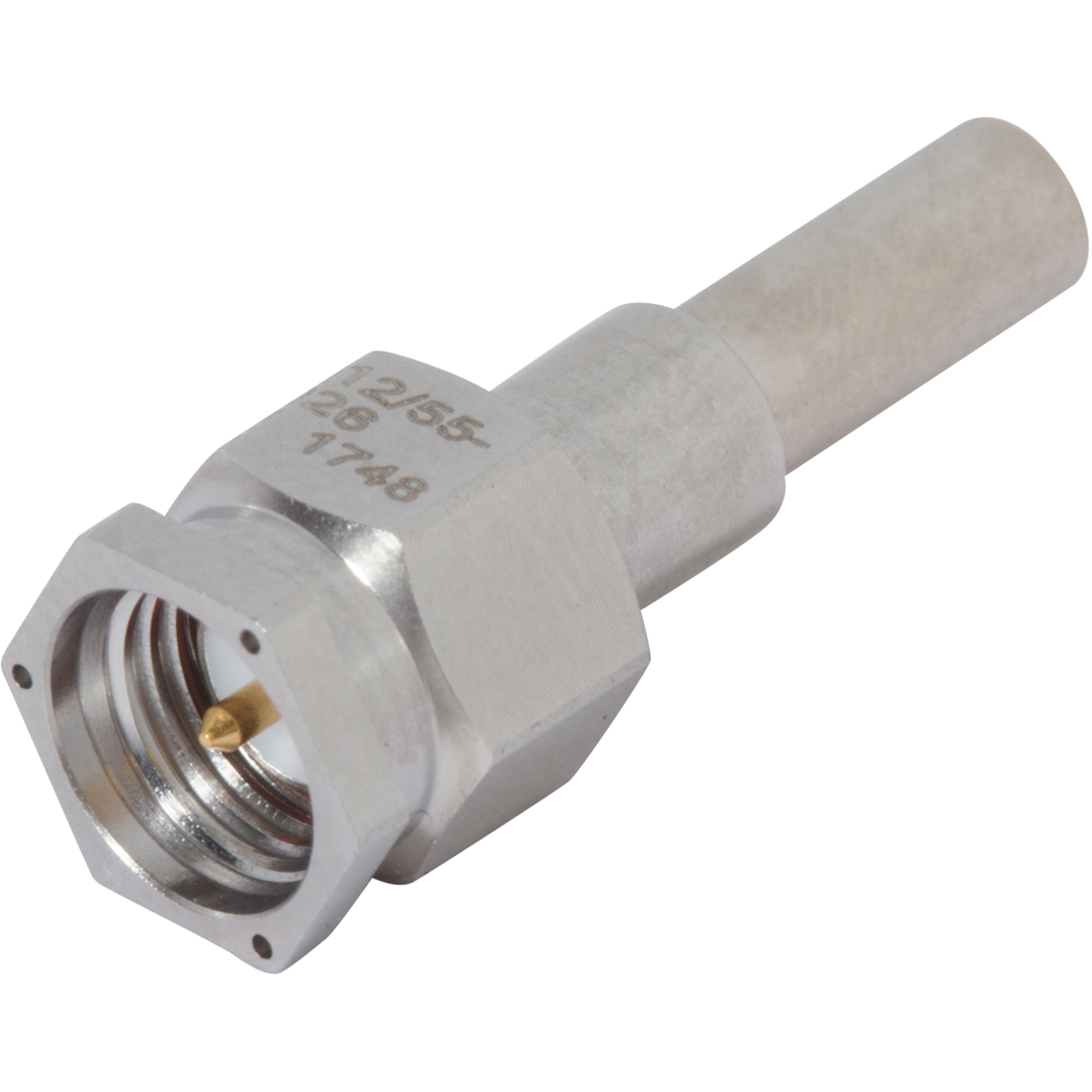

SMA Male Cable Connector, Lockwire Holes, for RG-174 Cable
