P/N: M39012/55B3015

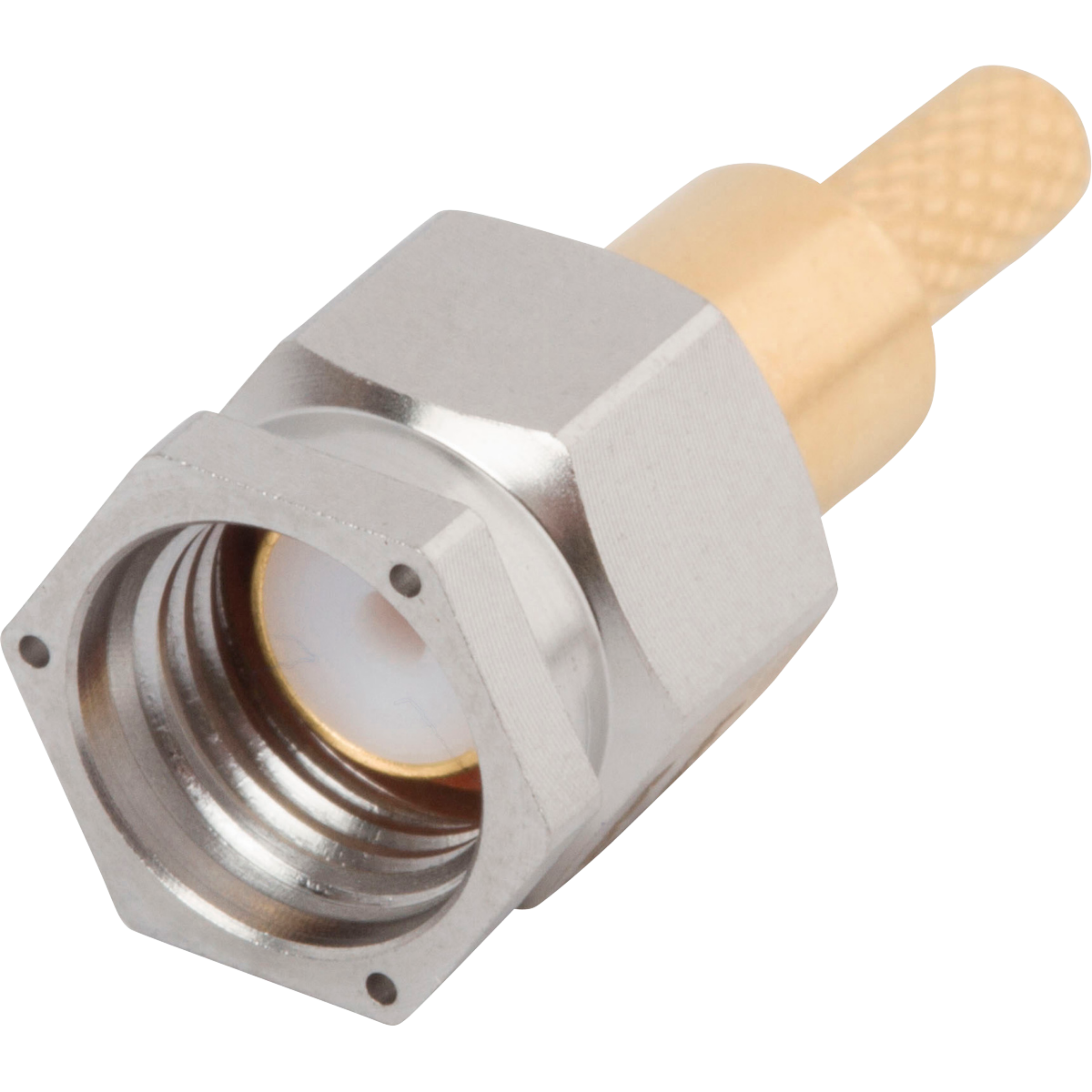

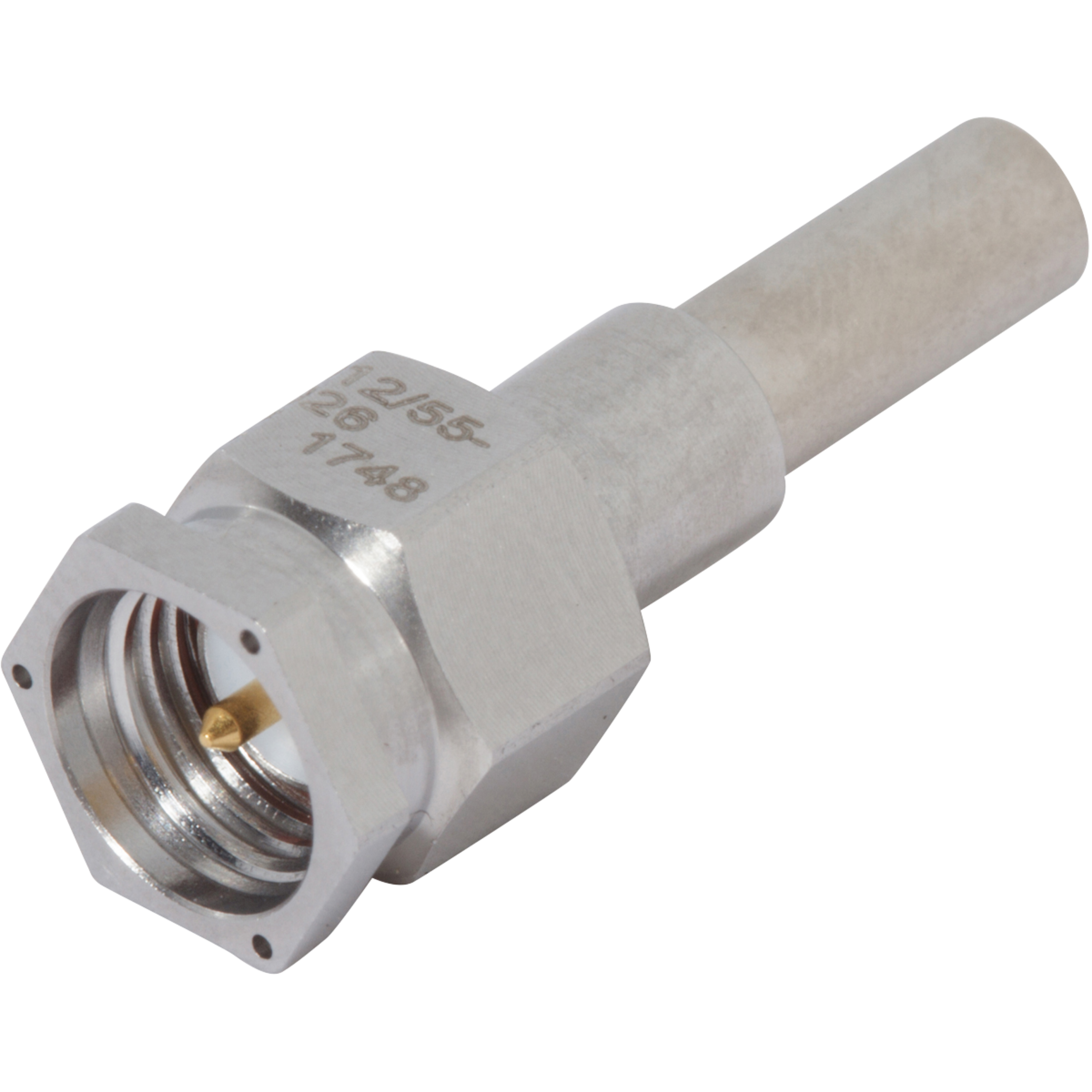

SMA Male Cable Connector, Lockwire Holes for RG-58 Cable

In stock at Qty Order
Microwave Components LLC 122
TTI Inc Global Headquarters 101
Mouser Electronics 100
Heilind Electronics 1
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Coupling Threaded
Termination Style Crimp
Gender Plug (Male)
Number of Ports Single
Frequency 18 GHz
MIL-SPEC M39012
Cable Type RG-58
Finish Passivated
Impedance 50 ohms
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Inter-mate ability 2.92mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
